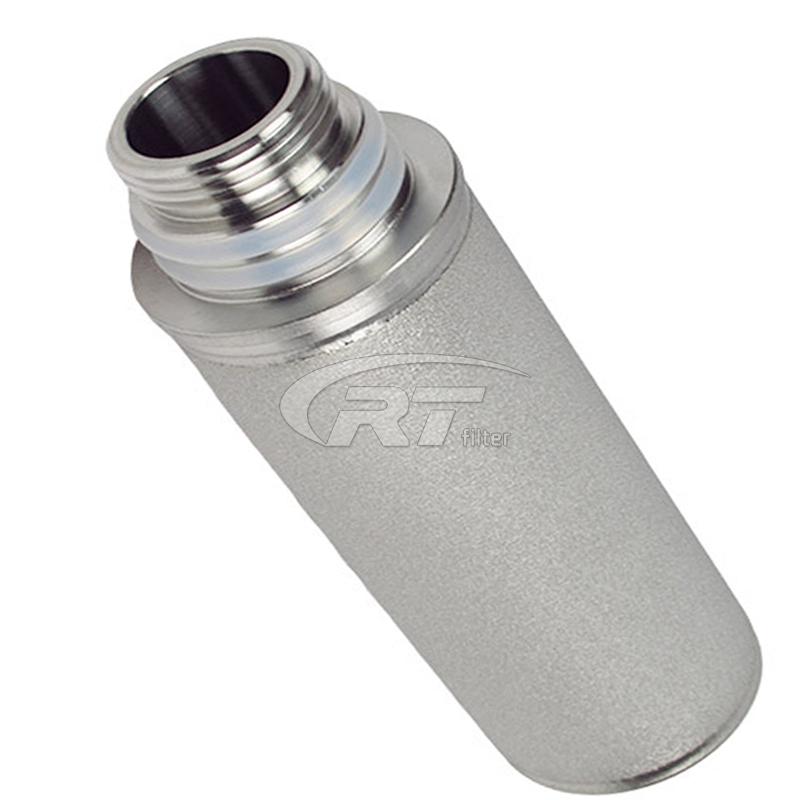

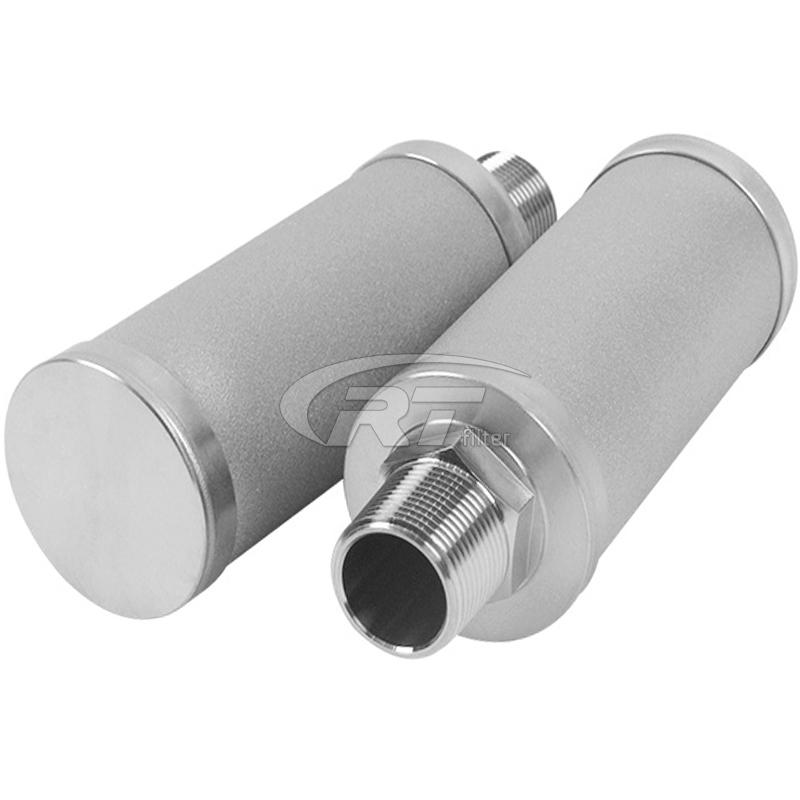

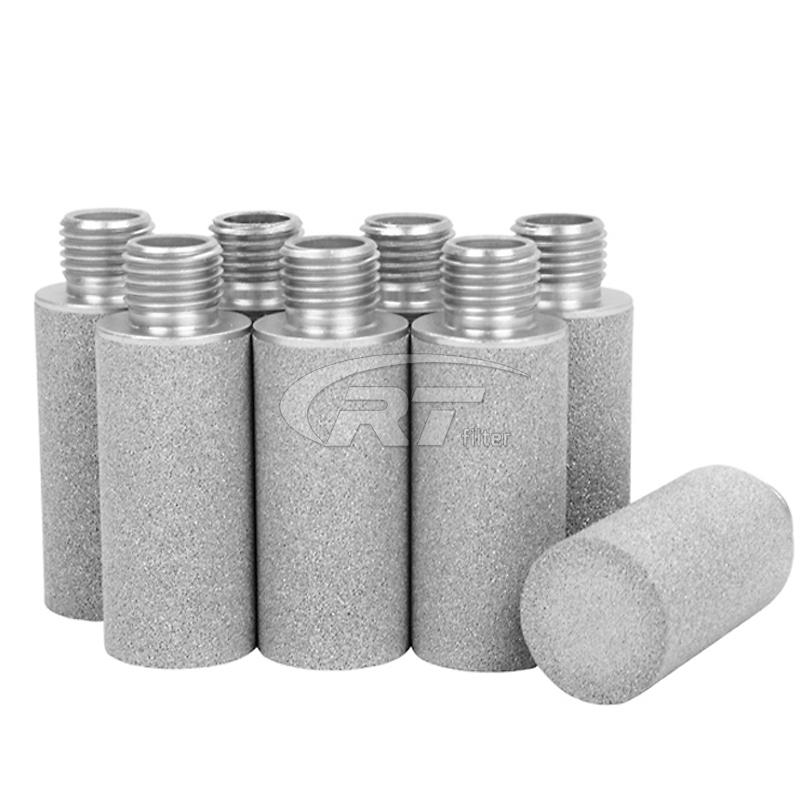

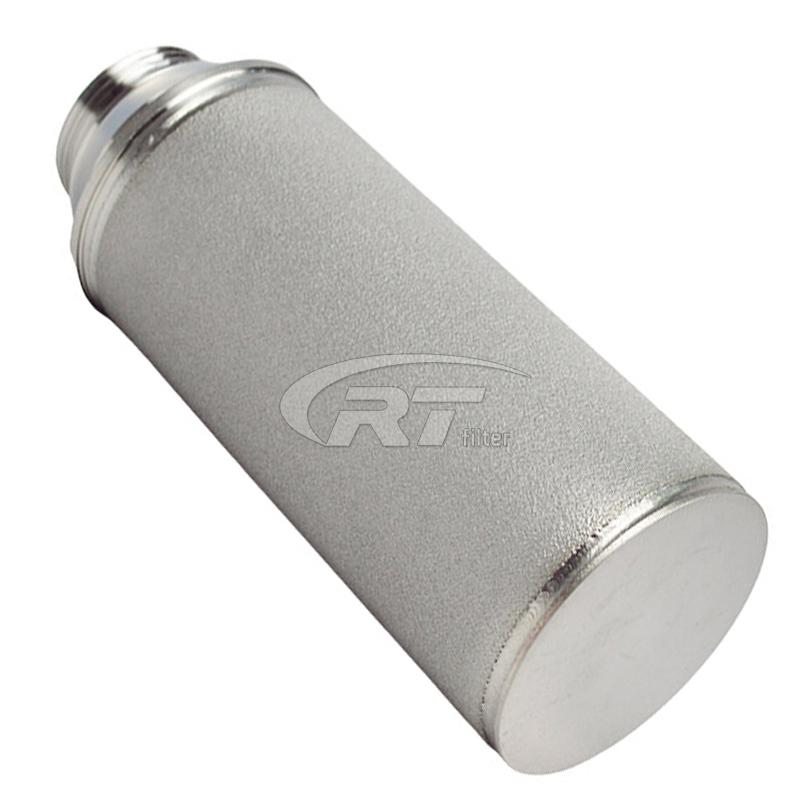

High Temperature Gas Metal Titanium Powder Sintered Filter
Device: High Temperature Gas Sintered Titanium Filter
Device Type: Sintered Titanium Tube Filter
Filter Media: Titanium metal powder
Long: 5", 10", 20", 30", 40", 50"
Pore Diameter: 0.5", 2.0", 3.0", 3.5", 5.0"
Fire-resistant: Yes
Cleanable And Reusable: Yes
Terminal Cap: Corrosion Resistant Steel
Essential Materials: Titanium metal powder,316 Stainless Steel
High temperature gas titanium powder sintered filter has achieved a triple breakthrough in filtration accuracy, environmental tolerance and service life through material composite innovation and precise structural control. It is suitable for harsh working conditions such as pharmaceutical GMP workshops, food aseptic lines, chemical corrosive fluids, etc.
High temperature gas titanium powder sintered filter has strong filtering characteristics. After acid passivation treatment, it can withstand the corrosion of halides and organic solvents in the pH range of 1 to 14. It is especially suitable for hydrochloric acid injection filtration and seawater desalination pretreatment. The oxidation resistance of 316L layer at 600℃ is 3 times higher than that of ordinary stainless steel, avoiding high-temperature sintering blockage.

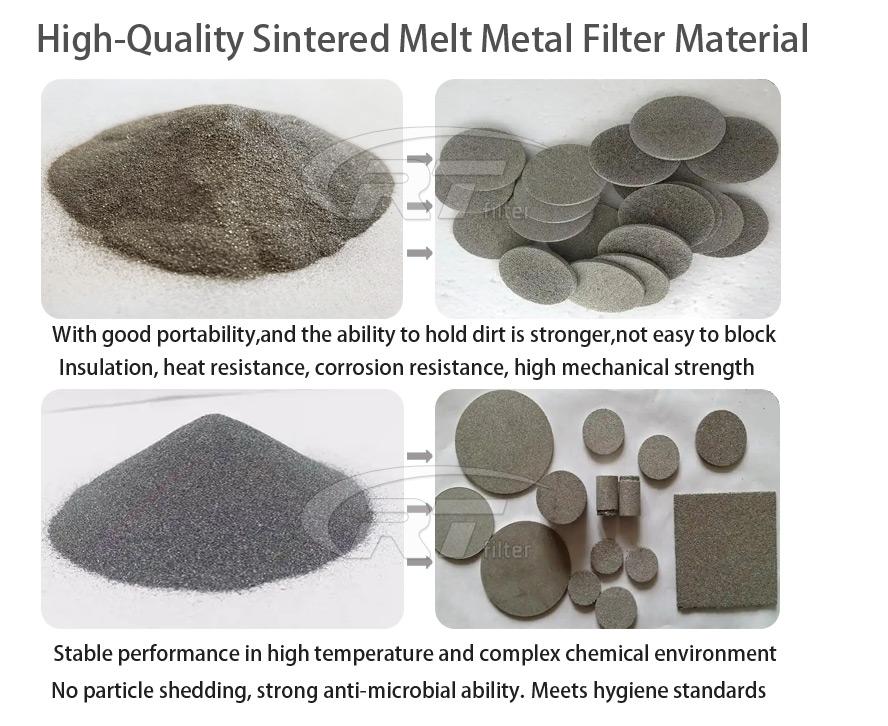

Our independently developed high temperature gas titanium powder sintered filter uses high-purity titanium metal powder of more than 99.7% (in accordance with ASTM B348 standard) and is made through a 1600-1800℃ vacuum sintering process
• Micropore precision is stable (±0.1μm), and air permeability reaches 10-15m³/(m²·h·kPa)
• Reverse pulse cleaning: Under 0.6MPa recoil pressure difference, the recovery rate reaches 95%.
• Adaptation to extreme working conditions: The fatigue strength of titanium matrix reaches 259MPa@10⁷ cycles
Recommendations for filtration accuracy selection：
✅ 0.5-5μm: medical sterile filtration, microelectronics ultrapure water.
✅ 10-20μm: petrochemical catalyst recovery.
✅ 30-50μm: pre-filtration, high viscosity liquid processing.
FAQ:
Q: Does it support non-standard customization?

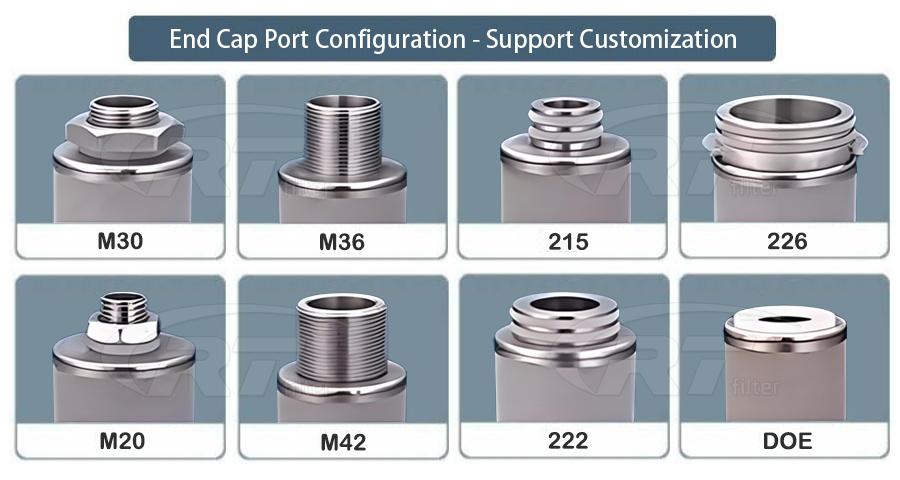

A: The filtration accuracy, interface size and shell material can be customized.
Q: High temperature gas titanium powder sintered filter replacement cycle?
A: Under normal working conditions, it is recommended to be 12-36 months, which actually depends on the degree of medium contamination.
Q: What is the shelf life of the high temperature gas titanium powder sintered filter?
A: Usually 3 years, but the storage conditions will affect the actual service life. It should be stored in a dry and dark environment.
