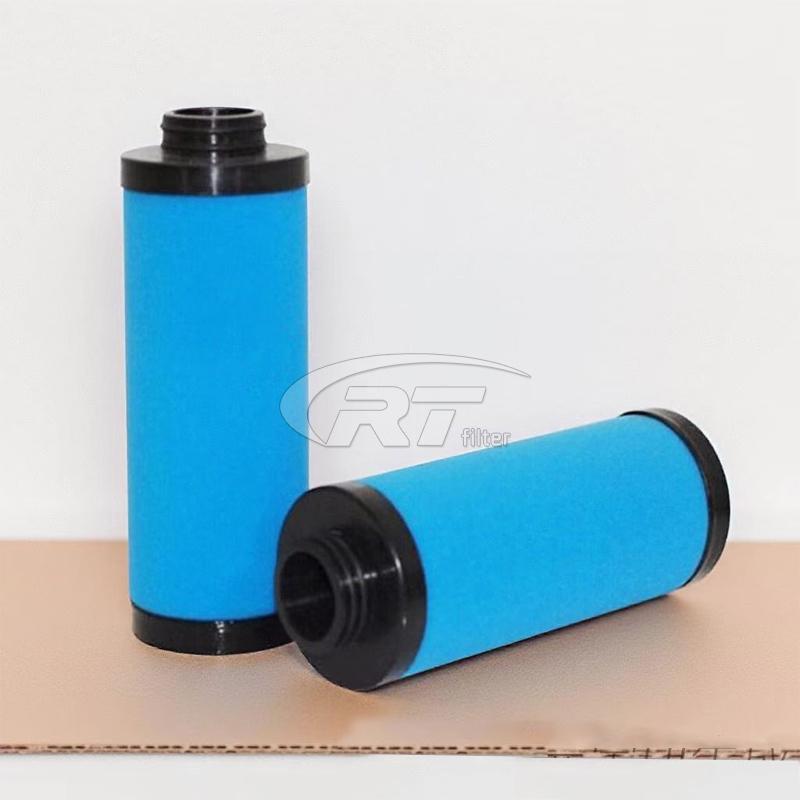

1624183004 Atlas Copco Air Compressor Line Filter
|
|
1624183004 Atlas Copco Air Compressor Line Filter
Attribute parameters:
Name: 1624183004
Type: Air Compressor Line Filter
Height: 27.33 inches
Outside Size(OD): 4.71 inches
Inside Size(ID): 2.73 inches
Industrial Applications:
Power plant air compressor filter
Air compressor protection filtration
Steel plant air compressor filter
Compressed gas oil and water removal
artnerfilter@outlook.com
|
|
About Us
Contact Us
|
Product Details
Related Specification Filters
Communication Requirements
|
|
1624183004 Performance Parameters： | Length | | 27.33 inches | | | Outside Size(OD) | | 4.71 inches | | | Inside Size(ID) | | 2.73 inches | | | Filtration Efficiency | | 0.1μm, 0.2μm, 0.3μm, 1μm, 2μm, 5μm, 10μm, 15μm | | | Filter Performance | | 99.9% | | | Life Cycle | | 5000 ~ 6000h | | | Flow Velocity | | 1 to 15L/min | | | Work Rated Temperature | | -20℃ ~ 120℃ | | | Operational Pressure | | 3bar ~ 78bar | | | Anti-aging | | ≥5 years | | | Essential Materials | | Stainless steel wire mesh,Nylon,Multilayer glassfiber | | | Terminal Cap | | Polypropylene,Corrosion Resistant Steel,Composite/plastic | | | Seal Material | | Buna-N,Viton | | | O-ring Material | | Ethylene Propylene Rubber | | | Approval Certificate | | GB/T45001-2020/ISO45001:2018 | |
|
Related Specification Filters
| 1624182904 |
1624182909 |
1624183003 |
| 1624183006 |
1624183004 |
1624183106 |
| 1624183104 |
1624183303 |
1624183301 |
