Industrial air filters
|
|
|

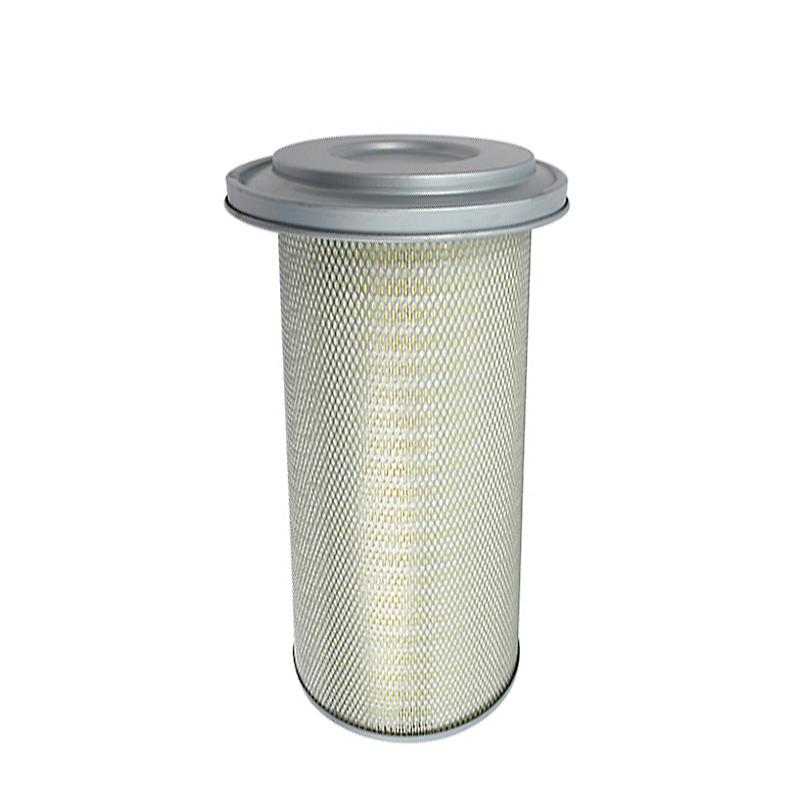

Model: P034078 016 436
Filter type: Air Filter Cartridge
Temperature Limit: 82 °C (180 °F)
Filter Area: 23.60 m² (254 ft²)
Anti-Static: Yes
Flame Retardant: Yes
O-ring Seal: Ethylene Propylene Rubber
End Caps: Corrosion Resistant Steel
Center Tube: Corrosion Resistant Steel
Series: P030192,P191772,P030179,P191006,P181188 more
|
|
We supplie Donaldson Air Filter Cartridge P034078 016 436 replacement exactly.The filter media is durablemoisture and high temperature resistantand pulse cleanable.It delivers superior filtration efficiencyexcellent pulse cleaning effectivenessand low resistance to airflow throughout the life of the filter.
|
|
|
|
|
|
Model: P31058-3
Sizes:2 48 x 522 x 51 mm
Filtration efficiency: 99.95%
Work Temperature: -10℃ ~ 120℃
Work Pressures: 21bar ~ 210bar
Life: 2000h ~ 6000h
Seal: Viton
Filter material: Fiberglass
Seal Material: Viton (Fluorocarbon)
Filtration Method: Pressure Filtration
Mesh Liner: Corrosion Resistant Steel
Structure Frame: Corrosion Resistant Steel
|
|
We make kinds of air filter elementwhen we produce the P31058-3 before filling the filter materialstick a layer of galvanized iron mesh (or stainless steel mesh) on the air outlet surface of the filter materialand then cover with a layer of galvanized iron mesh (or stainless steel mesh) after filling the filter material.
|
|
|
|
|
|
Model: R080325-000-440
Type: Donaldson Air Filter
Filter material: Ultra-Web Spunbond
Length: 568 mm
Width: 192 mm
Height: 178 mm
Max. Temp: 65°C
Filtration Area:5.8m²
Filtration efficiency: 99.95%
Series: P785965, P635979, P607542, P610875, 84191182, P611698 more
|
|
R080325-000-440 air filter is designed for industrial air purification systems and is widely used in high-precision environments such as HVAC systems, clean rooms, manufacturing workshops and medical facilities.
|
|
|
|
|
|
Filter Type: Pockets Bag Filter
Initial pressure drop: 40pa
Filter material: Fiberglass
Sizes: 592*592*550mm
Pockets Nos.: 8Pcs
Flow rate: 2700m³/h
Maximum temperature: 80°℃
filtration efficiency: G3/30-35%
Seal: Viton
Series: 495*595*500mm, 295*595*500mm more
|
|
Pockets bag filters can be used in general air purification system for electronicfoodbio-pharmaceuticalmechanical instrumentautomobile sprayingpetrochemical light industry and public service places such as airport subway and large shopping mall.
|
|
|
|
|
|
Filter Type: V Bank Large Volume Air Filter
Filtration efficiency: H10-H11
Flow rate: 3200m³/h
Filter material: Fiberglass
Initial pressure drop: ≤180pa
Maximum temperature: 80°℃
Sizes: 592*592*292mm
Seal: Viton
V Nos.: 4Pcs
Series: 592×287×292mm, 592×490×292mm more
|
|
V/W row high efficiency air filter using ultrafine glass fiber filter paper, composed of a plurality of filter elements, no partition, strictly sealed. Efficiency covers F7 to H13. It has the characteristics of large filter area, low resistance, long service life (can reach 2-3 times the traditional filter partition device), and has a wide range of applications.
|
|
|
|
|
|
Filter Type: Cardboard Frame Pleated Air Filter
Filtration efficiency: H10-H11
Filter material: Fiberglass
Sizes: 592x592x44mm
Flow rate: 2040-4250m³/h
Maximum temperature: 93℃
filtration efficiency: G4
Seal: Viton
Filter material: non-woven fabricglass fiber and synthetic fiber
Series: 390x591x44mm, 592x592x95mm more
|
|
Cardboard frame pleated air filter is mainly suitable for filtering particles with a diameter of 5um.It is made of non-woven fabricglass fiber and synthetic fiber by blending or polyester fiber as the filter material.The wedge-shaped folding shape has a large filtering areaand is equipped with a high-strength cardboard frame to make a plate structure.
|
|
|
|
|
|
Filter Type: Aluminium frame Washable Plate Air Filter
Sizes: 595x595x46mm
Flow rate: 3200m³/h
Filtration area: 1.23㎡
filtration efficiency: G2 G3 G4 F5 (ISO 16890)
Filter material: Polyester Synthetic Fiber
Maximum temperature: 93°C (200°F)
Seal: Viton
Series: 595x495x46mm, 595x295x46mm more
|
|
The aluminium frame washable plate air filter material is made of high-quality polyester synthetic fiber.The air inlet surface is fluffy and the air outlet surface is tight.While ensuring the efficiencyit provides a large dust holding capacitya reasonable design of the number of filter elementsand increases the effective filtration area.Reduced resistance and increased dust holding capacity.
|
|
|
|
|
|
Filter Type: HEPA/ULPA Plate Air Filter
Sizes:305x610x50mm
Flow rate: 350m³/h
Initial Pressure Drop: ≤220Pa
Filtration Efficiency: H13 H14 U15 U16(EN1822)
Filter material: Fiberglass
Maximum temperature: 80°C (180°F)
Seal: Viton
Series: 610x610x50mm, 305x610x69mm more
|
|
We make the HEPA/ULPA HVAC plate air filter without interlayersit is made of fine glass fiber paper and hot-melt adhesiveused for air purification under normal temperaturepressure and humidity conditions.The special structure of the filter material makes the porosity of the filter bed quickly form up and down.The small gradient density makes the filter fast in filtering speedlarge in interception capacity and easy to backwash.
|
|
|
|
|
|
Filter Type: HVAC HEPA Air Filter
Sizes: 305x610x80mm
Flow rate: 200m³/h
Initial pressure drop: ≤220Pa
filtration efficiency: H10, H11, H12, H13, H14
Filter material: Fiberglass
Maximum temperature: 80°C (180°F)
Seal: Viton
Series: 610x610x80mm, 610x610x80mm more
|
|
We use ultra-fine glass fiber filter paper as filter materialglued paperaluminum foil board and other folded materials interlayersnew sealed polyurethane sealantgalvanized sheetstainless steel sheet and aluminum alloy profile as the outer frame for the high efficiency aluminium frame deep pleats air filter.
|
|
|
|
|
|
