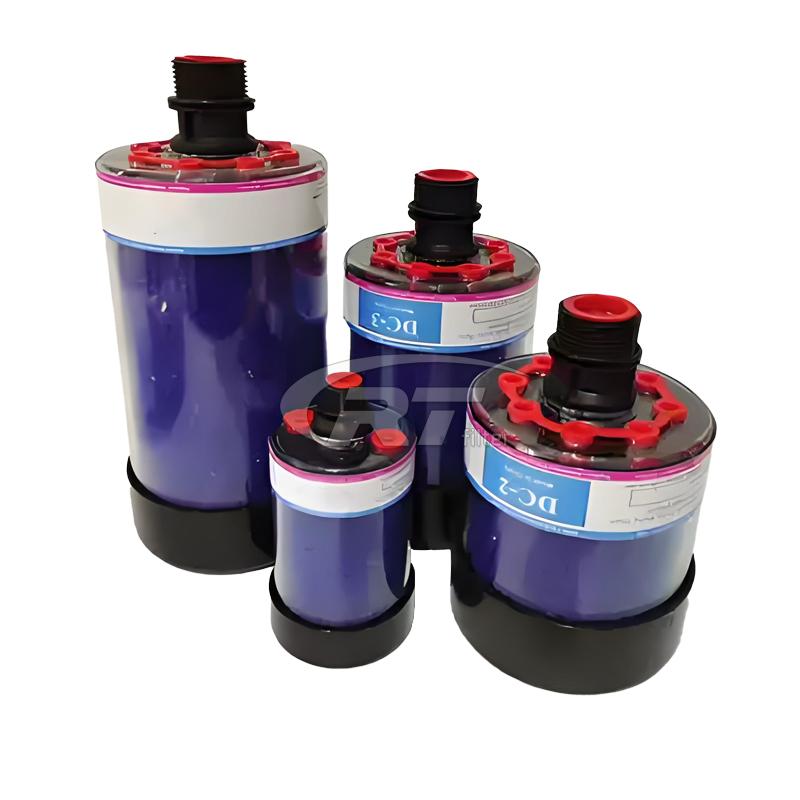

DC-VG-1 Des-Case Desiccant Breather
|
|
DC-VG-1 Des-Case Desiccant Breather
Attribute parameters:
Name: DC-VG-1
Type: Des-Case Desiccant Breather
Height: 5.36 inches
Outside Size(OD): 2.52 inches
Inside Size(ID): Standard
Industrial Applications:
Agricultural machinery air Des-Case filtration
Air cooling island respirator
Gearbox dryer respirator
Air dehumidifier
artnerfilter@outlook.com
|
|
About Us
Contact Us
|
Product Details
Related Specification Filters
Communication Requirements
|
|
DC-VG-1 Performance Parameters： | Length | | 5.36 inches | | | Outside Size(OD) | | 2.52 inches | | | Inside Size(ID) | | Standard (Support customed) | | | Filtration Efficiency | | 1μm, 2μm, 5μm, 10μm, 15μm, 20μm | | | Filter Performance | | 99.9% | | | Life Cycle | | 8000 ~ 10000h | | | Flow Velocity | | 1 to 25L/min | | | Work Rated Temperature | | -20℃ ~ 95℃ | | | Operational Pressure | | 21bar ~ 210bar | | | Anti-aging | | ≥5 years | | | Essential Materials | | Stainless steel wire mesh,Nylon,Multilayer glassfiber | | | Terminal Cap | | Polypropylene,Corrosion Resistant Steel,Composite/plastic | | | Seal Material | | Buna-N,Viton | | | O-ring Material | | Ethylene Propylene Rubber | | | Approval Certificate | | GB/T45001-2020/ISO45001:2018 | |
|
Related Specification Filters
| DC-VG-1 |
DC-VG-2 |
DC-VG-3 |
| DC-VG-BB |
DC-VG-4 |
DC-VG-1-PC |
Application Scenarios Of Filter Element
