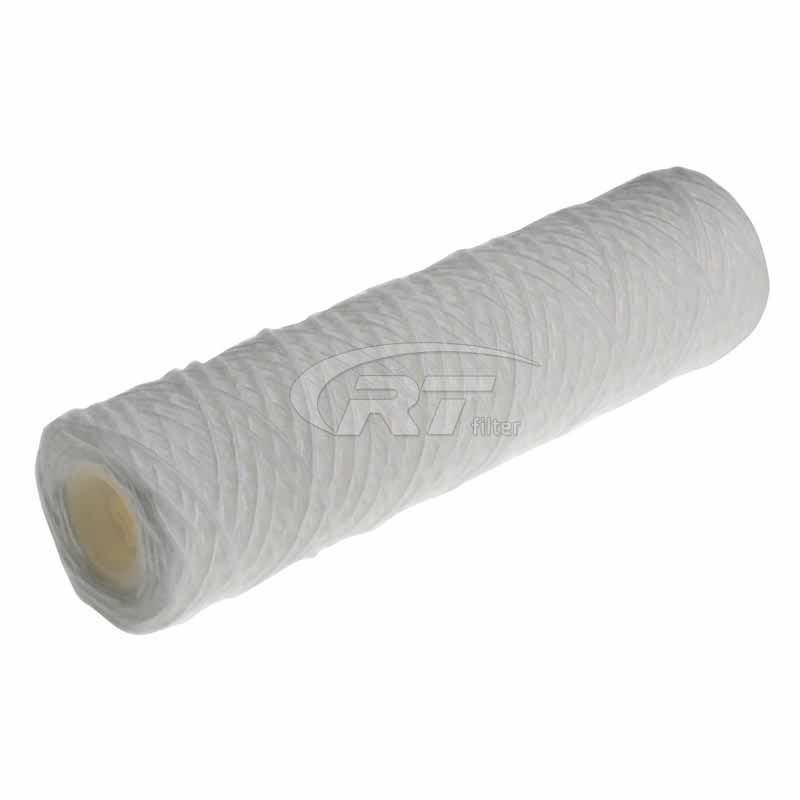

Brief Introduction: The wire-wound water filter element is made of textile fiber roving,which is tightly wound on the porous skeleton according to a specific process to form a honeycomb structure with a sparse outside and a dense inside. It has very good filtration characteristics and can effectively remove suspended solids,rust,particles, etc. in the fluid.
Features: (1). The wire wound filter element is made of textile fiber yarn tightly wound on the porous skeleton, and the filter element with different filtration precision is formed by controlling the winding density of the filter layer and the shape of the filter hole. (2). Can withstand high filtration pressure (3). have good chemical compatibility (4). The filter element can be made of various materials to meet the needs of various liquid filtration (5). The structure of the filter pore diameter is dense inside and sparse outside, which has a good deep filtration effect (6). Can effectively remove suspended solids, particles, etc. in the liquid, with small pressure drop and large dirt holding capacity
Technical Specifications / Component Materials: Outer diameter: 62mm, 110mm Inner diameter: 28mm, 30mm Length: 9.75", 9.87", 10", 20", 30", 40" Filter material: polypropylene (PP), absorbent cotton Center Rod: Polypropylene, Stainless Steel
Application： (1). General drinking water pre-filtration treatment. (2). Filtration of acid and alkali liquids in chemical processes. (3). Filtration of chemical raw materials and organic solvents. (4). Ro reverse osmosis pre-filtration treatment. (5). Filtration of various slurries such as syrup and chocolate. (6). Filtration of imaging chemicals and inks. (7). Pre-filtration treatment of sterile water and ultrapure water. (8). Industrial water,filtration of electroplating solution.

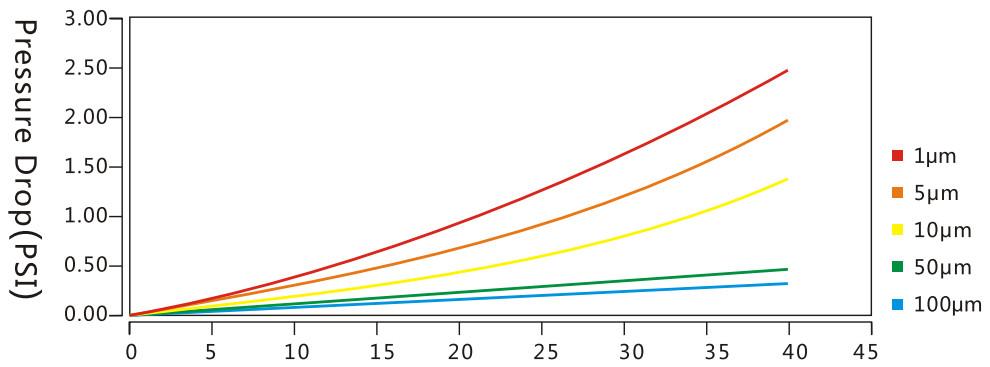

Filter performance：
Flowrate(LPM)
(1). Filtration accuracy:0.5um, 1um, 5um, 10um, 20um, 30um, 50um, 75um, 100um (2). Polypropylene wire-wound filter element can be used for non-organic solutions such as acids and alkalis, chemical solutions, etc. (3). The recommended maximum operating temperature is ≤60°C (4). The center rod of the absorbent cotton fiber filter is made of stainless steel,which can be used for organic solutions,water,oil,alkaline solutions,beverages,medicines, etc.
PartnerFilter also offers a full range of replacement filter elements: Parker 3M Pall Pentair Peco Other types are available on request
|
