Replacement of Hankison XF Series High-efficient Compressed
Brand:PartnerFilter
Model:XF3-24
Application:Compressed air
Max. flow rate :2.9NM/min
Filtration accuracy:0.01μm
Connected dimension:1-1/2"
Filter element type:E3-24
Maximum working pressure:16barg/232Psig
Maximum operating temperature:66℃ (120℃ is also available)
The replacement of Hankison XF series compressed air filters are complete in specifications and can handle flows of 1~252Nm³/min.There are XF9(3µl) XF7(1µl) XF5(0.01µl) XF3(0.01µl) XF1(activated carbon) five grades for you to choose.
The replacement of Hankison XF series compressed air filters are complete in specifications and can handle flows of 1~252Nm³/min.There are XF9(3µl), XF7(1µl), XF5(0.01µl), XF3(0.01µl), XF1(activated carbon) five grades for you to choose.PartnerFilter has the world's most advanced testing equipment imported from Germany.We can also make special products according to the requirements and dimensions provided by customers,and provide Domnick Hunter,Hankison,Paker, Ultrafilter,Hiross,Zander,BEA,SMC and other quality precision filter element replacement.

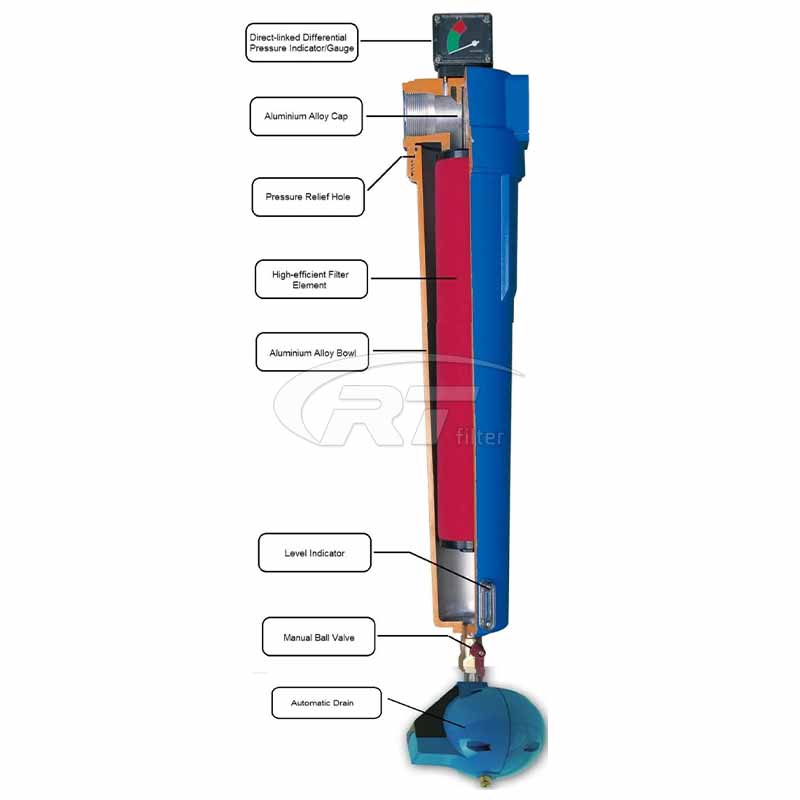

Characteristics:
· Extend existing routes to mitigate pressure drop
· The filter shell is made of high quality aluminum alloy and carbon steel.
· Coated with epoxy powder to improve durability and corrosion resistance.
· The inlet and outlet are connected with threads. Filter housing is marked with wind direction for easy installaTion.
· Compact design to reduce maintenance space.
· The new pressure indicator indicates the best time to change the filter.
· The level indicator is convenient to monitor the level,pay attention to the preventive maintenance status, and avoid downstream pollution.
· Reliable automatic drainer
Related Specification Filters
More filters with techinical data:
Filter P/N.
Flow Rate(NM/min)
Pipe connections
Filter element P/N.
Qty of element(Pcs)
A
B
C
D
Appearance design
XF*-16
1
1/2"
E*-16
1
104
217
243

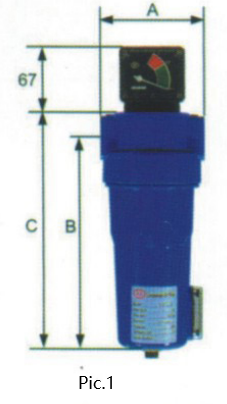

Pic. 1
XF*-20
1.72
1"
E*-20
1
104
287
313
Pic. 1
XF*-24
2.9
1-1/2"
E*-24
1
138
385
424
Pic. 1
XF*-28
4.9
1-1/2"
E*-28
1
138
385
424
Pic. 1
XF*-32
7.2
1-1/2"
E*-32
1
138
585
624
Pic. 1
XF*-36
10.7
2"
E*-36
1
148
639
685

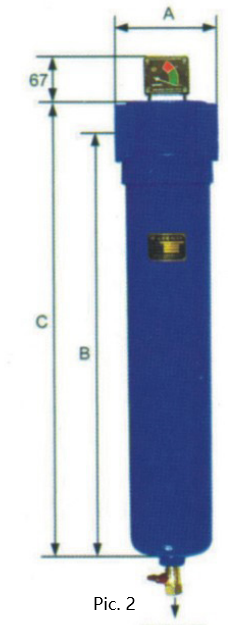

Pic. 2
XF*-40
14
2"
E*-40
1
148
639
685
Pic. 2
XF*-44
17.7
DN65
E*-44
1
300
770
940
125

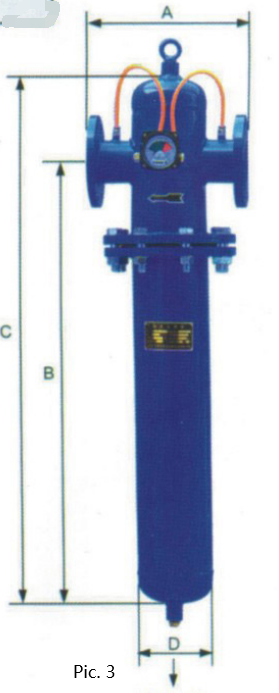

Pic. 3
XF*-48
22
DN80
E*-48
1
336
940
1118
150
Pic. 3
XF*-56
36
DN100
E*-44
2
500
950
1150
250
Pic. 3
XF*-60
54
DN100
E*-44
3
500
950
1150
250
Pic. 3
XF*-64
72
DN100
E*-44
4
600
990
1250
350
Pic. 3
XF*-68
90
DN125
E*-44
5
600
990
1250
350
Pic. 3
XF*-70
108
DN125
E*-44
6
600
1070
1350
350
Pic. 3
XF*-72
105
DN150
E*-44
7
630
1020
1350
400
Pic. 3
XF*-73
144
DN150
E*-44
8
700
1020
1350
450
Pic. 3
XF*-74
162
DN150
E*-44
9
780
1070
1400
500
Pic. 3
XF*-75
180
DN150
E*-44
10
780
1070
1400
500
Pic. 3
XF*-76
198
DN150
E*-44
11
780
1070
1400
550
Pic. 3
XF*-80
252
DN150
E*-44
14
780
1130
1460
550
Pic. 3
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
