Hydraulic oil filter housing

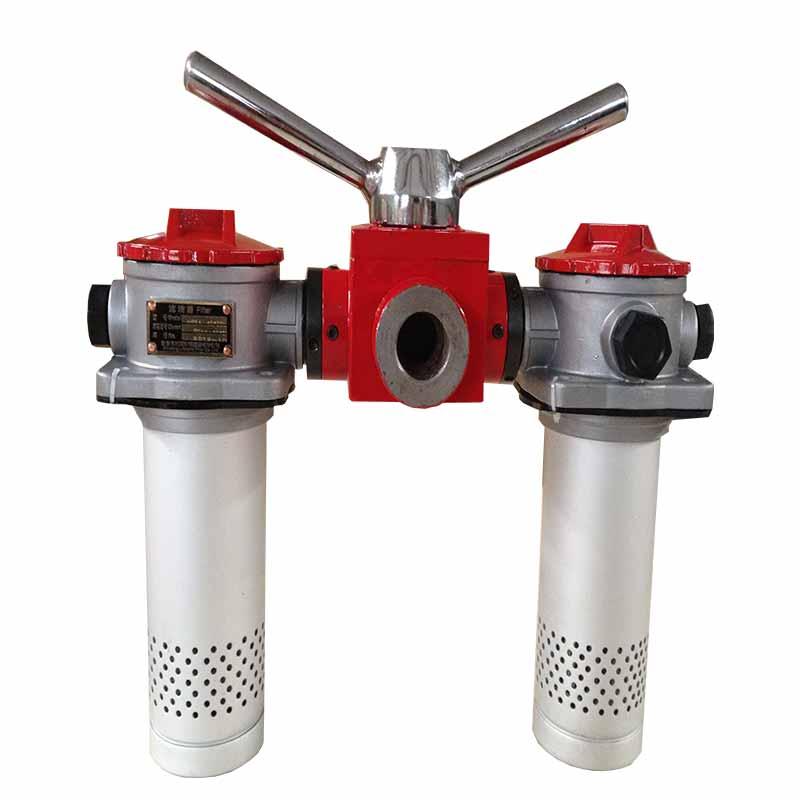

PartnerFilter designs the hydraulic oil filter housing SRFA-400×20LY with two single bowl filtersa 2-position 3-way directional valveby-pass valveindicator and diffuser.It is simple in structure and easy to use.It is mounted on tank top;there is by-pass valve and contamination indicator in itfor protecting the hydraulic system safety.The feature of this filter allows continuous operation even during replacing elementwhich is clogged by contaminant.When the filter element is clogged by contaminant that results in the pressure reaching to 0.35MPathe indicator will give signals.At this timeturn the directional valve in order to make the other filter work then change the element.

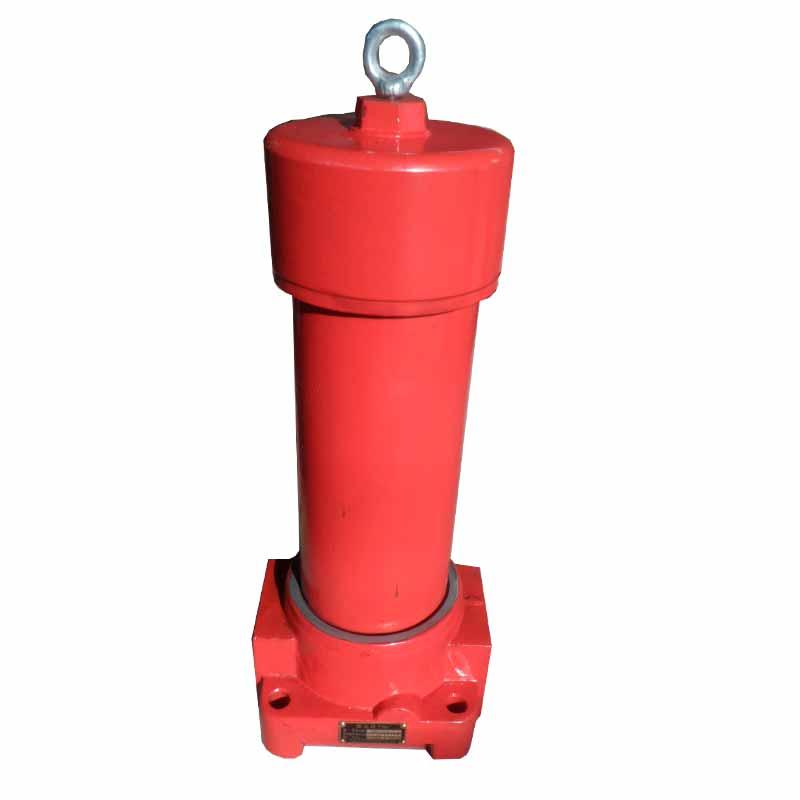

ZUI-H250X20DFP High Pressure Line Oil Filter can avoid filtering the mechanical impurities mixed in the hydraulic oil and the colloid asphalt residue generated by the chemical change of the hydraulic oil itself to prevent the spool from sticking. It is installed on the pressure pipe of the hydraulic system to avoid the blockage of throttle hole clearance and damping hole rapid wear of hydraulic components and other faults.

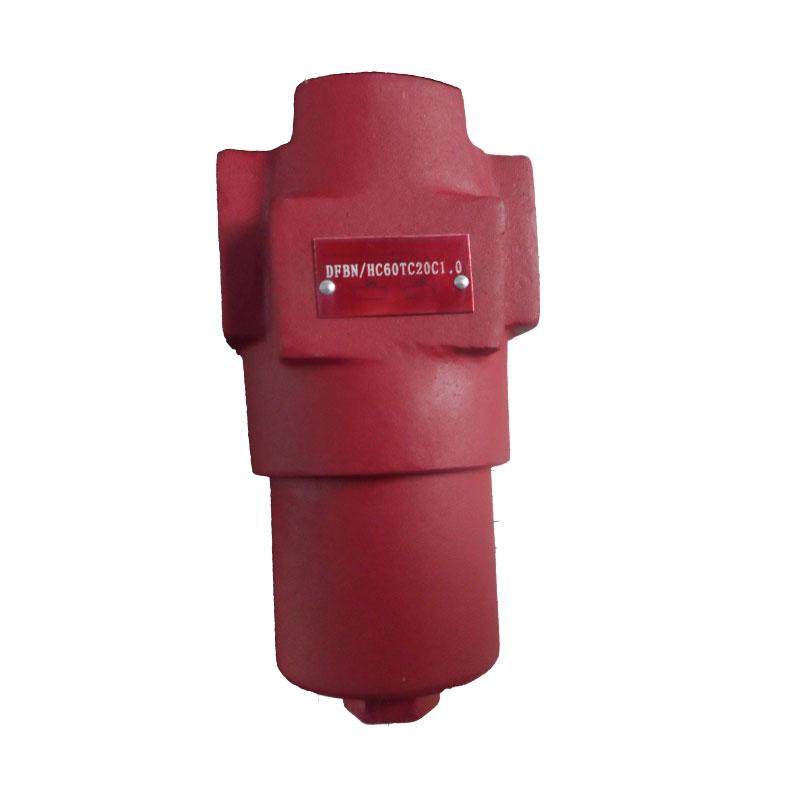

DFBNHC60TC20C1.0 is used to filter solid particles and colloids in the working medium to effectively control the pollution of the working medium. The filter housing is installed in the pressure line of the hydraulic system and the differential pressure transmitter can be assembled as required. At the same time, the filter element of the hydraulic oil filter is made of glass fiber and stainless steel metal mesh. The upper and lower shell is made of steel bar with beautiful appearance and reliable performance.
