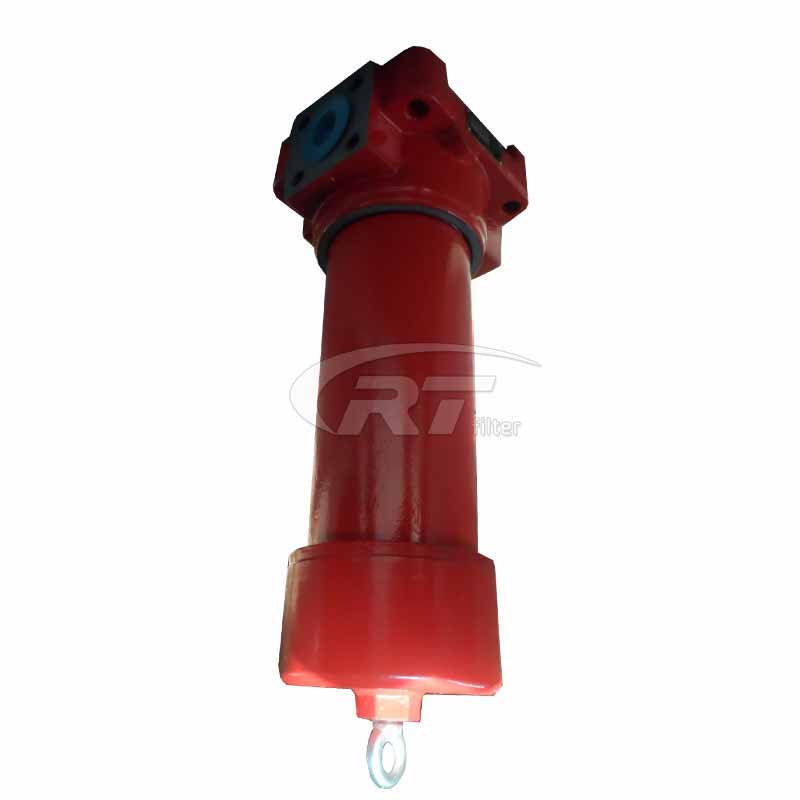

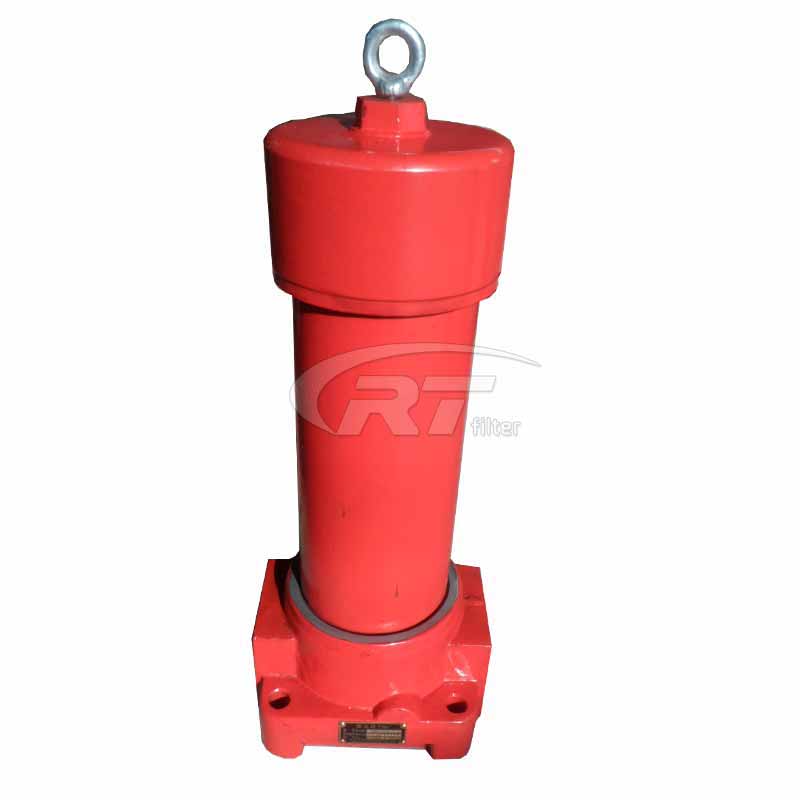

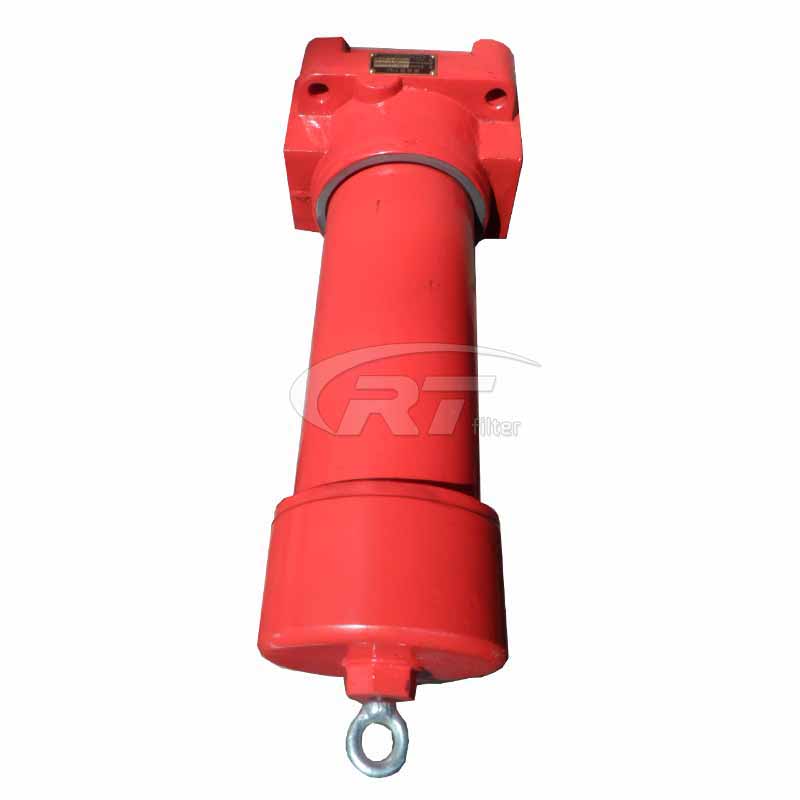

ZUI-H250X20DFP High Pressure Line Oil Filter can avoid filtering the mechanical impurities mixed in the hydraulic oil and the colloid asphalt residue generated by the chemical change of the hydraulic oil itself to prevent the spool from sticking. It is installed on the pressure pipe of the hydraulic system to avoid the blockage of throttle hole clearance and damping hole rapid wear of hydraulic components and other faults.
ZUI-H250X20DFP hydraulic oil filterhousing is used to filter the mechanical impurities mixed in hydraulic oil and the colloid, asphalt, carbon residue generated by the chemical change of hydraulic oil itself to prevent the spool from sticking. It is installed on the pressure pipe of the hydraulic system to reduce the gap of the throttle hole and the blockage of the damping hole, and the failure caused by the rapid wear of the hydraulic components.
This hydraulic oil filter has the advantages of high precision, good filtering effect, convenient replacement of filter element and reduced maintenance cost of supporting machinery.
This hydraulic oil filterhousing is made of glass fiber, which has the advantages of small pressure loss, high filtration accuracy, large pollution holding amount and large excess oil amount. Meets ISO standards. Filtration accuracy is calibrated with absolute filtration accuracy, filtration efficiency n≥99.5%, filtration ratio β3,5,1020>200.

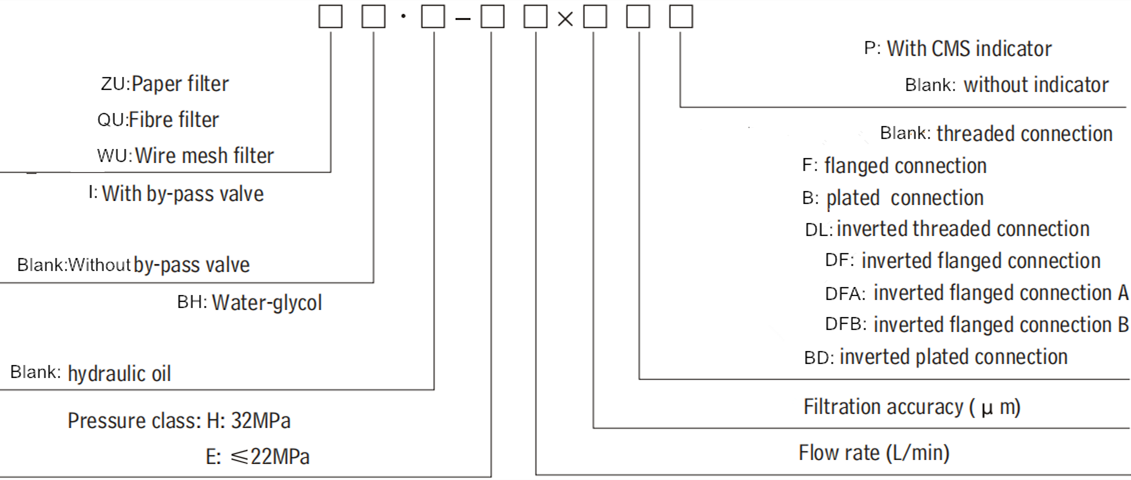

Model Code:

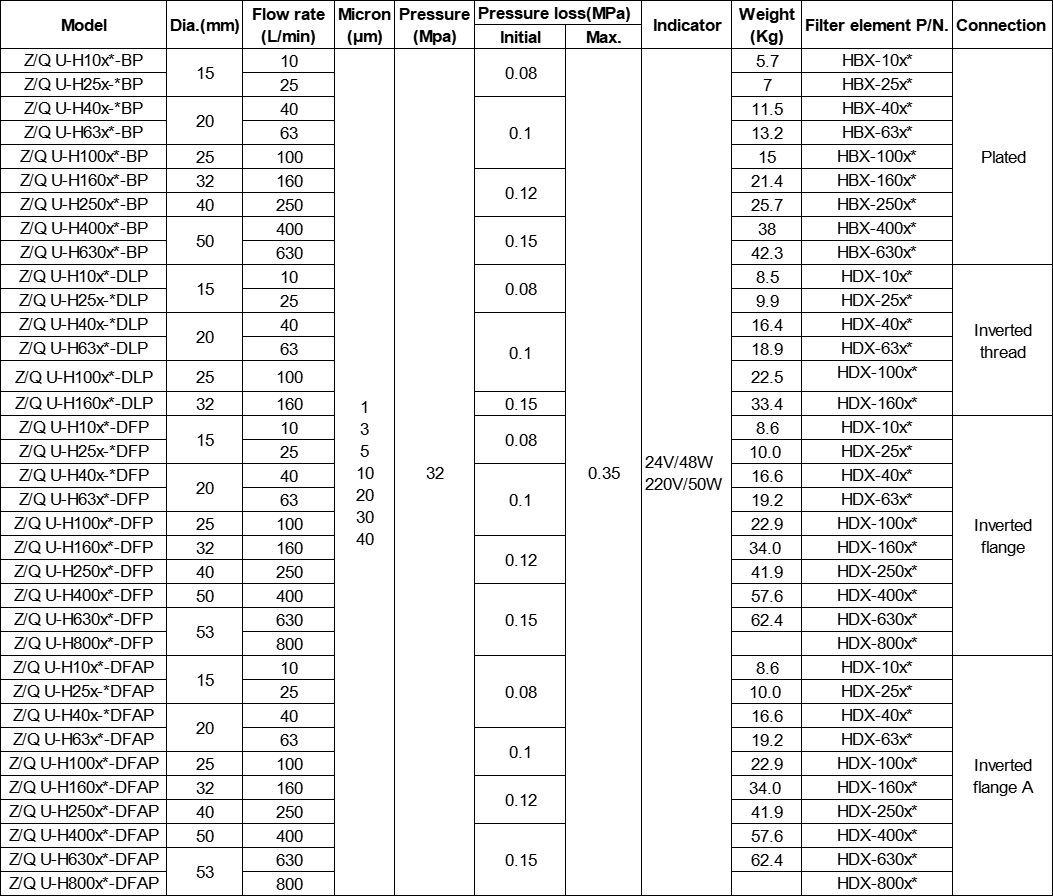

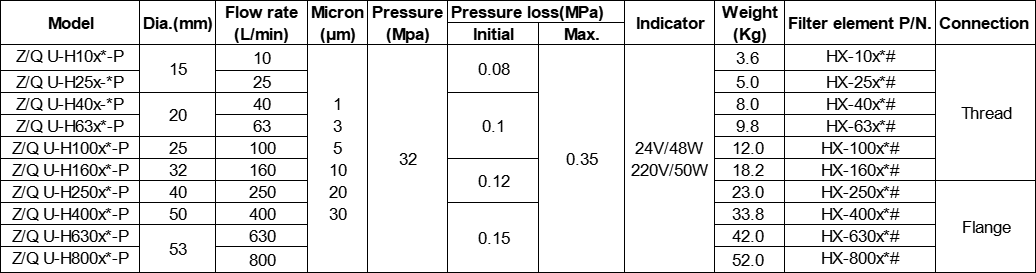

Technical Data:
Note:The * represents filtration micron,# is filter media.If the filter fluid is water-glycol,operation pressure is 32MPa,flower rate is 63L/min,filter media is paper,the filter equipped with indicator and by-pass valve, the model of the filter is ZUI•BH H63 *P. That of the element is HX•BH-H63 *, if filter media is fibre and the filter equipped with indicator,the model of the filter is QU•BH -H63*P, that of the element is HX•BH-H63 *Q;if filter media is wire mesh and the filter equipped with indicator, the model of the filter is WU•BH-H63 *P,That of the element is HX•BH-H63 *W;

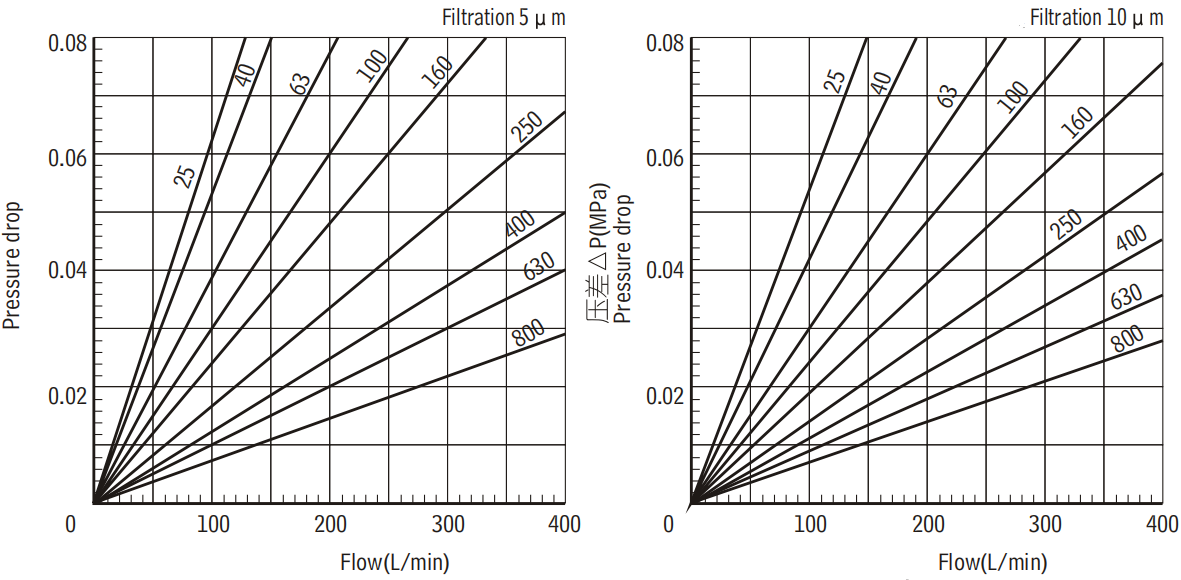

Filter Element Pressure Drop(△P) Against Flow Curves:
HX-* X * Viscosity 30CST

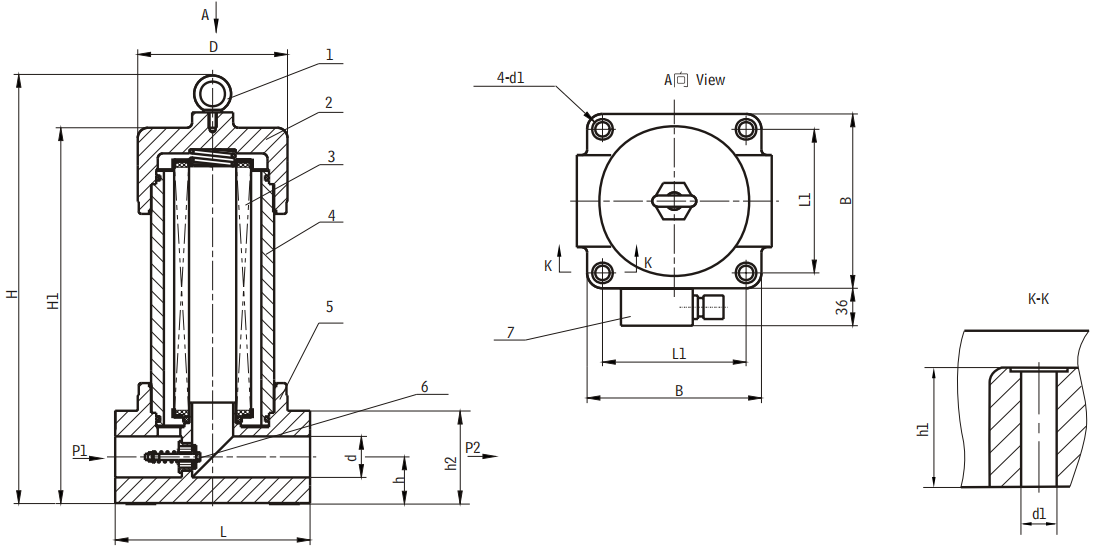

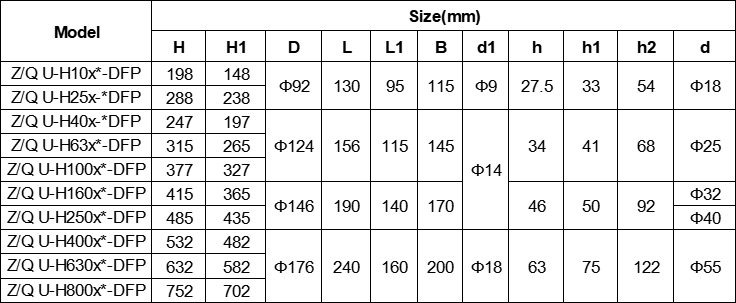

Mounting Size:
Test standards:
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 2941 Collapse & Burst Resistant
ISO 2942 Fabrication & Integrity Test
ISO 16889 Multi-pass Performance Testing
ISO 2943 Material Compatibility with Fluids
Related Specification Filters
ZU-H400x20-BP
ZUI-H400x20-BP
ZUI-H630x20-DFAP
ZU-H630x20-DFP
ZUI-H630x20-DFP
ZU-H630x20-DFAP
ZUI-H63x20-DLP
ZUI-H100x20-DLP
ZU-H630x20-BP
ZUI-H630x20-BP
ZUI-H800x20-DFP
ZU-H800x20-DFAP
ZUI-H800x20-DFAP
ZU-H800x20-DFP
ZU-H250x20-BP
ZU-H400x20-DFP
ZUI-H250x20-BP
ZUI-H400x20-DFP
ZU-H400x20-DFAP
ZUI-H400x20-DFAP
ZUI-H40x20-DLP
ZU-H10x20-BP
ZUI-H10x20-BP
ZU-H25x20-DFP
ZUI-H25x20-DFP
ZU-H25x20-DFAP
ZUI-H25x20-DFAP
ZU-H25x20-DLP
ZUI-H63x20-BP
ZU-H100x20-DFP
ZU-H100x20-DLP
ZUI-H100x20-DFP
ZU-H100x20-DFAP
ZUI-H100x20-DFAP
ZU-H63x20-BP
ZUI-H40x20-DFAP
ZUI-H25x20-BP
ZU-H40x20-DFP
ZUI-H40x20-DFP
ZU-H40x20-DFAP
ZU-H40x20-DLP
ZU-H25x20-BP
ZUI-H250x20-DFAP
ZU-H250x20-DFP
ZUI-H250x20-DFP
ZU-H160x20-BP
ZUI-H160x20-BP
ZU-H250x20-DFAP
ZUI-H25x20-DLP
ZUI-H40x20-BP
ZU-H63x20-DLP
ZU-H63x20-DFP
ZU-H40x20-BP
ZU-H63x20-DFAP
ZUI-H63x20-DFAP
ZUI-H63x20-DFP
ZUI-H10x20-DFAP
ZU-H10x20-DLP
ZU-H10x20-DFP
ZU-H10x20-DFAP
ZUI-H10x20-DLP
ZUI-H160x20-DLP
ZUI-H10x20-DFP
ZUI-H100x20-BP
ZU-H100x20-BP
ZU-H160x20-DFP
ZUI-H160x20-DFP
ZU-H160x20-DFAP
ZUI-H160x20-DFAP
ZU-H160x20-DLP
If you have no standard filter code numbers please send us your filters specifications or samples we can customize as your requests.
