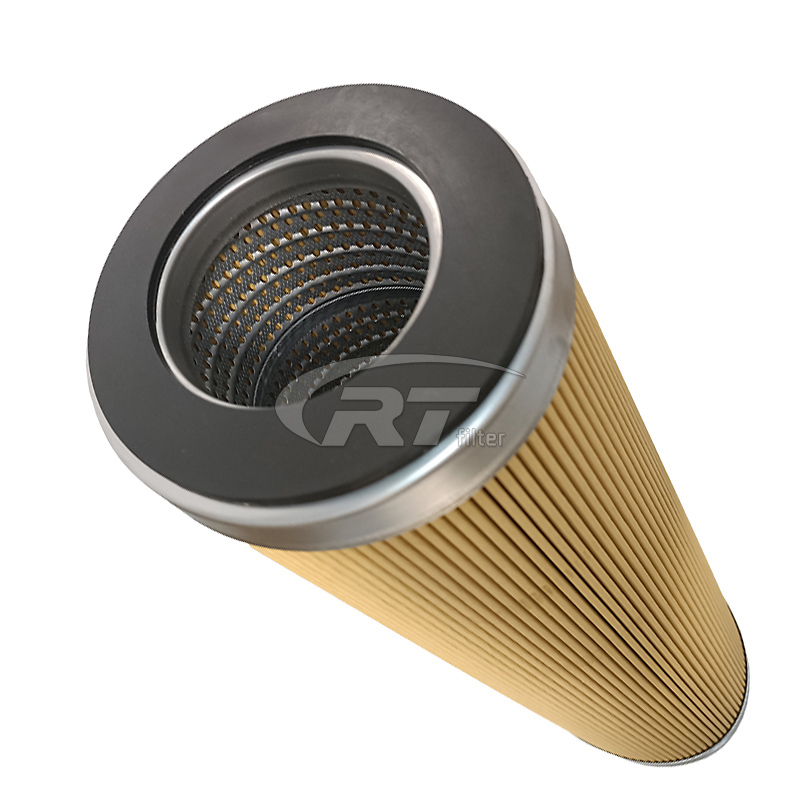

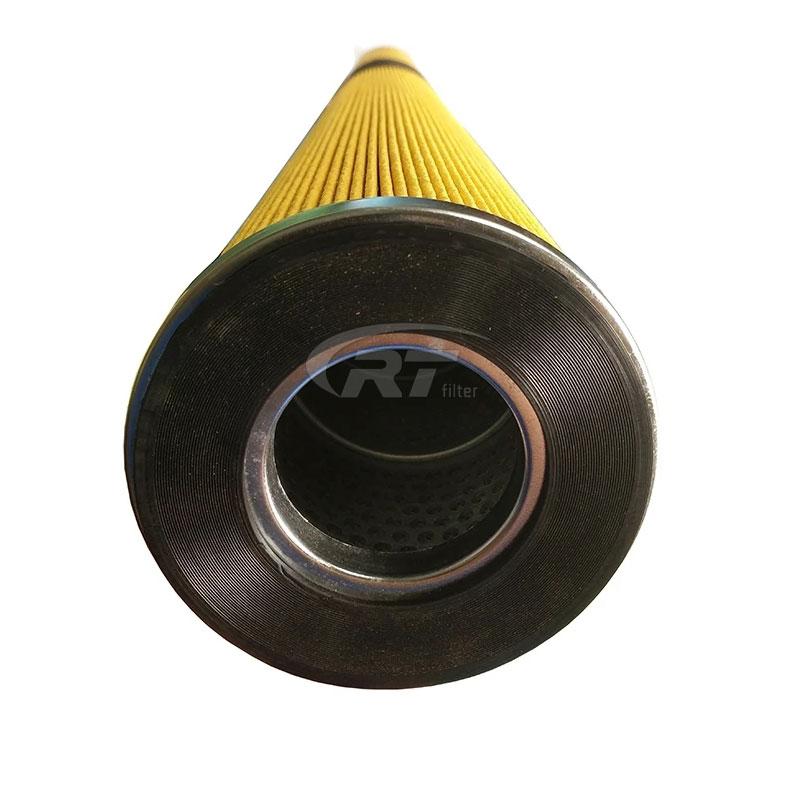

Description: The SO-614PLF3 separator element is used as the second stage of the filter/separator container.Its sole function is to repel coalesce droplets produced by the first stage filter element while allowing the passage of hydrocarbon fluids.Water droplets sink into the filter/separator tank and are not carried downstream.All particle filtration is performed by the first stage coalescing filter element.The direction of flow is from outside to inside.
Performance parameters： | Item | Value |
|---|
| Length | 14.5 inches | | Inside Diameter | 3.5 inches | | Outside Diameter | 6 inches | | Filtration accuracy | 0.4 µm | | Maximum Pressure Differential.... | 75 psi, 5.2 bar | | Maximum Operating Temperature..... | 66-71°C, 150-160°F..... | | Changeout Pressure Differential..... | 15 psi, 1 bar | | Filter Material | Fiberglass | | Seal | Buna-N |
Standard Design Features: • Optimal secondary water removal • Teflon coated screen of choice • Field proven performance • pH ranges from 5 to 9 • The largest selection of replacement elements • Designed for balanced flow through cartridges
Large Flux Characteristics: Our Manufactured SO-614PLF3 separator filter structure adopts a straight-through large flow design, with a large filtration area and processing capacity. SO-614PLF3 large flow design can quickly process a large amount of liquid, quickly remove suspended particles, pollutants and other impurities, and ensure the quality and purity of the liquid. Prevent blockages and damage to pipes, equipment and systems. oil separator has the characteristics of pressure resistance and wear resistance, and is suitable for harsh working environments with high temperature and high pressure. We make large flow separator filter elements can be customized according to requirements to ensure the best filtration effect and performance. ...
Whole Structure Material: • Teflon-coated screens • Treated metal parts provide protection against corrosion • Buna-N washers • Additional washers, adhesives and metal materials may be supplied upon request
Filter Membrane Material: We make SO-614PLF3 separator cartridge uses high-performance Teflon filter material. Moisture resistance: the surface of Teflon does not stick to water and oil. If there is dirt, can be removed by simply wiping it. Temperature resistance: does not become brittle at freezing temperatures and does not melt at high temperatures. Wear resistance: smooth surface has a very low coefficient of friction. Corrosion resistance: almost immune to any kind of chemical corrosion. ...
Test standards: Before delivery, Our manufactured SO-614PLF3 separator cartridge will be tested and follow the standards: ISO 2941 Collapse & Burst Resistant ISO 2942 Fabrication & Integrity Test ISO 2943 Material Compatibility with Fluids ISO 3724 Flow Fatigue Characteristics ISO 3968 Pressure Drop vs. Flow Rate ISO 16889 Multi-pass Performance Testing
PartnerFilter also offers a full range of replacement filter elements: Parker & Velcon PECO & Facet Faudi Pall Other types are available on request
|
