Air compressor filter element
PartnerFilter has kinds of brands Air compressor filter elements,including air filter,oil filter,oil&air separator,replacement filters of ATLAS COPCO,INGER
|
|
|
Brand:PartnerFilter
Model:1613610500
Filtration Media:16 µm
Outer Diameter:96 mm
Body Height:210mm
Thread:1'' x 12 UNF
Bypass Valve Opening Pressure:2.5 bar
|
|
11613610500 air oil separator in order to remove contaminants that may enter the compressor and damage the unitthe oil itself must be filtered on a regular cycle first. This is done by installing a lubricating oil filter, either cartridge or spin-onand then ensuring that all the oil is cleaned as it passes through the filter.
|
|
|
|
|
|
Brand:PartnerFilter
Model: 1625 7036 00
Type: Atlas Copco Air Oil Separator Filter
Filter material: Fiberglass
Sizes: OD5.28"*L7.24"
End Caps: Corrosion Resistant Steel
Center Tube: Corrosion Resistant Steel
Series:1625 7754 00, 1625 4811 00, 2901 0566 22, 2202 9294 50 more
|
|
As an air compressor filter elementthe 1625 7036 00 air and oil separator is an important part of a screw compressor.It is made of American high-efficiency glass fiberwhich can filter and intercept a large amount of oil mist and impurities through specific physical principles.
|
|
|
|
|
|
Brand:PartnerFilter
Model: 1613 8720 00
Type: Atlas Copco Compressor Oil Air Separator
Filter material: Paper
Sizes: OD4.65”*L5.28”
Series: 1613 9001 00,1613 8720 00,1619 1269 00,2903 1012 00 more
|
|
1613 8720 00 atlas copco is an air filter element installed in the compressor air filter housingit is designed to allow enough air into the machine while removing and holding contaminants.
|
|
|
|
|
|
Brand:PartnerFilter

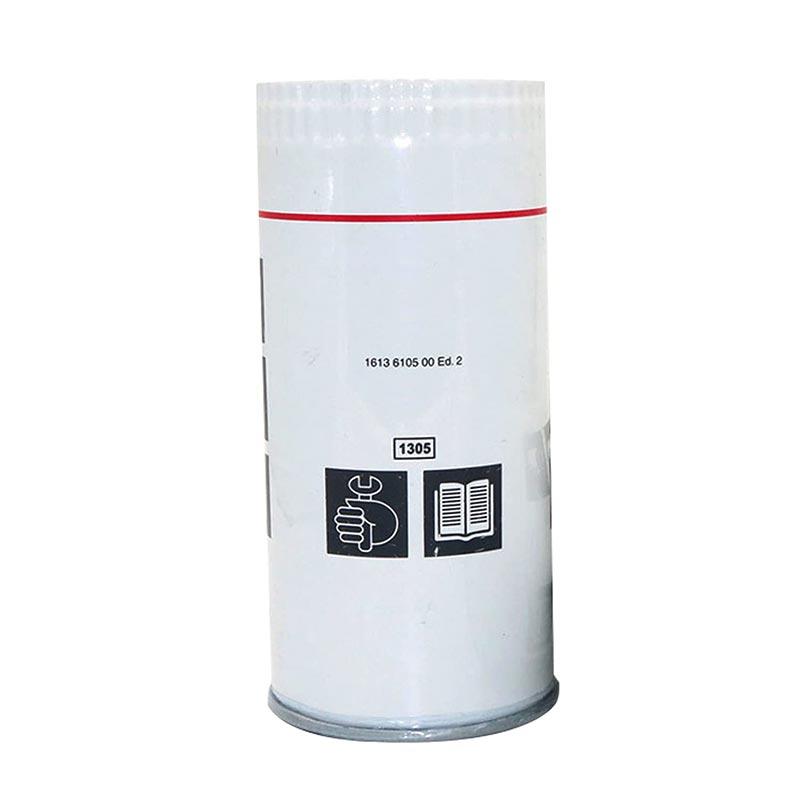

Model: 1613 6105 00
Type: Atlas Copco Oil Compressor Filter Element
Seal: Viton
Sizes: OD3.82"*L8.35"
Filtration: β75 = 45 µ
Bypass Valve Opening Pressure: 2.5 bar
Series:1613 6105 00, 1614 8747 99, 2903 7525 00, 2903 0337 00 more
|
|
The 1613 6105 00 oil filter element is made of ultra-fine glass fiber composite filter material from HV Company of the United States or pure wood pulp filter paper of Ahlstrom Company of South Korea to filter out solid particles impurities and oil deterioration in lubricating oil to protect the main engine and other running parts.
|
|
|
|
|
|
Brand:PartnerFilter
Model: 1622 1855 01
Type: Atlas Copco Air compressor Filter Cartridge
Filter material: Paper
Sizes: OD8.86”*L13.98”
End Caps: PU
Product Net Weight: 1.89 Kg
Series:1613 8720 00, 1622 1855 01, 1625 4302 93, 1030 0979 00 more
|
|
Atlas copco 1622 1855 01 air compressor filter element is installed in the compressor air filter housing. It is designed to allow sufficient air to enter the machine while removing and retaining contaminants. It is multi-layer designed to reduce the pressure difference of pollutants in the media buildup.
|
|
|
|
|
|
Brand:PartnerFilter

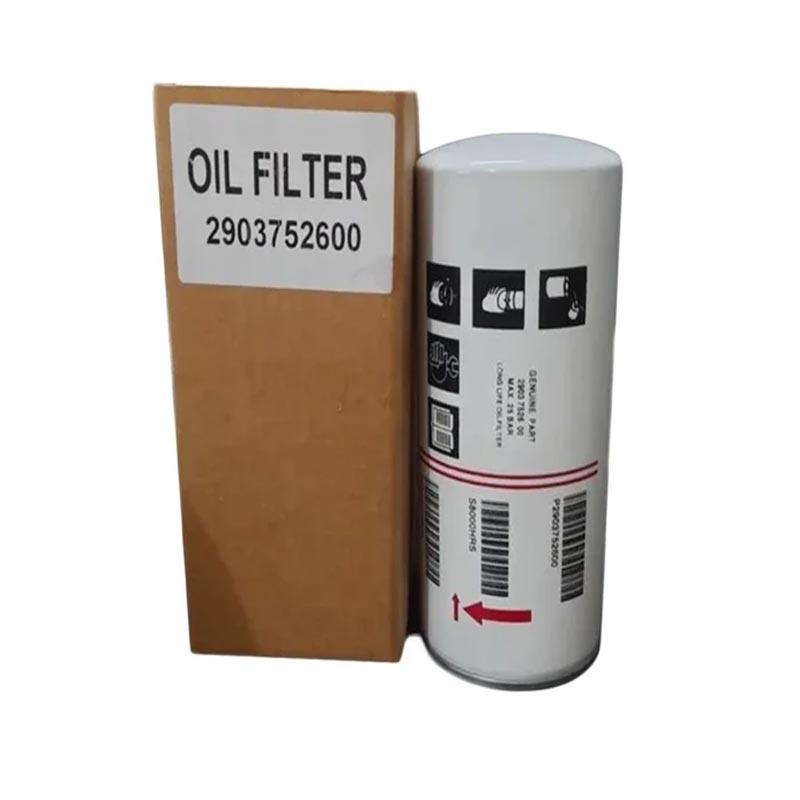

Model: 2903 7525 00
Type: Atlas copco oil compressor Filter
Seal: Viton
Sizes: OD3.7"*L8.37"
Filtration: β 1000 = 10 µ
Bypass Valve Opening Pressure: 2.5 bar
Series:1613 6105 00, 1614 8747 99, 2903 7525 00, 2903 0337 00 more
|
|
PartnerFilter manufactures 2903 7525 00 spin-on oil filter element with ultra-fine glass fiber composite filter material from HV Company of the United States or pure wood pulp filter paper of Ahlstrom Company of South Korea to filter out solid particlesimpurities and oil deterioration in lubricating oil to protect the main engine and other running parts.
|
|
|
|
|
|
Brand:PartnerFilter
Model: 1614-8747-99
Type: Atlas Copco Oil Filter
Seal: Viton
Sizes: OD3.82"*L5.59"
Filtration: β 1000 = 23 µ
Bypass Valve Opening Pressure: 2.5 bar
Series: 1613-6105-00, 1614-8747-99, 2903-7525-00, 2903-0337-00 more
|
|
1614-8747-99 compressor oil filter element is used to filter out solid particles in lubricating oil and protect the main engine and other running parts. The bottom of the filter element is designed with a grooved oil return pipe that uses siphon to return to the lubrication system, making the oil discharged from the compressor purer and purer compressed air.
|
|
|
|
|
|
Brand:PartnerFilter
Model: 2901056622/1622 3556 00
Type: Atlas Copco oil separator
Seal: Viton
Sizes:OD8.58"*L10.87"
Filter material: Fiberglass
Product Net Weight: 4.32 Kg
End Caps: Corrosion Resistant Steel
Center Tube: Corrosion Resistant Steel
Main Application: Atlass Copco GA55-75-90
Series:1625 7754 00, 1625 4 811 00, 2202 9294 50, 1625 7036 00 more
|
|
2901056622 oil separator is made of ultra-fine glass fiber composite filter material from HV Company and Lydall Company of the United States.The mist oil and gas in the compressed air can be almost completely filtered out when it passes through the oil separator.
|
|
|
|
|
|
Brand:PartnerFilter
Model: 250034-112
Type: Compressor Oil Air Separator
Seal: Viton
Sizes: OD6.73"*L6.89"
Filter material: Fiberglass
Product Net Weight: 10.47Kg
End Caps: Corrosion Resistant Steel
Center Tube: Corrosion Resistant Steel
Main Application: Sullair LS10-25
Series: 250034-114, 250034-116/408167-005, 250042-862/408167-011 more
|
|
250034-112 Sullair air oil separator is used to clean oil and gas, filter solid particles, provide clean oil, protect mechanical system equipment, and improve overall operating efficiency.
|
|
|
|
|
|
