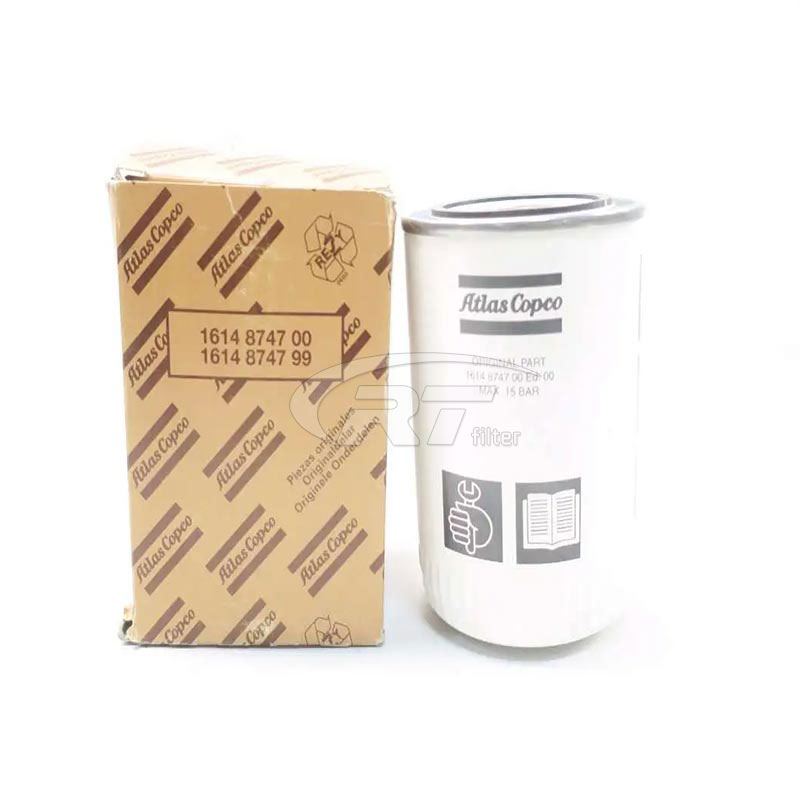

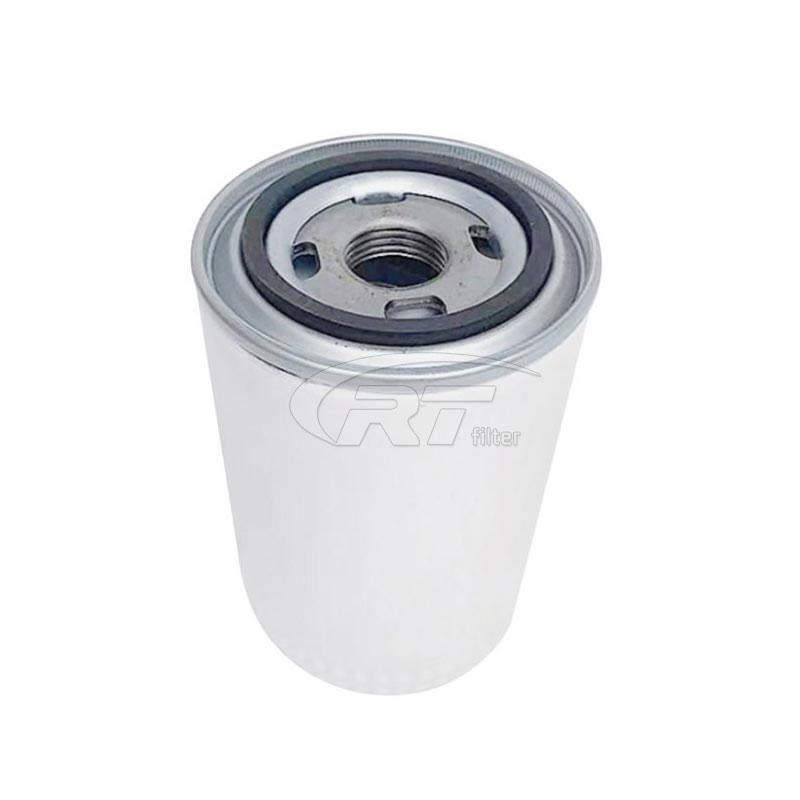

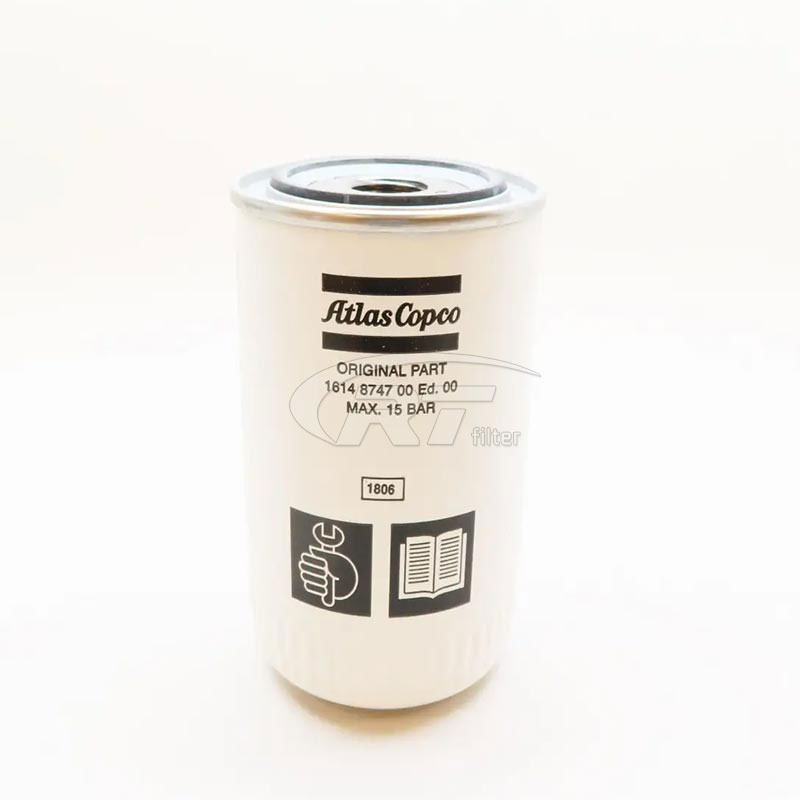

Introduction: 1614-8747-99 oil filter element is used to filter out solid particles in lubricating oil and protect the main engine and other running parts. The bottom of the filter element is designed with a grooved oil return pipe that uses siphon to return to the lubrication system, making the oil discharged from the compressor purer and purer compressed air. The manufacturing material is made of ultra-fine glass fiber composite filter material or pure wood pulp filter paper.
Structural diagram： Like all of our products, PartnerFilter oil filters are made from the highest quality materials and workmanship. 1614-8747-99 compressor oil filter through the exclusive use of advanced filter media and consistent surface area control, specific filtration levels are achieved by strictly maintaining the number and depth of folds. Reliable sealing obtained through plastisol and epoxy encapsulation prevents leakage. Viton seals are used where synthetic oil applications are typical.
....
Performance parameters： Our manufactured 1614-8747-99 compressor oil filter is engineered to ensure your hydraulic system operates smoothly,offering a versatile solution for various applications.It’s a high pressure pipeline filter element,the end caps and center tube are used corrosion resistant steel and all the filter can bear 3000 psid pressure with high performance,increasing efficiency,keeping fluids clean,ensuring smoother operation. | Item | Value |
|---|
| Filtration Media..... | 10μm | | Filtration.... | β 1000 = 23 µ | | Size | OD3.82"*L5.59" | | Thread | 1" x 12 UNF | | Bypass Valve Opening Pressure.... | 2.5 bar | | Seal..... | Viton | | Gasket | Buna O-Ring | | Center Tube | Corrosion Resistant Steel.... |
Quality advantage： In the compressor system,the oil compressor filter 1614-8747-99 itself must be filtered periodically to remove contaminants that may enter the compressor and damage the equipment.This is done by installing a lubricating oil filter,either cartridge or rotary,and then ensuring that all the oil is cleaned as it passes through the filter. We make 1614-8747-99 separator oil filter is Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.
1614-8747-99 Application: 1614-8747-99 oil compressor air filter element is widely used different industries: (1). Metallurgy: It is used for the filtration of the hydraulic system of rolling mills and continuous casting machines and the filtration of various lubricating equipment. (2). Petrochemical: Separation and recovery of products and intermediate products in the process of oil refining and chemical production, oil field injection well water and natural gas particle removal filtration. (3). Textile: Purification and uniform filtration of polyester melt in the drawing process, protection and filtration of air compressors, degreasing and water removal of compressed gas. (4). Electronics and pharmaceuticals: pretreatment filtration of reverse osmosis water and deionized water, pretreatment filtration of cleaning solution and glucose. (5). Thermal power and nuclear power: Gas turbine, boiler lubrication system, speed control system, oil purification of bypass control system, purification of feed water pump, fan and dust removal system.
PartnerFilter also offers a full range of replacement : ATLAS COPCO Filters INGERSOLL RAND Filters SULLAIR Filters COMPAIR Filters FUSHENG Filters LIU-TECH Filters MANN Filters Other types are available on request
|
