Series: AC-51205, AC-62905, AC-71805, AC-7361/2, AC-5121/2E more

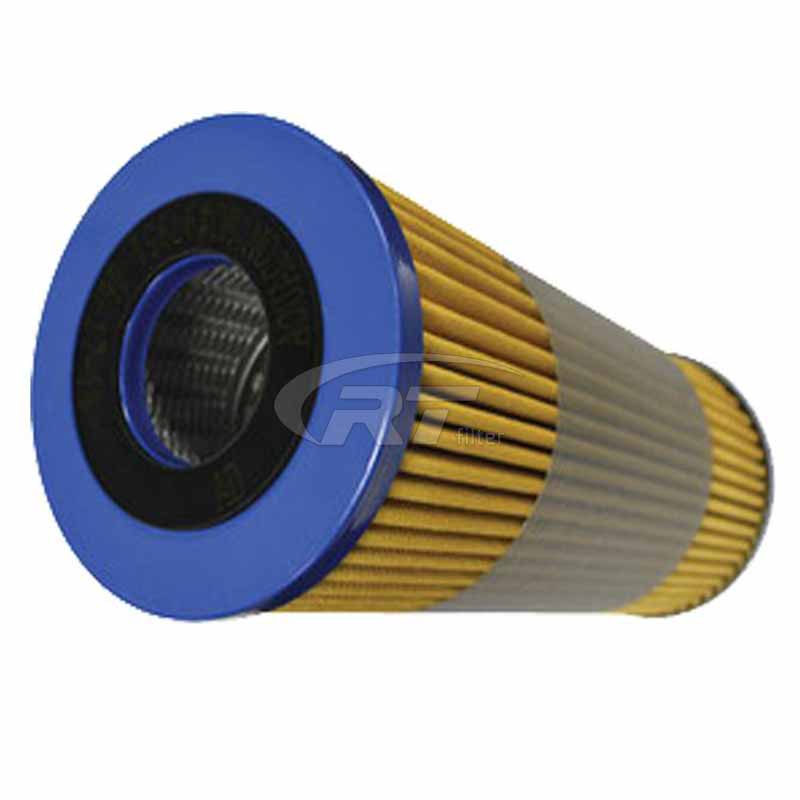

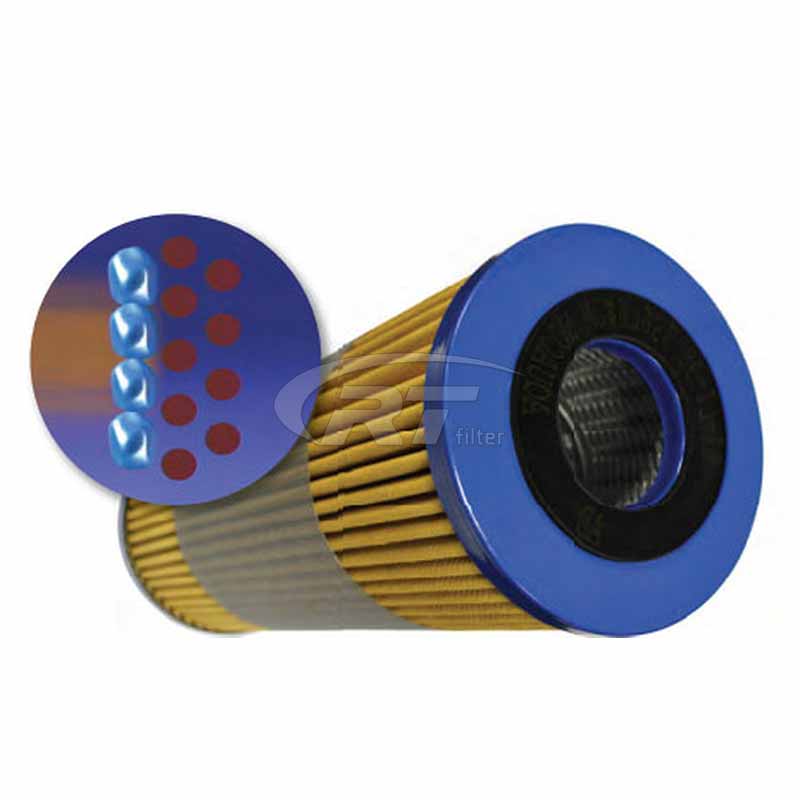

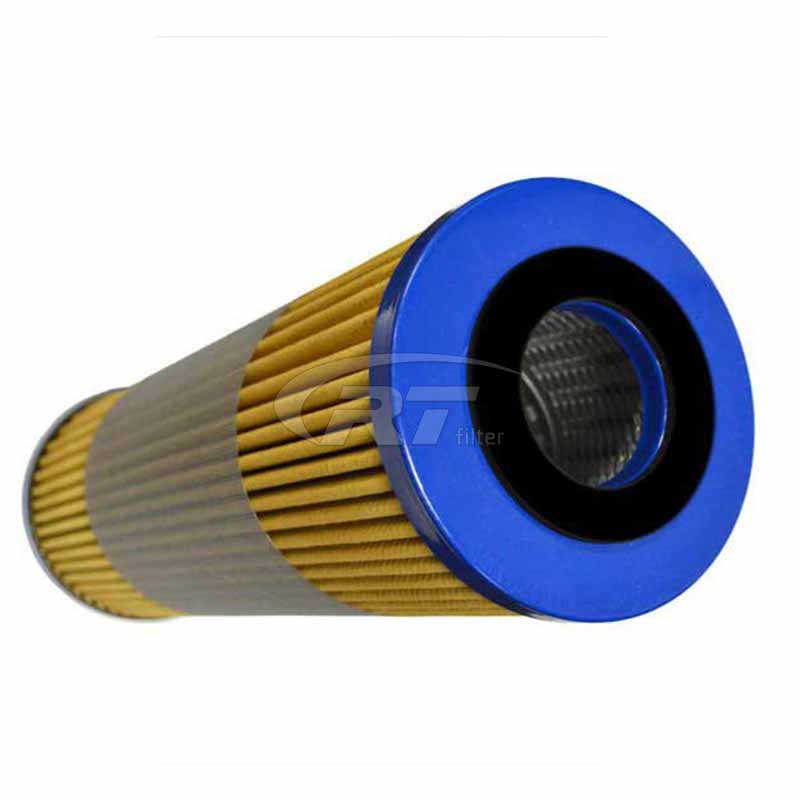

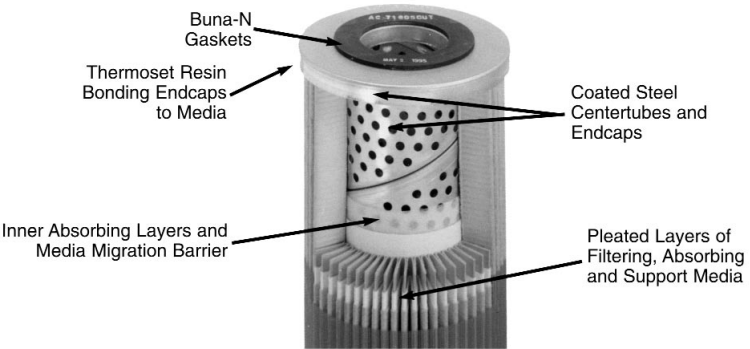

The coalescer AC 7181/2 is designed with a filtration structure to remove water and dirt from hydrocarbons and other oils as well as gases. The outer dielectric layer filters out silt and other granular contaminants. The inner layer absorbs the water and chemically combines it so that no water is released downstream.
Our company replaces the coalescing device AC 7181/2, which has a special structure to remove dirt and water from hydrocarbons and other oils and gases. The outer medium layer filters out silt, rust and other particulate contaminants. The inner layer absorbs the water and chemically combines it so that no water is released downstream.
When the filter element AC 7181/2 reaches its water storage limit, the medium expands and closes, and the pressure difference increases rapidly. This signals to the operator that the chuck must be replaced.
Feature advantages:
AC 7181/2 coalescer is mainly used to remove water and dirt from oils,fuels and gases
• Contains no asbestos
• Does not affect oil additives
• Easy to install and remove
• No media migration or “linting”
• Fits standard filter housings
• Effectively filters silt and other particulates
• Differential pressure increase alerts operator to change cartridges
• Not affected by surface active agents
• Removes free and emulsified water to less than 2 ppm
Technical Information:
1. With some lube and hydraulic oils all of the water may not be removed in one pass,and extra passes will be required for total removal.
2. Maximum operating temperature:250°F.
3. Water capacity:ranges from 2 to 4 quarts.
4. AC 7181/2 cartridge will shut off flow when loaded with water or dirt. Appropriate precautions should be taken in critical applications where oil flow must be maintained.
We make AC 7181/2 cartridge is beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.
Applications:
Instrument Air
Quench Oil
Transformer Oil
Diesel Fuel
Kerosene
Hydraulic Oil
Phosphate Ester Oil
Turbine Lube Oil
Synthetic Oil
Process Gases
Gasoline
Insulating Oil
More coalescers and separators:
We also make other more replacement coalescers and separators:
Other types are available on request.
Faudi
Parker & Velcon
Pall
PECO & Facet
Related Specification Filters
Model Number
Micrometer Rating Nominal
Micrometer Rating Beta x=75
I.D.Inches
O.D.Inches
Length Inches
Collapse Pressurepsi
AC-5121/2E
5
3
1 7/8
5 5/8
12 1/8
75
AC-718P3
0.3
2
2 9/16
6 1/4
18
75
AC-51205
5
40
1 7/8
5 5/8
12 1/8
75
AC-61405
5
40
3 1/2
6
14 1/2
100
AC-21005
5
40
1
2 5/8
9 3/4
75
AC-62905
5
40
3 1/2
6
29 1/2
100
AC-64405
5
40
3 1/2
6
44
100
AC-7181/2
0.5
3
2 9/16
6 1/4
18
75
AC-73605
5
40
2 9/16
6 1/4
18
75
AC-71805
5
40
2 9/16
6 1/4
18
75
AC-718P4D
0.4
2.5
2 9/16
6 1/4
18
75
AC-71801
1
6
2 9/16
6 1/4
18
75
AC-7361/2
0.5
3
2 9/16
6 1/4
18
75
AC-73601
1
6
2 9/16
6 1/4
18
75
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
