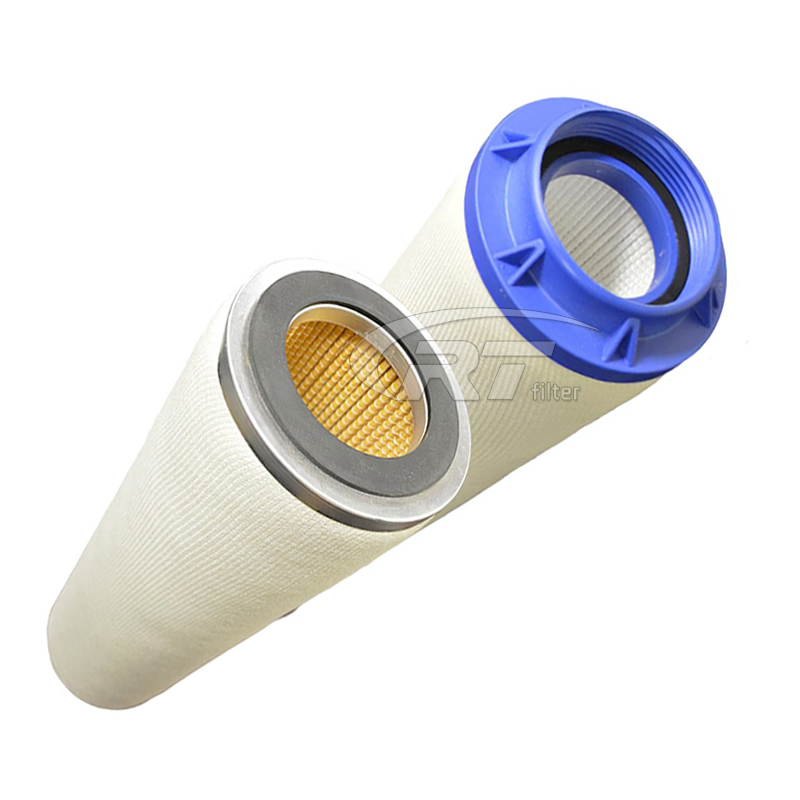

Facet CAA43-5SB high flow coalescing filter cartridges are used to remove ultrafine solids and enhance water separation from jet fuel. The main advantage is balancing fluid flow and structural strength. Manufactured from a single piece of construction using various combinations of media, precisely arranged in multiple layers and pleats, wrapped around a coated perforated metal center tube, the coalescing cartridge is guaranteed for optimal performance.
Facet CAA43-5SB high flow coalescing filter cartridges are used to remove ultrafine solids and enhance water separation from jet fuel. The main advantage is balancing fluid flow and structural strength. Manufactured from a single piece of construction using various combinations of media, precisely arranged in multiple layers and pleats, wrapped around a coated perforated metal center tube, the coalescing cartridge is guaranteed for optimal performance.
CAA43-5SB Materials:
Our Manufactured CAA43-5SB coalescing filter cartridge uses imported high-grade environmentally friendly glass fiber filter paper, which is corrosion-resistant and temperature-resistant. When the liquid flow passes through the multi-layer filter media, the CAA43-5SB high-efficiency coalescer merges the small droplets into larger droplets, and the pore size of each layer of filter media gradually becomes larger, achieving a layer-by-layer deep cleaning filtration effect.
• All metal components are treated against corrosion
• Screw base ends are injection molded, glass-filled nylon with locked-in gaskets
• Buna-N gaskets—other materials are available on request
CAA43-5SB Standard Design Features:
• Tested and qualified
• Multi-layered media for increased solids holding capacity
• pH range from 5 to 9
• Ultra-fine solids removal
• Maximum water coalescence
• Balanced cartridge flow characteristics
• Withstands in excess of 75 psi differential pressure
• Recommended maximum operating temperature: 240°F (115℃)
CAA43-5SB filter performance:

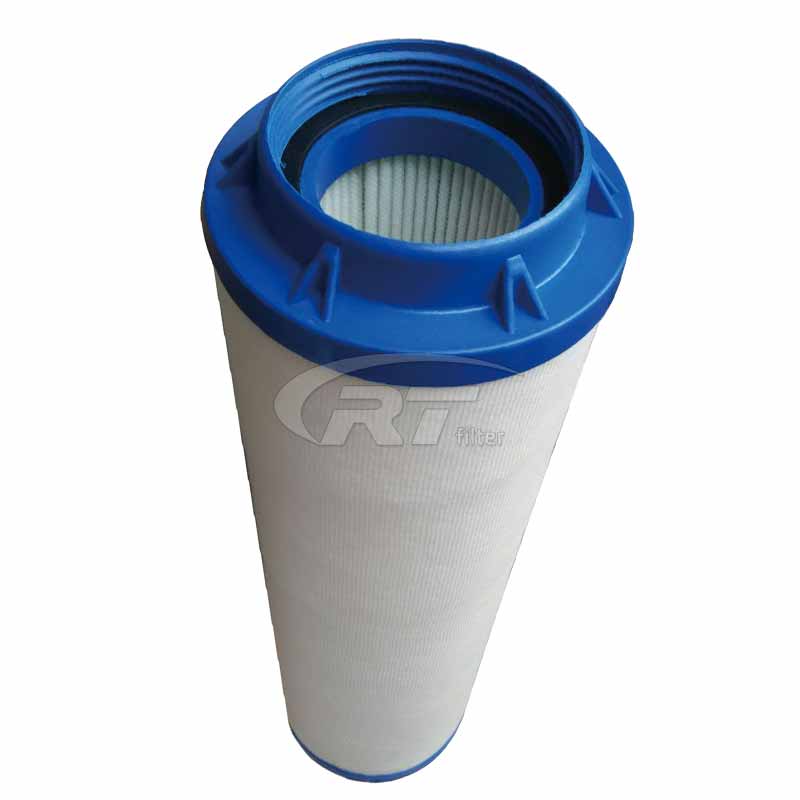

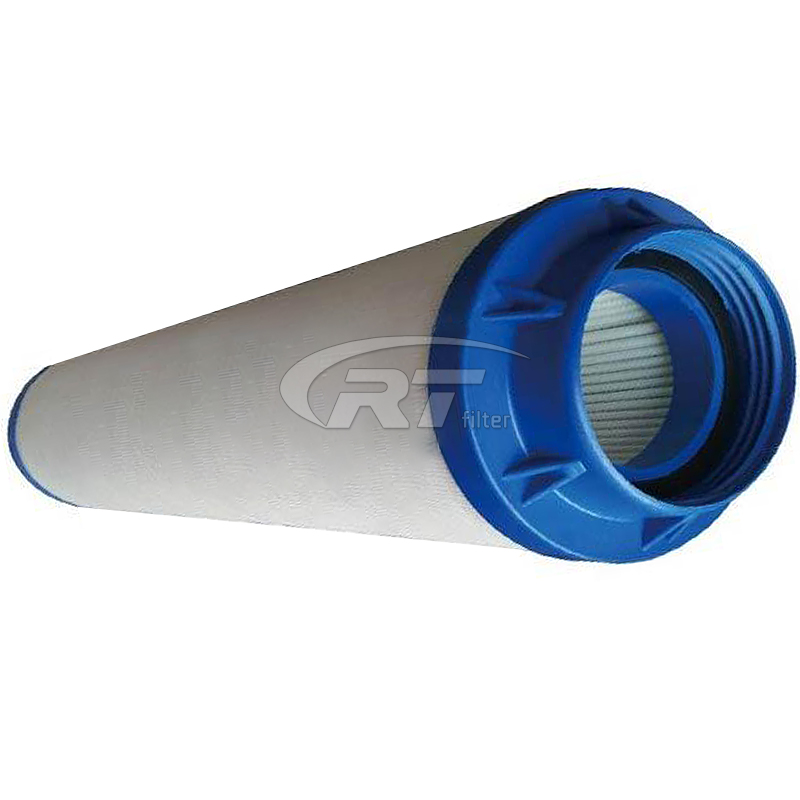

CAA43-5SB coalescing filter screw base ends are injection molded,glass-filled nylon.This screw base material offers superior strength and ease of maintenance—uniform threads,no shrinkage,no galling and no gasket to recover.A permanently affixed Buna-N gasket seals against the V-type knife edge mounting adaptor to provide a positive seal.It will not separate from the cartridge during installation or change out.
...
PartnerFilter also offers a full range of replacement filter elements:
Parker & Velcon
PECO Facet
Faudi
Pall
Other types are available on request
Related Specification Filters
MODEL NUMBER
NOMINAL LENGTH (IN)
NOMINAL LENGTH (MM)
OUTSIDE DIAMETER OD (IN)
INSIDE DIAMETER ID (IN)
MOUNTING style
CAA11-5
111∕4
290
6
3 1∕2
Rod
CAA14-5
141∕2
370
6
3 1∕2
Rod
CAA14-5SB
15
380
6
3 1∕2
Screw base
CAA22-5
22 1∕4
560
6
3 1∕2
Rod
CAA22-5SB
23
580
6
3 1∕2
Screw base
CAA28-5
28 3∕4
730
6
3 1∕2
Rod
CAA28-5SB
29
740
6
3 1∕2
Screw base
CAA33-5
33 1∕4
840
6
3 1∕2
Rod
CAA33-5SB
34
860
6
3 1∕2
Screw base
CAA38-5
38
960
6
3 1∕2
Rod
CAA38-5SB
39
990
6
3 1∕2
Screw base
CAA43-5
43 1∕4
1100
6
3 1∕2
Rod
CAA43-5SB
45
1430
6
3 1∕2
Rod
CAA56-5SB
57
1450
6
3 1∕2
Screw base
If you have no standard filter code numbersplease send us your filters specifications or sampleswe can customize as your requests.
