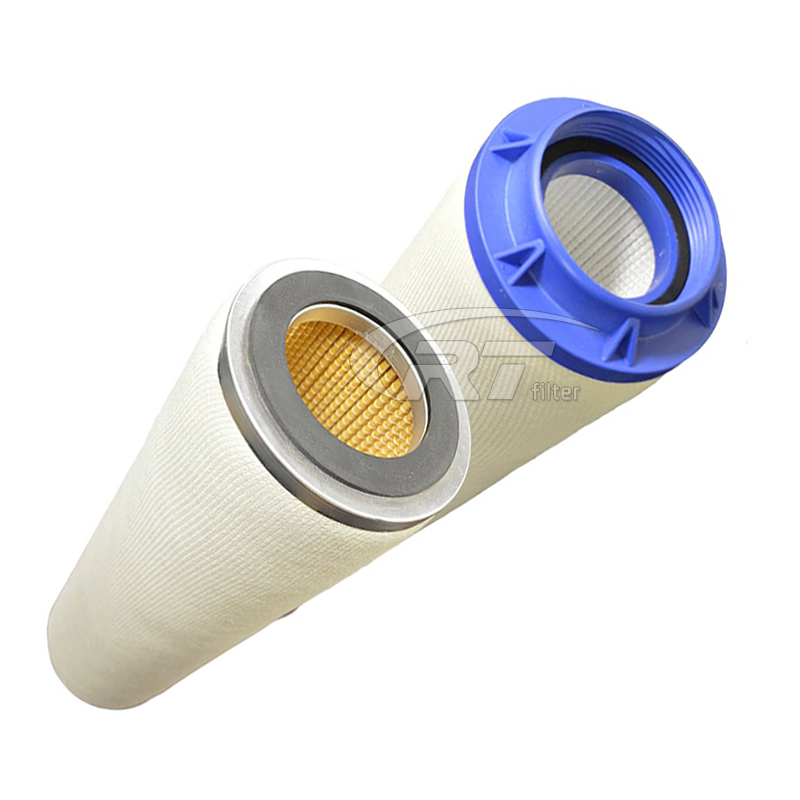

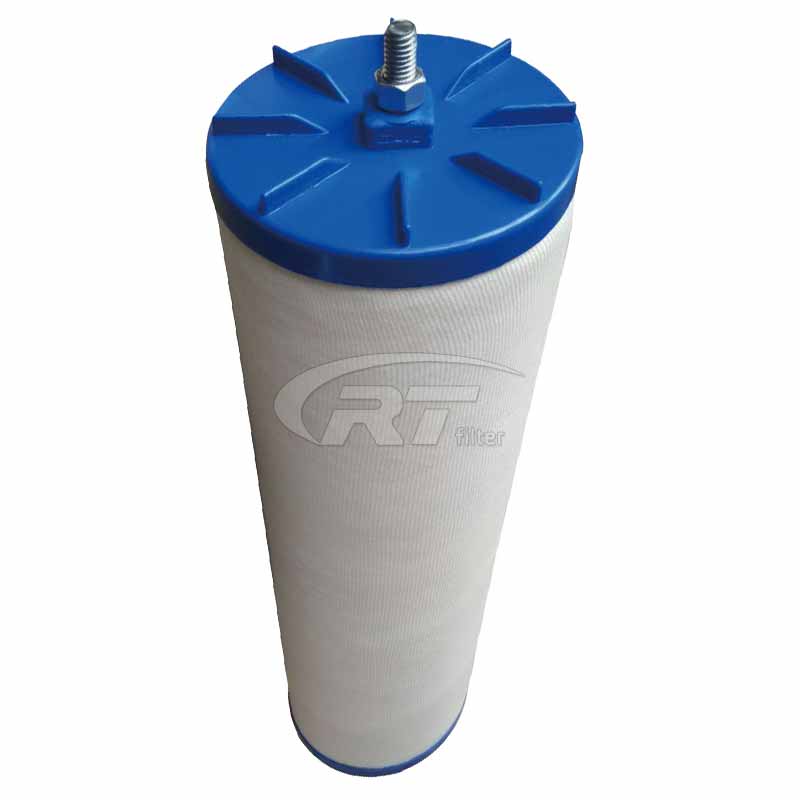

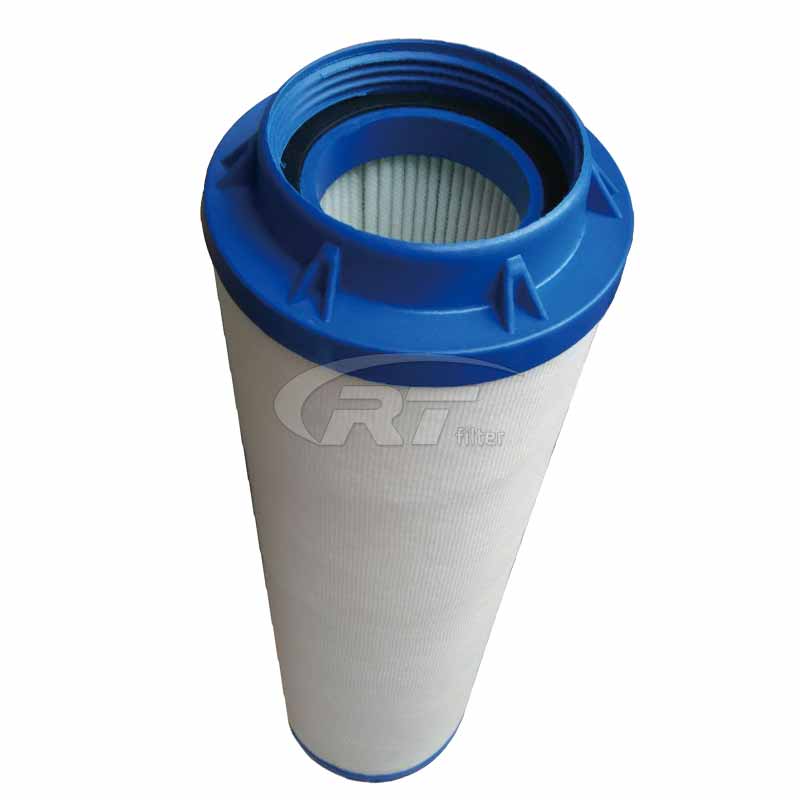

Introduction: PartnerFilter makes the I-62887TB coalescer replacement with multilayer pleated medium design to provide superior on-site fouling capacity and has an efficiency of 0.4 micron.It’s a single-unit coalescer element,provided with a threaded base and open ends,as well as a combination of fiberglass media and pleated media.Its threaded base is recommended for most applications.It simplifies installation and replacement by eliminating the need for cover plates,center plates,nuts,washers. It is used in the Parker Velcon and other separator filters.Threaded base adapters can be used to convert containers that currently use open end elements.
Performance parameters： | Item | Value |
|---|
| Length | 28.7 inches | | Inside Diameter | 3.5 inches | | Outside Diameter | 6 inches | | Filtration accuracy | 0.4 µm | | Maximum Pressure Differential.... | 75 psi, 5.2 bar | | Maximum Operating Temperature..... | 66-71°C, 150-160°F..... | | Changeout Pressure Differential..... | 15 psi, 1 bar | | Filter Material | Fiberglass | | Seal | Buna-N | | End Caps Configuration..... | Threaded Base..... |
I-62887TB Material: We make I-62887TB open end coalescer uses a single unit structure to reduce the number of gaskets and improve overall reliability. I-62887TB coalescer have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use. • The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores. • All glassfiber media aggregator combines deep particle filtration with deep coalescence structure. • The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.
I-62887TB Features: • Cost-effective removal of particles and emulsified water from hydrocarbon fluids • One-piece design is easy to install and replace • A threaded base or open end cartridge is optional • Choose all-glass fiber media or a combination of glass fiber and pleated media • Field proven performance • Ongoing qualification testing to meet changing commercial and military requirements • Used as a primary element in filters/separators • Remove particles and condense water into large drops
I-62887TB Filter Performance: I-62887TB coalescing filter element is mainly used to coalesce emulsified water and remove particles from hydrocarbon fluids. The largest single application is the filtration of aviation jet fuel. Coalescer filter are also used in other types of fuels, in processes in refineries and petrochemical plants, and in the production of condensate from natural gas. Our Manufactured I-62887TB coalescer cartridge element is Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter. ...
Notes: • I-62887TB separation is possible if the liquids are immiscible, have different specific gravities, and high concentrations of surfactant are not present. • As a rule of thumb, if the mixture sample separates easily within an hour or two, a coalescing device may be used. If the mixture does not separate after 24 hours, coalescence may not be working.

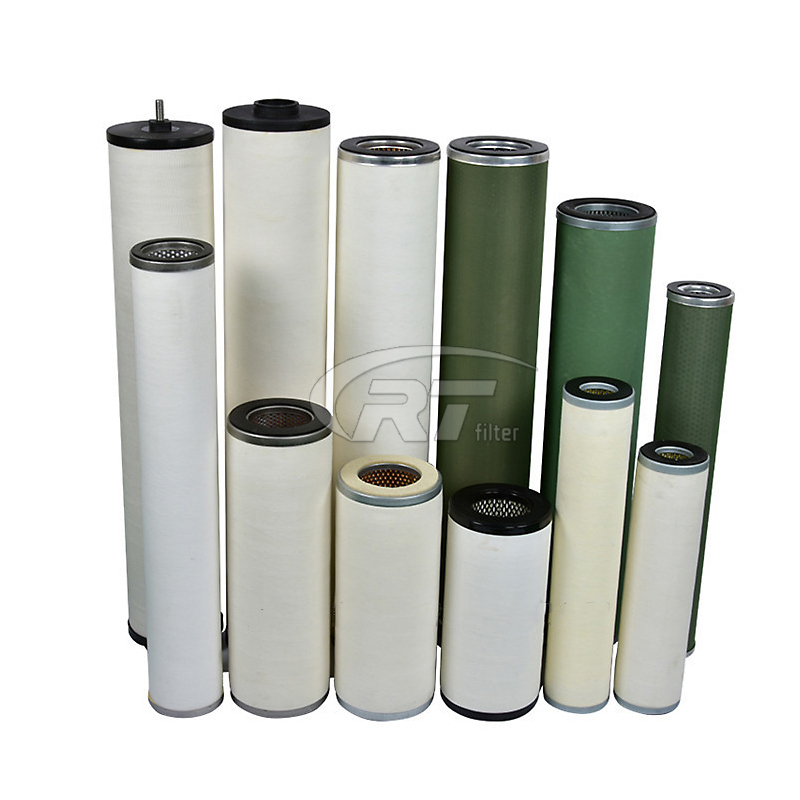

More coalescers and separators: PartnerFilter also offers a full range of replacement filter elements Parker & Velcon PECO & Facet Faudi Pall Other types are available on request
|
