Compressed air filter element
PartnerFilter has different brands compressed air filter elements of HANKISON,DOMNICK HUNTER,HIROSS,ZANDER,ORION,JM,ULTRAFILER,SMC,BEA replacement
|
|
|
Model: AMH-EL350
Filter Type: Compressor Air Filter
Length: 12.0 inches
Outer Diameter: 8.0 inches
Min.Collapse: 7.25 psid
Max.Collapse: 145psid
Filter material: Fiberglass
Seal: Viton
End Caps: Corrosion Resistant Steel
Center Tube: Corrosion Resistant Steel
Series: AFF-EL350, AMD-EL350, AMF-EL350, AME-EL650, AMF-EL850, AMG-EL350 more
|
|
AMH-EL350 SMC AMH series is a high-precision micro-oil mist separator and pre-filter combination that can separate and eliminate aerosol oil mist in compressed air.AMH-EL350 SMC series is suitable for drying/cleaning pneumatic measuring instruments (air micrometers) and precision parts.
|
|
|
|
|
|

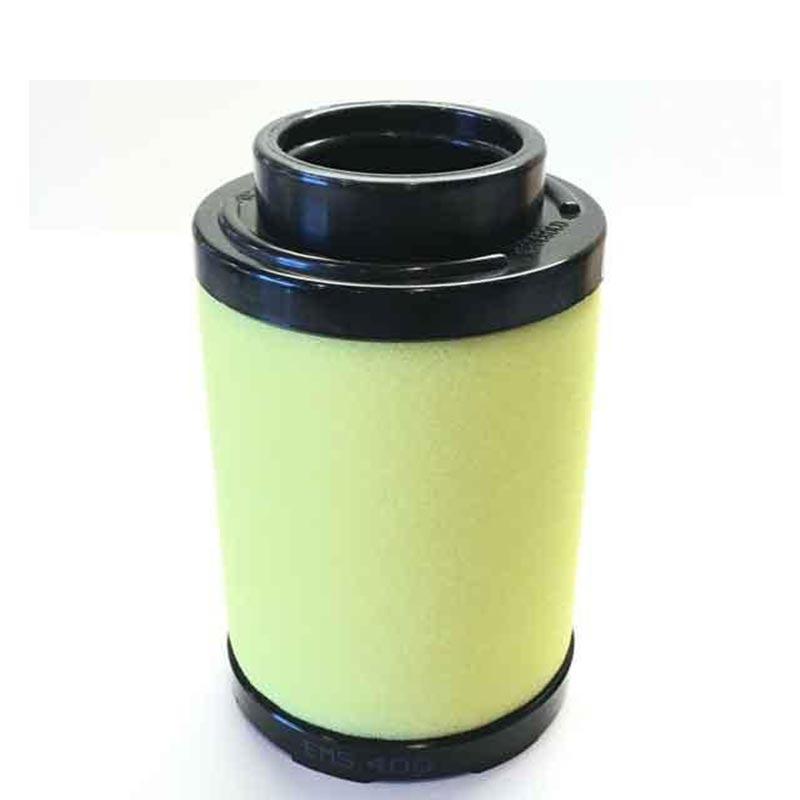

Model: EMS-400
Filter Type: Compressor Air Filter
Length: 5.5 inches
Outer Diameter: 3.38 inches
Filter material: Fiberglass
Micron: 0.5µm ~ 10µm
Seal:Viton
Max.Collapse: 142psid
Series: ELS400, EKS400, ELS700, EMS1300, EKS1000 more
|
|
EMS-400 ORION air filter cartridge is used for oil mist removal with filter rating 0.01 micron and collection efficiency 99.999%.When the pressure drop is 10 psireplace itpls.
|
|
|
|
|
|
Model: 02250153-317
Filter Type: Compressor Air Filter
Seal: Viton
Micron: 1µm
Max.Collapse: 142psid
Filter material: Fiberglass
End Caps: Polypropylene (10% glass fiber reinforced),
Center Tube: Corrosion Resistant Steel
Support Mesh Material: Corrosion Resistant Steel
Series: 02250153-316, 02250153-318, 02250153-306, 02250153-319, 02250153-968 more
|
|
02250153-317 sullair precision filter is used to effectively remove particulate matteroil mistwater mist and peculiar smell in compressed airand provide high-quality compressed airit can protect downstream equipment such as dryers.
|
|
|
|
|
|
Model: CE0036C
Filter Type: Compair Compressor AirFilter
Filter Material: Fiber cotton, Fiberglass
Operating temperature Min.: 1.5 °C
Operating temperature Max.: 65°C
Particle retention: 0.01 µm ~ 1µm
Particle retention rate ISO: 99.%
Residual oil content: 0.01 mg/m³
End cap material: Plastic
O-ring material: Nitrile rubber
Series: CE0006NB, CE0006NC, CE0006ND, CE0006NE, CE0036D more
|
|
CE0036C is made with the highest quality materials and workmanship.This coalesced element provides filtering performance equal to or better than the original OEM filter specifications.
|
|
|
|
|
|
Model: AFM20P-060AS
Filter Type: SMC Compressed Air Oil Filter
Filter Material: Fiber cotton, Fiberglass
Differential pressure dry: 80 mbar
Differential pressure wet: 190 mbar
Operating temperature Min.: -5°C
Operating temperature Max.: 65°C
Particle retention: 0.01 µm ~ 1µm
Particle retention rate ISO: 99.%
Residual oil content: 0.01 mg/m³
End cap material: Plastic
O-ring material: Nitrile rubber
Series: AFD20P-060AS, AFM30P-060AS, AFD30P-060AS, AFM40P-060AS more
|
|
AFM20P-060AS is manufactured with the highest quality materials and workmanship. This coalescing element provides filtration performance equal to or better than original OEM filter specifications.
|
|
|
|
|
|
Model: 5351-03
Filter Type: SMC Compressed Air Oil Filter
Filter Material: Fiber cotton, Fiberglass
End cap material: Plastic
O-ring material: Nitrile rubber
Length: 5.0 inches
Outside Diameter: 3.0 inches
Operating temperature Min.: 1.5°C
Operating temperature Max.: 65°C
Particle retention: 0.01µm ~ 1µm
Particle retention rate ISO: 99%
Maximum Operating Pressure: 250 psi
|
|
5351-03 is widely used together with air compressors and installed at the pipe after the air compressor.Our company is a professional supplier of compressed air filters and pipeline gas filters.
|
|
|
|
|
|
Model: P-SRF 05/25
Filter Type: Ultrafilter Compressed Air Oil Filter
Filter Material: Fiber cotton, Fiberglass
Length: 5.04 inches
Outside Diameter: 2.5 inches
End Cap : Plastic
O-ring material: Nitrile rubber
Gasket: Buna O-Ring
Support Mesh: Corrosion Resistant Steel
Inner Support Core: Corrosion Resistant Steel
Series: P-SRF 03/10, P-SRF 15/30, P-SRF 30/30, P-SRF 07/25 more
|
|
The P-SRF 05/25 compressed air depth filter element is used for efficient sterile filtration of compressed air, process air and technical gases. It has low pressure drop, high dirt holding capacity, high strength and long service life.
|
|
|
|
|
|
