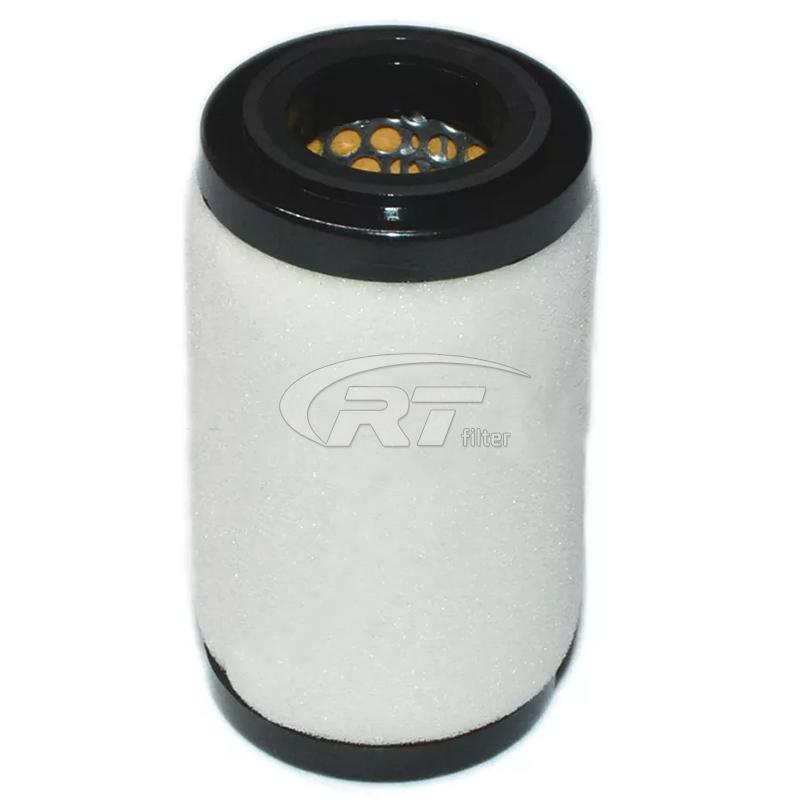

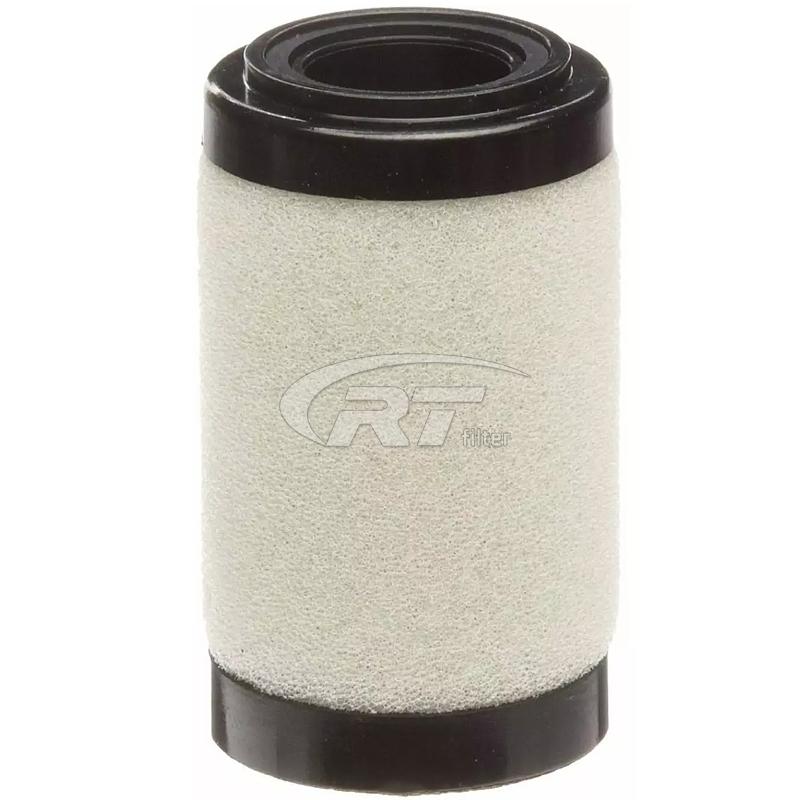

AFM20P-060AS SMC Compressor Air Oil Coalescer Filter Element
Model: AFM20P-060AS
Filter Type: SMC Compressed Air Oil Filter
Filter Material: Fiber cotton, Fiberglass
Differential pressure dry: 80 mbar
Differential pressure wet: 190 mbar
Operating temperature Min.: -5°C
Operating temperature Max.: 65°C
Particle retention: 0.01 µm ~ 1µm
Particle retention rate ISO: 99.%
Residual oil content: 0.01 mg/m³
End cap material: Plastic
O-ring material: Nitrile rubber

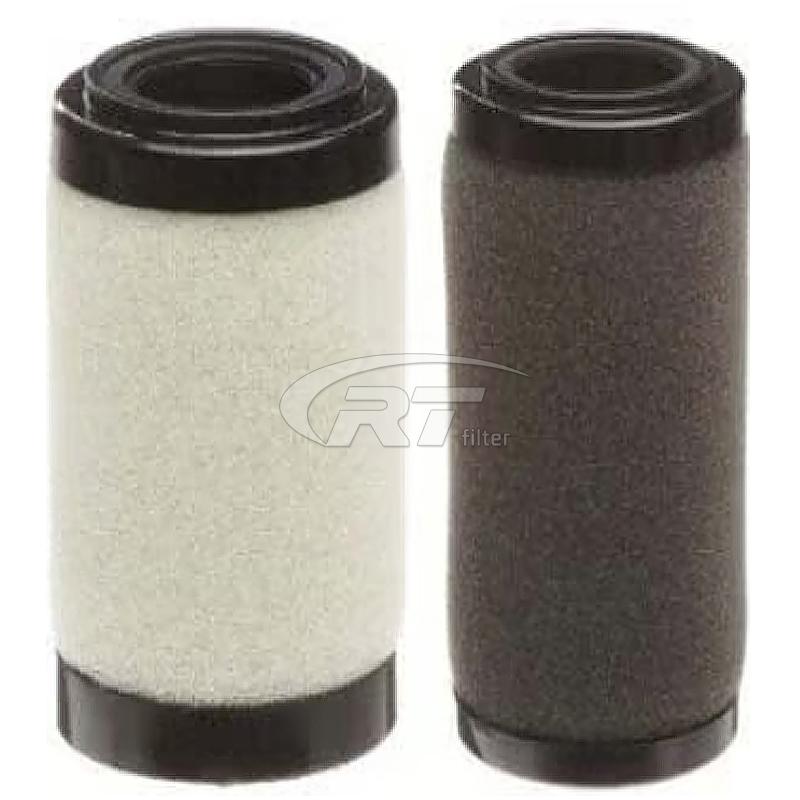

Series: AFD20P-060AS, AFM30P-060AS, AFD30P-060AS, AFM40P-060AS more
AFM20P-060AS is manufactured with the highest quality materials and workmanship. This coalescing element provides filtration performance equal to or better than original OEM filter specifications.
AFM20P-060AS SMC air oil coalescer filter is used to remove water,oil vapor and other contaminants from compressed air lines.These coalescing filters provide the highest level of clean compressed air with minimal pressure loss.Our condensed filter element is tough enough to hold its shape under pressure and maintain an even differential pressure to avoid collapse of the filter element.
More Related Filters:
AFM20P-060AS
AFD20P-060AS
AFM30P-060AS
AFD30P-060AS
AFM40P-060AS
AFD40P-060AS
AFM60P-060AS
AFD60P-060AS
Filter Material:
We manufacture AFM20P-060AS compressor air filter with one or more layers of pleated media within a molded fiberglass laminate cylinder to provide greater particle filtration surface area. Pleats are kept open for full utilization using pleat corrugations and separation material.
• Composite fiberglass and pleated media coalescers remove particles primarily from the high surface area pleated core.
• All-fiberglass media coalescers combine deep particle filtration with a deep coalescing structure.
• All-fiberglass designs have a continuous thinner dielectric layer for deep filtration of particles.
Quality Features:
1. Filtration accuracy: 0.01µm ~ 1µm
2. Filtration efficiency is 98%
3. PH range: 5 to 9
4. No media migration or “linting”
5. Maximum operating temperature:250°F
6. The service life can reach about 3000h ~ 4500h
7. The filter material is made of American HV and Korean Ahlstrom pure wood pulp filter paper
Additional Notes：
AFM20P-060AS cartridge is made with the highest quality materials and workmanship.This coalesced element provides filtering performance equal to or better than the original OEM filter specifications.
Support Customization：
Our company also offers a full range of replacement filter elements. They meet quality requirements and can be installed in the following products:
ATLAS COPCO
INGERSOLL RAND
HANKISON
DOMNICK HUNTER
HIROSS
ZANDER
ORION
JM
PALL
ULTRAFILER
SMC
BEA
Other types are available on request
Related Specification Filters
Application Scenarios Of Filter Element
Air Compressor Filtration
Thermal energy power generation industry. Preventing and Controlling Clean Gas Emissions. Air Compressor Filter.
Reduce the emission of air pollutants, reduce the harm of air pollution to human healthy.
Equipment Oil Pollution Filtration
Large machinery production operation industry.Mechanical production operation equipment oil cleaning and filtration.
Highly efficient cleaning and filtering of oil dirt, protecting engine parts and other equipment.
Industrial Wastewater Filtration
Production wastewater treatment and cleaning. Avoid water pollution. Ensure healthy drinking water.
Ensure healthy drinking water.Avoid water pollution. Production wastewater treatment.
Oil Dust Filtration
Mineral development equipment filtration guarantee.Ensure the stability of mining operation machinery. Safety. Efficient.
Reduce the discharge of dust into the atmosphere. Ensure atmosphere standards.
