Filter Element
Hydraulic Oil Filter Elements,Air Compressor&ln-line Filters,air Filter element,water Filter element,contact us artnerfilter@outlook.com
|
|
|
Brand: PartnerFilter
Model: AC718P4D Parker Velcon
Filter type: Coalescer Filter Cartridge
Length: 18.0 inches
Inside Diameter: 2.6 inches
Outside Diameter: 6.3 inches
Carton Weight: 27.0 pounds
Filter construction: Pleated layers
Function: Water Absorbing
Maximum operating temperature:250°F
Water capacity: Ranges from 2 to 4 quarts
|
|
AC718P4D coalescer filter can well Remove Water and Dirt from Oils Fuels and Gases.The outer media layer filters out siltrust and other particulate contaminants.The inner layers absorb water and chemically bond it so that no water will release downstream.
|
|
|
|
|
|

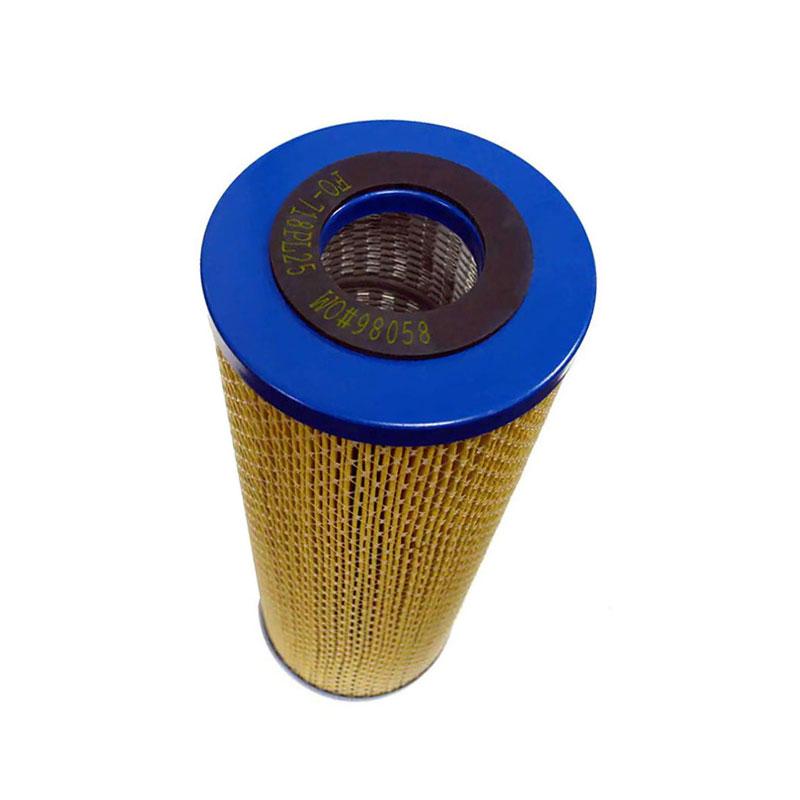

Brand: PartnerFilter
Model: FO718 PL25
Filter type: Coalescer Filter Cartridge
Length: 18.0 inches
Inside Diameter: 2.6 inches
Outside Diameter: 6 inches
Collapse strength:75 psi
Maximum operating temperature: 250°F (121.1°C)
Filter construction: Pleated layers
Application: Water Liquid Absorbing
|
|
PartnerFilter makes FO718 PL25 coalescing filters replacement and the FO series pleated paper filter provides a cost effective solution for removal of solid particulate contaminants in fuel and industrial fluids with high efficiencylong life to absorb the water in oil and gas.
|
|
|
|
|
|

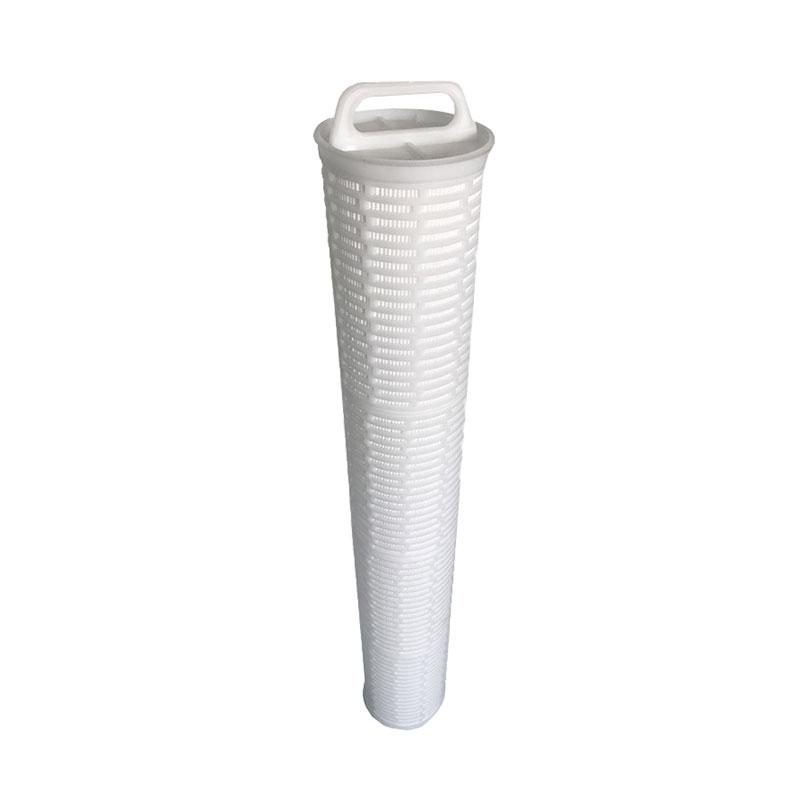

Brand: PartnerFilter
Model: HFU660UY100H
Sizes: OD152*H1016
End Caps and Handle: Polypropylene (10% glass fiber reinforced)
Filter type: High Flow Filter Cartridge
Support Mesh and Outer Wrap: Polypropylene
O-ring Seal: Ethylene Propylene Rubber
Filter Medium: Polypropylene
|
|
Ultipleat high flow filter element HFU660UY100H is designed for cost-effective highly efficient particle filtration in high flow rate food and beverage applications with pleated polypropylene depth structure60inch long and 10µm filter grade.
|
|
|
|
|
|
Brand: PartnerFilter
Model: ST643FF-5 separator cartridge
Type: oil separator filter
Material: Teflon
Sizes: OD6*L43”
Flow direction: Outside to inside
Cleanable and reusable: Yes
Maximum operating temperature: 240°F
|
|
ST643FF-5 oil separator cartridge for the oil or fluid operationit is essential that they are free from particulate contamination and free water.If the fluid does not meet the required cleanliness standardsfouling and corrosion of the equipment downstream may occurleading to expensive maintenance costs and reduced component life.A separator is a device for separating immiscible liquids or liquids from a gas stream.
|
|
|
|
|
|

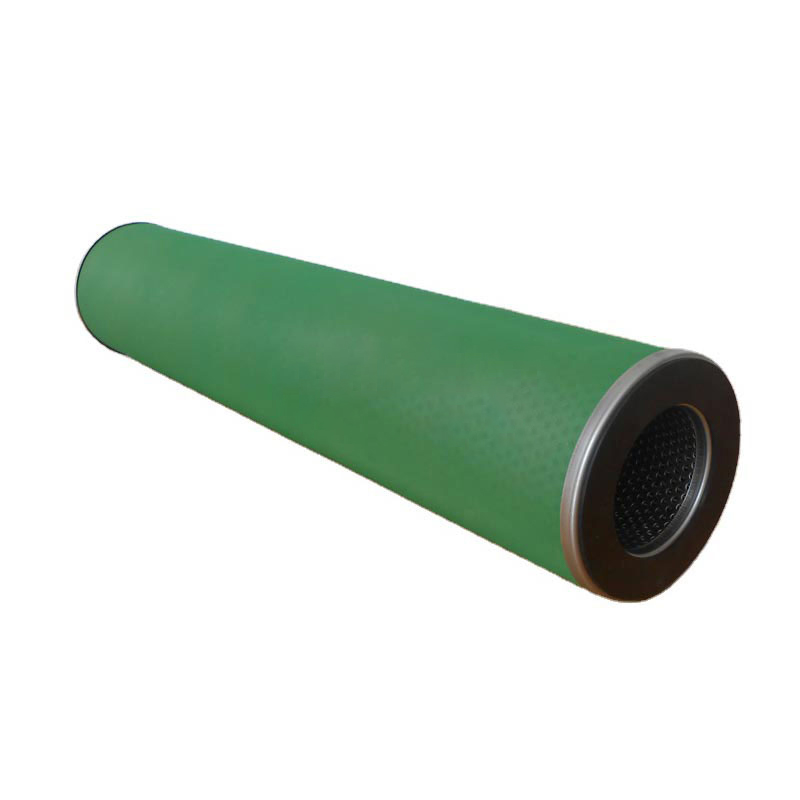

Brand: PartnerFilter
Model:SMF 5/25
Material:Borosilicatecerex and polyurethane
End caps:Aluminium
Filtration accuracy:0.01μm
Operating temp.:80°C
|
|
The SMF 5/25 filter element is made with a pleated oleophobic filter media that rejects oil and water.
|
|
|
|
|
|
Brand:PartnerFilter
Model:1613610500
Filtration Media:16 µm
Outer Diameter:96 mm
Body Height:210mm
Thread:1'' x 12 UNF
Bypass Valve Opening Pressure:2.5 bar
|
|
11613610500 air oil separator in order to remove contaminants that may enter the compressor and damage the unitthe oil itself must be filtered on a regular cycle first. This is done by installing a lubricating oil filter, either cartridge or spin-onand then ensuring that all the oil is cleaned as it passes through the filter.
|
|
|
|
|
|
Brand:PartnerFilter
Model:HC8300FKN39H
Material:Fiberglass
End Cap:Corrosion Resistant CS/AL
Filtration accuracy:6μm
Flow Direction: Out/In
Collapse:20bar
Gasket:Buna O-Ring
Sizes:OD5.97*L38.6”
|
|
Our Manufactured high-performance cartridge HC8300FKN39H replacement increases efficiency keeps fluids cleanand ensures smoother operation.
|
|
|
|
|
|

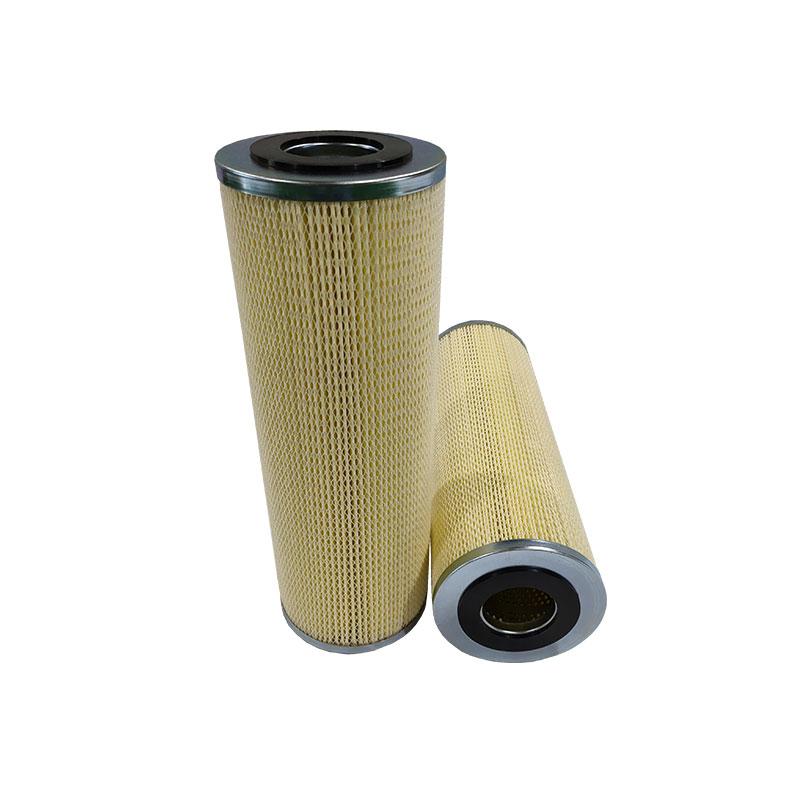

Brand:PartnerFilter
Model:2600R020BN4HC
Type: Hydraulic Oil Filter Cartridge
Material: Fiberglass
End Cap: Corrosion Resistant CS/AL
Filtration accuracy:15μm
Flow Direction: Out/In
Collapse: 20bar
Gasket: Buna O-Ring
Sizes: OD143.5*L921mm
|
|
Our Manufactured 2600R020BN4HC hydac oil filter is engineered to ensure your hydraulic system operates smoothly,offering a versatile solution for various applications.
|
|
|
|
|
|

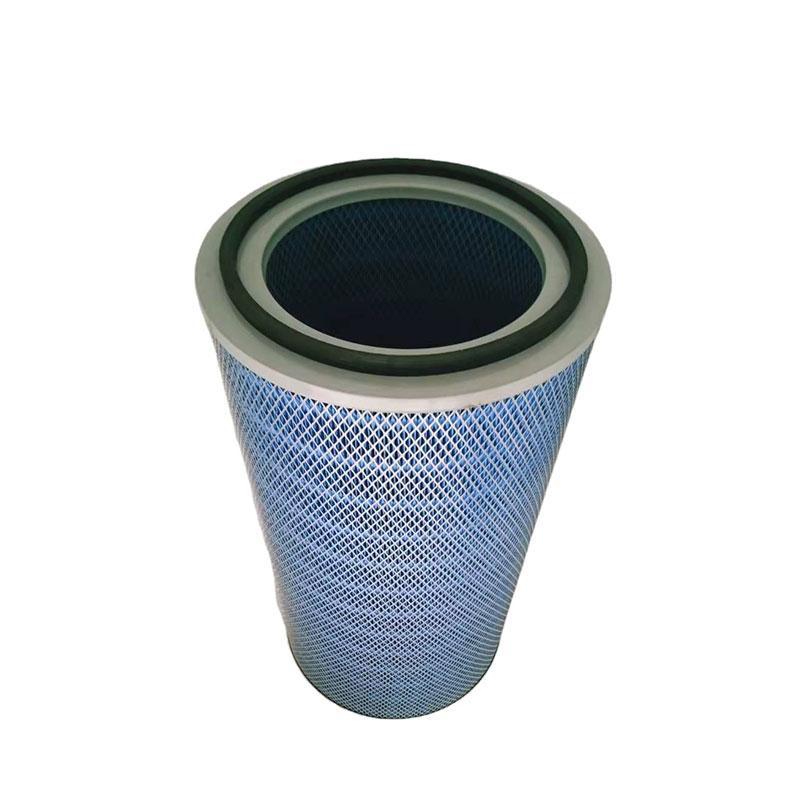

Brand:PartnerFilter
Model:P034078 016 436
Filter type:Air Filter Cartridge
Temperature Limit: 82 °C (180 °F)
Filter Area:23.60 m² (254 ft²)
Anti-Static:Yes
Flame Retardant:Yes
|
|
PartnerFilter supplies Donaldson Air Filter Cartridge P034078 016 436 replacement exactly.The filter media is durablemoisture and high temperature resistantand pulse cleanable.It delivers superior filtration efficiencyexcellent pulse cleaning effectivenessand low resistance to airflow throughout the life of the filter.
|
|
|
|
|
|
