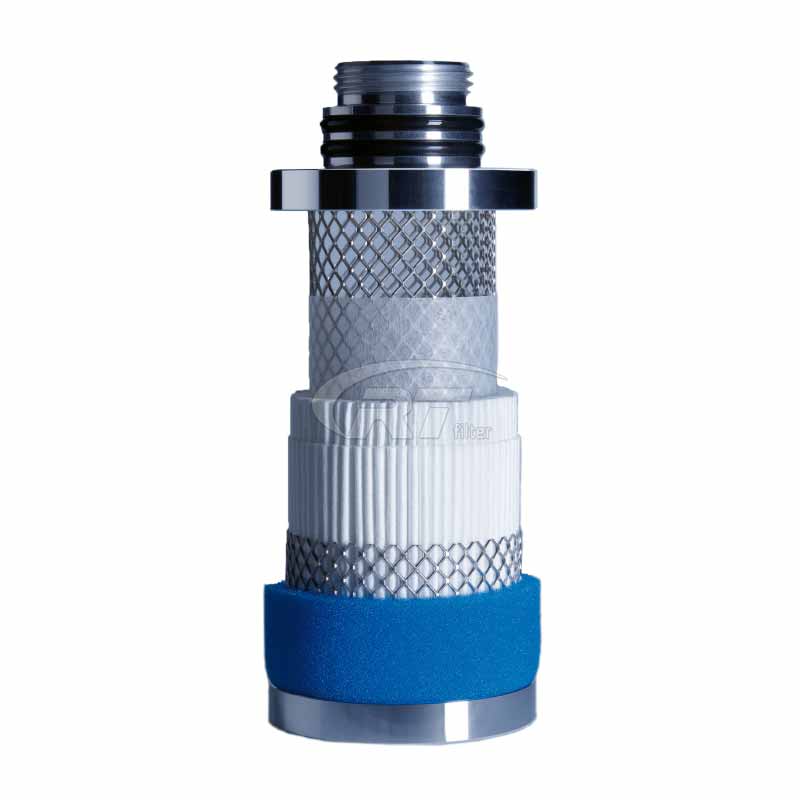

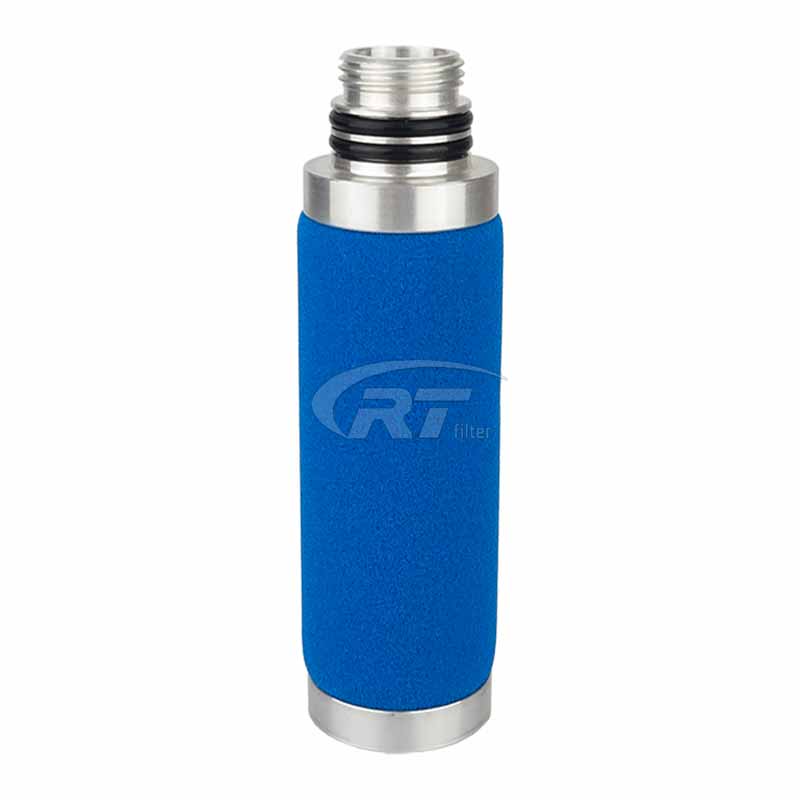

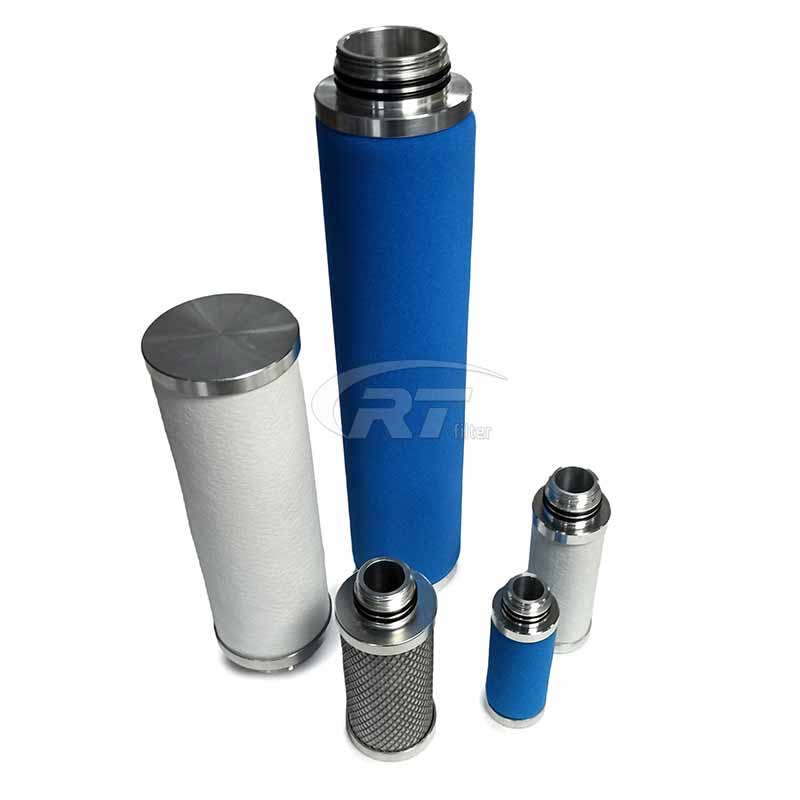

We offer different Ultrafilter PE,FF,MF,SMF,AK series replacement filter elements for most compressed air applications.As compressed air filter elements,they are made with the finest pleating technology and aluminum end caps.
Additional Notes:
Unique to the industry with their extremely low differential pressure.Advanced pleating techniques mixed with nano technology,makes our “High Performance” filters much more effective than a standard filter,as the pleating provides a 450% larger filtration surface per square inch.The special pleating also secures a much larger particle retention capacity.The benefits of using this type of filter is low differential pressure,up to 70% lower energy costs and improved efficiency of filtration.
Advantages and benefits
We corporation are excellent air compressor filter cartridge manufacturers.
Our manufactured ultrafilter SMF 5/25 air compressor filter are guaranteed to meet or exceed OEM filter requirements
• 450 % greater filter media compared to standard elements
• Lower differential pressure
• Improved filtration efficiency
• Greater dirt-capturing capacity
• 70 % less energy costs
..
Applications
• Chemical and petrochemical industry
• Pharmaceutical industry
• Food & beverage
• Plastic industry
• Process filtration
• Instrumentation air
Related Specification Filters
Flow rate(m³/min)
Model
0.16
02/05
0.5
03/05
1
03/10
1.5
04/10
2
04/20
3
05/20
4.5
05/25
6
07/25
7
05/30
8
07/30
12
10/30
18
15/30
24
20/30
32
30/30
48
30/50
Micron
Oil Residue Component
AK Level :0.01㎛
0.003ppm
PE Level:25㎛5㎛1㎛
5ppm
FF Level:0.01㎛
1ppm
MF Level:0.01㎛
0.03ppm
SMF Level:0.01㎛
0.01ppm
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
Application Scenarios Of Filter Element
Air Compressor Filtration
Thermal energy power generation industry. Preventing and Controlling Clean Gas Emissions. Air Compressor Filter.
Reduce the emission of air pollutants, reduce the harm of air pollution to human healthy.
Equipment Oil Pollution Filtration
Large machinery production operation industry.Mechanical production operation equipment oil cleaning and filtration.
Highly efficient cleaning and filtering of oil dirt, protecting engine parts and other equipment.
Industrial Wastewater Filtration
Production wastewater treatment and cleaning. Avoid water pollution. Ensure healthy drinking water.
Ensure healthy drinking water.Avoid water pollution. Production wastewater treatment.
Oil Dust Filtration
Mineral development equipment filtration guarantee.Ensure the stability of mining operation machinery. Safety. Efficient.
Reduce the discharge of dust into the atmosphere. Ensure atmosphere standards.
