HC0961FKT18H Pall Hydraulic Oil Filter Cartridge Replacement

Prev: 636-CAC-PM PECO Activated Carbon Liquid Separation Cartridge

Next: No more

Skip to see more products

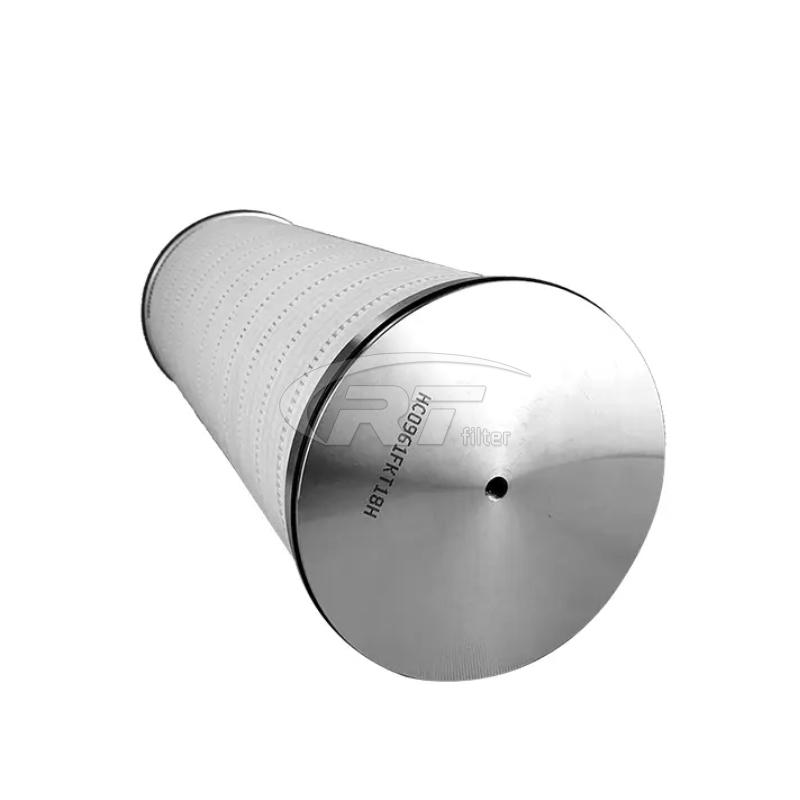

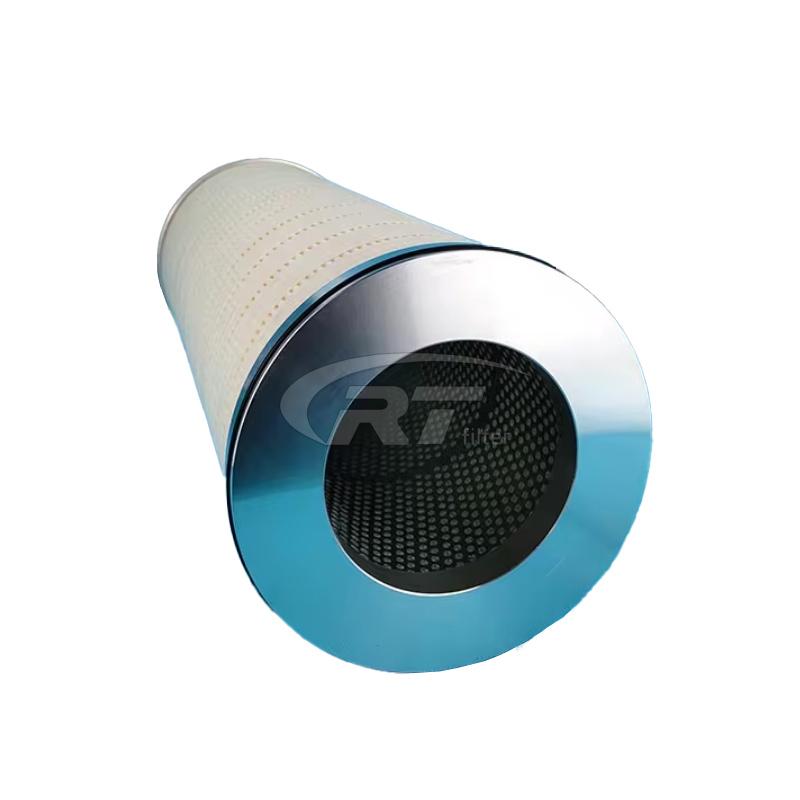

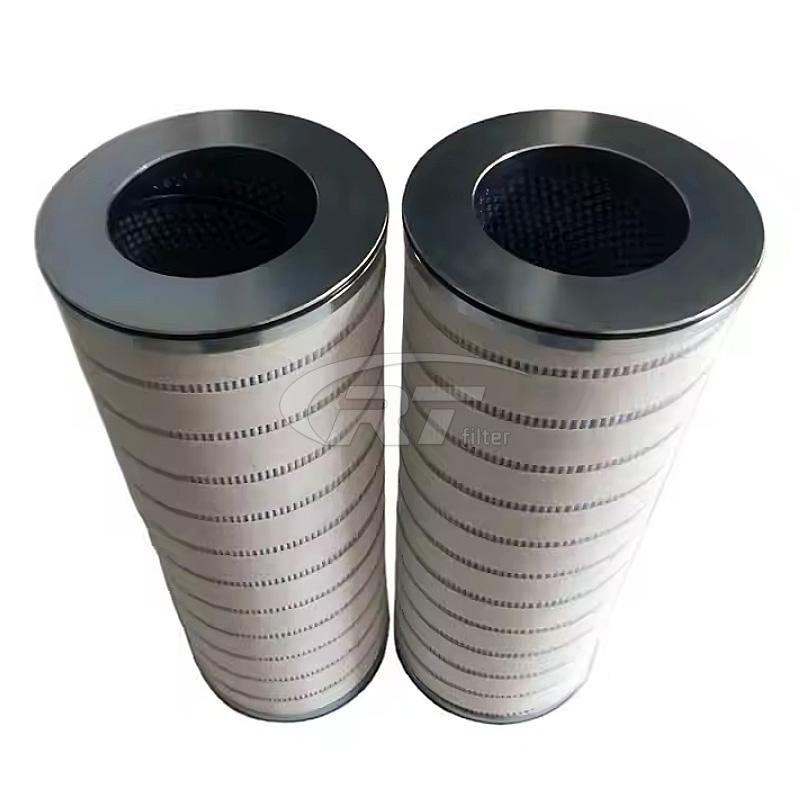

HC0961FKT18H Pall Hydraulic Oil Filter Cartridge Replacement

Brand: PartnerFilter

Model: HC0961FKT18H Pall Hydraulic Filter Cartridge

Filter Type: Pall Hydraulic Oil Cartridge filter

Innerside Diameter: 109mm

Outside Diameter: 183mm

Length: 483mm

Weight: 7.0Kg

Filter micron: 25μm

Seal Material: Viton

End Caps: Corrosion Resistant Steel

Series: HC0961FKT18H,HC8300FKT39H,HC8900FKN8H more

HC0961FKT18H pall oil hydraulic filter is used in hydraulic systems. It is a specialized coalescing filtration mechanical component. HC0961FKT18H pall oil hydraulic Filter is used to filter out solid particles and colloidal substances in oil, effectively control the pollution level of the working medium, and achieve the effect of purifying the medium.

About Us Contact Us

Product Details Related Specification Filters Communication Requirements

Introduction:

HC0961FKT18H pall hydraulic oil filter is used in hydraulic systems. hydraulic filter is a specialized coalescing filtration mechanical component. Hc0961Fkt18H pall industrial filter cartridge is used to filter out solid particles and colloidal substances in oil, effectively control the pollution level of the working medium, and achieve the effect of purifying the medium.

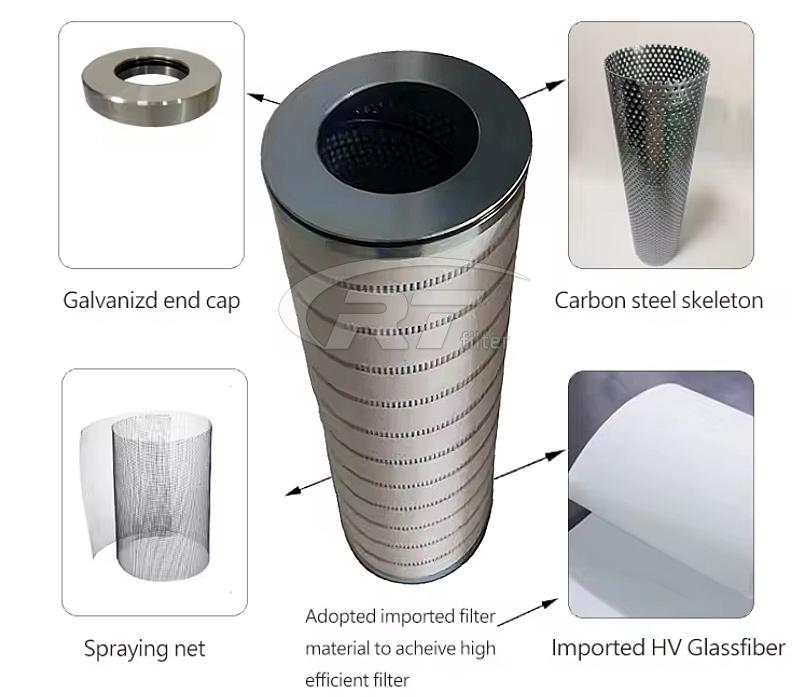

HC0961FKT18H industrial filter cartridge structure:

HC0961FKT18H industrial filter cartridge outer structure and central tube are made of corrosion-resistant steel, with exoskeleton structure, all filters can withstand 145 psid pressure, have high performance, improve efficiency, keep the fluid clean, and ensure coalescing purification filtration equipment systemhydraulic system operation smoother.

...... HC0961FKT18H Pall Hydraulic Oil Filter Cartridge Replacement

HC0961FKT18H measured data:

Our manufactured hydraulic filters meet or exceed the original Pall filters, and their performance and durability are absolutely guaranteed.Our corporation make oil purification filter is used as the main component in filters and separators, belonging to the hydraulic oil filter category. pall oil separator filter main function is to improve the cleanliness of oil products, effectively ensure the quality requirements of oil products, and ensure the long-term, efficient and safe operation of industrial equipment.

1.parameter datas:

Item	Value
Innerside Diameter	109mm
Outside Diameter	183mm
Length	483mm
Weight	7.0Kg
Filter micron	25μm
.................Max Collapse Pressure.................	10bar
End Caps	.................Corrosion Resistant Steel................
Center Tube	.................Corrosion Resistant Steel.................

2.performance advantages:

• Large surface area: allows high flow, low initial pressure drop, maximum dirt holding capacity.	• Resin Impregnated Media: Maintains strength and resists the effects of water and heat.
• Threaded base element: available for easier installation.	• Reinforced rugged construction - ensures suitability for the toughest filtration environments.
• High Collapse Strength: Heavy carbon steel end caps and center tube provide a safety margin against pressure surges up to 75 psi.	• Coated steel components: Resistant to corrosion by most industrial fluids.
• Effectively filters silt and other particles.	• Does not affect oil additives.

Related Specification Filters

We corporation are excellent hydac oil filter manufacturers.

Our manufactured industrial hydraulic filter elements are guaranteed to meet or exceed OEM filter requirements

HC0162FDS16H	HC6300FUP8Z	HC8300FKT16Z	HC8900FKN39Z	HC9400FUT39Z
HC9651FDN16Z	HC0171FKN16H	HC6300FUS13H	HC8300FKT26H	HC8900FKN8H
HC9404FKN13H	HC9651FDN8H	HC0171FKP16H	HC6300FUS13Z	HC8300FKT26Z
HC8900FKN8Z	HC9404FKN13Z	HC9651FDN8Z	HC0171FKS16H	HC6300FUS16H
HC8300FKT39H	HC8900FKP13H	HC9404FKN26H	HC9651FDP16H	HC0250FDP10H
HC6300FUS16Z	HC8300FKT39Z	HC8900FKP13Z	HC9404FKN26Z	HC9651FDP16Z
HC0250FDP6H	HC6300FUS26H	HC8300FKT8H	HC8900FKP16H	HC9404FKN39H
HC9651FDP8H	HC0250FDS10H	HC6300FUS26Z	HC8300FKT8Z	HC8900FKP16Z
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.

Application Scenarios Of Filter Element

Air Compressor Filtration

Thermal energy power generation industry. Preventing and Controlling Clean Gas Emissions. Air Compressor Filter.

Reduce the emission of air pollutants, reduce the harm of air pollution to human healthy.

Equipment Oil Pollution Filtration

Large machinery production operation industry.Mechanical production operation equipment oil cleaning and filtration.

Highly efficient cleaning and filtering of oil dirt, protecting engine parts and other equipment.

Industrial Wastewater Filtration

Production wastewater treatment and cleaning. Avoid water pollution. Ensure healthy drinking water.

Ensure healthy drinking water.Avoid water pollution. Production wastewater treatment.

Oil Dust Filtration

Mineral development equipment filtration guarantee.Ensure the stability of mining operation machinery. Safety. Efficient.

Reduce the discharge of dust into the atmosphere. Ensure atmosphere standards.
