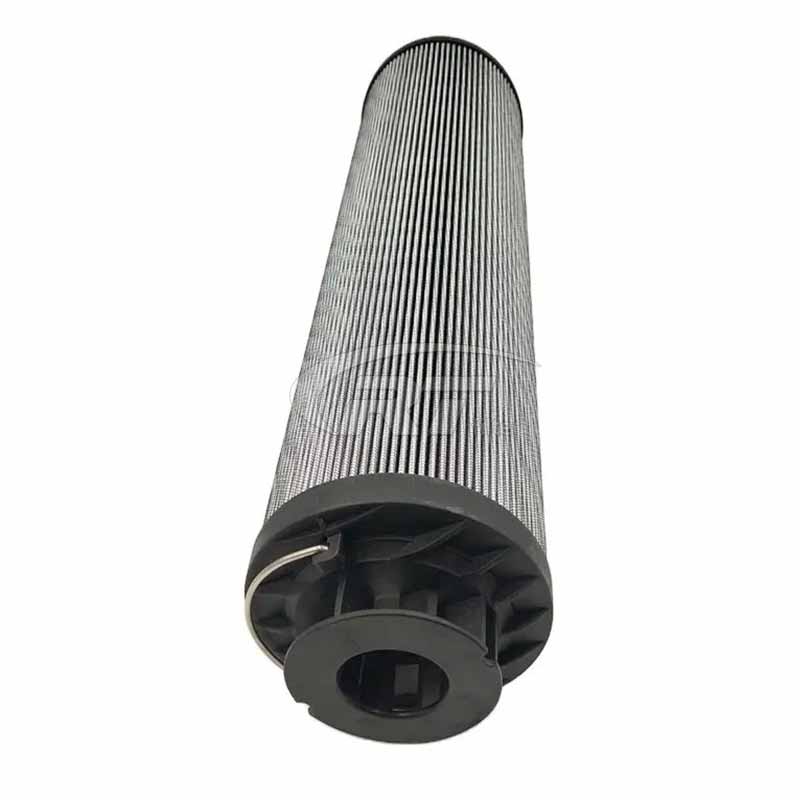

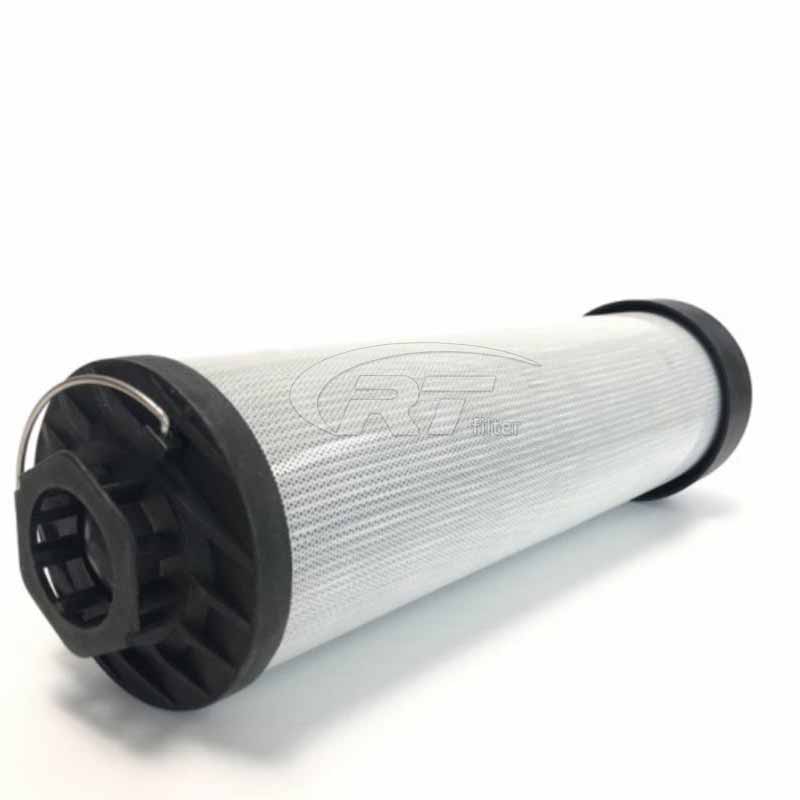

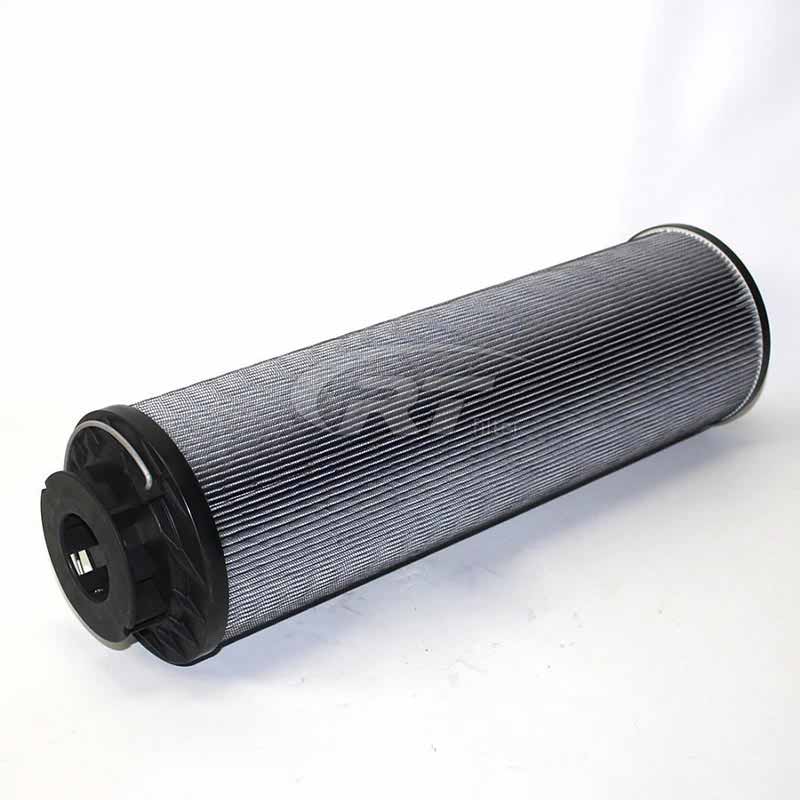

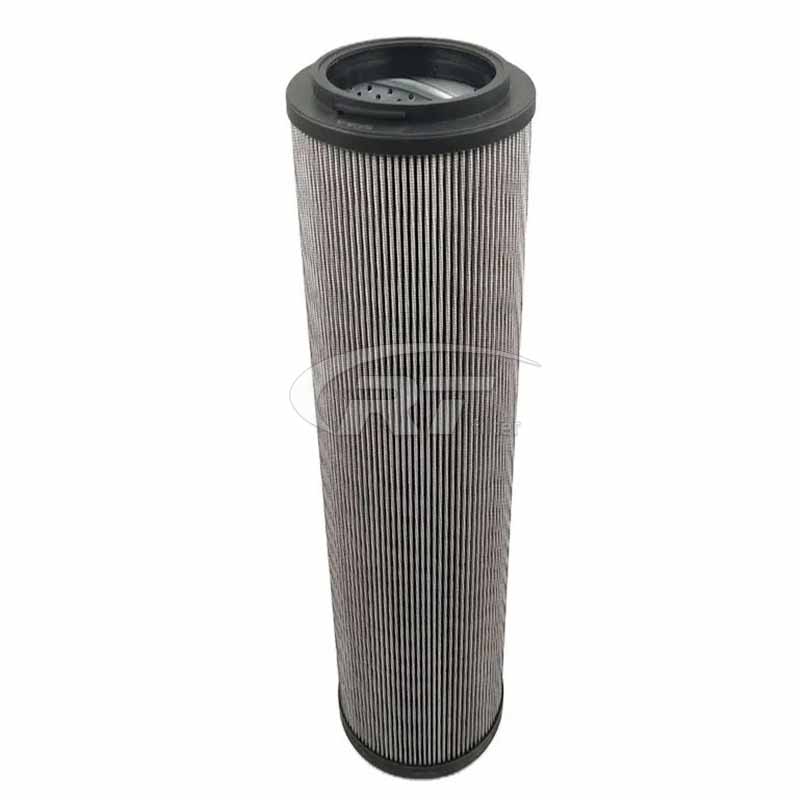

1300R003ON Hydac ON series hydraulic oil filter cartridge
Brand:PartnerFilter
Model: 1300R003ON
Type: Hydac ON series hydraulic oil filter
Material: Fiberglass
End Cap: Corrosion Resistant CS/AL
Filtration accuracy: 3μm
Flow Direction: Out/In
Collapse: 150 psid
Gasket: Buna O-Ring
Sizes: OD5.63”*L18.99”
HYDAC1300R003ON filter element is type R for return line filtration.It is the best combination in terms of separation efficiency service life and differential pressure.The new ON filter element is optimized in terms of filtration performance and energy efficiency.
HYDAC 1300R003ON filter element is type R for return line filtration.It is the best combination in terms of separation efficiency, service life and differential pressure.The new ON filter element is optimized in terms of filtration performance and energy efficiency.
Performance parameters：
As a complete package,the innovative nature of the new technology has a very positive impact on the differential pressure of the components.For example,the new ON filter mesh envelope geometry has the effect of stabilizing folds and increasing the available area of the incoming jet.The obvious advantage is improved flow conditions and thus reduced pressure differential.
Item
Value
Filtration accuracy.....
3μm
Collapse
150 psid
Sizes
OD5.63"*L18.99"
Filter Material
Fiberglass
Gasket
Buna O-Ring
End Cap
Corrosion Resistant CS/AL.....
Quality advantage：
Our manufactured 1300R003ON hydraulic oil filter is engineered to ensure your hydraulic system operates smoothly,offering a versatile solution for various applications. This 1300R003ON oil hydraulic filter is Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.
1300R003ON Oil Filter Clean:
The 1300R003ON oil hydraulic filter is stainless steel mesh element can be cleaned again after use,it can save you much cost.However,only a certain cleaning level (percentage) can be achieved.For best results,components should be cleaned using professional equipment.But cleaning results are unpredictable.It depends a lot on various conditions.
(1) Dip the filter element in light oil and rotate thoroughly.
(2)Clean off dirt by scrubbing the element with a brush parallel to the pleats.
(3)Clean off dirt with an air spray gun.
(4)Rinse well.
(5)Dry using an air spray gun.
Application:
1300R003ON Filter element is designed for use in all industries that place special emphasis on top-notch filtration efficiency for high clean grades as well as significant energy cost savings and sustainable filtration and widely used for return filtration of hydraulic fluid,water glycols,diesel,machining fluids,lubricating oil,coolants,gasoline,process fluids,turbine and compressor lube oils,synthetic lubricants,and many more chemicals.
Test standards:
ISO 2941 Collapse & Burst Resistant
ISO 2942 Fabrication & Integrity Test
ISO 2943 Material Compatibility with Fluids
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop vs. Flow Rate
ISO 16889 Multi-pass Performance Testing
Related Specification Filters
Filter element characteristic:
Gradient coefficient of filter element:
The gradient coefficient in mbar/(l/min) is suitable for mineral oils with kinematic viscosity of 30 mm²/s. The change in pressure drop is proportional to the change in viscosity.
Pressure filter element "R"...ON
Size
1μm
3μm
5μm
10μm
15μm
20μm
0030
89.8
68.4
43.9
26.8
16.8
14.7
0060
47.2
23.6
17.2
9.82
9.01
6.85
0075
25.6
19.4
13.4
7.31
4.80
4.40
0090
22.5
13.1
9.49
6.07
4.30
3.21
0110
22.3
13.1
8.87
5.40
4.26
3.24
0150
13.4
7.80
5.65
3.61
2.55
1.91
0160
16.0
8.00
5.68
3.22
2.69
2.32
0165
14.1
9.44
7.37
4.02
2.25
2.42
0185
10.4
7.44
5.74
2.93
1.65
1.41
0195
7.66
5.48
4.22
2.16
1.22
1.04
0210
5.66
3.28
2.55
1.53
1.00
0.88
0240
10.4
5.18
3.66
2.27
1.84
0.57
0270
3.66
2.12
1.65
0.99
0.65
0.57
0280
5.10
2.57
2.08
1.43
1.06
0.80
0330
8.09
3.72
2.73
1.48
1.28
1.02
0450
6.33
3.17
2.30
1.40
1.00
0.85
0500
5.27
2.60
1.90
1.09
0.84
0.69
0580
2.49
1.23
0.90
0.53
0.40
0.34
0600
2.35
1.23
1.10
0.61
0.42
0.34
0660
3.57
1.69
1.21
0.67
0.57
0.45
0750
2.11
1.12
0.92
0.53
0.34
0.32
0850
2.77
1.31
1.00
0.58
0.44
0.36
0950
2.39
1.03
0.79
0.48
0.38
0.31
1300
1.72
0.72
0.59
0.35
0.32
0.22
1700
1.35
0.64
0.53
0.28
0.25
0.18
2600
0.84
0.36
0.29
0.18
0.16
0.11
1320
1.85
0.97
0.76
0.45
0.35
0.27
1500
1.64
0.97
0.70
0.48
0.36
0.28
If you have no standard filter code numbers please send us your filters specifications or samples we can customize as your requests.
