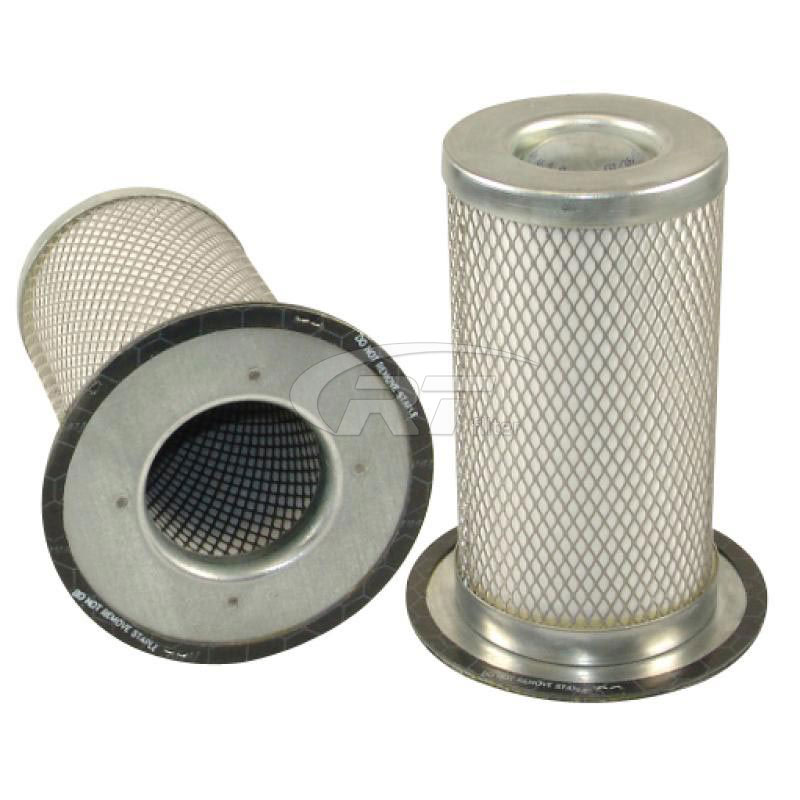

23566938 Ingersoll Rand Screw Air Compressor Oil and Gas Separator

Brand:PartnerFilter

Model: 23566938

Type: Ingersoll Rand Screw Air Oil Compressor

Seal: Viton

Sizes: OD10.83”*L18.19”

Filter material: Fiberglass

Product Net Weight: 8.61Kg

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: 54595442, 39831885, 39831888, 42545368 more

23566938 ingersoll rand oil gas separator adopts the ultrafine glass fiber produced by HV or Lydall.23566938 is designed to remove at least 99.9% of the oil and gas mixture from compressed air.

About Us Contact Us

Product Details Related Specification Filters Communication Requirements

Introduction:

23566938 Ingersoll Rand screw air compressor materials use ultra-fine glass fibers produced by HV or Lydall.The air compressor filter element is designed to remove at least 99.9% of the oil and gas mixture from compressed air. In addition, a newly developed two-component adhesive with higher bonding strength enables the diaphragm to function even at temperatures above 120℃.

More Related Filters:

42841239

39831904

36876472

42542928

39894598

39863857

89285761

92765783

88181755

92699198

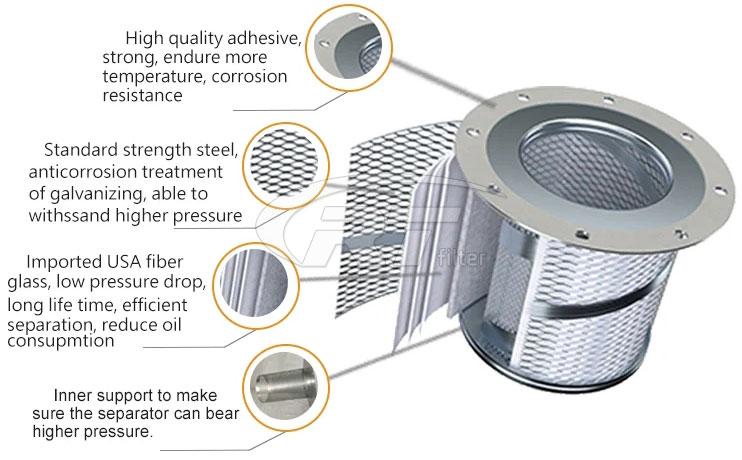

Structural diagram：

23566938 oil gas separator can be external or built-in.Our company has more than 11 years of manufacturing experience,familiar with thousands of production technology.

We can provide high-end OEM services.We can also design the separator for any brand screw air compressor such as Atlas Copco,Sullair,Fusheng,Compair,etc.

.... 23566938 Ingersoll Rand Screw Air Compressor Oil and Gas Separator

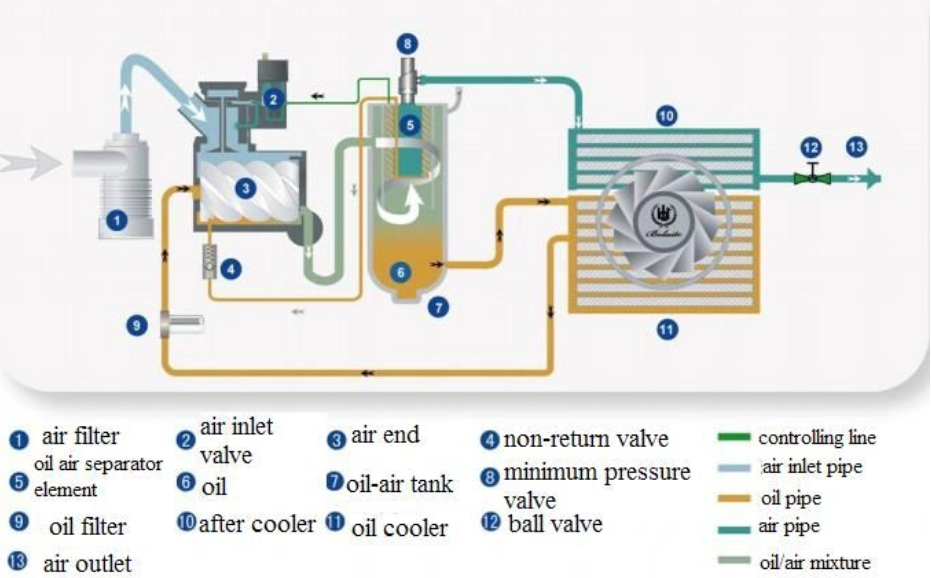

Working principle:

23566938 uses micron grade glass fiber to separate gaseous oil from compressed air.The large oil droplets that coalesce from the gaseous oil will then gather under gravity.Finally,the accumulated oil is returned to the compressor oil circuit.In this regard,the micron separation minimizes the fuel consumption of the air compressor.

.... 23566938 Ingersoll Rand Screw Air Compressor Oil and Gas Separator

Parameter:

1. Initial saturation pressure drop:≤ 0.02MPa

2. Oil content after separation:≤5 ppm

3. Under the condition that the pressure drop is not greater than 0.1MPa,the oil and gas separator can be used for at least 4000 hours.

Remarks:

The above parameters are obtained under rated working pressure and rated flow conditions.Besides,the maximum temperature does not exceed 120℃.The use of GB/T7631.9-1997 specified DAH lubricating oil.Oil content before separation does not exceed 3000ppm.

PartnerFilter also offers a full range of replacement filter elements:

ATLAS COPCO Filters

INGERSOLL RAND Filters

SULLAIR Filters

COMPAIR Filters

FUSHENG Filters

LIU-TECH Filters

MANN Filters

Hitachi Filters

Kaeser Filters

Other types are available on request

Related Specification Filters

Our manufactured 23566938 compressor oil filter are guaranteed to meet or exceed OEM filter requirements.

22388045	54720735	54749247	54595442	39831885	39831888
42545368	39751391	92890334	54749247	22242606	92754688
39895610	22089551	92754696	39737473	92871326	46501073
42841239	39831904	36876472	42542928	39894598	39863857
39894597	92722750	54601513	54601513	42862077	42841247
39739578	39831912	39863865	54509427	99277998	22219174
39831920	39760590	39863899	54509500	39890660	99245938
89285779	54509435	39863881	38008579	38008587	54639802
42542787	39863840	89202022	22402242	54721345	22111975
89285761	92765783	88181755	92699198	92062132
If you have no standard filter code numbersplease send us your filters specifications or sampleswe can customize as your requests.
