R080325-000-440 Donaldson Air Filter Replacement Collector

Prev: P31058-3 Detachable Air Intake Panel Hepa Air Filter Next: Medium effect chemical fiber material pockets bag filter
R080325-000-440 Donaldson Air Filter Replacement Collector

Brand:PartnerFilter

Model:R080325-000-440

Filter material:Ultra-Web Spunbond

Sizes:W192*L568mm

Max. Temp:65°C

Center Tube:

Filtration Area:5.8m²

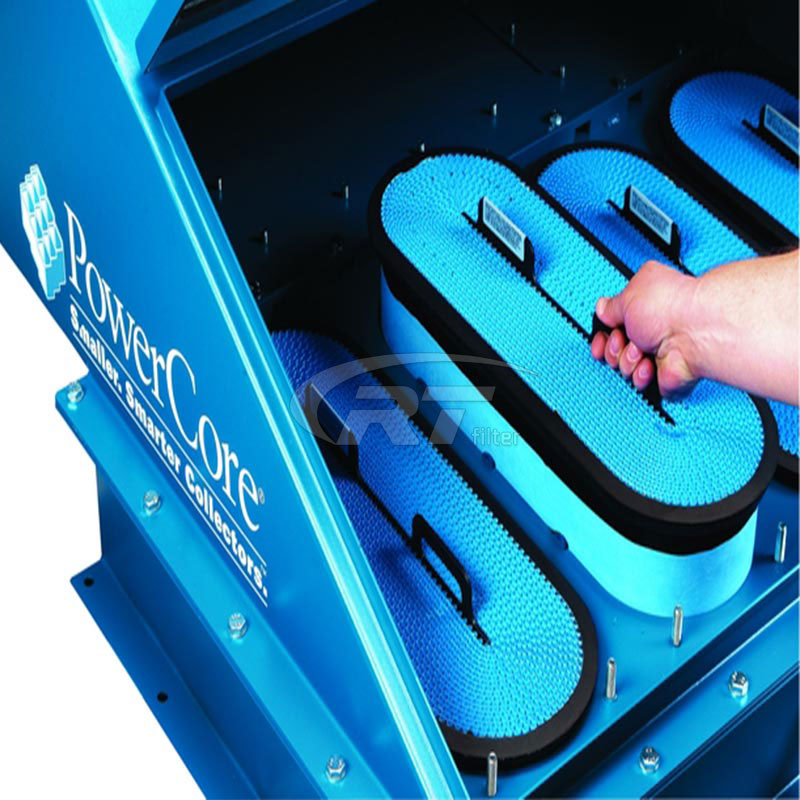

PartnerFilter makes the replacement of R080325-000-440 Air filter elementwhich is widely used for CPCCPVSVU and other brands of collectors.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Introduction:

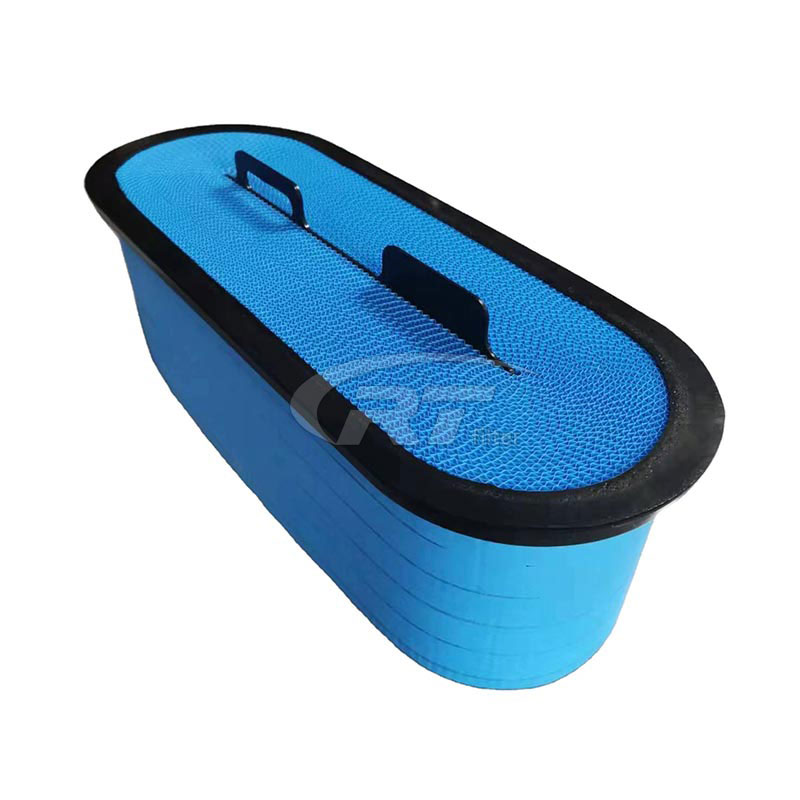

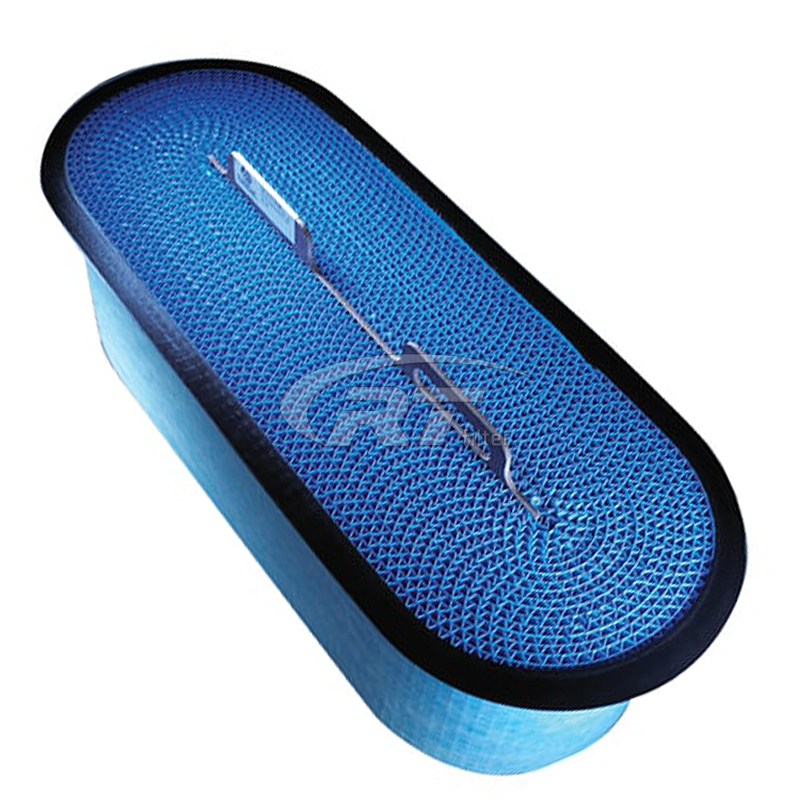

R080325-000-440 Air filter element is widely used for CPC,CPV,SVU and other brands of collectors.It adopts honeycomb structure,which breaks the traditional filtering form,and is a special filtering product,which makes full use of the space of the equipment,improves the efficiency and capacity of the filter,and makes it have greater performance during use advantages,increase the space to accommodate pollutants,and prolong the use time of filter equipment.



R080325-000-440 has a honeycomb structure with sparse outside and dense inside,which has excellent filtration characteristics and can effectively remove suspended solids,particles,rust and other impurities in the fluid.


Attributes:

Itemvalue
Height (mm)178
Length (mm)568
Width (mm)192
MediaUltra-Web Spunbond
Media Weight (g/m²)260
Area (m²)5.8
EarthedNo
Flame RetardantNo
Unit FamilyCP, SVU
Max. Temp (°C)65
Volume (m³)0.0477987584
Weight (kg)3.12071296



Related Specification Filters
P611698 P616056 P611696 83456 AF27688
P640149 P033755-016-340 P032358-016-340 17801-21050 16546-V0100
28113-1R100 P608665 P607542 P610875 84191182
P622091 P608667 AL172780 AL119839 P606119
CPD7289 AF606119 P608766 P635903 P635904
P785965 P635979 P635980 ME422879 CP23210
CA4996 AF27873 LAF3236 49108 CP24420
CP29550 CA30071 AF1010 CF2135 PA4997
AF26248 LAF3237 49109 CF2550 CF2864
PA30072 AF1009 49502
If you have no standard filter code numbers please send us your filters specifications or samples we can customize as your requests.
