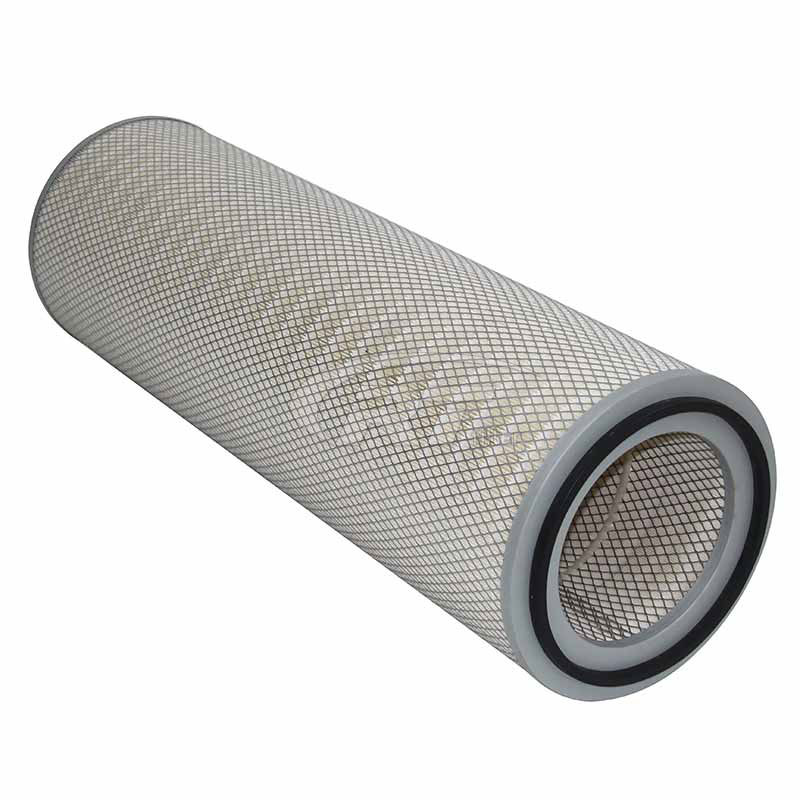

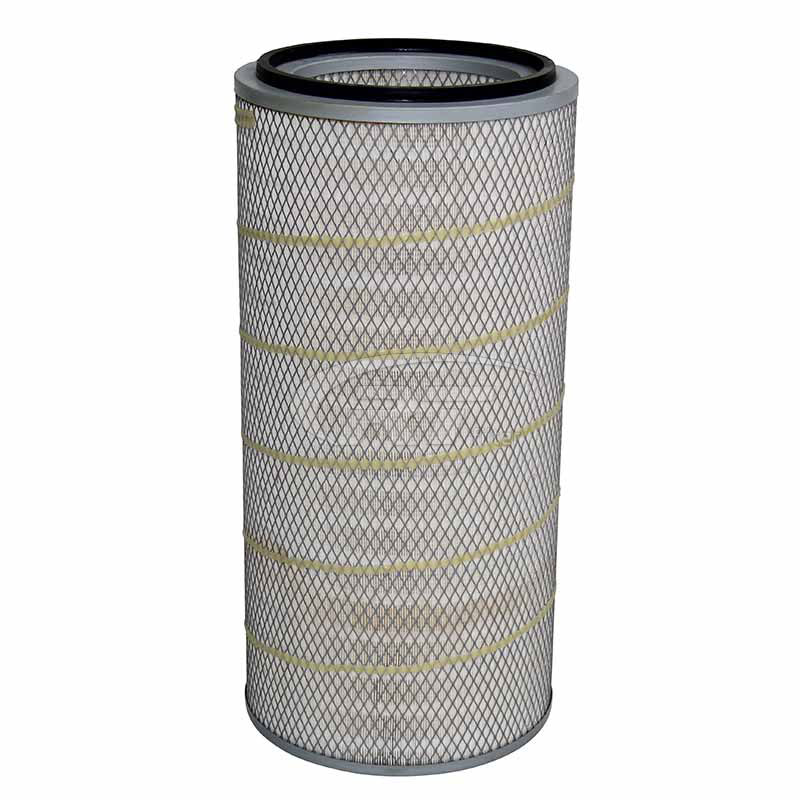

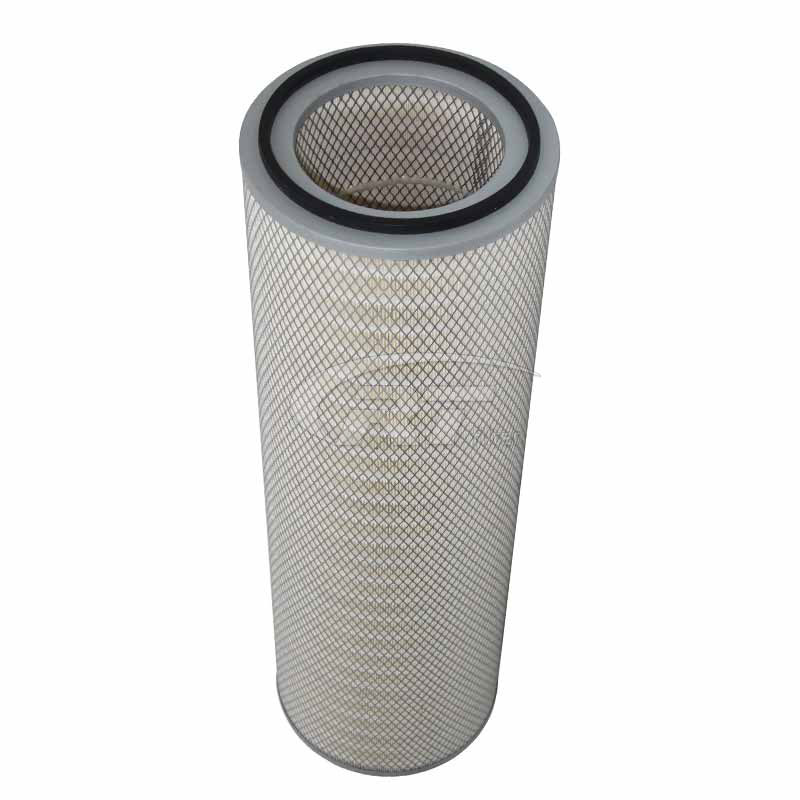

PartnerFilter makes the replacement of Donaldson safety air filter cartridge P124866 acts as a backup to the primary filter and to protect the engine during primary filter servicing.
PartnerFilter makes the replacement of Donaldson safety air filter cartridge P124866,which acts as a backup to the primary filter and to protect the engine during primary filter servicing.
• Serve as a backup filter in case of primary filter damage or improper installation.
• Prevent contaminants from entering the clean side of the air intake system during primary filter servicing.
• Designed to plug rapidly if contamination finds its way past the primary filter,alerting operators about an issue.
• Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter.
Technical Data:
Item
Specifications
Outer Diameter
219.6mm (8.65 inch)
Length
457.2 mm (18.00 inch)
Inner Diameter
179.2mm (7.06 inch)
Bolt Hole Diameter
22.73(0.98 inch)
Media Type
Safety
Liner
No
End Cap Construction
Open/Closed
Shape
Round
Anti-Static
No
Flame Retardant
No
Related Specification Filters
P030904-000-111
P030915-000-111
P031790-016-142
P031792-016-142
P031851-016-436
P033063-016-142
P033741-016-436
P033742-016-142
P033779-016-433
P033786-000-111
P034078-016-142
P034079-016-142
P034079-016-436
P034081-016-142
P034976-016-142
P129196-016-340
P131912-000-111
P134507-000-111
P145891-016-142
P148646-016-340
P151244-016-142
P155248-000-111
P190911-000-111
P191194-000-111
P191321-016-433
P191322-016-433
P191508-016-431
P191550-016-340
P191666-016-433
P521420-016-436
P522193-016-142
P522963-016-340
P527078-000-111
P527080-016-142
If you have no standard filter code numbers please send us your filters specifications or samples we can customize as your requests.
