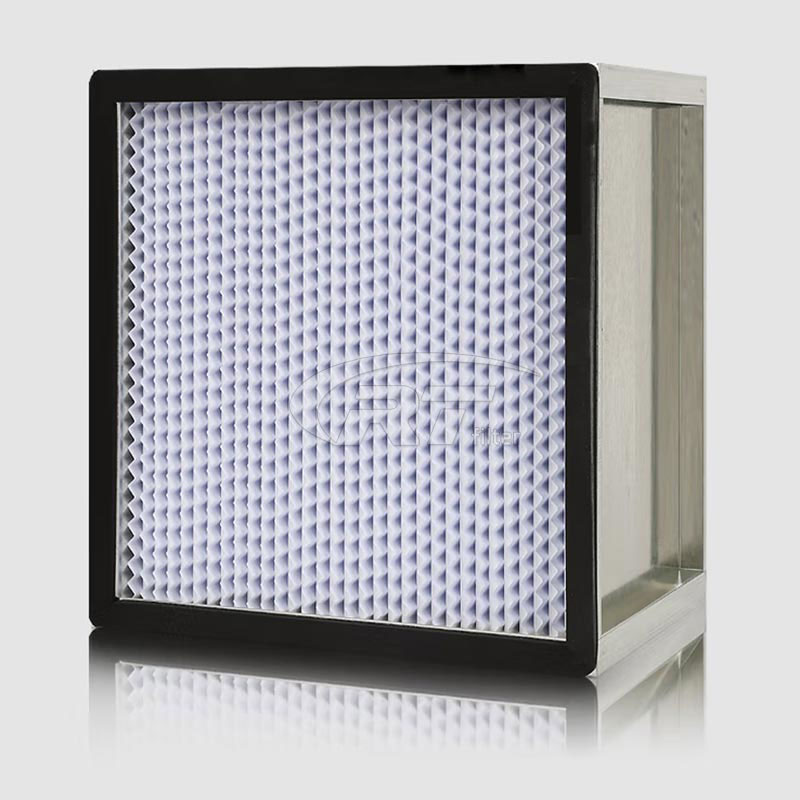

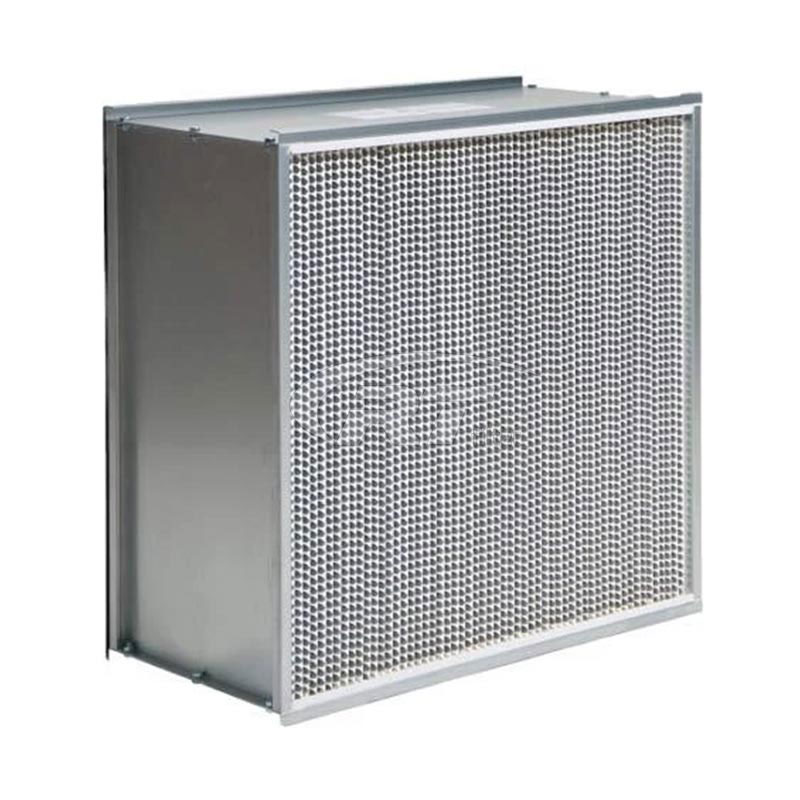

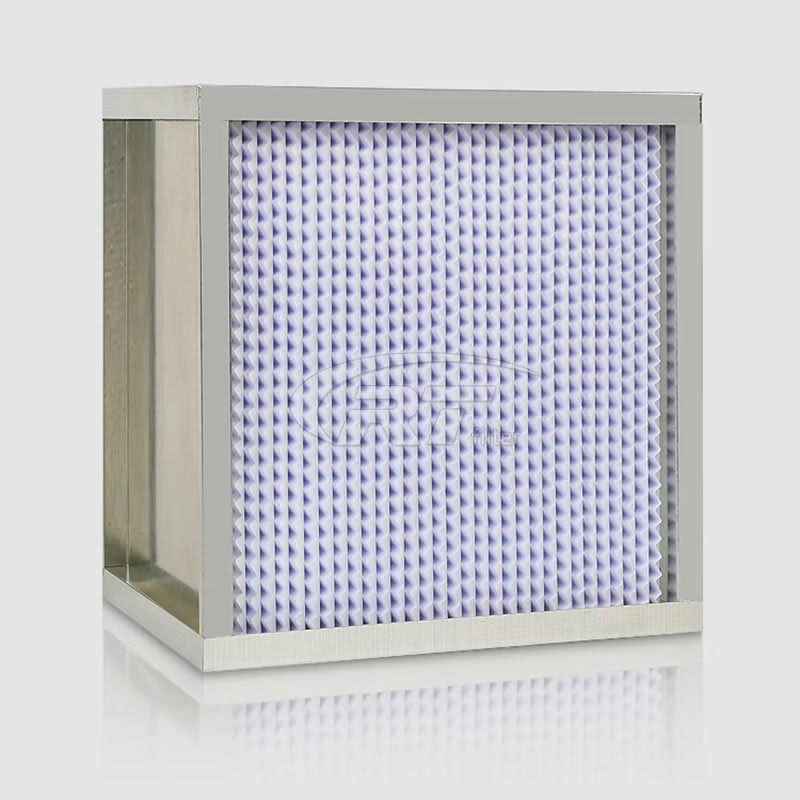

Description: PartnerFilter uses ultra-fine glass fiber filter paper as filter material,glued paper,aluminum foil board and other folded materials interlayers,new sealed polyurethane sealant,galvanized sheet,stainless steel sheet and aluminum alloy profile as the outer frame for the high efficiency aluminium frame deep pleats air filter. Each filter has been strictly tested.It is used for air purification under normal temperature,normal pressure and normal humidity conditions.
Features: • Aluminum partition, the frame can provide no flange, single flange, double flange, flange thickness 20mm • Using ultra-fine glass fiber filter paper • With partition design, high efficiency, low resistance and large dust holding capacity • Suitable for VAV systems
Material: • Frame: galvanized sheet/aluminum sheet/stainless steel sheet • Frame optional thickness: 80mm/150mm/220mm/292mm • Filter material: water-resistant glass fiber • Divider: aluminum foil/paper • Sealant: Polyurethane
Efficiency: • Medium effect: F6, F7, F8, F9 (ISO 16890) • Sub-efficient: 85%@0.3u m (H10), 95%@0.3u m (H11), 99.5% 0.3u m (H12) (EN1822) • High Efficiency: 99.95%@0.3u m(H13), 99.995%@0.3u m(H14), (EN1822)
Applicable conditions: Maximum temperature: 80°C (180°F)

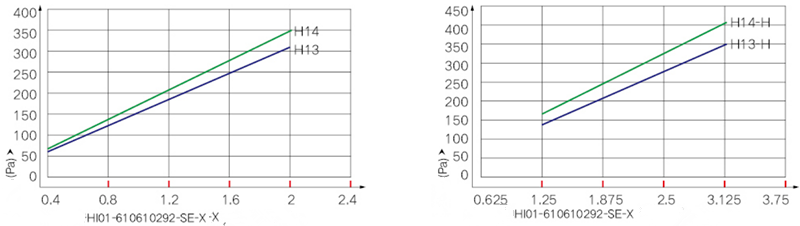

Resistance & air volume:
Applications: • Medium-efficiency filters for clean room, commercial and industrial ventilation and air conditioning systems • Ventilation and air conditioning systems for high humidity environments • VAV • Installation of space-constrained ventilation and air conditioning systems • Ventilation and air conditioning systems with high fire protection requirements or high ventilation temperature • Widely used in clean rooms and other fields that have strict requirements on air cleanliness
|
