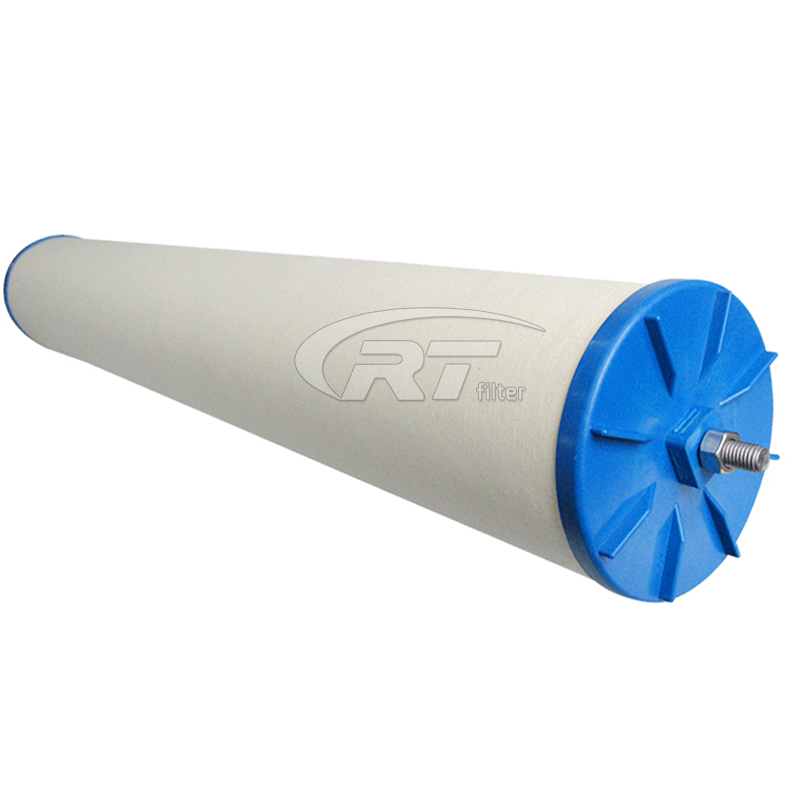

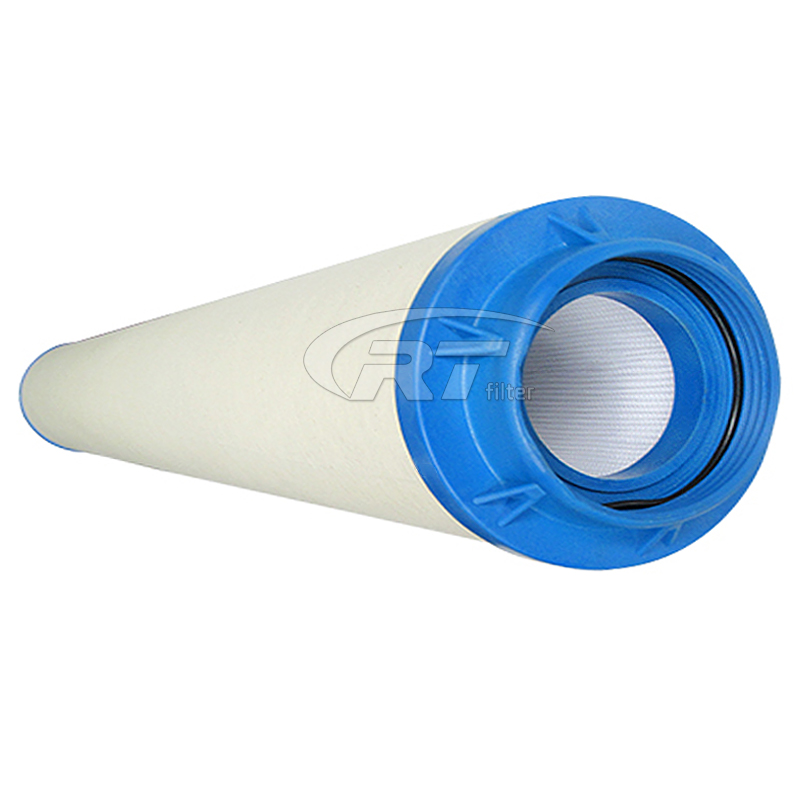

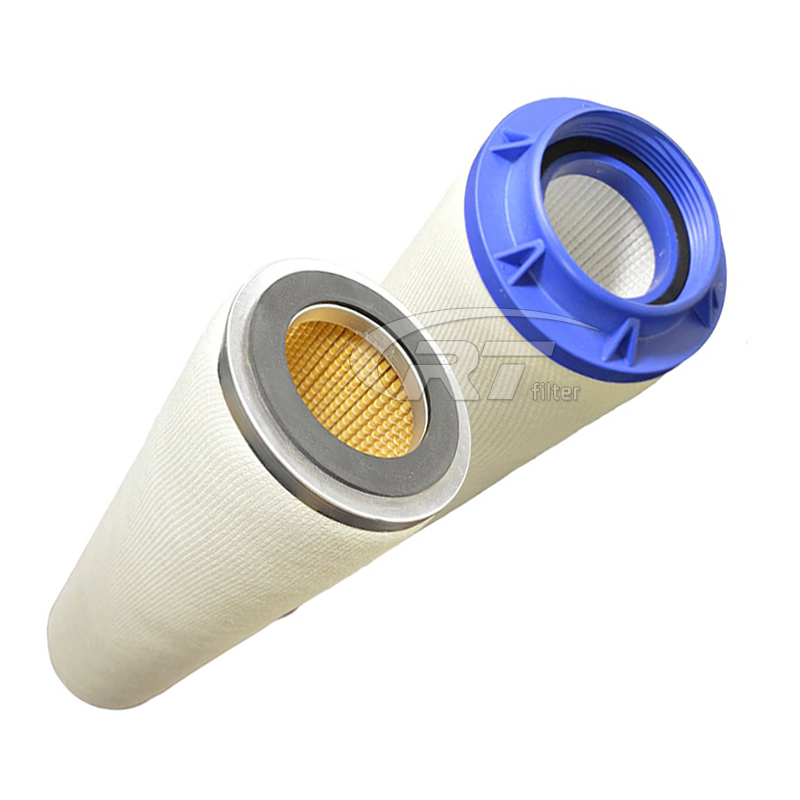

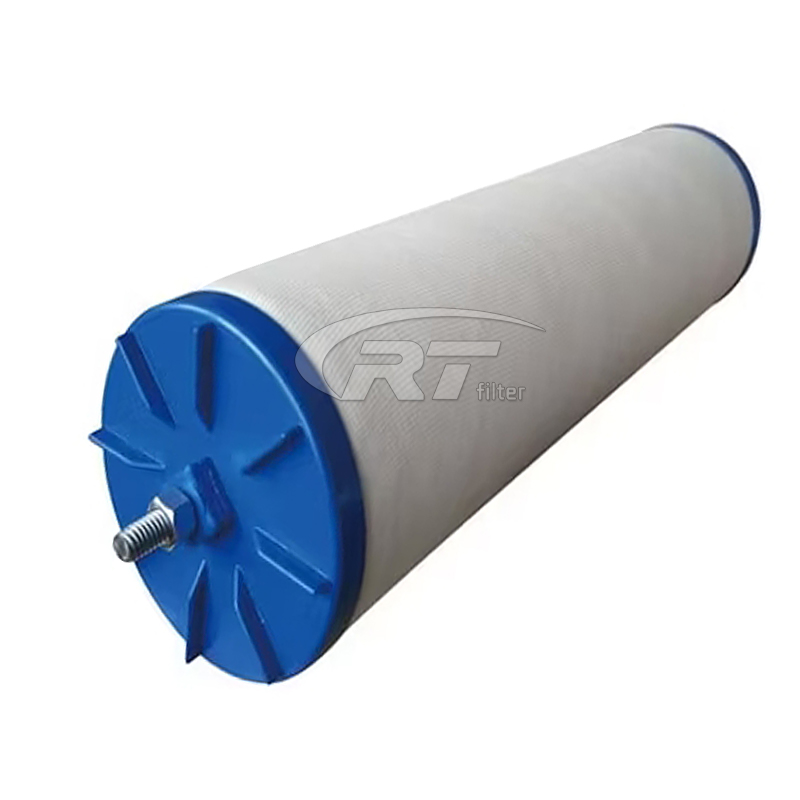

Introduction: I-628MMTB parker velcon dilter coalescer cartridge is used to remove cost-effective particles and emulsified water from hydrocarbon fluids, as the first stage filter element for filters/separators. Its performance has been verified on site, using a single unit structure to reduce the number of gasket seals and achieve the effect of improving overall reliability, making it very durable.
Performance parameters： | Item | Value |
|---|
| Length | 28 inches | | Inside Diameter | 3.5 inches | | Outside Diameter | 6 inches | | Filtration accuracy | 0.4µm | | Changeout Pressure Differential.... | 15 psi, 1 bar | | Work pH | 5~9 | | Temperature range | 65ºC~75ºC | | Filter Material | Fiberglass | | Seal | Buna-N | | End Caps Configuration..... | Threaded Base..... |
I-628MMTB Material: We make I-628MMTB coalescer uses a single unit structure to reduce the number of gaskets and improve overall reliability. I-628MMTB coalescer have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use. • The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores. • All glassfiber media aggregator combines deep particle filtration with deep coalescence structure. • The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.
Performance Advantage: • The design of a single structure reduces the number of gasket seals and improves overall reliability. • No need for cover plates, center plates, nuts, washers, and washers, simplifying installation and replacement. • Using threaded bases or open ends, as well as fiberglass media or a combination of fiberglass and folded media. • The design of both full glass fiber and combined coalescer filter elements adopts phenolic resin impregnated glass fiber medium. • All fiberglass designs have continuous and finer media layers to achieve deep filtration of particles. • It has a high cost-effectiveness ratio in jet fuel applications.
I-628MMTB Filter Performance: I-628MMTB coalescing filter element is mainly used to coalesce emulsified water and remove particles from hydrocarbon fluids. The largest single application is the filtration of aviation jet fuel. Coalescer filter are also used in other types of fuels, in processes in refineries and petrochemical plants, and in the production of condensate from natural gas. Our Manufactured I-628MMTB coalescer cartridge element is Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter. ...
Test Standards: Before delivery,Our manufactured I-628MMTB coalescing filter element will be tested and follow the standards: ISO 2941 Collapse & Burst Resistant ISO 2942 Fabrication & Integrity Test ISO 2943 Material Compatibility with Fluids ISO 3724 Flow Fatigue Characteristics ISO 3968 Pressure Drop vs. Flow Rate ISO 16889 Multi-pass Performance Testing
|
