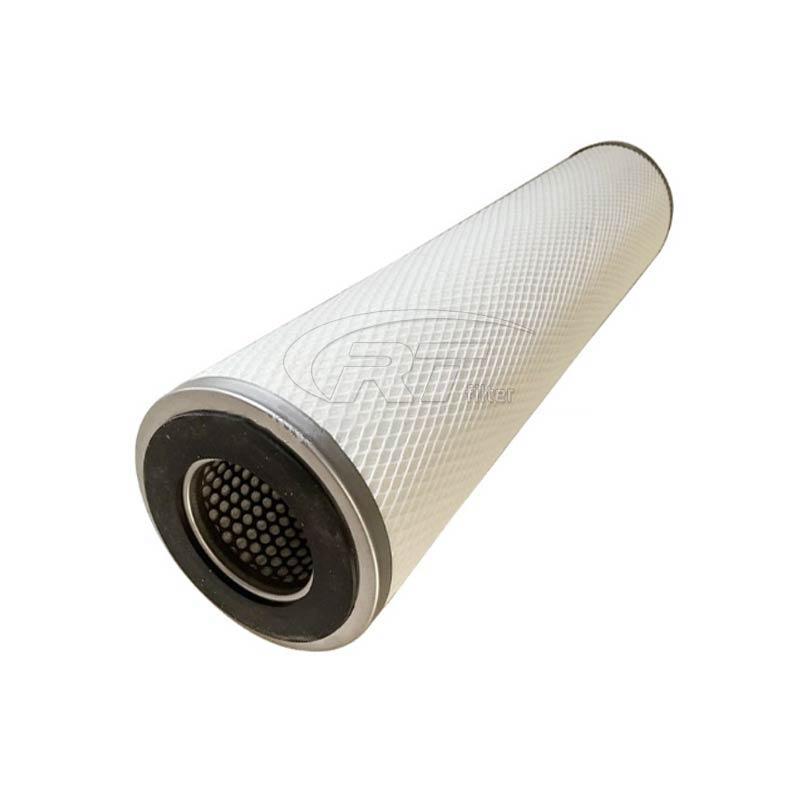

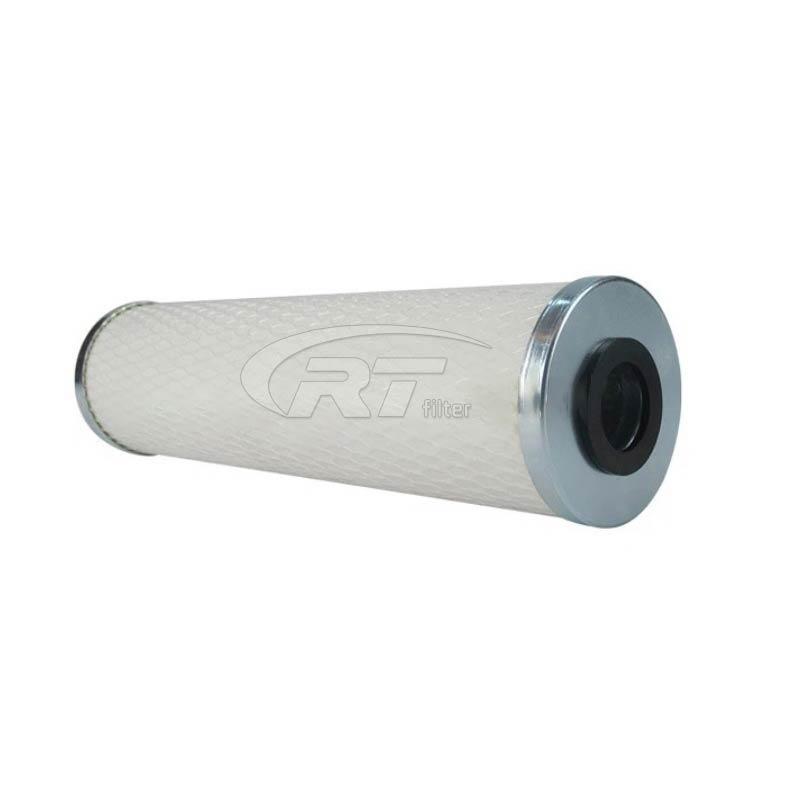

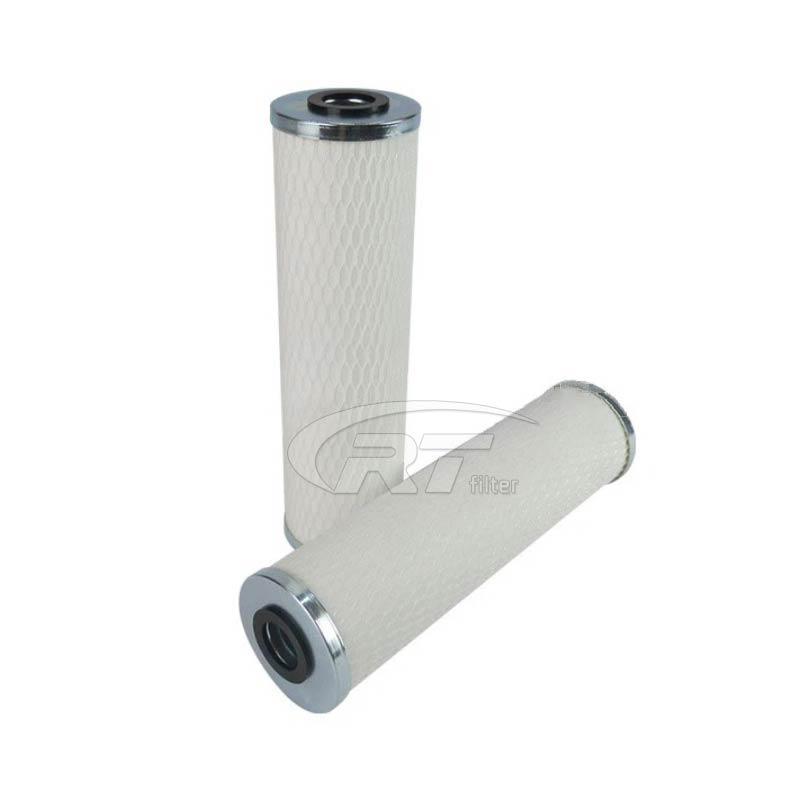

Introduction: PFS1001ZMH13 pall gas coalescence filters is used to removal oil, water, and dirt in air or gas. and is made of various composite materials and high area folded glass fiber media through special processes. It is a sturdy, inexpensive, and efficient filter. Gas coalescence filters have hydrophilicity, which can not only filter out solid impurities, but also separate water from oil and solid particles through coalescence and demulsification, and coalesce into larger water droplets to promote further purification of the medium.
Performance parameters： | Item | Value |
|---|
| Length | 247.7 mm | | Inside Diameter | 24 mm | | Outside Diameter | 69.9 mm | | Filtration accuracy | 0.3 µm | | Carton Weight.... | 7.0 pounds | | Clean Saturated Pressure Drop..... | 1.5 psid(103.4mbard)..... | | Changeout Pressure Differential..... | 50 psid(3.4bard) | | Filter Material | Fiberglass | | End Caps..... | Stainless Steel..... |
Characteristics: • Metal support core: The perforated internal support core provides axial strength and anti liquid plug protection, and the support core is made of 304 stainless steel. • External drainage layer: The polymer external drainage layer provides drainage for agglomerated liquids and protection against re entrainment. • End cap: 304 stainless steel end cap is used to improve the strength of the filter element and prevent pollutant bypass. • External holder: The medium support during operation is provided by the 304 stainless steel external support holder. • Main Aggregator: Aggregation is achieved by using a high area folded glass fiber medium, which is supported by non-woven polymers and surrounded by a drainage layer. • Using surface treatment to reduce scaling tendency and pressure drop, and improve the performance of the coalescer. • Positive sealing: The standard sealing material is nitrile (H13), which can be used as an internal O-ring or flat washer, depending on the size of the coalescer.
PFS1001ZMH13 Material: We make PFS1001ZMH13 pall gas coalescer replacement uses a single unit structure to reduce the number of gaskets and improve overall reliability. I-62887TB coalescer have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use. • The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores. • All glassfiber media aggregator combines deep particle filtration with deep coalescence structure. • The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.
PFS1001ZMH13 Advantages: • Improve the accuracy of on-site or factory gas measurements. • Prevent blockage of the orifice in the pneumatic controller. • Reduce corrosion and freezing issues. • Provide repeatable, high-quality gas for all operations using produced gas • Protective instrument pneumatic equipment and systems • Protection process analyzer • Reduce dirt on small gas engines
PFS1001ZMH13 Filter Performance PFS1001ZMH13 coalescing filter element is mainly used to coalesce emulsified water and remove particles from hydrocarbon fluids. The largest single application is the filtration of jet fuel. Coalescing filters are also used in other types of fuels, in refinery and petrochemical plant processes, and in the production of natural gas condensate. The PFS1001ZMH13 coalescer filter element we manufacture is Beta grade. Excellent filtration performance. .
Test standards: Before delivery, Our manufactured PFS1001ZMH13 oil gas coalescing filter will be tested and follow the standards: ISO 2941 Collapse & Burst Resistant ISO 2942 Fabrication & Integrity Test ISO 2943 Material Compatibility with Fluids ISO 3724 Flow Fatigue Characteristics ISO 3968 Pressure Drop vs. Flow Rate ISO 16889 Multi-pass Performance Testing
PartnerFilter also offers a full range of replacement filter elements: Parker & Velcon PECO & Facet Faudi Pall Other types are available on request
|
