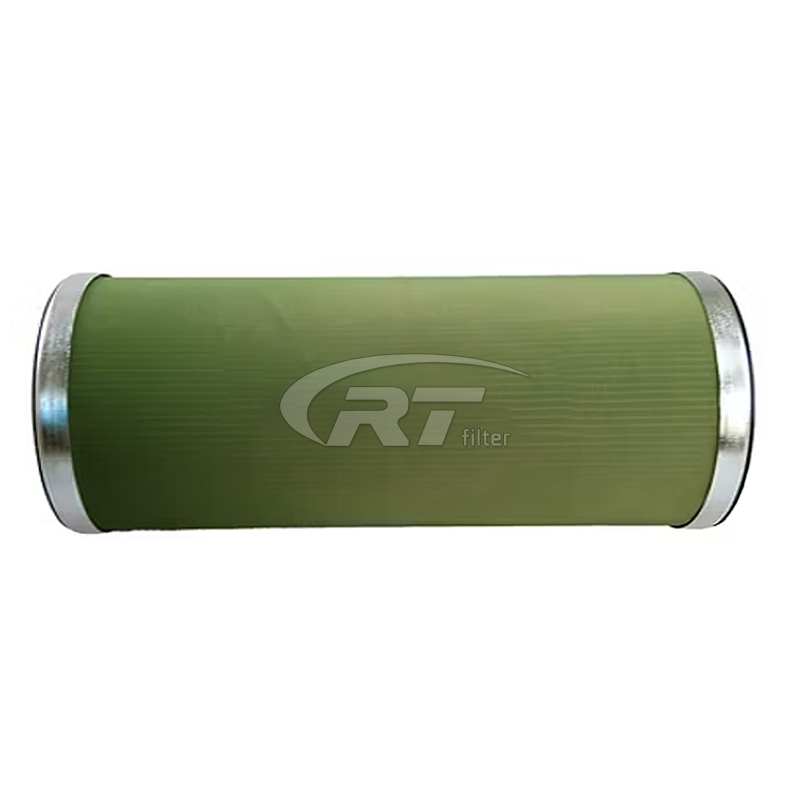

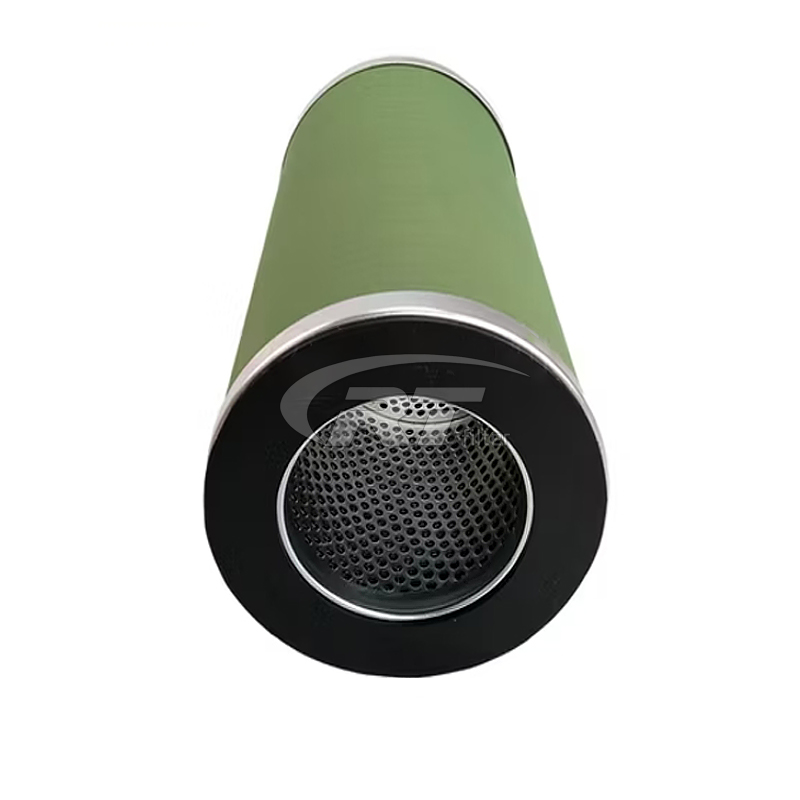

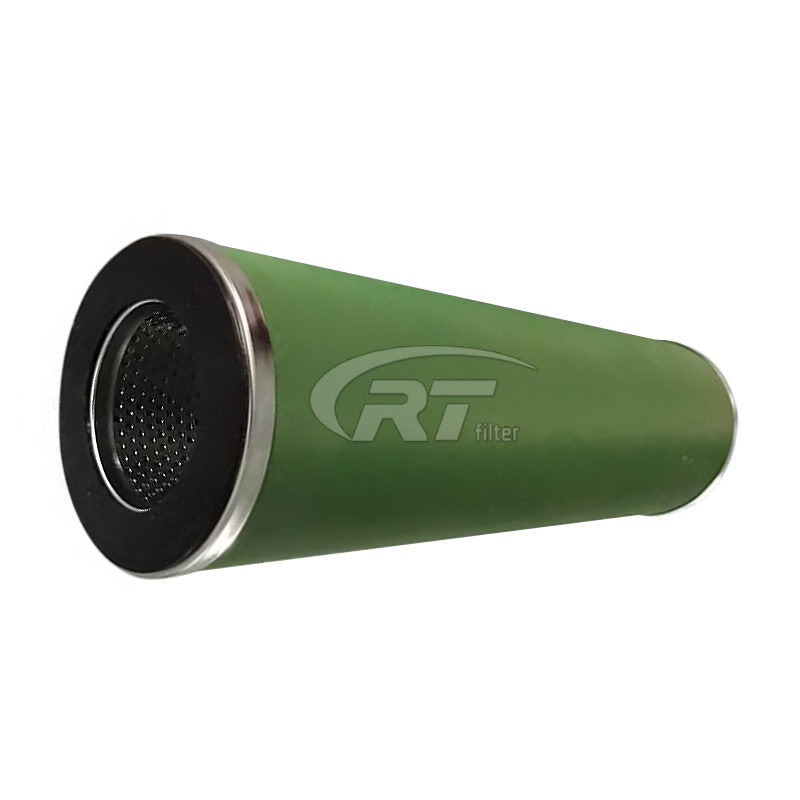

Introduction: SO-436V5 separator cartridge filter is used to remove coalesced water droplets and solid, hard impurities, clean hydraulic fluid, compressed air or natural gas and other oils. Material uses fiberglass layers, which have a particularly good coalescing effect. The multi-layer filter paper structure has excellent filtration cleanliness and high precision.
Parameters: • Applicable standard EI 1581 • Maximum operating temperature is 200°F • Aluminum center tube • Media: TCS media and pleated media • End caps are aluminum or glass-filled nylon • Nitrile rubber gasket
Particle Filtration Curve： SO-436V5 separator cartridge for the oil or fluid operationit is essential that they are free from particulate contamination and free water.If the fluid does not meet the required cleanliness standardsfouling and corrosion of the equipment downstream may occurleading to expensive maintenance costs and reduced component life. Separator can improve the cleanliness of fuel or other fluids, ensure quality requirements, and ensure the long-term, efficient and safe operation of industrial equipment. .....
Features: • Secondary dehydration • Reduce moisture mixed in hydraulic fluid fuel • Prevent clogging of orifices in pneumatic controllers • Reduce corrosion and freezing problems • TCS components can be reused. • Protect instrument pneumatic equipment and systems • Reduce fouling of machinery such as gas engines
SO-436V5 Advantage: • Particulate matter filtration • Coalescing filter • Provide high cleanliness filter media • Teflon® coated screen, synthetic or pleated paper media. • Optimal secondary dehydration. • Use TCS elements to further improve dehydration efficiency. • Can be used as filter media: turbine oil, transformer oil, hydraulic oil, gasoline, kerosene, diesel, natural gas, liquefied petroleum gas, etc.
Filter Membrane Material: Our Manufactured SO-436V5 oil fluid separator cartridge uses high-performance Teflon filter material. Moisture resistance: the surface of Teflon does not stick to water and oil. If there is dirt, can be removed by simply wiping it. Temperature resistance: does not become brittle at freezing temperatures and does not melt at high temperatures. Wear resistance: smooth surface has a very low coefficient of friction. Corrosion resistance: almost immune to any kind of chemical corrosion. ...
Test Standards: Before delivery, Our Manufactured SO-436V5 oil fluid separator cartridge will be tested and follow the standards: ISO 2941 ------ Resistance to collapse and bursting ISO 2942 ------ Manufacturing and Integrity Testing ISO 2943 ------ Compatibility of materials and fluids ISO 3723 ------ End load test method ISO 3724 ------ Flow fatigue properties ISO 3968 ------ Pressure drop and flow rate ISO 4572 ------ Multiple pass performance tests
|
