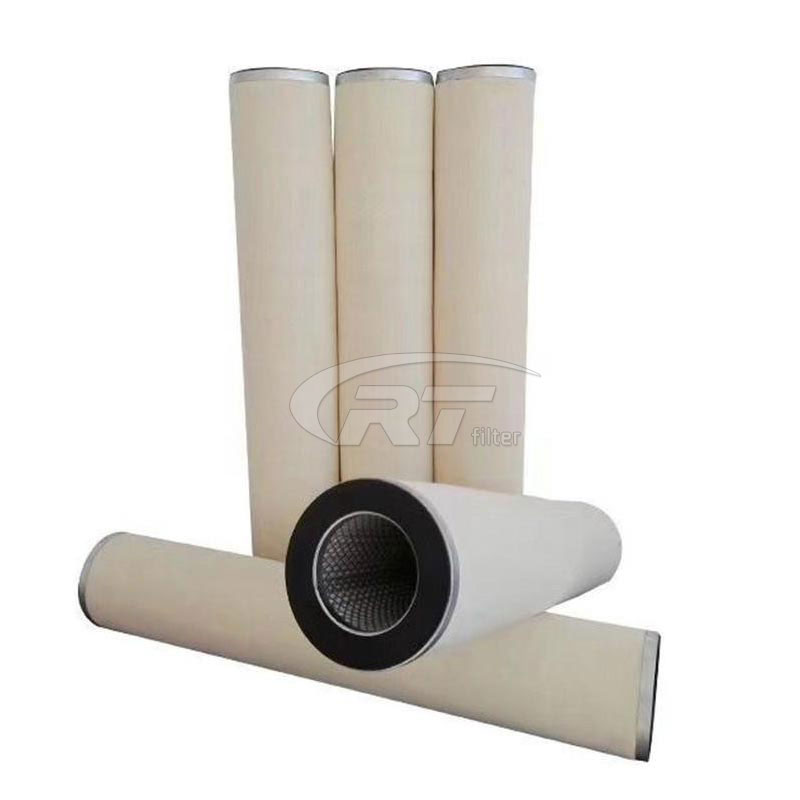

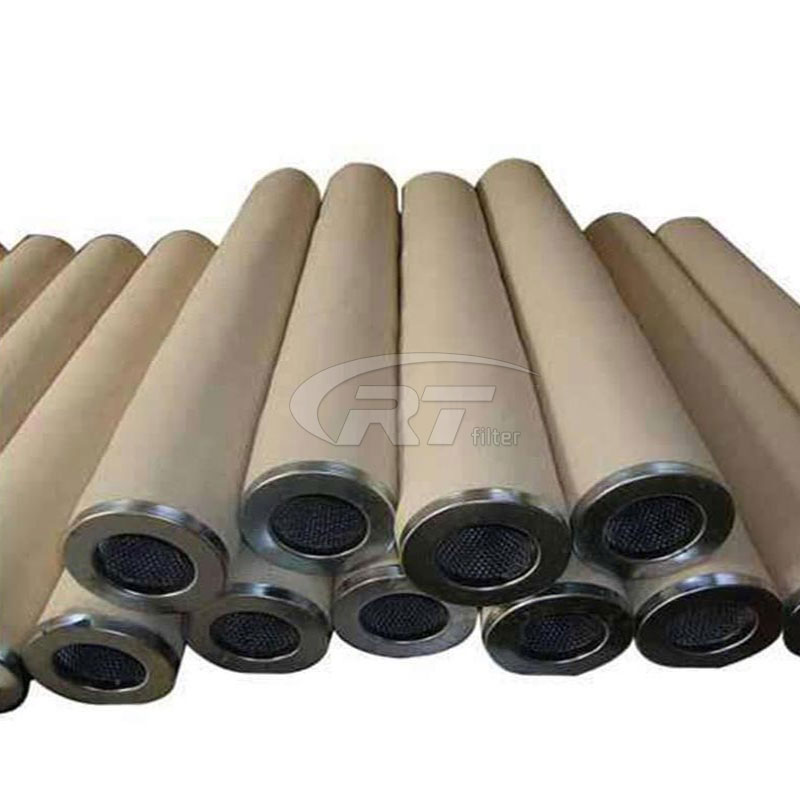

Introduction: FG536 PECO coalescer filter cartridge is used to remove particles and droplets from air/gas streams. It can also be used to dry gas filter vessels. Pollutants that can be treated include sludge, wax gel, asphaltene, etc. In addition, the FG536 filter separator can significantly improve compressor performance while reducing operating costs.
Performance parameters： | Item | Value |
|---|
| Length | 36 inches | | Inside Diameter | 4.25 inches | | Outside Diameter | 5.5 inches | | Carton Weight | 30 pounds | | Maximum Pressure Differential.... | 75 psi, 5.2 bar | | Changeout Pressure Differential..... | 15 psi, 1 bar | | Seal | Buna-N | | End Caps..... | Corrosion Resistant Steel..... | | Center Tube | Corrosion Resistant Stee | | Filter Material | Phenolic Impregnated Seamless Fiberglass..... |

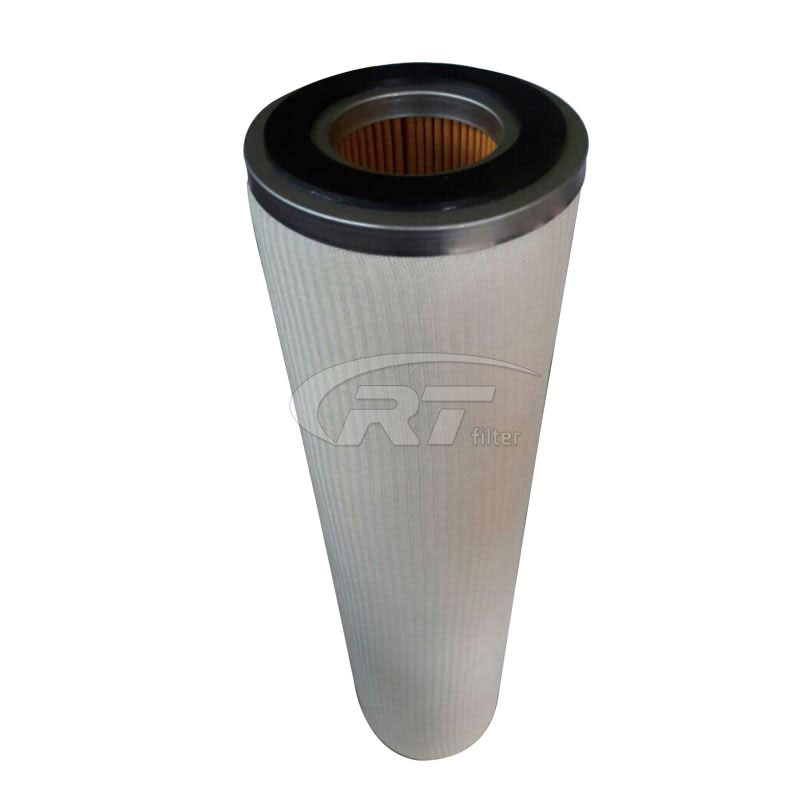

FG536 Material: We make FG536 coalescer filter uses a single unit structure to reduce the number of gaskets and improve overall reliability. FG536 coalescer have one or more layers of pleated media inside molded fiberglass laminated cylinders to provide a larger particle filtration surface area. Use pleated ripples and separate materials to keep the pleats open for full use. • The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores. • All glassfiber media aggregator combines deep particle filtration with deep coalescence structure. • The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.
FG536 Filter Performance: FG536 coalescing filter element is mainly used to coalesce emulsified water and remove particles from hydrocarbon fluids. The largest single application is the filtration of aviation jet fuel. Coalescer filter are also used in other types of fuels, in processes in refineries and petrochemical plants, and in the production of condensate from natural gas. Our Manufactured FG536 coalescer cartridge element is Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter. ...

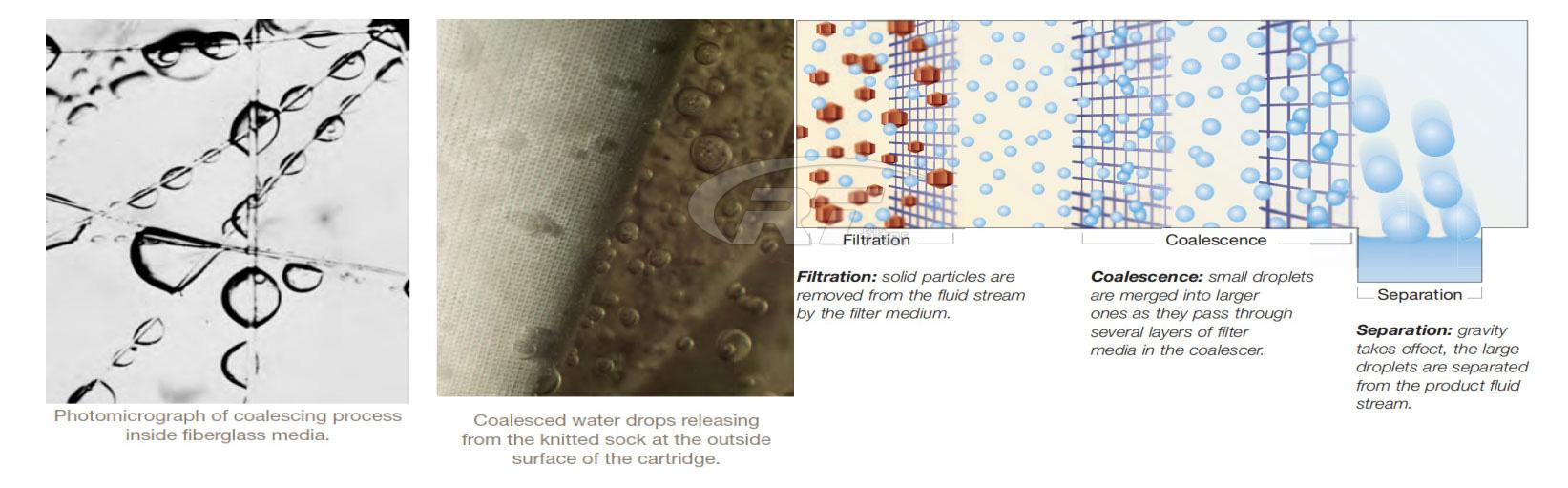

Work principle: FG-536 high-efficiency coalescers merge small droplets of liquid into larger ones as the fluid stream passes through several layers of filter media,each with progressively larger pores. As droplets compete for the open pores,they coalesce forming larger droplets.These larger droplets are easier to separate from the continuous phase fluid. The coalescer size and type are determined by numerous factors:physical properties of the fluid,flow rate,process conditions and chemical compatibility with process fluids and additives.
FG536 Application: • Gas transmission:transmission station entry and gas • Natural gas processing:treatment and dewatering tower inlet,gas,instrumentation • Natural gas production and collection:compressor suction • Natural gas distribution:M&R Station • Refinery:compressor suction and gas
PartnerFilter also offers a full range of coalescer and separator: PartnerFilter has the expertise and capability to determine the correct coalescer size and type for your specific process parameters. Parker & Velcon PECO & Facet Faudi Pall Other types are available on request
|
