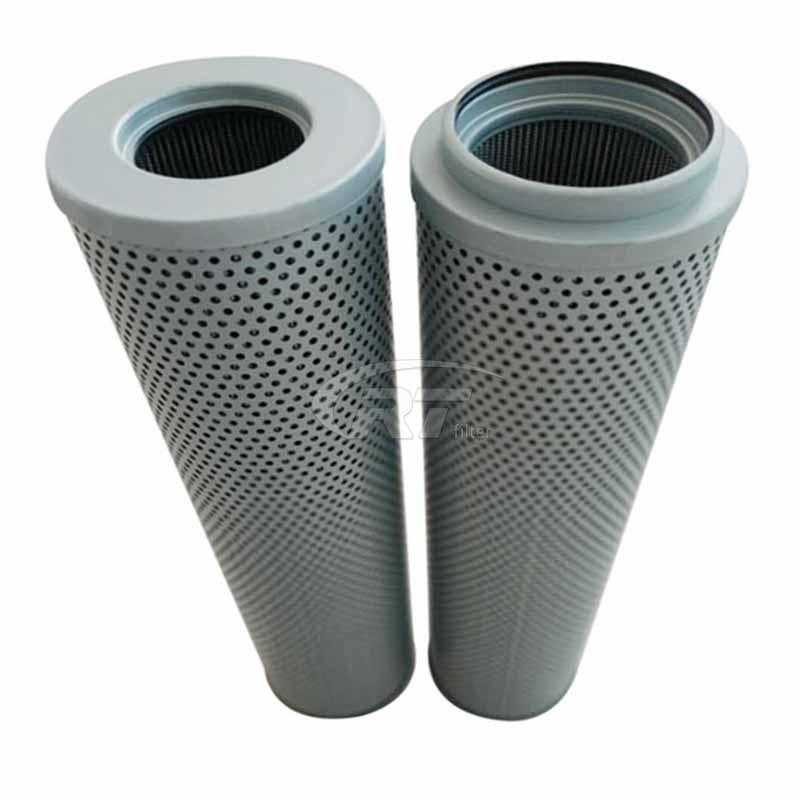

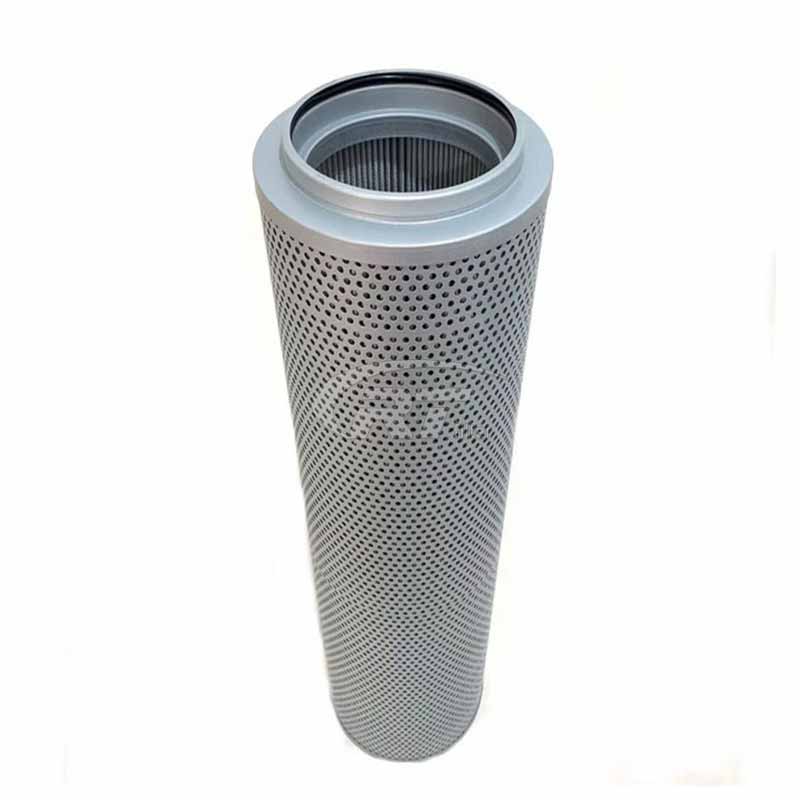

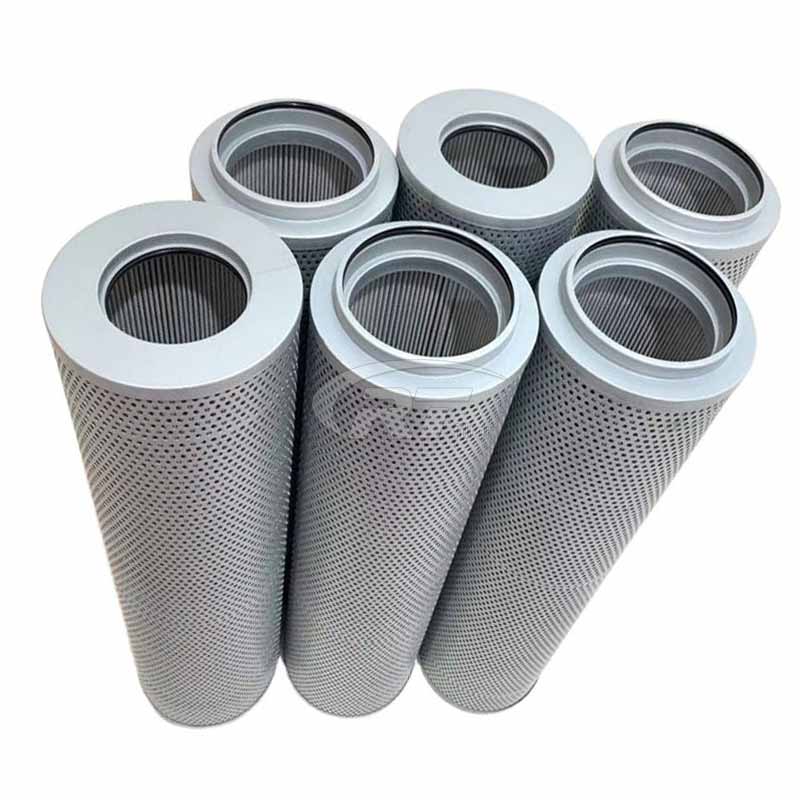

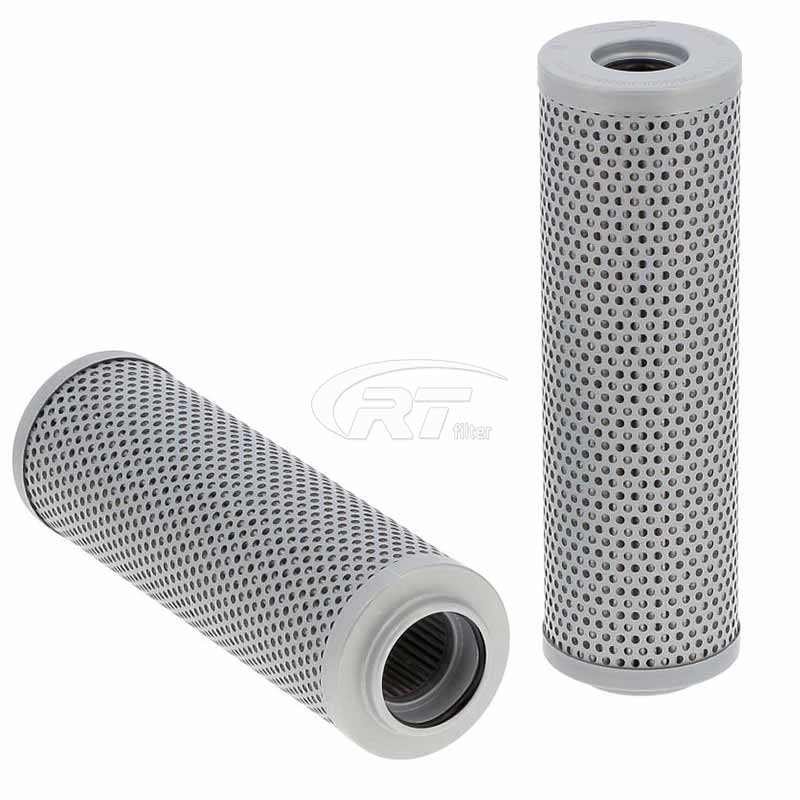

FAX-100X10 Leemin Return Oil Filter Element for Tank Filter
Brand:PartnerFilter
Model: FAX-100X10
Type: Leemin Return Oil Filter
Seal: Viton
Collapse: 100 psid
Filter material: Fiberglass
End Caps: Corrosion Resistant Steel
Center Tube: Corrosion Resistant Steel
The FAX-100X10 oil filter can be installed in the tank mounted min-type return filter housing RFA-100×10L-Y/Cwhich used for fine filtration of hydraulic systems.It can filter metal impuritiesrubber impurities or other contaminants and keep the tank clean.
The filter elementFAX-100X10 can be installed in the tank mounted min-type return filter housing RFA-100×10L-Y/C,which used for fine filtration of hydraulic systems.It can filter metal impurities,rubber impurities or other contaminants and keep the tank clean.
The RFA-100×10L-Y/C Leemin oil filter cartridge is installed on the top of the tank,the cylinder is partially immersed in the tank,and there are bypass valves diffusers,filters blocking pollution transmitters and other devices.It has the characteristics of compact structure,easy installation, large oil flux, small pressure loss and easy filter replacement.

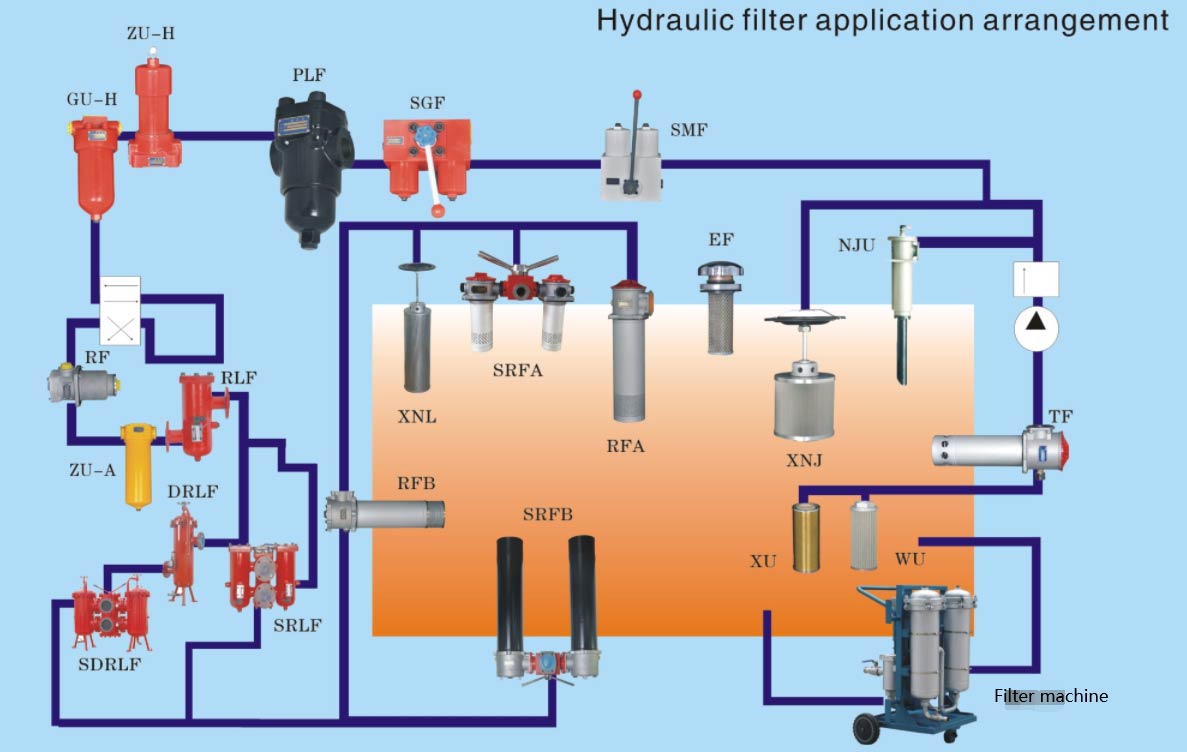

Hydraulic filter application arrangement with more filters:
Related Specification Filters
Related Interchange of Filter Housing & Filter elements:
RFA Series Filter Housing(10~30μ)
FAX Series filter element(10~30μ)
LHN Series Filter Housing(10~30μ)
NX Series filter element(10~30μ)
RFA-25×※L-Y/C
FAX-25×※
LHN-25×※L-Y/C
NX-25×※
RFA-40×※L-Y/C
FAX-40×※
LHN-40×※L-Y/C
NX-40×※
RFA-63×※L-Y/C
FAX-63×※
LHN-63×※L-Y/C
NX-63×※
RFA-100×※L-Y/C
FAX-100×※
LHN-100×※L-Y/C
NX-100×※
RFA-160×※L-Y/C
FAX-160×※
LHN-160×※L-Y/C
NX-160×※
RFA-250×※F-Y/C
FAX-250×※
LHN-250×※F-Y/C
NX-250×※
RFA-400×※F-Y/C
FAX-400×※
LHN-400×※F-Y/C
NX-400×※
RFA-630×※F-Y/C
FAX-630×※
LHN-630×※F-Y/C
NX-630×※
RFA-800×※F-Y/C
FAX-800×※
LHN-800×※F-Y/C
NX-800×※
RFA-1000×※F-Y/C
FAX-1000×※
LHN-1000×※F-Y/C
NX-1000×※
RFA-1400×※F-Y/C
FAX-1400×※
LHN-1400×※F-Y/C
NX-1400×※
Note:The ※ is micronif the medium is water-glycolflow rate is 63L/minfiltration accuracy is 10µmwith CYB-I indicatorthe filter filter housing model is RFA*BH-63 10Ythe filter element model is FAX BH-63 80
