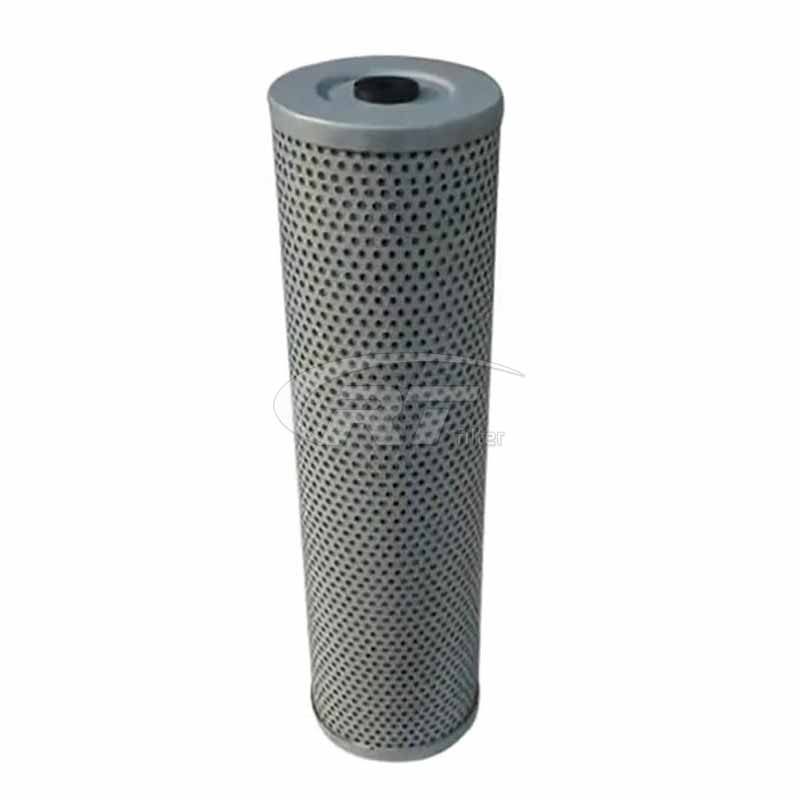

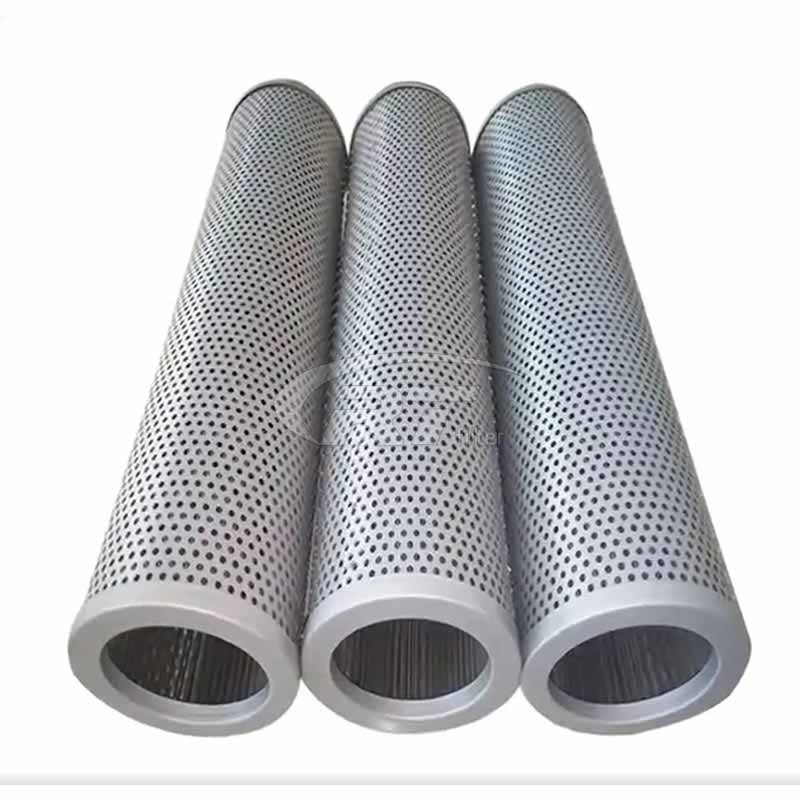

Brief Introduction: HX-25×10Q pipeline filter element is mainly used in the hydraulic system to filter out solid particles and colloidal substances in the working medium,effectively control the pollution degree of the working medium,and achieve the effect of purifying the medium.The material used in the filter element is easily damaged,please pay attention to maintenance and maintenance when using it. Replacement at any time has achieved the purpose of increasing the service life.Larger particles in the filter medium,purify materials,make machines and equipment operate normally,and improve use efficiency.
Performance: Medium:general hydraulic oil,phosphate ester hydraulic oil,emulsion,water-hexanediol Material:glass fiber filter paper-BN stainless steel woven mesh-W wood pulp filter paper-P stainless steel sintered mesh-V Filtration accuracy:1μ ~ 100μ Working pressure:21bar-210bar Working temperature:-30℃～+110℃ Sealing material:fluorine rubber ring,nitrile rubber
Applications: 1. In the machine tool industry,85% of the current machine tool transmission systems use hydraulic transmission and control.Such as grinding machines,milling machines,planers,broaching machines,presses,shearing machines,and combined machine tools,etc. 2. In the metallurgical industry,hydraulic technology is used in electric furnace control systems, rolling mill control systems,open hearth furnace charging,converter control,blast furnace control,strip deviation and constant tension devices. 3. In construction machinery,hydraulic transmission is widely used,such as excavators,tire loaders,truck cranes,crawler bulldozers,tire cranes,self-propelled scrapers,graders and vibratory rollers. 4. In agricultural machinery, hydraulic technology is also widely used,such as combine harvesters,tractors and plows. 5. In the automobile industry,hydraulic off-road vehicles,hydraulic dump trucks,hydraulic aerial work vehicles and fire trucks all use hydraulic technology. 6. In the textile industry, hydraulic technology is used in plastic injection molding machines,rubber vulcanizing machines,paper machines, printing machines and textile machines.
Test standards: ISO 2941 Collapse & Burst Resistant ISO 2942 Fabrication & Integrity Test ISO 2943 Material Compatibility with Fluids ISO 3724 Flow Fatigue Characteristics ISO 3968 Pressure Drop vs. Flow Rate ISO 16889 Multi-pass Performance Testing
PartnerFilter also offers a full range of replacement filter elements.They meet quality requirements and can be installed in the following products: ARGO DONALDSON EPPENSTEINER FILTREC HYDAC HY-PRO INTERNORMEN LEMMIN MANN MAHLE MP-FILTRI PALL PARKER REXORTH STAUFF TAISEI KOGYO VICKERS Other types are available on request
|
