Filtration accuracy: 1-40 μmor customized as operation
Operating pressure: 10 bar max.

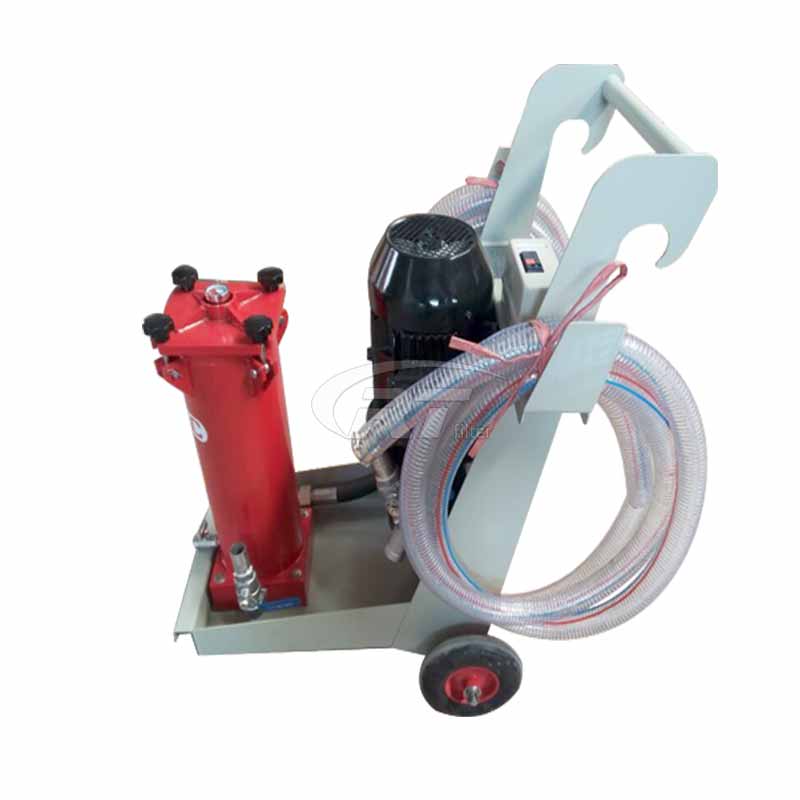

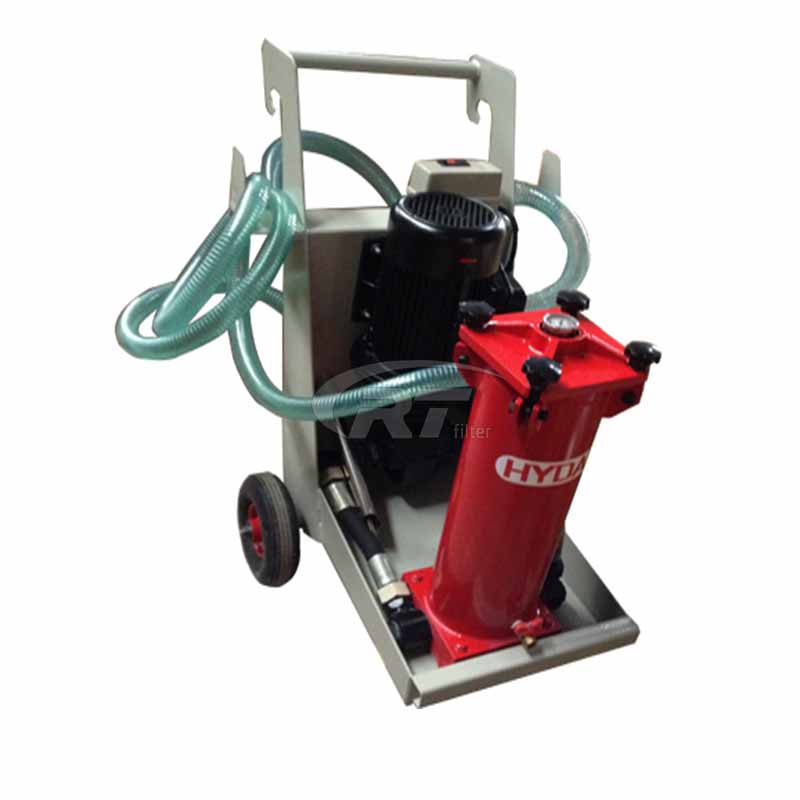

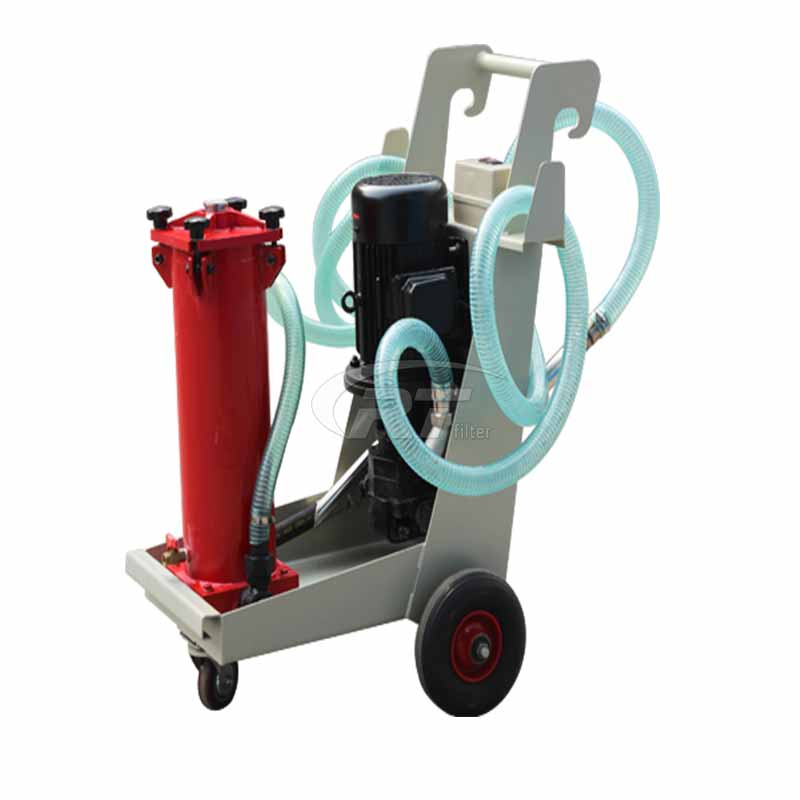

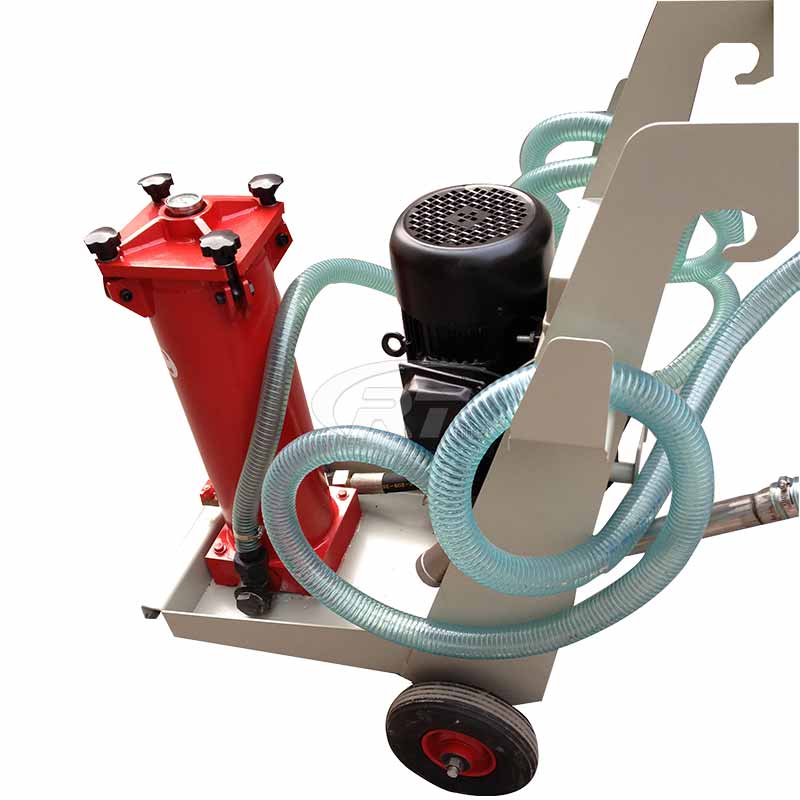

PartnerFilter makes OFU10P2N2B05B Filter Pump Transfer Unit replacementwhich is a mobile oil service unit and widely used to filter oil when filling systems and when transferring hydraulic and lubricating fluids in different industries.
PartnerFilter manufactures kinds ofoil purifiers,the OFU10P2N2B05B Filter Pump Transfer Unit replacement,which is a mobile oil service unit and widely used to filter oil when filling systems and when transferring hydraulic and lubricating fluids in different industries.
Advantages:
OFU10P2N2B05B is mobile and convenient to go different places,but it still has other advantages:
Convenient offline filtration
Easy operation
Greater system availability
Reduction in Life Cycle Cost
Applications:
OFU10P2N2B05B is widely used hydraulic and lubrication oil systems in a variety of industries as below:
• Chemical and petrochemical industry
• Pharmaceutical industry
• Food & beverage
• Plastic industry
• Process filtration
• Metallurgy industry
• Power plant
• Paper
Related Specification Filters
Hydac OFU Series Oil purifiers' Technical specifications:
Pump type
Gear pump
Max. flow rate
100 l/min
Voltage
230V 50Hz380-420V 50Hz440V-480V 60Hz
Micron
3-40μm
Operating pressure
10 bar max.
Viscosity range
15 ... 1000 mm²/s (version-dependent)
Permitted operating fluid
Mineral oil (others on request)
Permitted suction pressure at suction port
-0.4 bar to +0.6 bar
Fluid temperature
-10 ... 80 °C
Ambient temperature
-20 ... 40 °C
Seals
NBR (Option: FPM)
Protection class
IP 54
Suction hoes
2.5 m
Power cable length
10m
Pressure hose
IP 54
Protection class
4m
Hose connections
Suction hose NW 30 with lance
Pressure hose NW 25 with lance
Weight
≈ 130 kg
Sizes
950x630x800/1240mm
If you have no standard filter code numbers please send us your filters specifications or samples we can customize as your requests.
