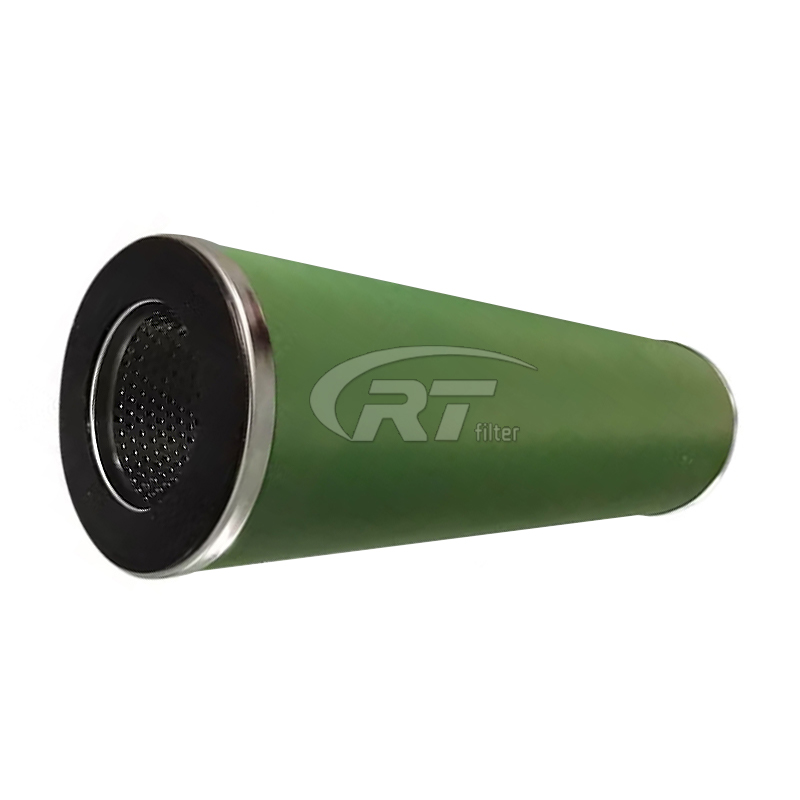

ST630FE-5 Facet Teflon material separator cartridge

Prev: CAA43-5SB Facet coalescer cartridge Water Removal from Oil Next: SS644FD-5 FACET Synthetic separator cartridge
ST630FE-5 Facet Teflon material separator cartridge

Brand:PartnerFilter

Model: ST630FE-5

Type: Separator Cartridge

Seal: Buna-N

Filter material: Teflon

Sizes: OD6”*L30”

Flow direction: Outside to in

Max.operating temp.: 240°F (115 ° C)

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: ST630FE, ST633FB, ST633FD, ST636FB, ST636FD Series more

Facet ST630FE-5 separator uses teflon coated screen wrapped around an epoxy coated metal shelllock-seam foldedthen adhesive bonded to metal end caps with gaskets.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Introduction:

PartnerFilter makes different types coalescer and separator with synthetic and teflon material,and the Facet ST630FE-5 separator uses a Teflon-coated screen to wrap an epoxy-coated metal housing,which is folded at the lock joints and then gasketed to the metal end cover.All metal components are treated with corrosion protection.

The maximum recommended operating temperature is 240°F.Other gaskets, adhesives and metal materials are available for compatibility under extreme working conditions.


Standard Design Features:

• Clean and reusable

• Excellent water resistance

• Recommended maximum operating temperature: 240°F (115 ° C)

• pH ranges from 5 to 9

• Designed for balanced flow through cartridges

• Flow: From outside to inside


Large Flux Characteristics:

Our Manufactured ST630FE-5 separator filter structure adopts a straight-through large flow design, with a large filtration area and processing capacity. ST630FE-5 large flow design can quickly process a large amount of liquid, quickly remove suspended particles, pollutants and other impurities, and ensure the quality and purity of the liquid. Prevent blockages and damage to pipes, equipment and systems. oil separator has the characteristics of pressure resistance and wear resistance, and is suitable for harsh working environments with high temperature and high pressure.

We make large flow separator filter elements can be customized according to requirements to ensure the best filtration effect and performance.

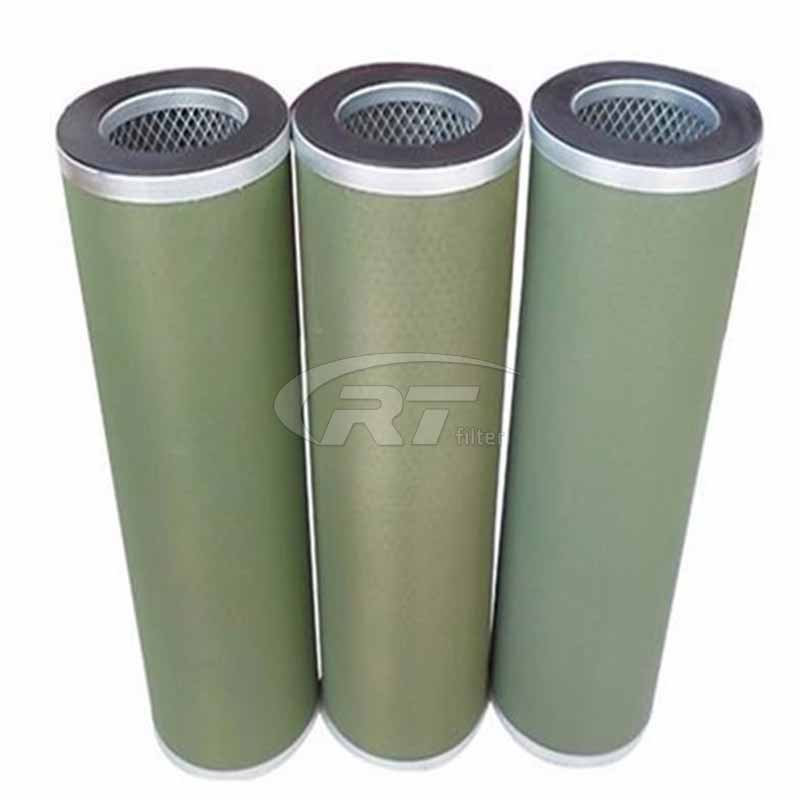

...ST630FE-5 Facet Teflon material separator cartridge


Whole Structure Material:

• Teflon-coated screens

• Treated metal parts provide protection against corrosion

• Buna-N washers

• Additional washers, adhesives and metal materials may be supplied upon request


Filter Membrane Material:

Our Manufactured ST630FE-5 oil separator uses high-performance Teflon filter material. Moisture resistance: the surface of Teflon does not stick to water and oil. If there is dirt, can be removed by simply wiping it. Temperature resistance: does not become brittle at freezing temperatures and does not melt at high temperatures. Wear resistance: smooth surface has a very low coefficient of friction. Corrosion resistance: almost immune to any kind of chemical corrosion.

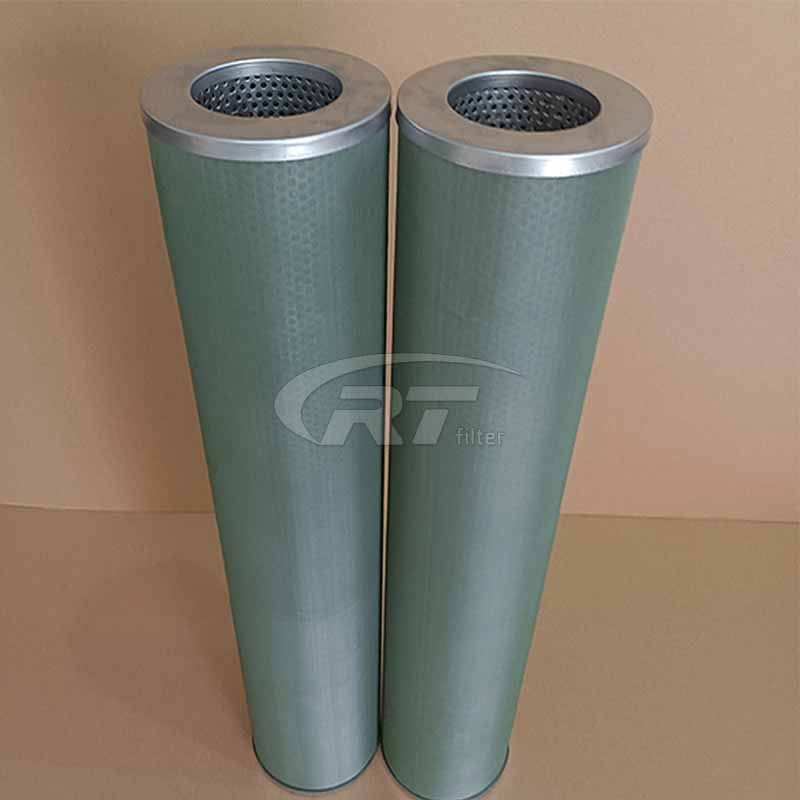

...ST630FE-5 Facet Teflon material separator cartridge


PartnerFilter also offers a full range of replacement filter elements:

Parker & Velcon

PECO & Facet

Faudi

 Pall

Other types are available on request


Related Specification Filters
P/N.Synthetic P/N.Teflon O.D.(mm) Length(mm) I.D.(mm) I.D.Mounting end(mm)
SS318FA-5 ST318FA-5 76 460 13 51
SS324FA-5 ST324FA-5 76 610 13 51
SS412FC-5 ST412FC-5 105 290 48 48
SS415FB-5 ST415FB-5 114 380 13 89
SS417FB-5 ST417FB-5 114 430 13 89
SS422FC-5 ST422FC-5 105 570 48 48
SS424FB-5 ST424FB-5 114 610 13 89
SS430FB-5 ST430FB-5 114 760 13 89
SS432FC-5 ST432FC-5 105 800 48 48
SS436FB-5 ST436FB-5 114 910 13 89
SS609FB-5 ST609FB-5 152 230 13 89
SS609FF-5 ST609FF-5 152 230 13 114
SS611FD-5 ST611FD-5 152 290 89 89
SS612FB-5 ST612FB-5 152 310 13 89
SS614FD-5 ST614FD-5 152 370 89 89
SS616FD-5 ST616FD-5 152 410 89 89
SS618FB-5 ST618FB-5 152 460 13 89
SS622FD-5 ST622FD-5 152 560 89 89
SS624FB-5 ST624FB-5 152 610 13 89
SS624FE-5 ST624FE-5 152 610 13 105
SS624FF-5 ST624FF-5 152 610 13 114
SS629FD-5 ST629FD-5 152 730 89 89
SS630FB-5 ST630FB-5 152 760 13 89
SS630FD-5 ST630FD-5 152 760 89 89
SS630FE-5 ST630FE-5 152 760 13 105
SS630FF-5 ST630FF-5 152 760 13 114
SS633FB-5 ST633FB-5 152 840 13 89
SS633FD-5 ST633FD-5 152 840 89 89
SS636FB-5 ST636FB-5 152 910 13 89
SS636FD-5 ST636FD-5 152 910 89 89
SS636FE-5 ST636FE-5 152 910 13 105
SS636FF-5 ST636FF-5 152 910 13 114
SS638FD-5 ST638FD-5 152 965 89 89
SS640FD-5 ST640FD-5 152 1020 89 89
SS640FE-5 ST640FE-5 152 1020 13 105
SS640FF-5 ST640FF-5 152 1020 13 114
SS643FB-5 ST643FB-5 152 1090 13 89
SS643FD-5 ST643FD-5 152 1090 89 89
SS644FB-5 ST644FB-5 152 1120 13 89
SS644FD-5 ST644FD-5 152 1120 89 89
SS644FE-5 ST644FE-5 152 1120 13 105
SS644FF-5 ST644FF-5 152 1120 13 114
SS648FD-5 ST648FD-5 152 1220 89 89
SS648FF-5 ST648FF-5 152 1220 13 114
SS656FB-5 ST656FB-5 152 1420 13 89
SS656FF-5 ST656FF-5 152 1420 13 114
If you have no standard filter code numbersplease send us your filters specifications or sampleswe can customize as your requests.
