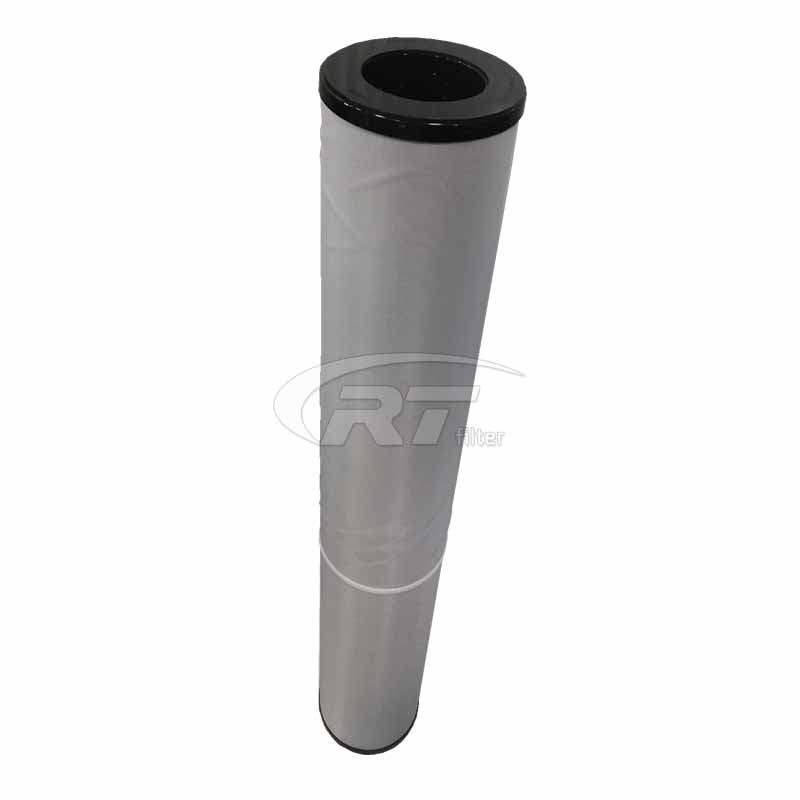

SS644FD-5 FACET Synthetic separator cartridge

Brand:PartnerFilter

Model:SS644FD-5

Filter Type: Separator Cartridge

Seal: Buna-N

Filter material: Teflon Synthetic

Sizes:OD6”*L44”

Flow direction: Outside to in

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: SS644FE-5, SS644FF-5, SS648FD-5, SS648FF-5, SS656FB-5, SS656FF-5 more

PartnerFilter makes different types coalescer and separator with synthetic and teflon materialthe Facet SS644FD-5 synthetic separator cartridge feature a specially developed treated hydrophobic media. This media provides improved separation of fine water drops compared to standard Teflon screen. An ultrasonically seamed tube of the synthetic screen is placed around an epoxy coated metal shell then adhesive bonded to metal end caps with gaskets.

About Us Contact Us

Product Details Related Specification Filters Communication Requirements

Introduction:

PartnerFilter makes different types coalescer and separator with synthetic and teflon material,the Facet SS644FD-5 synthetic separator cartridge feature a specially developed treated hydrophobic media.This media provides improved separation of fine water drops compared to standard Teflon screen.An ultrasonically seamed tube of the synthetic screen is placed around an epoxy coated metal shell,then adhesive bonded to metal end caps with gaskets.

Standard design features:

• Clean and reusable

• Excellent water resistance

• Recommended maximum operating temperature: 240°F (115 ° C)

• pH ranges from 5 to 9

• Designed for balanced flow through cartridges

• Flow: From outside to inside

Particle filtration curve：

SS644FD-5 separator has the distinctive Facet Velocigard which provides balanced flow of product throughout the cartridge.All metal components are treated to resist corrosion. The maximum recommended operating temperature is 240°F.Other gaskets, adhesives and metal materials are available for compatibility under extreme working conditions.

We make SS644FD-5 separator cartridges are Beta grade. Excellent filtration performance. The Beta X = 1000 number means that for every 1000 particles of size x in the fluid, on average only one particle will pass through the filter.

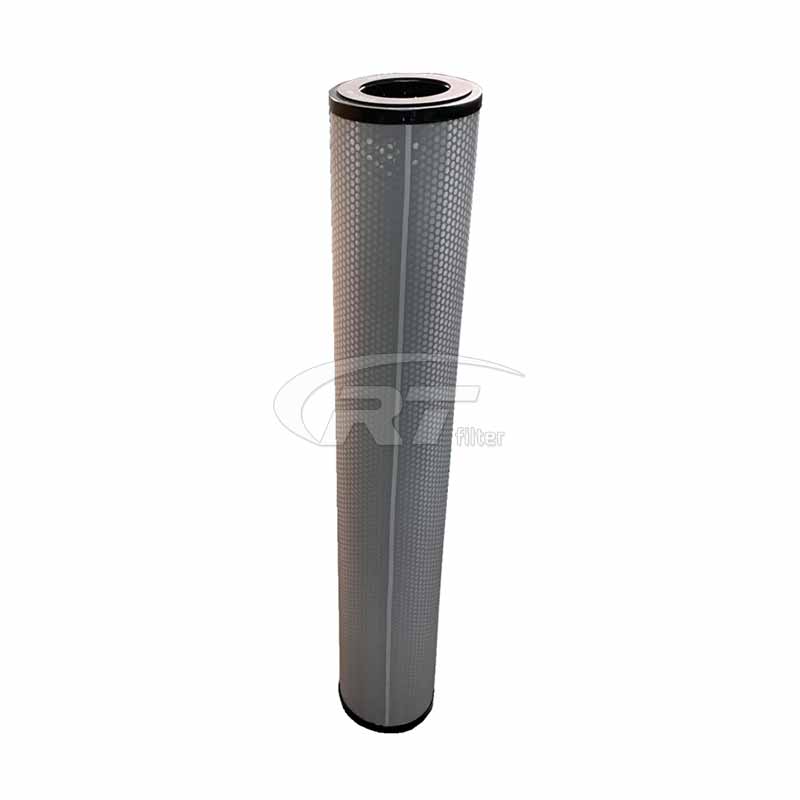

..... SS644FD-5 FACET Synthetic separator cartridge

Material

• Synthetic mesh

• Treated metal parts provide protection against corrosion

• Buna-N washers

• Additional washers, adhesives and metal materials may be supplied upon request

Filter Membrane Material:

Our Manufactured SS644FD-5 oil separator uses high-performance Teflon filter material. Moisture resistance: the surface of Teflon does not stick to water and oil. If there is dirt, can be removed by simply wiping it. Temperature resistance: does not become brittle at freezing temperatures and does not melt at high temperatures. Wear resistance: smooth surface has a very low coefficient of friction. Corrosion resistance: almost immune to any kind of chemical corrosion.

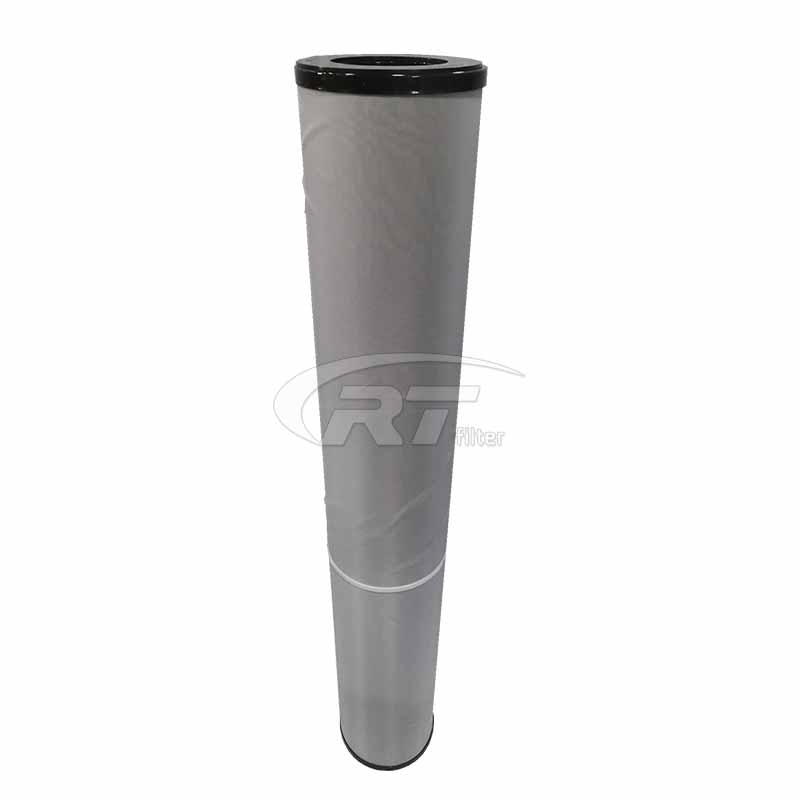

... SS644FD-5 FACET Synthetic separator cartridge

Test standards:

Before delivery, Our manufactured SS644FD-5 oil separator cartridges will be tested and follow the standards:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing

PartnerFilter also offers a full range of replacement filter elements:

Parker & Velcon

PECO & Facet

Faudi

Pall

Other types are available on request

Related Specification Filters

P/N.Synthetic	P/N.Teflon	O.D.(mm)	Length(mm)	I.D.(mm)	I.D.Mounting end(mm)
SS318FA-5	ST318FA-5	76	460	13	51
SS324FA-5	ST324FA-5	76	610	13	51
SS412FC-5	ST412FC-5	105	290	48	48
SS415FB-5	ST415FB-5	114	380	13	89
SS417FB-5	ST417FB-5	114	430	13	89
SS422FC-5	ST422FC-5	105	570	48	48
SS424FB-5	ST424FB-5	114	610	13	89
SS430FB-5	ST430FB-5	114	760	13	89
SS432FC-5	ST432FC-5	105	800	48	48
SS436FB-5	ST436FB-5	114	910	13	89
SS609FB-5	ST609FB-5	152	230	13	89
SS609FF-5	ST609FF-5	152	230	13	114
SS611FD-5	ST611FD-5	152	290	89	89
SS612FB-5	ST612FB-5	152	310	13	89
SS614FD-5	ST614FD-5	152	370	89	89
SS616FD-5	ST616FD-5	152	410	89	89
SS618FB-5	ST618FB-5	152	460	13	89
SS622FD-5	ST622FD-5	152	560	89	89
SS624FB-5	ST624FB-5	152	610	13	89
SS624FE-5	ST624FE-5	152	610	13	105
SS624FF-5	ST624FF-5	152	610	13	114
SS629FD-5	ST629FD-5	152	730	89	89
SS630FB-5	ST630FB-5	152	760	13	89
SS630FD-5	ST630FD-5	152	760	89	89
SS630FE-5	ST630FE-5	152	760	13	105
SS630FF-5	ST630FF-5	152	760	13	114
SS633FB-5	ST633FB-5	152	840	13	89
SS633FD-5	ST633FD-5	152	840	89	89
SS636FB-5	ST636FB-5	152	910	13	89
SS636FD-5	ST636FD-5	152	910	89	89
SS636FE-5	ST636FE-5	152	910	13	105
SS636FF-5	ST636FF-5	152	910	13	114
SS638FD-5	ST638FD-5	152	965	89	89
SS640FD-5	ST640FD-5	152	1020	89	89
SS640FE-5	ST640FE-5	152	1020	13	105
SS640FF-5	ST640FF-5	152	1020	13	114
SS643FB-5	ST643FB-5	152	1090	13	89
SS643FD-5	ST643FD-5	152	1090	89	89
SS644FB-5	ST644FB-5	152	1120	13	89
SS644FD-5	ST644FD-5	152	1120	89	89
SS644FE-5	ST644FE-5	152	1120	13	105
SS644FF-5	ST644FF-5	152	1120	13	114
SS648FD-5	ST648FD-5	152	1220	89	89
SS648FF-5	ST648FF-5	152	1220	13	114
SS656FB-5	ST656FB-5	152	1420	13	89
SS656FF-5	ST656FF-5	152	1420	13	114
If you have no standard filter code numbersplease send us your filters specifications or sampleswe can customize as your requests.
