Compressed air filter element
PartnerFilter has different brands compressed air filter elements of HANKISON,DOMNICK HUNTER,HIROSS,ZANDER,ORION,JM,ULTRAFILER,SMC,BEA replacement
|
|
|
Brand: PartnerFilter
Model:SMF 5/25
Material:Borosilicatecerex and polyurethane
End caps:Aluminium
Filtration accuracy:0.01μm
Operating temp.:80°C
|
|
The SMF 5/25 filter element is made with a pleated oleophobic filter media that rejects oil and water.
|
|
|
|
|
|

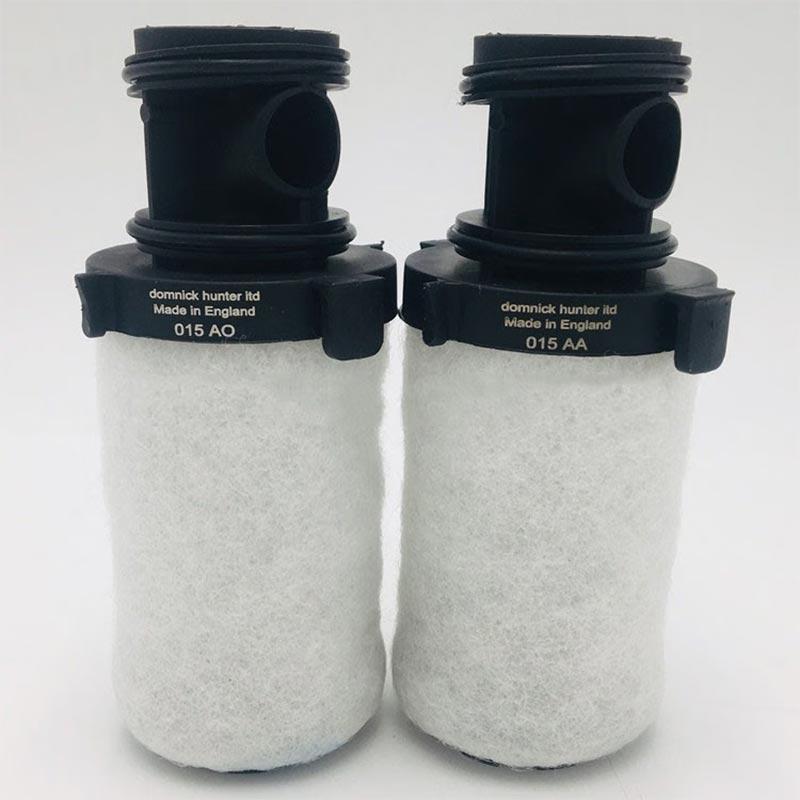

Brand:PartnerFilter
Model:015AA 015ACS 015AO
End cap material:Plastic
Differential pressure dry:80 mbar
Differential pressure wet:190 mbar
Operating temperature Min.:1.5 °C
Operating temperature Max.:65 °C
Flow direction:Inside to outside
Particle retention:0.01 µm0.1µm
Particle retention rate ISO:99.998 %
Residual oil content:0.01 mg/m³
|
|
015AA 015ACS 015AO Cartridges replacement are made with the highest quality materials and workmanship.This coalesced element provides filtering performance equal to or better than the original OEM filter specifications.
|
|
|
|
|
|

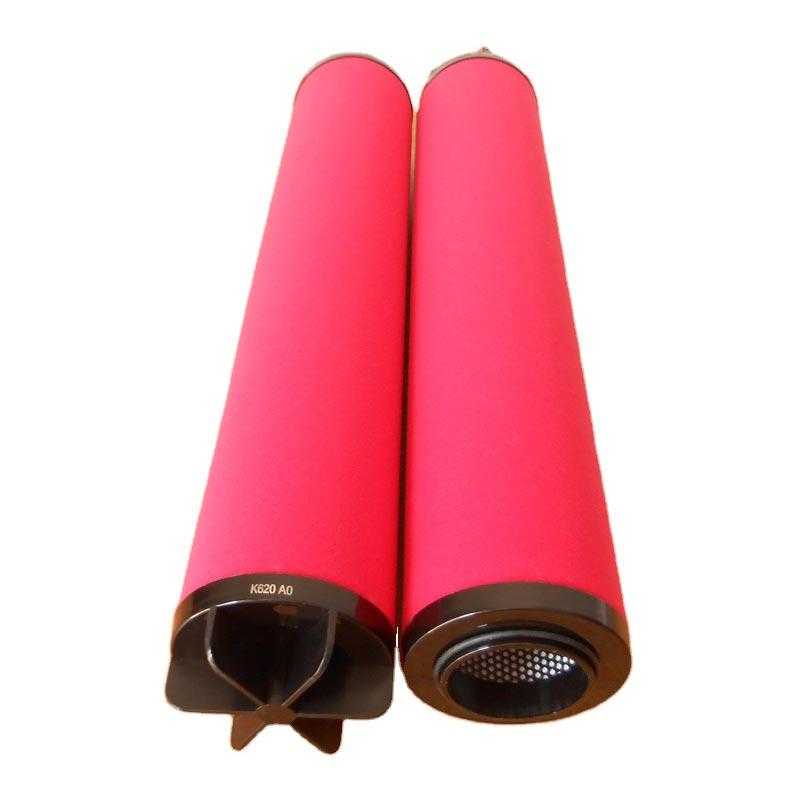

Brand:PartnerFilter
Model:K620AO
End cap material:Plastic
Differential pressure dry:80 mbar
Differential pressure wet:190 mbar
Operating temperature Min.:1.5 °C
Operating temperature Max.:65 °C
Flow direction:Inside to outside
Particle retention:1µm
Particle retention rate ISO:99.998 %
Residual oil content:1ppm
|
|
K620AO domnick hunter compressed air filter element is designed to remove oil and water in liquid and aerosol stateatmospheric dirt and solid particulate.
|
|
|
|
|
|
Brand:PartnerFilter
Model:E5-40 E9-40
Seal:Viton
Sizes:OD3.23”*L20.67”
Differential Pressure:50 mbar
Filter material:Borosilicate micro glass fibre
Product Net Weight:0.81 Kg
Max. Working Temp.:65 °C
Mini. Working temp.:1.5 °C
Series:E1-40 E3-40 E7-40 more
|
|
E5-40 E9-40 Hankison compressed air filter element is used to clean and filter oil and remove impurities, and the cleanliness effect is very good. The manufacturing materials use hydrophobic and oil-repellent fiber filter materials, reliable and anti-corrosion sealing rings, filter frames, nylon end caps, etc.
|
|
|
|
|
|
Brand:PartnerFilter
Model:PD520 (2901-2004-10)
Seal:Viton
Micron:0.01 µm
Sizes:OD4.72”*L26.73”
Differential Pressure:80 mbar
Filter material:Borosilicate micro glass fibre
Max. Working Temp.:65 °C
Mini. Working temp.:1.5 °C
Series:DD520 (2901-2003-10) QD520 (2906-2005-00) more
|
|
PD520 (2901-2004-10) is widely used together with air compressors and installed at the pipe after the air compressor.PartnerFilter is a professional supplier of compressed air filters and pipeline gas filters.
|
|
|
|
|
|

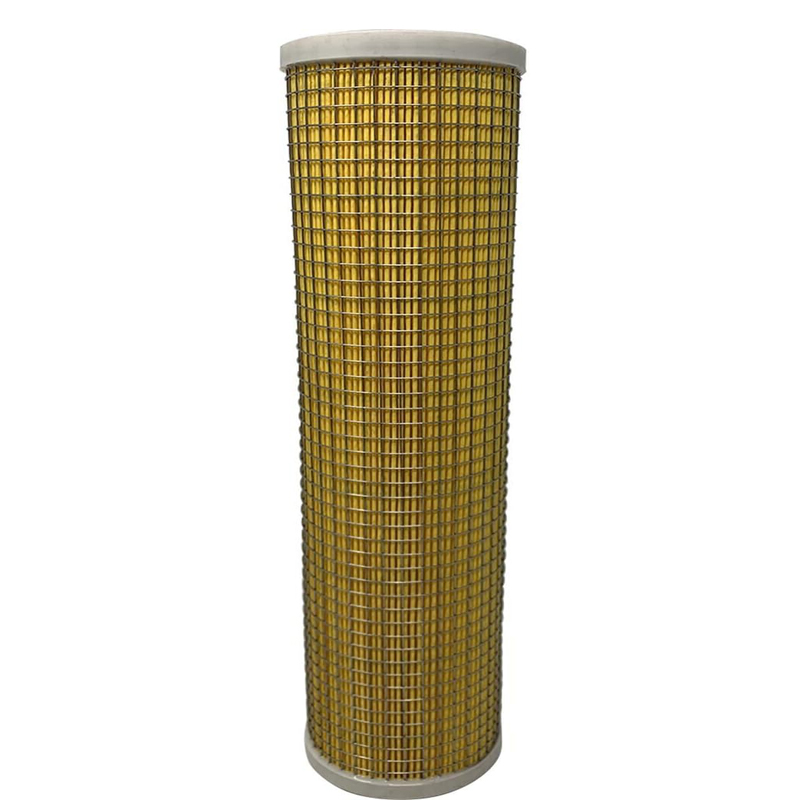

Brand:PartnerFilter
Model:C280-51
Seal:Viton
Micron:0.3µm
Working Temp.Range:225F
Sizes:OD6”*L28”
Initial Differential Pressure:1.5psid
Center Tube:metaL
Series:C25-280 C35-280 more
|
|
In compressed air filtration when it comes to keeping compressed air clean and oil-freePartnerFilter advanced compressed air filter element C280-51 for compressed air systems offers a rare blend of exceptional performanceproven reliability and uncommon value.
|
|
|
|
|
|
Brand:PartnerFilter
Model:T-002E
Seal:Viton
Micron:1µm
Center Tube:metaL
Working Temp.Range:225F
Oil Residue Component:1ppm
Initial Differential Pressure:1.5psid
Series:T004E T007ES T007E more
|
|
PartnerFilter makes JM replacement compressed air filter T-002E with high qualitythe filter element adopts American strong hydrophobic and oleophobic fiber filter materialand framework with good permeability and high strength to reduce the resistance caused by passing.
|
|
|
|
|
|
Brand:PartnerFilter
Model:3050A
Seal:Viton
Micron:0.01 µm
Differential Pressure:80 mbar
Sizes:OD3.54”*L20.04”
Filter material:Activated Carbon
Max. Working Temp.:45 °C
Mini. Working temp.:1.5 °C
Center Tube:Corrosion Resistant Steel
Series:2030A 2050A 3075A more
|
|
The Zander replacement 3050A compressed air filter element is produced with the highest quality materials and workmanship.This coalescing filter element offers equal to or better filtration performance based on the original OEM filter specifications.
|
|
|
|
|
|
Brand:PartnerFilter
Model:ARS-290-RF
Seal:Viton
Micron:1 µm
Differential Pressure:20 mbar
Sizes:OD2.32”*L9.84”
Max. Working Temp.:65 °C
Mini. Working temp.:1.5 °C
Flow direction:Inside to outside
Series:ARS-460 ARS-610 ARS-930 more
|
|
ARS-290-RF filter element has been developed for high efficient removal of solid particlesoil aerosols waterhydrocarbonsvapours and odours from compressed air.
|
|
|
|
|
|
