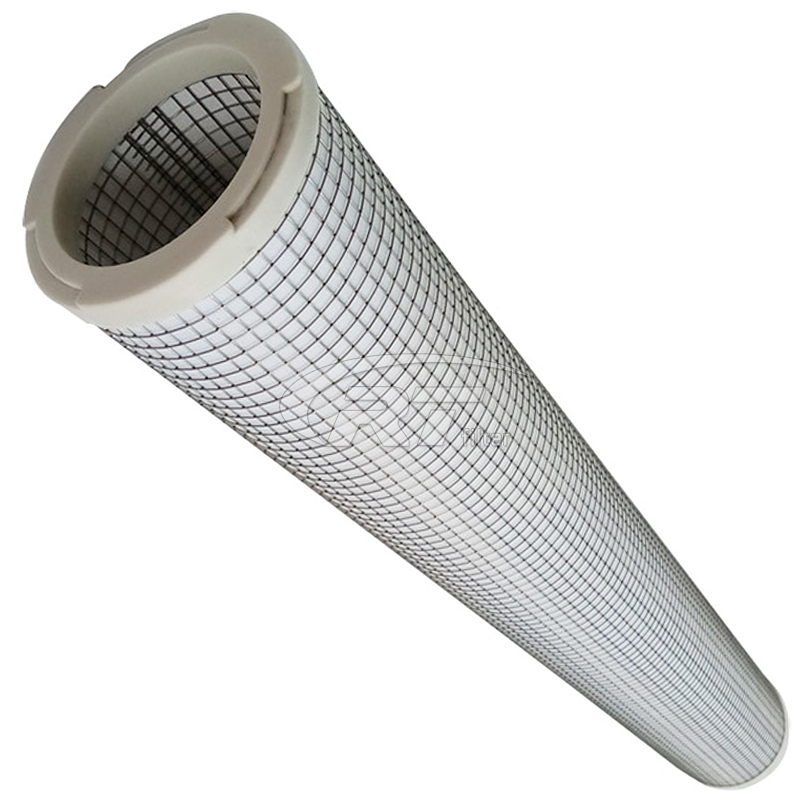

C280-51 is used in advanced compressed air filtration elements for compressed air systems. In compressed air filtration, to keep compressed air clean and oil-free, the C280-51 offers a rare combination of superior performance, reliability and exceptional value.
C280-51 compressor air filter is still a major power filter. The use of compressed air filters is becoming more and more widespread due to its many advantages over other types of energy filters.
More Related Filters:
C15-95
P15-95
C25-187
P25-187
AU25-187
QU35-280
P35-280
AU35-280
QU85-250
P85-250
Additional Notes:
C280-51 compressor air filter is used to solve the following problems. Compressed air can be contaminated by the atmosphere and the compressor itself. This can lead to corrosion and other related problems, which inevitably lead to system and equipment failure.
Technical Data:
C Series: Oil removal filter elements
QU Series: Oil removal filter elements
P Series: Dedusting filter elements
AU Series: Absorption filter elements
Flow rate(NM/min)
Model
0.4.................................
10-25..............
1.4
10-50
2.8
15-60
4
15-95
6
20-130
7
25-130
12
25-187
17
25-235
20
25-280
28
35-280
40
51-280
56
85-250
80
85-360
Filter Material:
We manufacture C280-51 compressor air filter with one or more layers of pleated media within a molded fiberglass laminate cylinder to provide greater particle filtration surface area. Pleats are kept open for full utilization using pleat corrugations and separation material.
• Composite fiberglass and pleated media coalescers remove particles primarily from the high surface area pleated core.
• All-fiberglass media coalescers combine deep particle filtration with a deep coalescing structure.
• All-fiberglass designs have a continuous thinner dielectric layer for deep filtration of particles.
Quality Features:
1. Filtration accuracy: 0.01µm ~ 1µm
2. Filtration efficiency is 98%
3. PH range: 5 to 9
4. No media migration or “linting”
5. Maximum operating temperature:250°F.
6. The service life can reach about 2000h ~ 3500h
7. The filter material is made of American HV and Korean Ahlstrom pure wood pulp filter paper
Support Customization：
PartnerFilter can provide filter elements compatible with various foreign and domestic brands of compressed air filters,including:
Hankison
Dominck Hunter
Ulrafiter
Hiross
SMC
Orion
Zander
Bea
Parker
Atlas Copco
Technolab
JM
MANN
Other types are available on request
Related Specification Filters
Flow rate(NM3/min)
C/QU Series
P Series
AU Series
0.4
C10-25
P10-25
AU10-25
1.4
C10-50
P10-50
AU10-50
2.8
C15-60
P15-60
AU15-60
4
C15-95
P15-95
AU15-95
6
C20-130
P20-130
AU20-130
7
C25-130
P25-130
AU25-130
12
C25-187
P25-187
AU25-187
17
C25-235
P25-235
AU25-235
20
C25-280
P25-280
AU25-280
28
QU35-280
P35-280
AU35-280
40
QU51-280
P51-280
AU51-280
56
QU85-250
P85-250
AU85-250
80
QU85-360
P85-360
AU85-360
If you have no standard filter code numbers please send us your filters specifications or sampleswe can customize as your requests.
Application Scenarios Of Filter Element

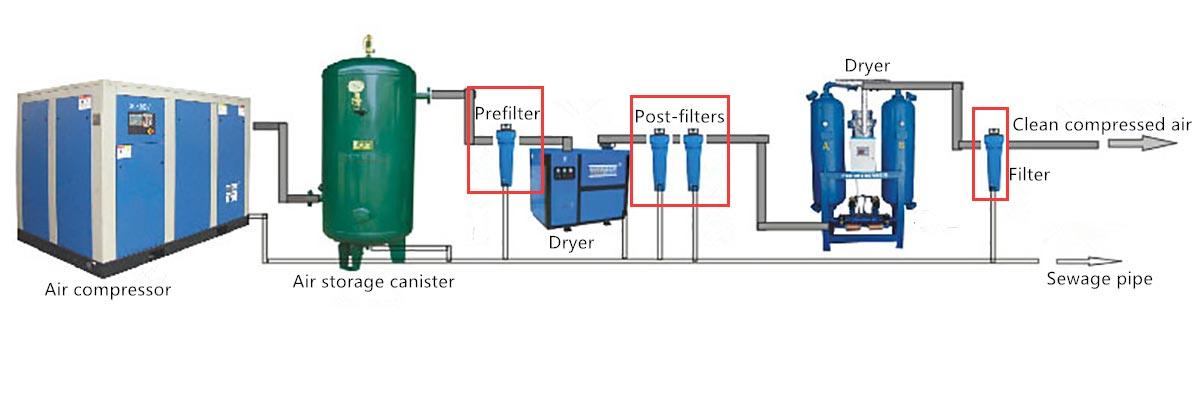

Air Compressor Filtration
Thermal energy power generation industry. Preventing and Controlling Clean Gas Emissions. Air Compressor Filter.
Reduce the emission of air pollutants, reduce the harm of air pollution to human healthy.
Equipment Oil Pollution Filtration
Large machinery production operation industry.Mechanical production operation equipment oil cleaning and filtration.
Highly efficient cleaning and filtering of oil dirt, protecting engine parts and other equipment.
Industrial Wastewater Filtration
Production wastewater treatment and cleaning. Avoid water pollution. Ensure healthy drinking water.
Ensure healthy drinking water.Avoid water pollution. Production wastewater treatment.
Oil Dust Filtration
Mineral development equipment filtration guarantee.Ensure the stability of mining operation machinery. Safety. Efficient.
Reduce the discharge of dust into the atmosphere. Ensure atmosphere standards.
