Water filter element
PartnerFilter can produce kinds of replacement water filter elements of Parker,3M,PECO brands,For detailed filters,contact us artnerfilter@outlook.com
|
|
|
Brand: PartnerFilter

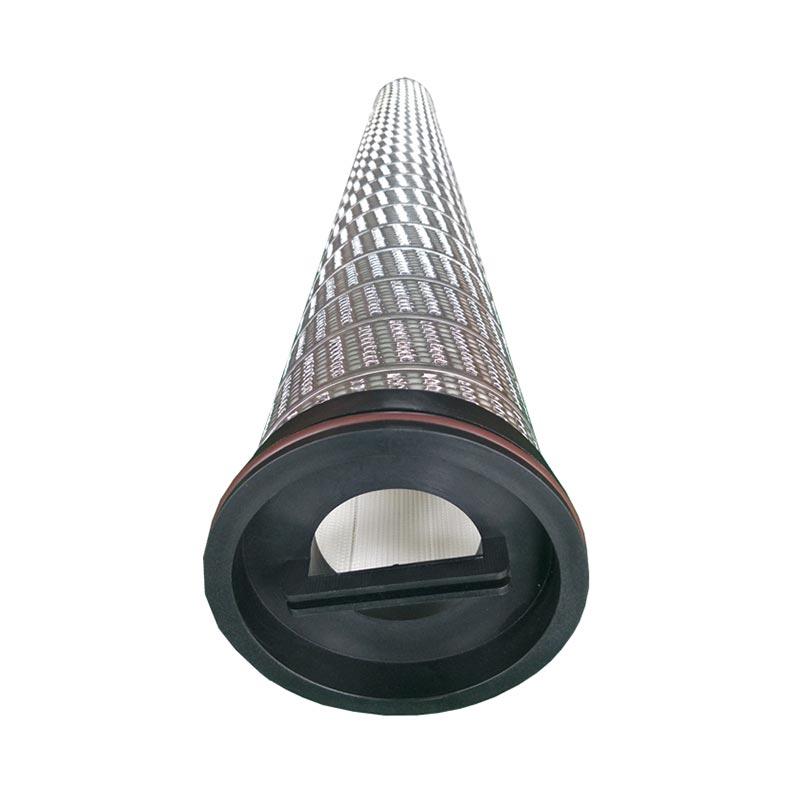

Model: HFU660UY100H
Filter Type: Ultipleat High Flow Filter
Length: 1016 mm
Outer diameter: 152 mm
Max Work Pressure: 2.4 bar
Support Mesh and Outer Wrap: Polypropylene
O-ring Seal: Ethylene Propylene Rubber
Filter Medium: Polypropylene
End Caps and Handle: Polypropylene (10% glass fiber reinforced)
Series: HFU640UY700J, HFU660UY100HW, HFU660UY200H13, HFU660UY045H more
|
|
Ultipleat high flow filter element HFU660UY100H is designed for cost-effective highly efficient particle filtration in high flow rate food and beverage applications with pleated polypropylene depth structure60inch long and 10µm filter grade.
|
|
|
|
|
|
Model: BPS-304-CAS
Sizes: 30”
Filtration accuracy: 0.45μm
Filter Construction: Pleated
Support Mesh and Outer Wrap: Polypropylene
O-ring Seal: Ethylene Propylene Rubber
Filter Medium: Polypropylene
Filtration Media: Polyeterhsulphone
Application: Food and Beverage Industry
End Caps and Handle: Polypropylene (10% glass fiber reinforced)
|
|
BPS-304-CAS is designed for microbial stabilization of bottled waterbeer stabilization and wine the filter element is a cost-effective solution.
|
|
|
|
|
|
Model: PPP-3BN-CAS
Filter Type: Parker Water Filter
Sizes: 30”
Filtration accuracy: 0.6μm
Filter Construction: Pleated
Filtration Media: Polypropylene
O-ring Seal: Ethylene Propylene Rubber
Application: Food and Beverage Industry
End Caps Material: Polypropylene
End Cap Insert(if applicable)Material: 316L Stainless Steel
|
|
The filter element PPP-3BN-CAS will significantly reduce the number of yeast and spoilage microorganisms in beverage products,providing highly cost-effective pre-stabilization of process liquids.
|
|
|
|
|
|
Model: XP-G1-6200V
Sizes: OD6.3”*L60.5”
Filter material: Fiberglass
End Caps Material: Nylon
Body Material: Tin-Plated Steel
Seal: Viton
Micron Rating: 20µm
Flow Direction: Inside-to-Outside
Series: XP-G1-6300E, XP-G1-6400E, XP-G1-6700E more
|
|
XP-G1-6200V high flow liquid filter element is a large 6” diameter cartridge designed to filter liquids from the inside to outside.This design has several advantages.It allows high flow rates to be achieved in a single cartridgethus requiring fewer filters and a 3 "diameter design compared to a traditional 2.5" cartridge.
|
|
|
|
|
|
Model:ALN05-60B
Sizes:OD6.75”*L60”
Seal:Buna-N
Micron:5μm
End Caps:Nylon
Center Tube:PVC core
Flow direction:Outside to inside
Filter material:Polypropylene micro-fibers
Series:ALN01-60B ALN10-60B AL05-60B more
|
|
ALN05-60B Aqualine Pentair high flow filter cartridge is a new product developed by PartnerFilter.It has a 6”/152mm large diameter and corelesssingle-open-ended with an outside to inside flow pattern.The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required.The long service life and high flow rate result in low investment and less manpower in many applications.
|
|
|
|
|
|
Model: HF40PP001A01
Sizes: OD6”*L40”
Seal: Silicone
Micron: 1μm
Flow: 80m³/h
Max Temperature: 71°C
Filter material: Polypropylene
Flow direction: Outside to inside
Series: HF40PP001B01 HF40PP001C01 HF40PP001D01 more
|
|
HF40PP001A01 high flow filter element is designed with the most advanced technology to optimize performance and effluent quality to ensure customer satisfaction.The composite radial fold design maximizes the available surface area of each filter.
|
|
|
|
|
|
Model: RFP050-40NPX-L
Filer Type: Parker Water Filter
Length: 40.0 inches
Innerside Diameter: 3.5 inches
Outside Diameter: 6.0 inches
Micron: 40 μm
Flow: 1325 lpm
Filter material:PolypropyleneGlass Fiber
Seal: EPDM(Standard) Buna-NSiliconeViton
Series: RFP010-40NPX-L, RFP100-40NPX-L, RFP500-40NPX-L, RMG100-60VPP more
|
|
RFP050-40NPX-L handles flows of up to 300gpm/70m3/hr in a single filter and is ideal for applications requiring absolute particle removalsignificantly reduces the capital investment cost and shell diameter ultimately saving valuable plant space and labor replacement costs.
|
|
|
|
|
|
Brand:PartnerFilter
Micron: 0.1μm 0.22μm 0.45μm 1μm 5μm 10μm
Length: 10″ 20″ 30″ 40″
Filter Type: High Flow Water Filter
Center Tube:Polypropylene
End Caps:Polypropylene
Filter Construction: Pleated
Filtration Media: Polypropylene
O-ring Seal: Ethylene Propylene Rubber
Application: Food and Beverage Industry
Seal:EPDM(Standard) Buna-N SiliconeViton
Filter material:PP PESP TFEN6 PVDF membrane
|
|
The microporous wrinkled membrane filter element is composed of high-quality membrane, polypropylene support layer and components. The capsule undergoes 100% integrity testing during the production process and has full batch material traceability.
|
|
|
|
|
|
Micron: 0.1μm 0.22μm 0.45μm 1μm 5μm 10μm
Length: 9.75″ 9.87″ 10″ 20″ 30″ 40″
End Caps: Polypropylene/no
Center Tube: Polypropylene/no
O-ring Seal: Ethylene Propylene Rubber
Application: Food and Beverage Industry
Filter material: Polypropylene/absorbent cotton
Seal: Siliconeethylene propylene, nitrile rubber
Filter element surface: PP melt blownfine graingrooveembossed
|
|
The wire-wound filter element is made of textile fiber roving which is tightly wound on the porous skeleton according to a specific process to form a honeycomb structure with a sparse outside and a dense inside.It has very good filtration characteristics and can effectively remove suspended solidsrustparticles etc. in the fluid.
|
|
|
|
|
|
