Parker replacement Liquid Pre-Stabilization water Filter PPP

Prev: Parker Replacement BPS-304-CAS Final microbial stabilization Next: XP-G1-6200V Parker & PECO High Flow Liquid Filter Element

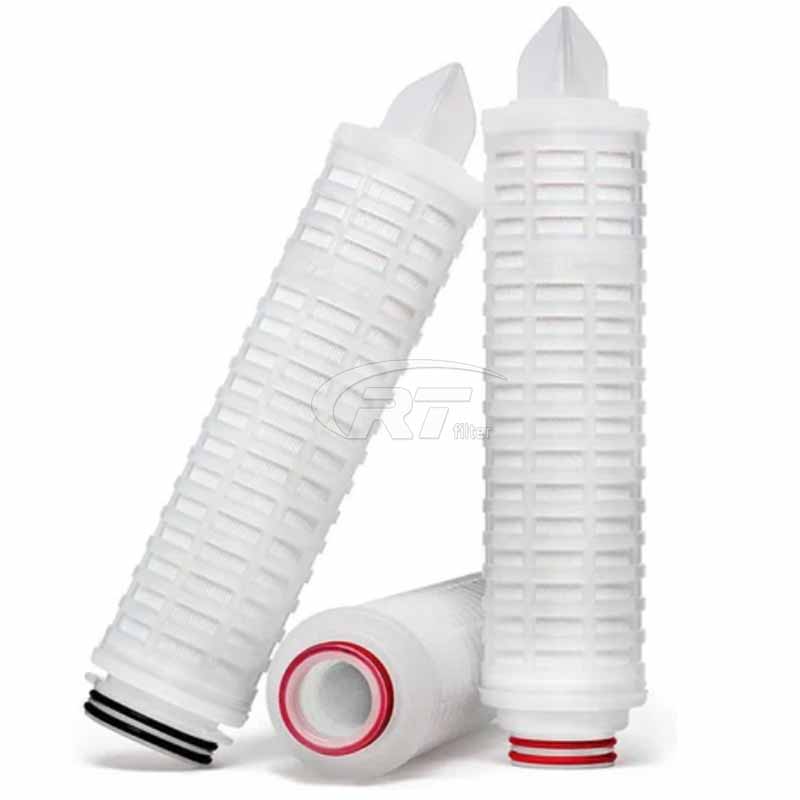

Parker replacement Liquid Pre-Stabilization water Filter PPP

Model: PPP-3BN-CAS

Filter Type: Parker Water Filter

Sizes: 30”

Filtration accuracy: 0.6μm

Filter Construction: Pleated

Filtration Media: Polypropylene

O-ring Seal: Ethylene Propylene Rubber

Application: Food and Beverage Industry

End Caps Material: Polypropylene

End Cap Insert(if applicable)Material: 316L Stainless Steel

The filter element PPP-3BN-CAS will significantly reduce the number of yeast and spoilage microorganisms in beverage products,providing highly cost-effective pre-stabilization of process liquids.
  About Us       Contact Us Product Details       Related Specification Filters       Communication Requirements

Brief introduction:

The filter element PPP-3BN-CAS will significantly reduce the number of yeast and spoilage microorganisms in beverage products,providing highly cost-effective pre-stabilization of process liquids.

PPP-3BN CAS will also be "moderating" liquids and can be used to increase the filterability of products prior to terminal stabilization by heat or filtration methods. Filters can withstand harsh operating conditions and repeated cleaning, making them ideal for long-term use. Bulk conditioning of products prior to membrane "sterilization" and pasteurization. Their mechanical strength and extensive chemical resistance also make them suitable for long-term use in contact with strong cleaners and detergents.



Performance parameters:

Filters with the length of 20", 40" and 60" can be offered.

Inside-out directions guarantee all impurities to be left inside the filters.

Maximum flow of one filter can be up to 110m³/h during the water filtering.

Filtration system size can be reduced by 50% in maximum.



Material:

We make PPP-3BN-CAS water filter using glass fiber coalescing filter elements made of high density gradient glass fiber. PPP-3BN-CAS is designed as a one-piece one-piece tube construction to reduce damage and leaks. The surface of the filter element has been treated with hydrophobicity and oleophobicity to meet the requirements of various precision levels.

• The composite glass fiber and fold medium coalescers mainly remove particles from high surface area fold cores.

• All glassfiber media aggregator combines deep particle filtration with deep coalescence structure.

• The all-glass fiber design has a continuous thinner dielectric layer to achieve deep filtration of particles.

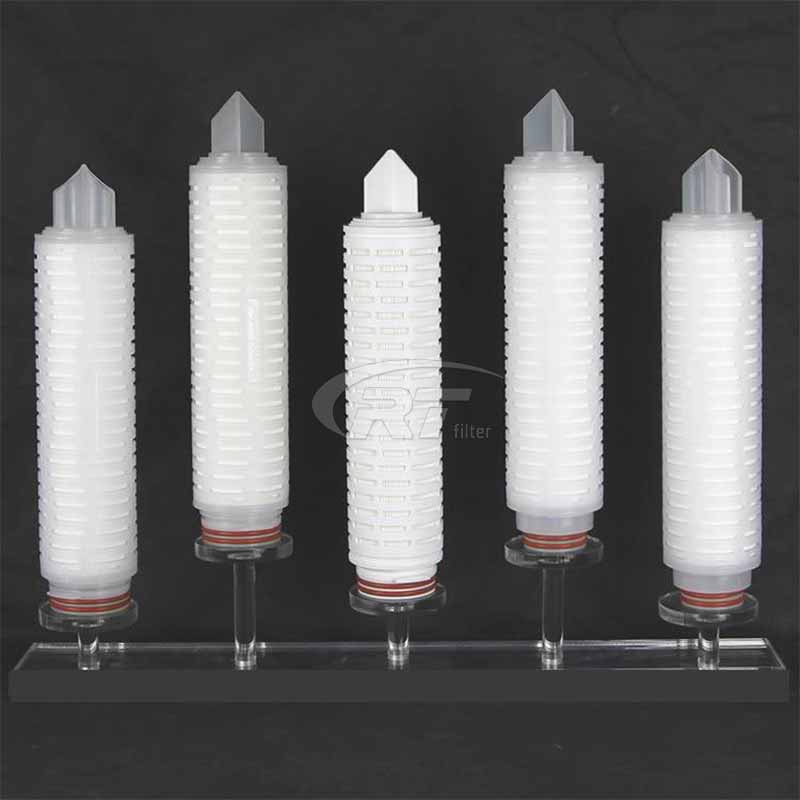

Parker replacement Liquid Pre-Stabilization water Filter PPP



Characteristics and advantages:

• Reduce yeast and bacteria to provide short-term microbial stability

• Filtration adjustment of bulk liquids after canning or transportation

• Fine clarification to provide a polished finish

• Prolonged exposure to hot water, steam and chemicals

• The pre-filtration function extends the service life of the downstream microporous filter

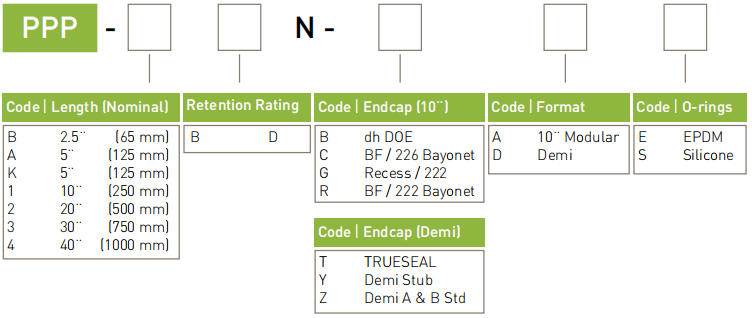

More Filters Ordering Information:

Parker replacement Liquid Pre-Stabilization water Filter PPP




Related Specification Filters
Item Specifications
Length 30" (750 mm)
Micron Rating 0.6 µm(26.00 inch)
End Cap Configuration BF/226 Bayonet
End Caps Material Polypropylene
End Cap Insert (if applicable)Material 316L Stainless Steel
Industry Food and Beverage
Application Liquid Pre-Stabilization
Technology Filtration
Product Type Liquid Filter Elements
Filter Construction Pleated
Filter Material Polypropylene
For Fluid Type Beverages
Filtration Media Material Polypropylene
Upstream Support Material Polypropylene
Downstream Support Material Polypropylene
Inner Support Core Material Polypropylene
Outer Protection Cage Material Polypropylene
Standard o-rings/gaskets Material Silicone/EPDM
Capsule Body Material Polypropylene

   Application Scenarios Of Filter Element

Air Compressor Filtration

Thermal energy power generation industry. Preventing and Controlling Clean Gas Emissions. Air Compressor Filter.

Reduce the emission of air pollutants, reduce the harm of air pollution to human healthy.

Equipment Oil Pollution Filtration

Large machinery production operation industry.Mechanical production operation equipment oil cleaning and filtration.

Highly efficient cleaning and filtering of oil dirt, protecting engine parts and other equipment.

Industrial Wastewater Filtration

Production wastewater treatment and cleaning. Avoid water pollution. Ensure healthy drinking water.

Ensure healthy drinking water.Avoid water pollution. Production wastewater treatment.

Oil Dust Filtration

Mineral development equipment filtration guarantee.Ensure the stability of mining operation machinery. Safety. Efficient.

Reduce the discharge of dust into the atmosphere. Ensure atmosphere standards.
