Filter Housing

PartnerFilter produces and designs different oil filter housing,water filter housing.For more details,contact us at artnerfilter@outlook.com.

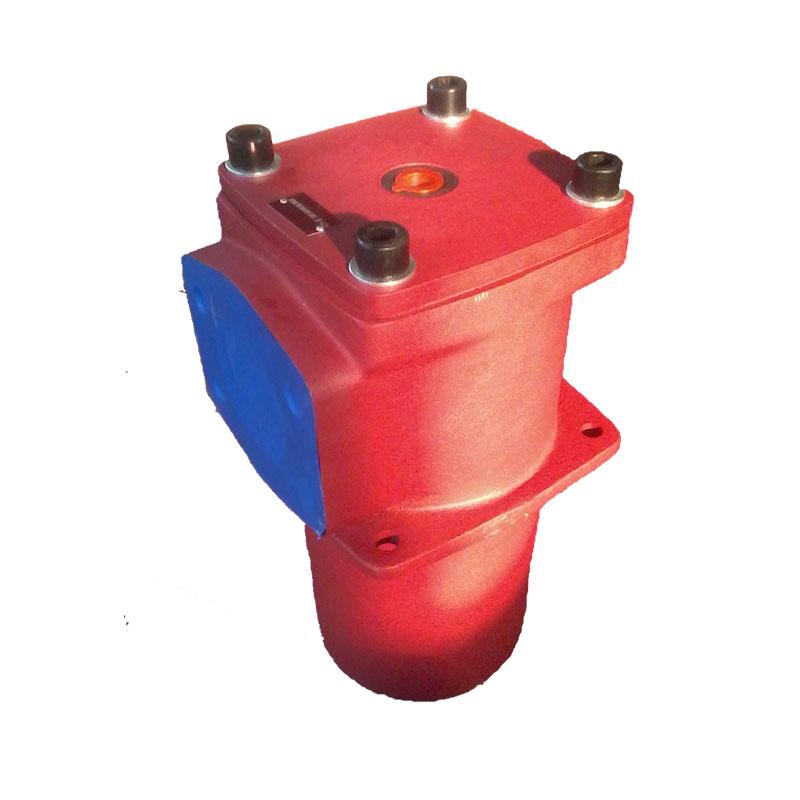

HYDAC hydraulic oil return line filter housing RFBNHC660DN10
HYDAC hydraulic oil return line filter housing RFBNHC660DN10

Brand:PartnerFilter

Model:RFBNHC660DN10D1.X-L24

Filter type:Return line filter

Flow rate:660 l/min

Filtration accuracy:10μm

Operating pressure:25bar max.

Connection:Flange

Inside filter element:0660R010BN4HC

RFBNHC660DN10D1.X-L24 replacement hydraulic oil filter housing is designed to be mounted directly on tank tops.Inline mounting is also possible.

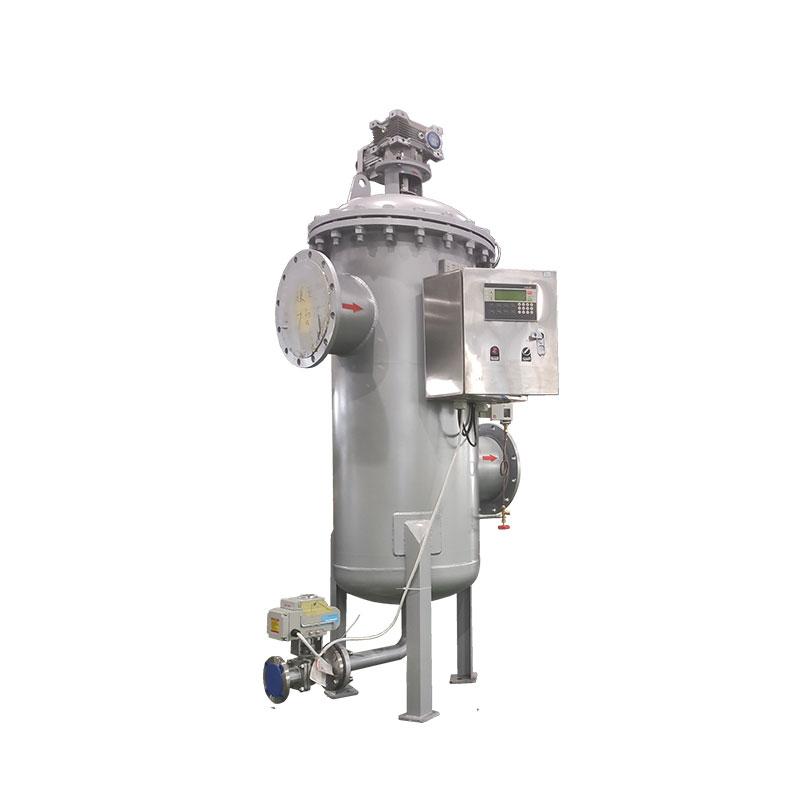

DK-ZQX-200 Self Cleaning Automatic Screen Filters for Power
DK-ZQX-200 Self Cleaning Automatic Screen Filters for Power

Brand:PartnerFilter

Model:DK-ZQX-200

Material:Carbon Steel/SS304/SS316

Flow Rate:320m3/h

Filtration accuracy:20~4000microns

Operating pressure:1-16bar

Power:220V/380V or customized

Cleaning method:brush type

Adjustable cleaning time:10-200 seconds

Self cleaning filter is designed for high viscosity liquidsit can be continuous online filtrationwon’t generate filter consumables and no need manual cleaning.

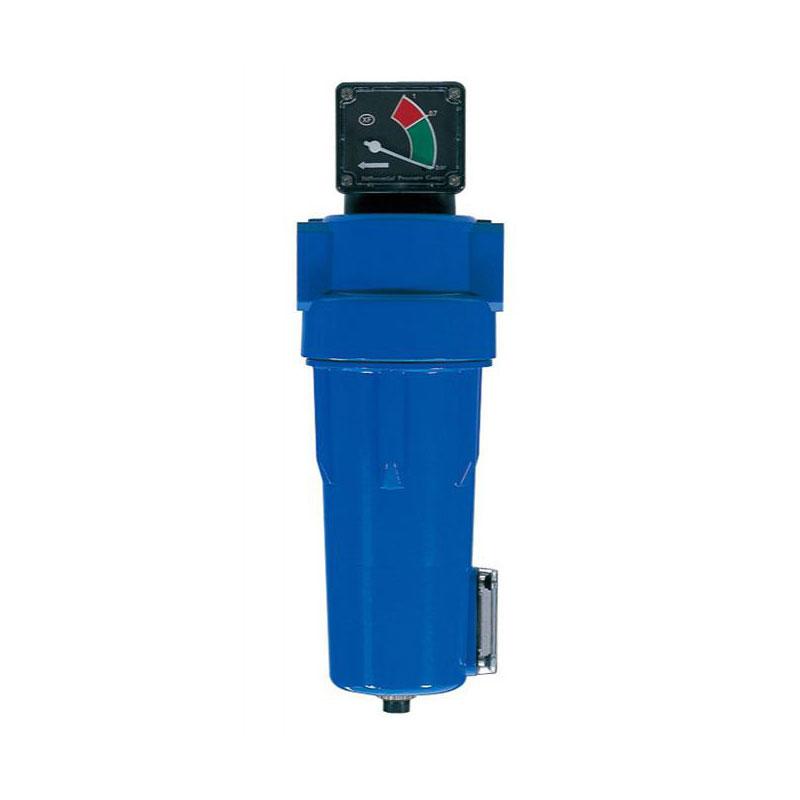

<b>Replacement of Hankison XF Series High-efficient Compressed</b>
Replacement of Hankison XF Series High-efficient Compressed

Brand:PartnerFilter

Model:XF3-24

Application:Compressed air

Max. flow rate :2.9NM/min

Filtration accuracy:0.01μm

Connected dimension:1-1/2"

Filter element type:E3-24

Maximum working pressure:16barg/232Psig

Maximum operating temperature:66℃ (120℃ is also available)

The replacement of Hankison XF series compressed air filters are complete in specifications and can handle flows of 1~252Nm³/min.There are XF9(3µl) XF7(1µl) XF5(0.01µl) XF3(0.01µl) XF1(activated carbon) five grades for you to choose.

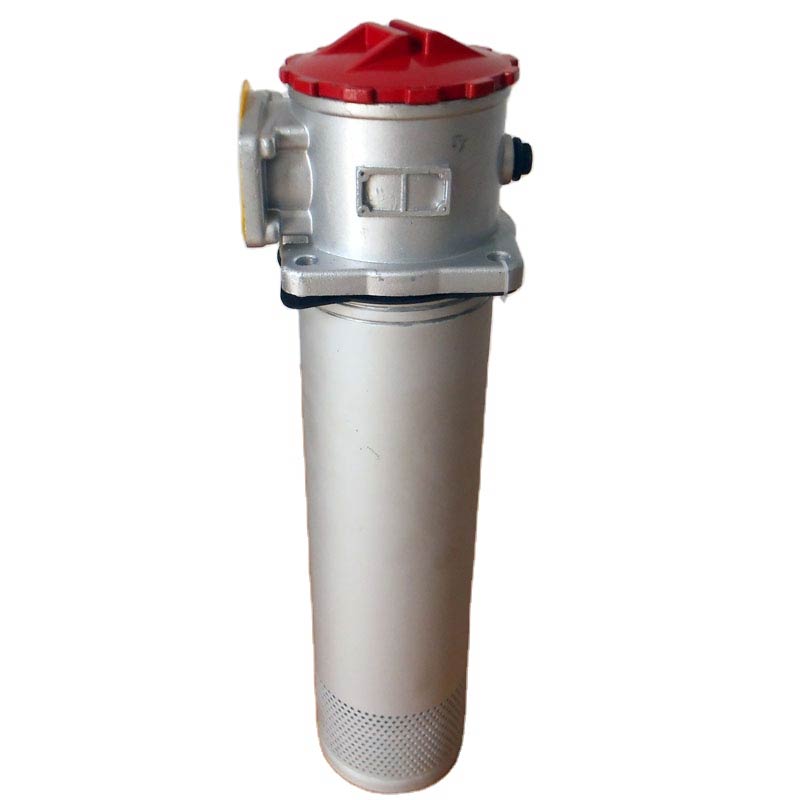

<b>RFA-400×10L-Y/C Leemin Tank mounted min-type Return Oil Filt</b>
RFA-400×10L-Y/C Leemin Tank mounted min-type Return Oil Filt

Brand:PartnerFilter

Model:RFA-400×10L-Y/C

Seal:Viton

Flow rate:400L/min

Micron:10µm

Bypass Setting:25 psid

Press:1.6MPa

Dia.:65mm

Inside filter element:FAX-400X10

This filter RFA-400×10L-Y/C can be used for fine filtration in hydraulic systems. It can be installed on the oil tank cap.Filter has indicator and bypass valve.When the filter element has dirt accumulation or the system temperature is too lowand the oil inlet pressure reaches 0.35MPathe instrument will send a signal.

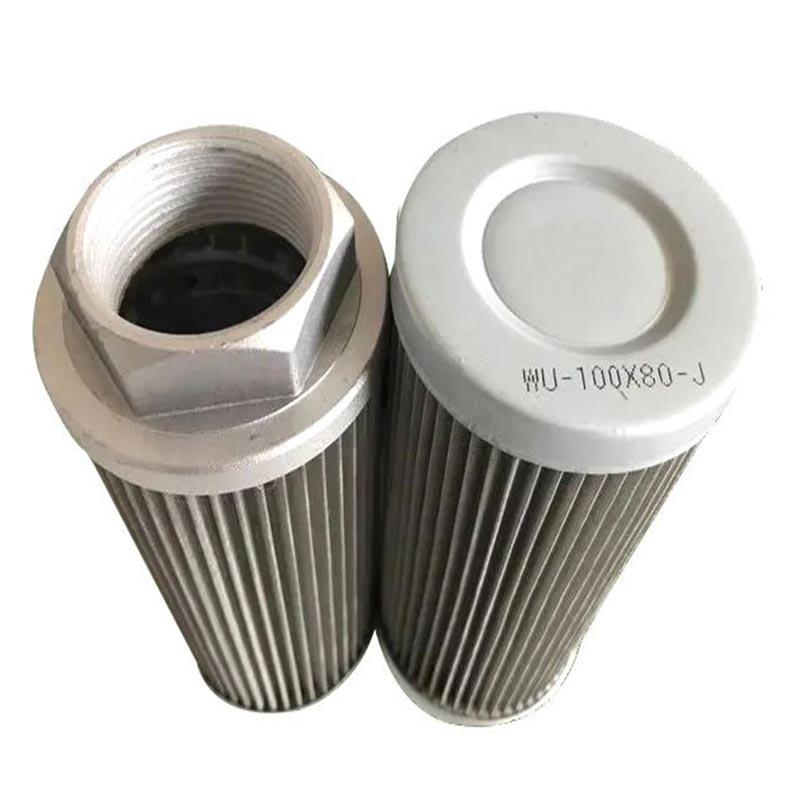

WU-100X80J Leemin Replacement Hydraulic oil suction filter
WU-100X80J Leemin Replacement Hydraulic oil suction filter

Brand:PartnerFilter

Model:WU-100X80J

Dia.:32mm

Micron:80 µm

Connection:Thread

Flow rate:100L/min

Initial pressure drop:≤0.01

Filter material:Stainless steel

Sizes:OD70*L153mm

End Caps:Corrosion Resistant Steel

Center Tube:Corrosion Resistant Steel

WU-100X80J is rough filter and can be installed at the inlet of the pump and can protect the pump not to in breathe the bigger impurity.The filter is simple designed.It's easy to let oil go through and it has small resistance. It also has threaded connection and flanged connection.This kind of filter can be divided into wire mesh filter and notched wire filter.
<b>UR699CD4040ZA+ Return Line Filter</b>
UR699CD4040ZA+ Return Line Filter

Model:UR699CD4040ZA+

Dia.:65mm

Press:1.7-4.5 Bar

Flow rate:835 L/min

Micron:10µm

Seal:Fluorocarbon

Inside filter element:UE610 Series

Bypass Setting:1.7-4.5 Bar

Series:UR699CA3240ZA3220ZA9 UR699CA3220ZA3220ZA9 more

The return line filter UR699CD4040ZA+ replacement from PartnerFilter is the longest life oil filter housing, providing the highest level of continuous fluid system protection in all applications, regardless of severity. Industry-leading BetaX (C) =2000* filtration efficiency; Currently the highest rated filter performance.

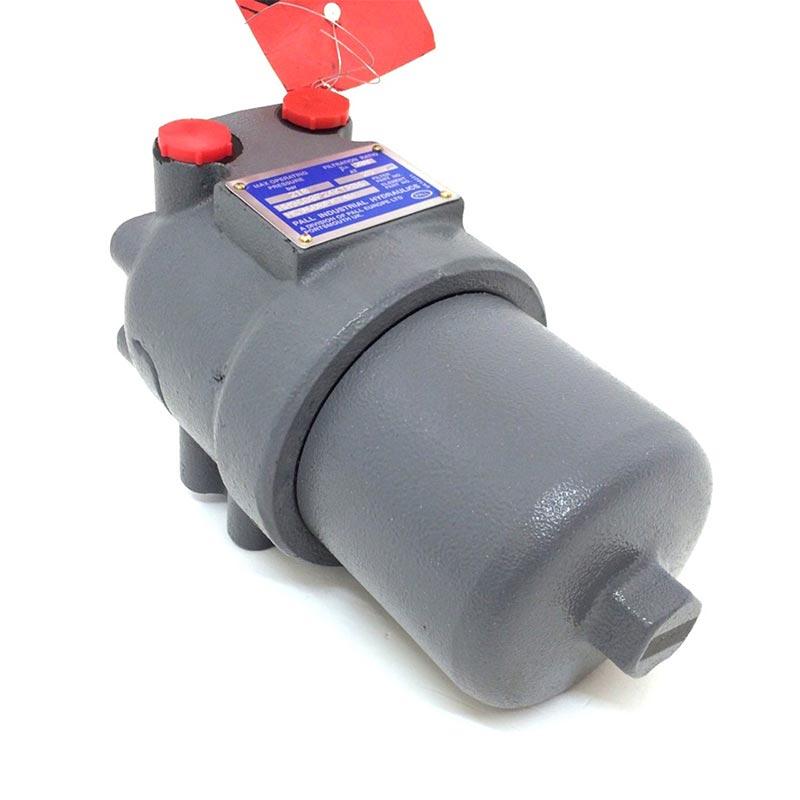

HH 9680 C24UB  Filter Assemblies Replacement
HH 9680 C24UB Filter Assemblies Replacement

Brand:PartnerFilter

Model:HH 9680 C24UB

Seal:Fluorocarbon

Flow rate:600 L/min

Micron:10µm

Press:420 Bar

Inside filter element:HC9680 HC9681 Series

Series:HH9680C24KPUBR324DCHZ9681C16 RW1 more

PartnerFilter is specialized in the hydraulic oil filter housingand we can make the 9680/1 series filter assemblies replacement.Its flows to 600 L/min with 420bard pressure and port size 1 in. 1 1 ⁄4 in. & 1 1 ⁄2 in.

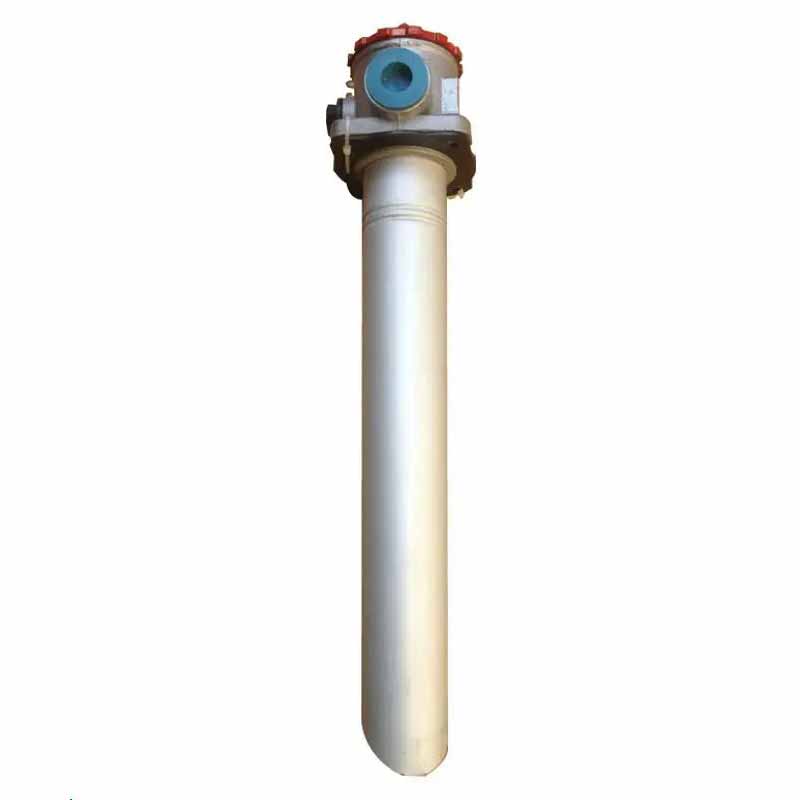

<b>TFA-160x80LC Leemin Suction Filter Housing Replcement</b>
TFA-160x80LC Leemin Suction Filter Housing Replcement

Micron:80µm

Flow rate:160L/min

Seal:Viton

Model:TFA-160 x 80LC

Inside filter element:TFX Series

Series:TFA-25x180L-Y TFA-25x80L-C more

TFA-160x80LC Hydraulic oil filter housing can be mounted on top of the tank; The filter should be below the oil level. Its performance is similar to the TF series, with one difference: the TFA series does not have a check valve.

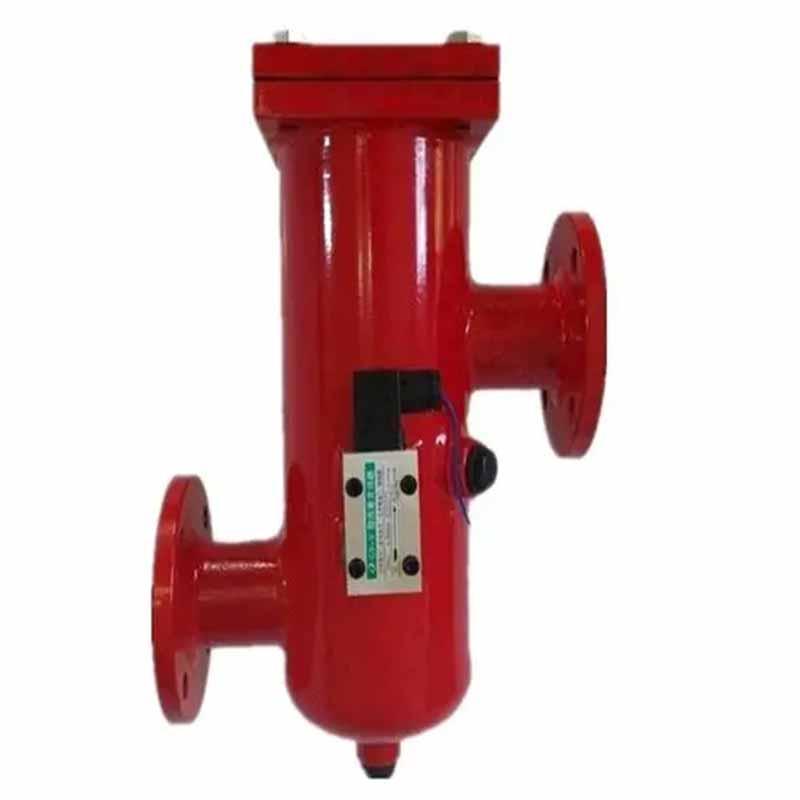

RLF-500 * 20P Leemin RLF Series Return Line Filter Housing
RLF-500 * 20P Leemin RLF Series Return Line Filter Housing

Brand:PartnerFilter

Model:RLF-500 * 20P

Seal:Viton

Flow rate:500L/min

Micron:20µm

Inside filter element:SFX-500×20

Series:RLF-BH500×20PRLF-BH500×30P more

The replacement RLF-500 * 20P Leemin hydraulic oil filter housing is used in return lineit can remove all the contaminants from the hydraulic systemand allow the clean oil flow back to the tank.
