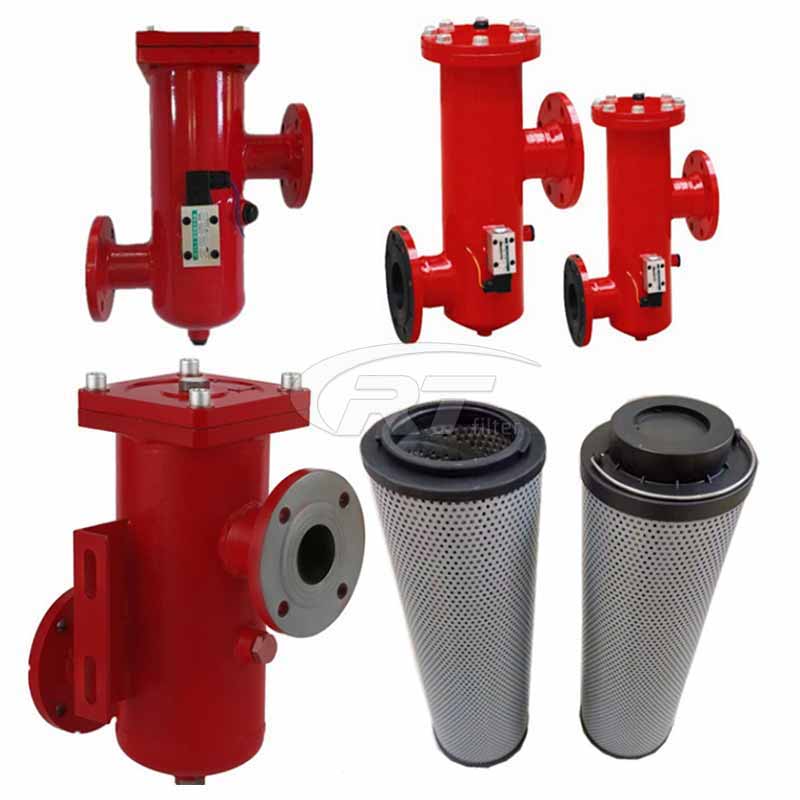

The replacement RLF-500 * 20P Leemin hydraulic oil filter housing is used in return lineit can remove all the contaminants from the hydraulic systemand allow the clean oil flow back to the tank.
The replacement RLF-500 * 20P Leemin hydraulic oil filter housing is used in return line,it can remove all the contaminants from the hydraulic system,and allow the clean oil flow back to the tank.The element of this series is made of glass fibre,it has high efficiency and filtration,large dirt capacity and lower initial pressure drop.There is a by-pass valve and a contamination indicator.The indicator will act when the pressure drop accross filter element attains 0.35MPa,the element should be changed at this time.If the system can not be stopped or nobody replaces the element,the by-pass valve will open to protect the hydraulic system safety.

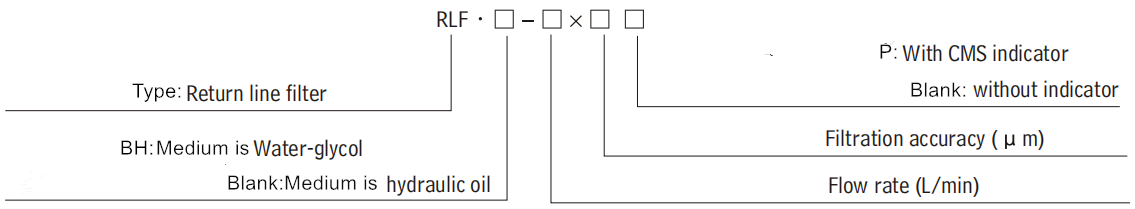

Model Code:

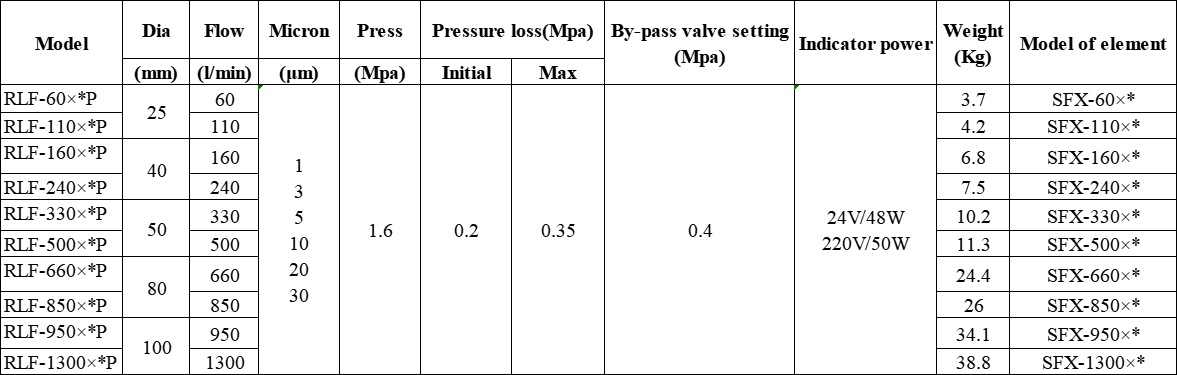

Technical Data:

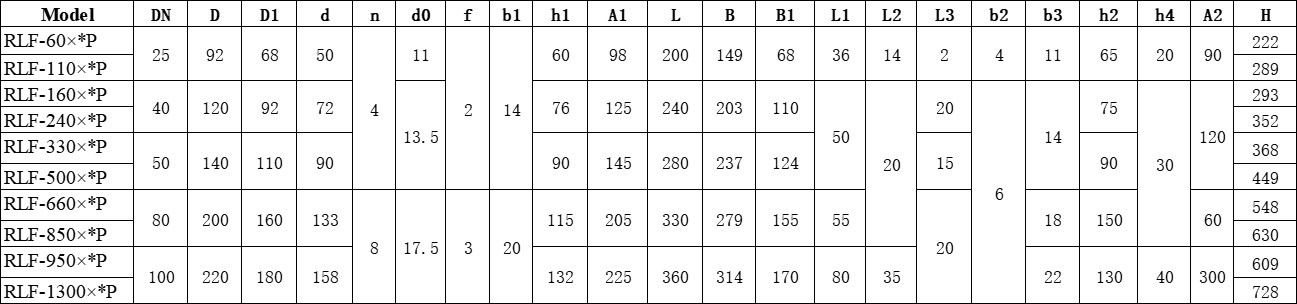

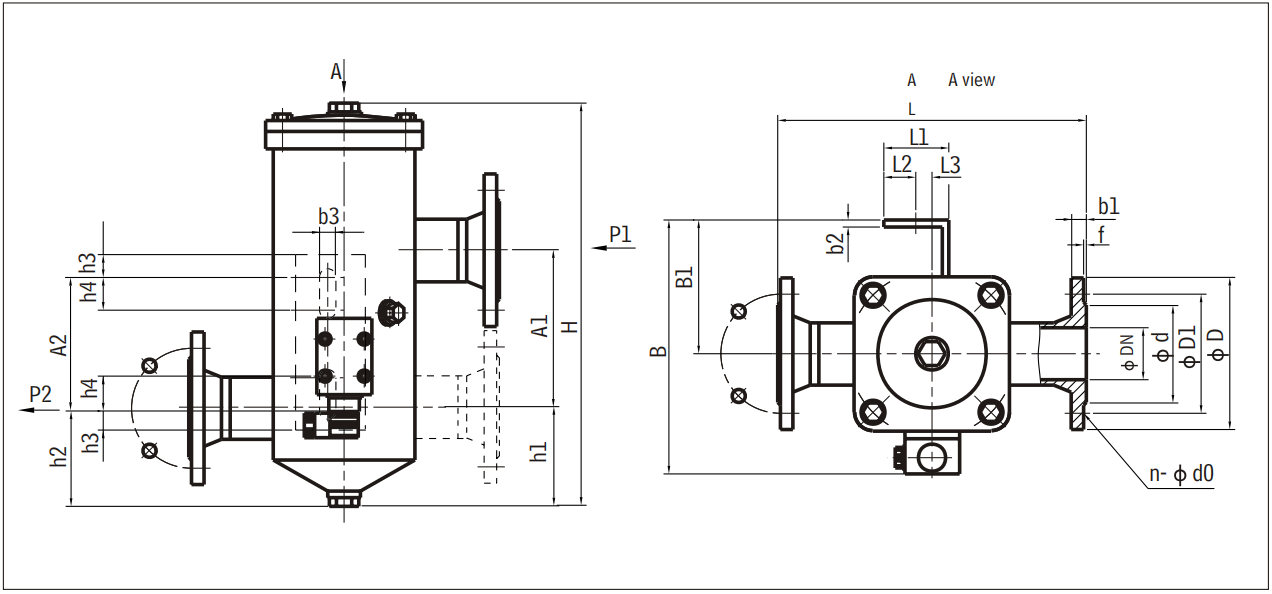

Mounting Size:
Related Specification Filters
RLF-60×10P
RLF-BH60×10P
RLF-60×20P
RLF-BH60×20P
RLF-60×30P
RLF-BH60×30P
RLF-110×10P
RLF-BH110×10P
RLF-120×20P
RLF-BH120×20P
RLF-130×30P
RLF-BH130×30P
RLF-160×10P
RLF-BH160×10P
RLF-160×20P
RLF-BH160×20P
RLF-160×30P
RLF-BH160×30P
RLF-240×10P
RLF-BH240×10P
RLF-240×20P
RLF-BH240×20P
RLF-240×30P
RLF-BH240×30P
RLF-330×10P
RLF-BH330×10P
RLF-330×20P
RLF-BH330×20P
RLF-330×30P
RLF-BH330×30P
RLF-500×10P
RLF-BH500×10P
RLF-500×20P
RLF-BH500×20P
RLF-500×30P
RLF-BH500×30P
RLF-660×10P
RLF-BH660×10P
RLF-660×20P
RLF-BH660×20P
RLF-660×30P
RLF-BH660×30P
RLF-850×10P
RLF-BH850×10P
RLF-850×20P
RLF-BH850×20P
RLF-850×30P
RLF-BH850×30P
RLF-950×10P
RLF-BH950×10P
RLF-950×20P
RLF-BH950×20P
RLF-950×30P
RLF-BH950×30P
RLF-1300×10P
RLF-BH1300×10P
RLF-1300×20P
RLF-BH1300×20P
RLF-1300×30P
RLF-BH1300×30P
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
