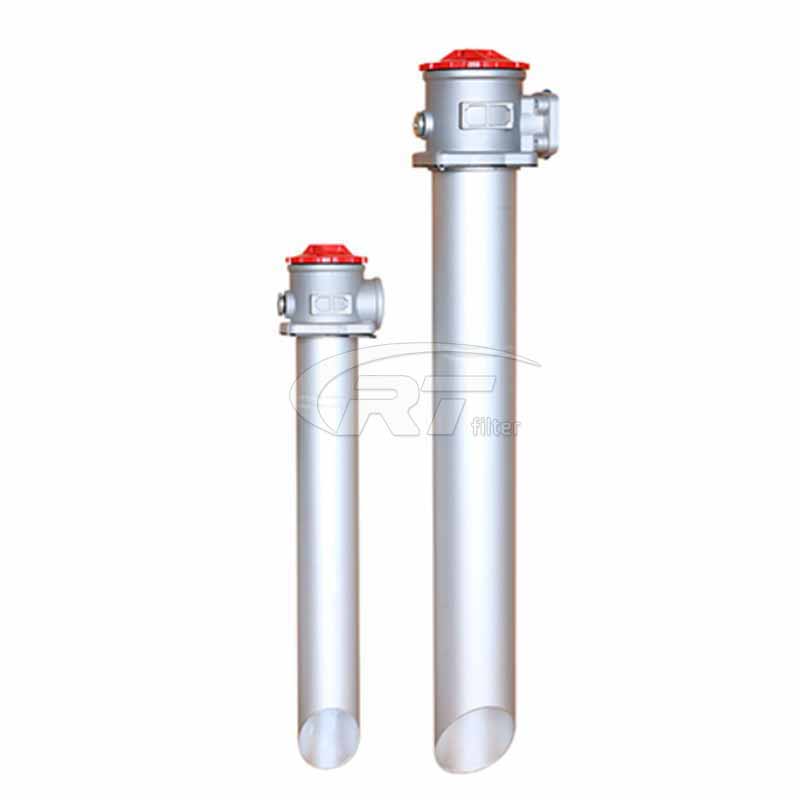

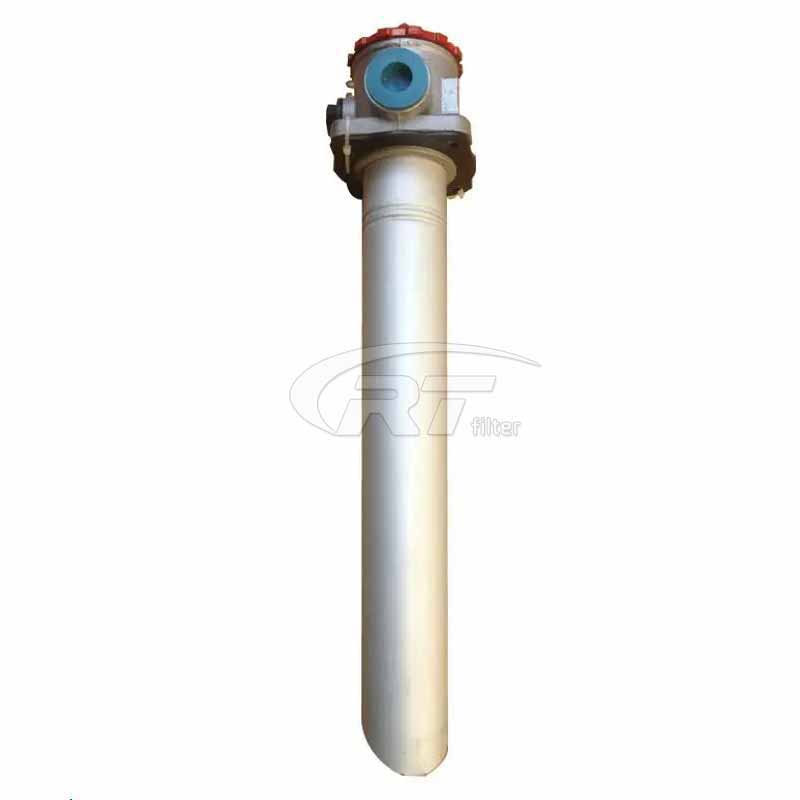

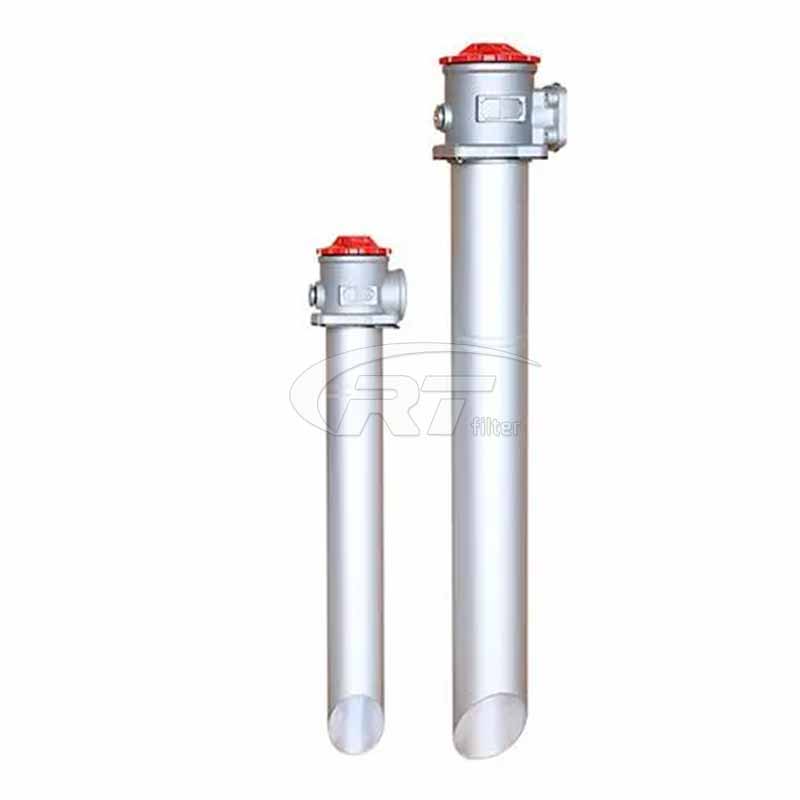

TFA-160x80LC Hydraulic oil filter housing can be mounted on top of the tank; The filter should be below the oil level. Its performance is similar to the TF series, with one difference: the TFA series does not have a check valve.
PartnerFilter has a variety of Leemin hydraulic oil filter housing, TFA-160x80LC is widely used in the hydraulic industry, can only be installed on the top of the tank; The filter should be below the oil level. Its performance is similar to the TF series, but the TFA series does not have a check valve.

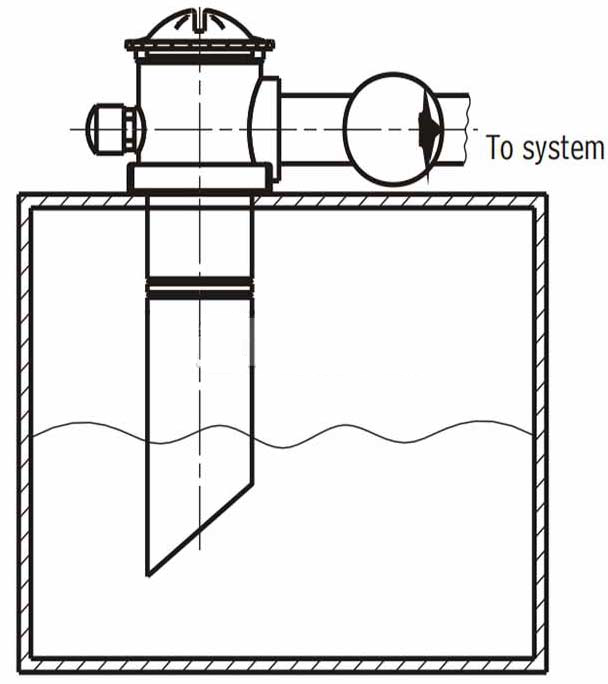

Its installation as below:
Mounting Size:

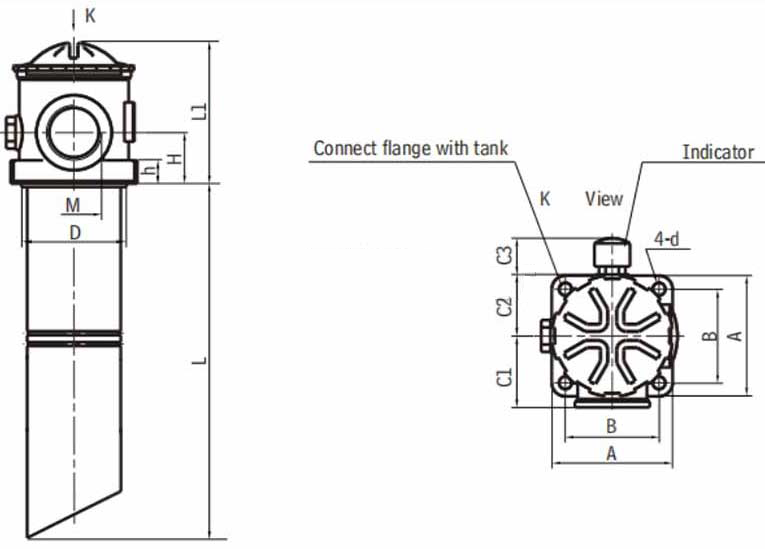

(1). Threaded Connection:

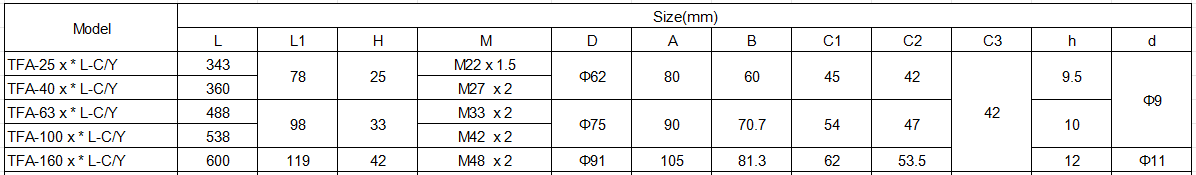

TFA-25~160 Threaded Connection:

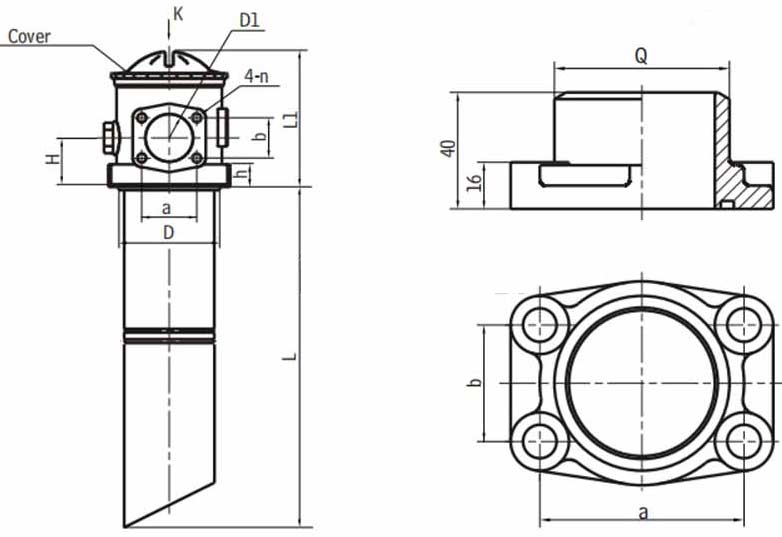

(2). Flanged Connection:

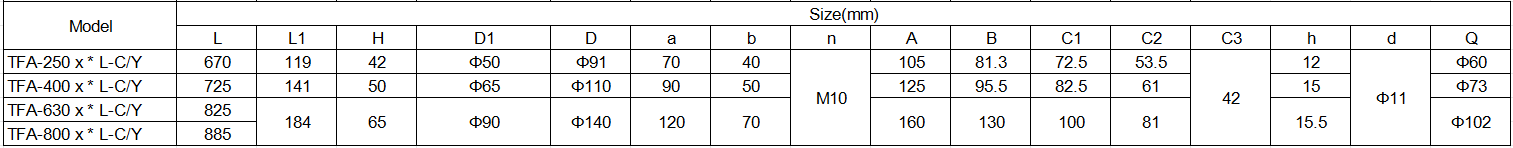

TFA-250~800 Flanged Connection:
Note:
The export flanges, seals and screws used in this series will be provided by our factory; Customers only need to weld steel pipe Q. The indicator is connected to M18 1.5; If no indicator is available, a threaded plug will be provided.
Related Specification Filters
TFA-63 x 80 L-C
TFA-1500 x 150 L-C
TFA-1500 x 150 L-Y
TFA-1800 x 180 L-C
TFA-63 x 180 L-C
TFA-63 x 180 L-Y
TFA-800 x 80 L-C
TFA-800 x 80 L-Y
TFA-63 x 80 L-Y
TFA-63 x 150 L-C
TFA-63 x 150 L-Y
TFA-1800 x 180 L-Y
TFA-160 x 150 L-Y
TFA-160 x 180 L-C
TFA-160 x 180 L-Y
TFA-25 x 150 L-Y
TFA-25 x 180 L-C
TFA-25 x 180 L-Y
TFA-160 x 80 L-C
TFA-160 x 80 L-Y
TFA-160 x 150 L-C
TFA-25 x 80 L-C
TFA-25 x 80 L-Y
TFA-25 x 150 L-C
TFA-40 x 80 L-C
TFA-100 x 80 L-C
TFA-100 x 80 L-Y
TFA-150 x 150 L-C
TFA-40 x 180 L-C
TFA-40 x 180 L-Y
TFA-40 x 80 L-Y
TFA-40 x 150 L-C
TFA-40 x 150 L-Y
TFA-150 x 150 L-Y
TFA-180 x 180 L-C
TFA-180 x 180 L-Y
TFA-250 x 80 L-C
TFA-250 x 80 L-Y
TFA-630 x 150 L-C
TFA-630 x 150 L-Y
TFA-630 x 180 L-C
TFA-250 x 180 L-Y
TFA-630 x 80 L-C
TFA-630 x 80 L-Y
TFA-250 x 150 L-C
TFA-250 x 150 L-Y
TFA-250 x 180 L-C
TFA-630 x 180 L-Y
TFA-400 x 150 L-Y
TFA-400 x 180 L-C
TFA-400 x 80 L-C
TFA-400 x 80 L-Y
TFA-400 x 150 L-C
TFA-400 x 180 L-Y
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
