Hydraulic oil filter housing
PartnerFilter has different brands replacement hydraulic oil filter housing of Hydac and Leemin brands,send us your inquiry to artnerfilter@outlook.com
|
|
|
Brand:PartnerFilter
Model:RFBNHC660DN10D1.X-L24
Filter type:Return line filter
Flow rate:660 l/min
Filtration accuracy:10μm
Operating pressure:25bar max.
Connection:Flange
Inside filter element:0660R010BN4HC
|
|
RFBNHC660DN10D1.X-L24 replacement hydraulic oil filter housing is designed to be mounted directly on tank tops.Inline mounting is also possible.
|
|
|
|
|
|
Brand:PartnerFilter
Model:RFA-400×10L-Y/C
Seal:Viton
Flow rate:400L/min
Micron:10µm
Bypass Setting:25 psid
Press:1.6MPa
Dia.:65mm
Inside filter element:FAX-400X10
|
|
This filter RFA-400×10L-Y/C can be used for fine filtration in hydraulic systems. It can be installed on the oil tank cap.Filter has indicator and bypass valve.When the filter element has dirt accumulation or the system temperature is too lowand the oil inlet pressure reaches 0.35MPathe instrument will send a signal.
|
|
|
|
|
|
Brand:PartnerFilter
Model:WU-100X80J
Dia.:32mm
Micron:80 µm
Connection:Thread
Flow rate:100L/min
Initial pressure drop:≤0.01
Filter material:Stainless steel
Sizes:OD70*L153mm
End Caps:Corrosion Resistant Steel
Center Tube:Corrosion Resistant Steel
|
|
WU-100X80J is rough filter and can be installed at the inlet of the pump and can protect the pump not to in breathe the bigger impurity.The filter is simple designed.It's easy to let oil go through and it has small resistance. It also has threaded connection and flanged connection.This kind of filter can be divided into wire mesh filter and notched wire filter.
|
|
|
|
|
|
Model:UR699CD4040ZA+
Dia.:65mm
Press:1.7-4.5 Bar
Flow rate:835 L/min
Micron:10µm
Seal:Fluorocarbon
Inside filter element:UE610 Series
Bypass Setting:1.7-4.5 Bar
Series:UR699CA3240ZA3220ZA9 UR699CA3220ZA3220ZA9 more
|
|
The return line filter UR699CD4040ZA+ replacement from PartnerFilter is the longest life oil filter housing, providing the highest level of continuous fluid system protection in all applications, regardless of severity. Industry-leading BetaX (C) =2000* filtration efficiency; Currently the highest rated filter performance.
|
|
|
|
|
|
Brand:PartnerFilter
Model:HH 9680 C24UB
Seal:Fluorocarbon
Flow rate:600 L/min
Micron:10µm
Press:420 Bar
Inside filter element:HC9680 HC9681 Series
Series:HH9680C24KPUBR324DCHZ9681C16 RW1 more
|
|
PartnerFilter is specialized in the hydraulic oil filter housingand we can make the 9680/1 series filter assemblies replacement.Its flows to 600 L/min with 420bard pressure and port size 1 in. 1 1 ⁄4 in. & 1 1 ⁄2 in.
|
|
|
|
|
|
Micron:80µm
Flow rate:160L/min
Seal:Viton
Model:TFA-160 x 80LC
Inside filter element:TFX Series
Series:TFA-25x180L-Y TFA-25x80L-C more
|
|
TFA-160x80LC Hydraulic oil filter housing can be mounted on top of the tank; The filter should be below the oil level. Its performance is similar to the TF series, with one difference: the TFA series does not have a check valve.
|
|
|
|
|
|
Brand:PartnerFilter
Model:RLF-500 * 20P
Seal:Viton
Flow rate:500L/min
Micron:20µm
Inside filter element:SFX-500×20
Series:RLF-BH500×20PRLF-BH500×30P more
|
|
The replacement RLF-500 * 20P Leemin hydraulic oil filter housing is used in return lineit can remove all the contaminants from the hydraulic systemand allow the clean oil flow back to the tank.
|
|
|
|
|
|
Brand:PartnerFilter
Model:SDRLF-A1300×10P
Flow rate:1300L/min
Micron:10µm
Seal:Viton
Pressure:1.6MPa
Bypass valve work pressure:0.4MPa
Inside filter element:SFX-1300×10
Series:SDRLF-A2600×10P SDRLF-A3900×10P more
|
|

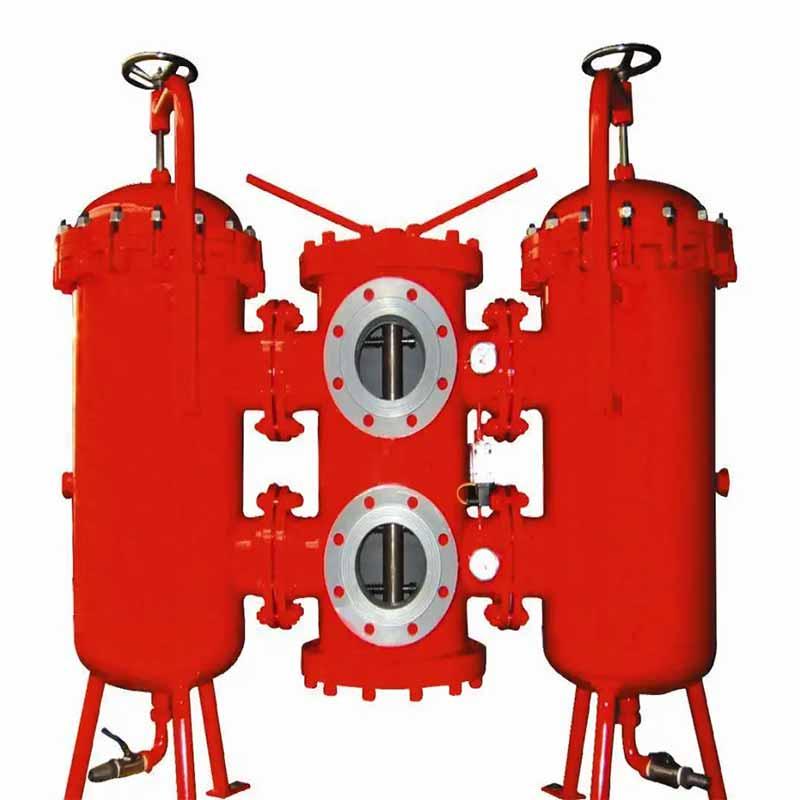

SDRLF-A1300×10P hydraulic oil filter filter housing is composed of two single bowl filters and a 2-position 6-way directional valve.It is simple in construction and easy to use.There is a by-pass valve and a contamination indicator in itfor protecting the hydraulic system safety.
|
|
|
|
|
|
Brand:PartnerFilter
Model:SPH-06X25
Flow rate:6L/min
Micron:25µm
Seal:Viton
Pressure:0.7MPa
Bypass valve work pressure:0.25MPa
Inside filter element:SPX-06X25
Series:SP-08X25SPH-06x10 more
|
|

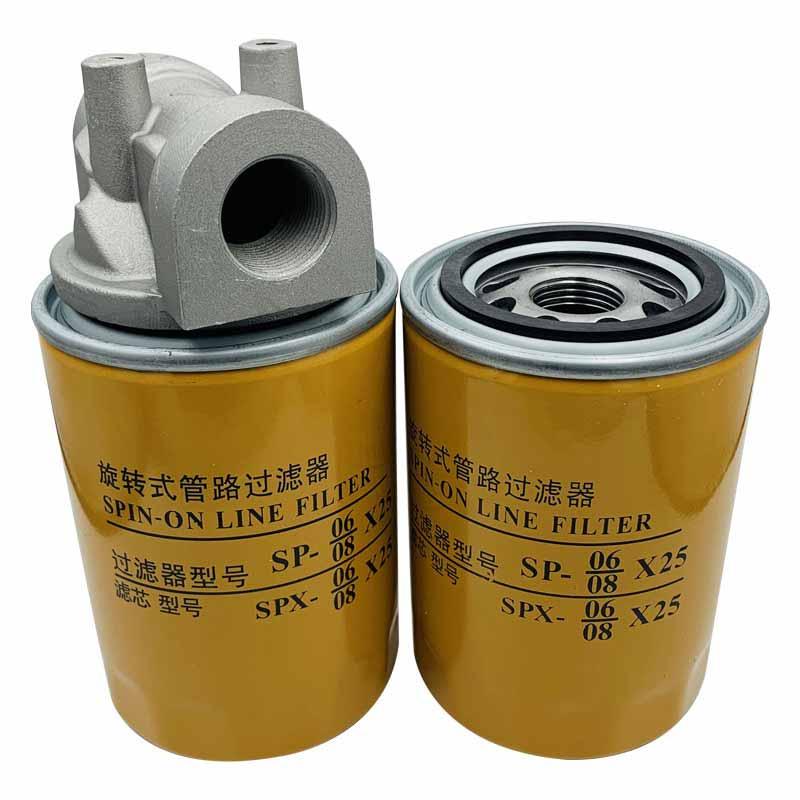

The SP-06X25 spin-on line filter head is made of aluminum alloywith beautiful appearance and durability.The filter is mainly used for hydraulic system oil return filtration or low-pressure oil supply system filtration to remove metal particles and other impurities in the oil due to the grinding of componentsimprove the cleanliness of the oiland reduce the wear and tear of components and hydraulic failure.
|
|
|
|
|
|
