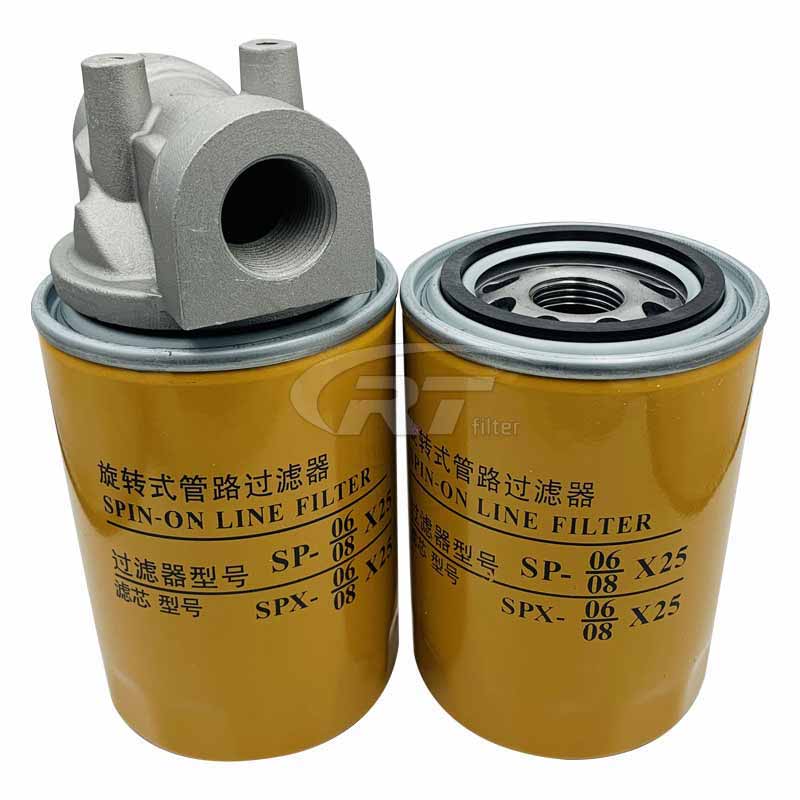

The SP-06X25 spin-on line filter head is made of aluminum alloywith beautiful appearance and durability.The filter is mainly used for hydraulic system oil return filtration or low-pressure oil supply system filtration to remove metal particles and other impurities in the oil due to the grinding of componentsimprove the cleanliness of the oiland reduce the wear and tear of components and hydraulic failure.
PartnerFilter produces kinds ofhydraulic oil filter housing:suction filter,line filter and return line filter.And PartnerFilter makes the SP-06X25 spin-on line filter head with aluminum alloy,beautiful appearance and durability.The filter is mainly used for hydraulic system oil return filtration or low-pressure oil supply system filtration to remove metal particles and other impurities in the oil due to the grinding of components,improve the cleanliness of the oil,and reduce the wear and tear of components and hydraulic failure.The filter is composed of filter head and filter shell(filter element).
The filter head is made of aluminum alloy.The filter shell(filter element) is made of thin plate steel plate integrally formed by a new process of sprinting and combined with paper filter element or chemical fiber filter element to form a steel filter.So this series oil filters have the advantages of beautiful appearance,light weight,and only need to replace the steel shell filter element when it is blocked.

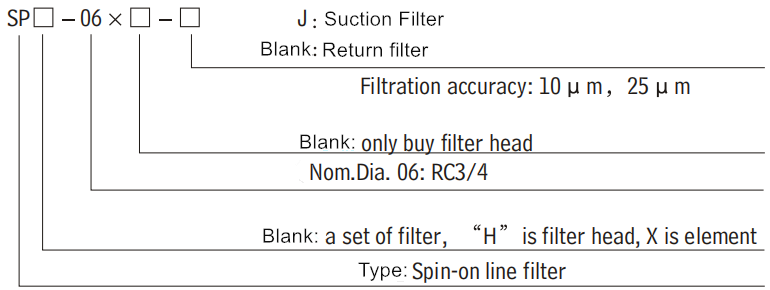

Model Code:

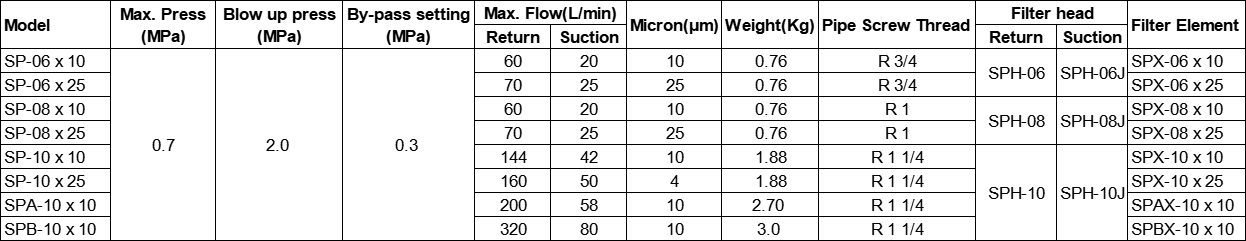

Technical Data:

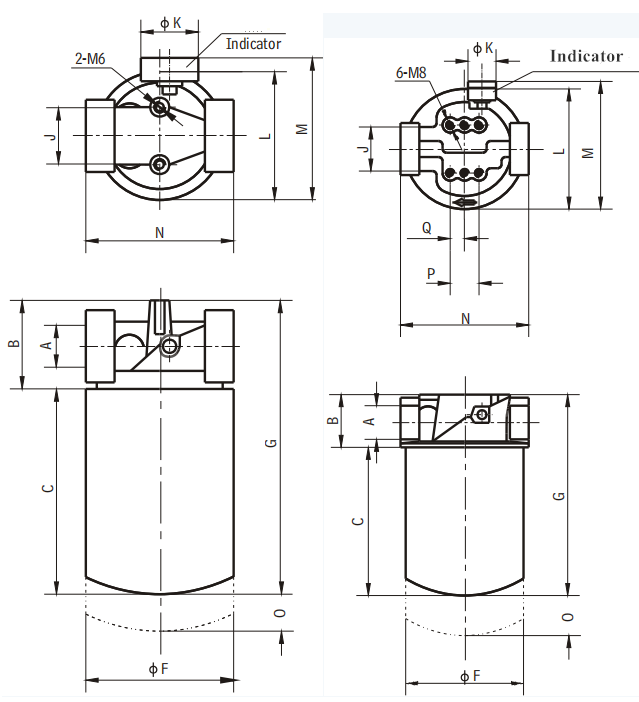

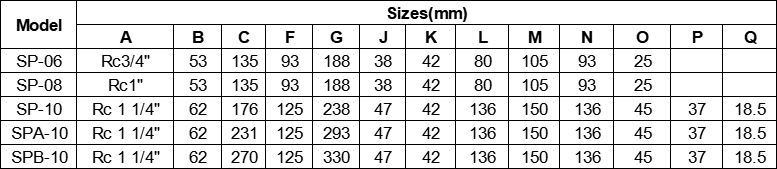

Mounting Size:

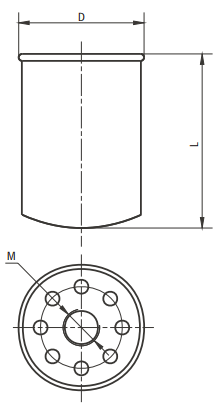

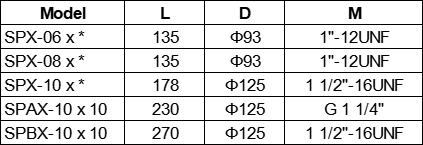

Spin-on Filter Elements:
Related Specification Filters
SPH-06 x 10
SPH-06 x 10J
SPX-06 x 10
SPX-06 x 10J
SPH-06
SPH-06 x 25
SPH-06 x 25J
SPX-06 x 25
SPX-06 x 25J
SPH-08 x 10
SPH-08 x 10J
SPX-08 x 10
SPX-08 x 10J
SPH-08
SPH-08 x 25
SPH-08 x 25J
SPX-08 x 25
SPX-08 x 25J
SPH-10 x 10
SPH-10J x 10J
SPX-10 x 10
SPX-10 x 10J
SPH-10
SPH-10 x 25
SPH-10J x 25J
SPX-10 x 25
SPX-10 x 25J
SPHA-10 x 10
SPHA-10 x 10J
SPXA-10 x 10
SPXA-10 x 10J
SPHA-10
SPHB-10 x 10
SPHB-10 x 10J
SPXB-10 x 10
SPXB-10 x 10J
SPHB-10
If you have no standard filter code numbers, please send us your filters specifications or samples, we can customize as your requests.
