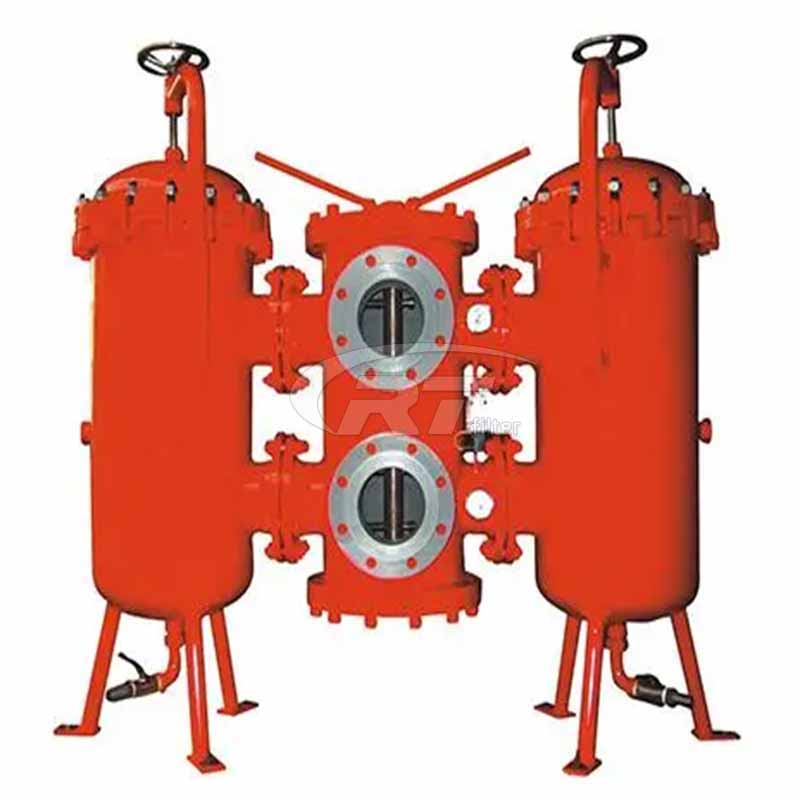

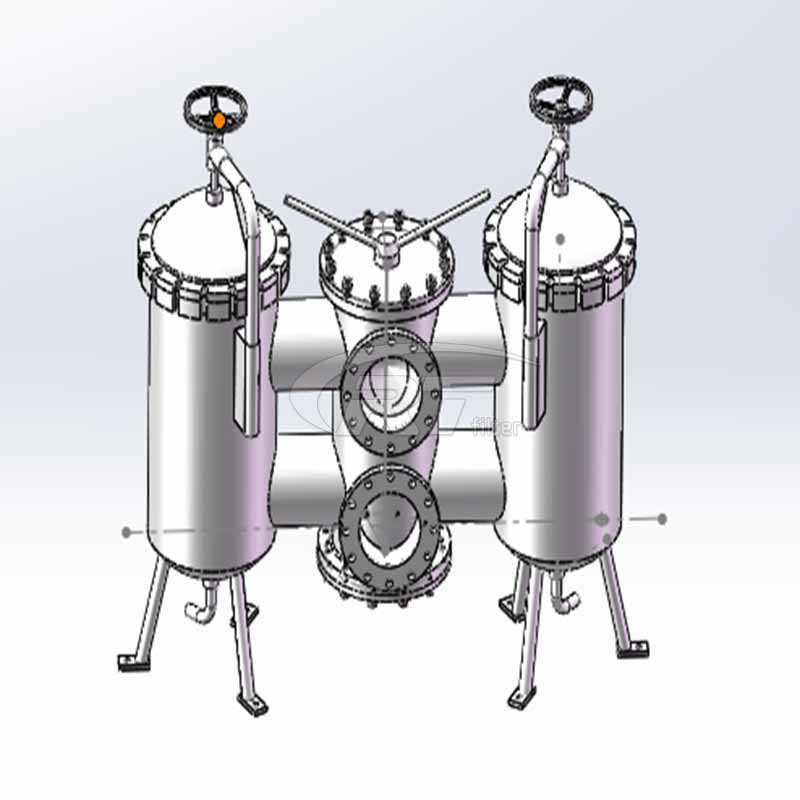

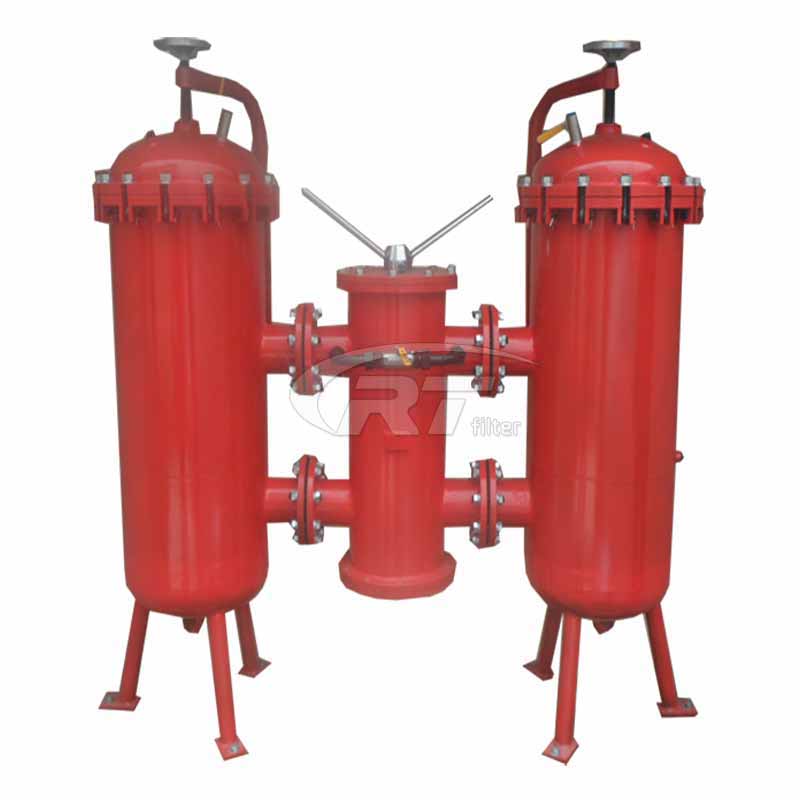

SDRLF-A1300×10P hydraulic oil filter filter housing is composed of two single bowl filters and a 2-position 6-way directional valve.It is simple in construction and easy to use.There is a by-pass valve and a contamination indicator in itfor protecting the hydraulic system safety.
And the Leemin SDRLF-A1300×10P duplex large flow rate return line filter is composed of two single bowl filters and a 2-position 6-way directional valve.It is simple in construction and easy to use.There is a by-pass valve and a contamination indicator in it,for protecting the hydraulic system safety.
The feature of SDRLF-A1300×10P filter allows continues operation even during element is changed for which is clogged by contaminants.After opening the balance valve and then turn the directional valve,the other filter begins to work;the clogged element should be changed in time.
Application:
SDRLF-A1300×10P Duplex Large Flow Rate Return Line Filter is widely used in the hydraulic systems of heavy duty mining and metallurgical machines.

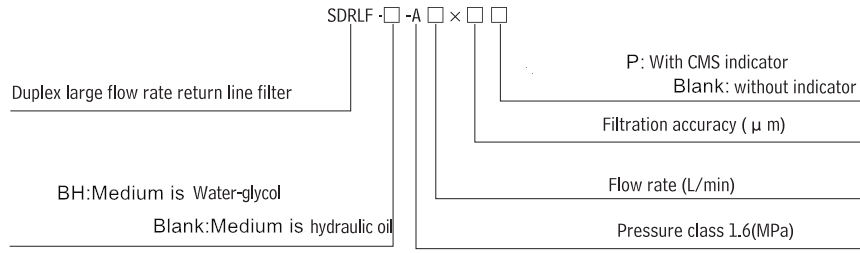

Model Code:

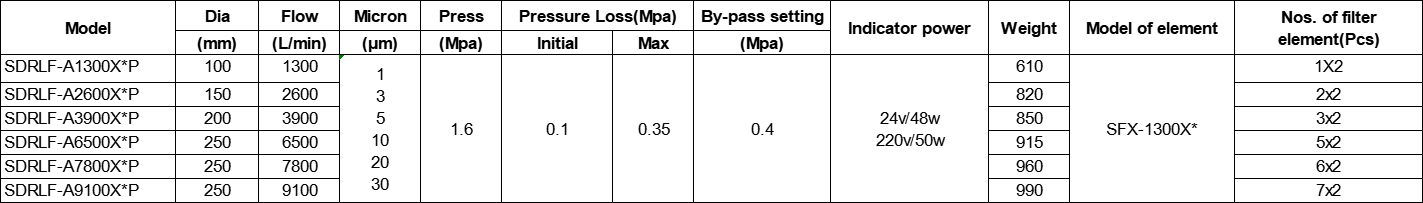

Technical Data:

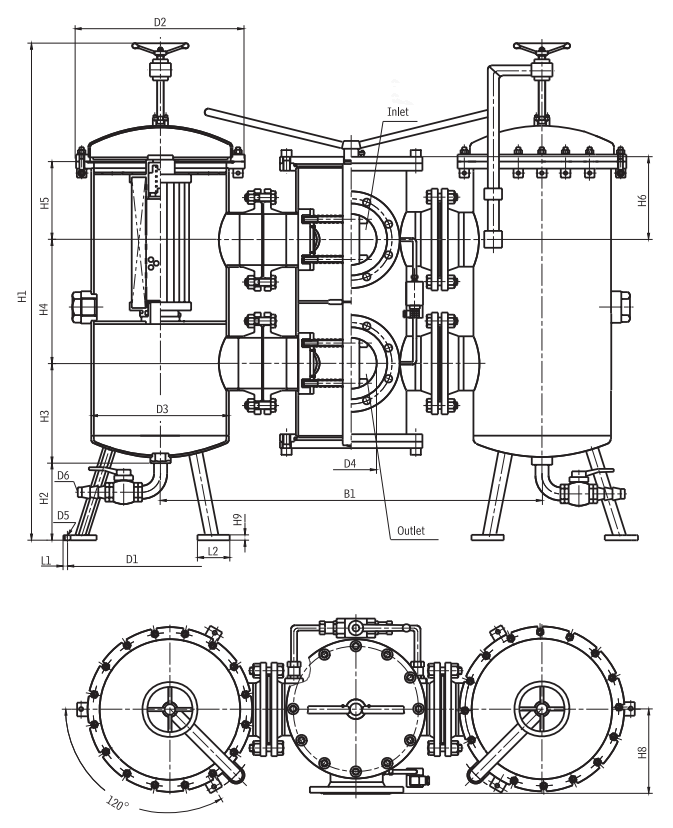

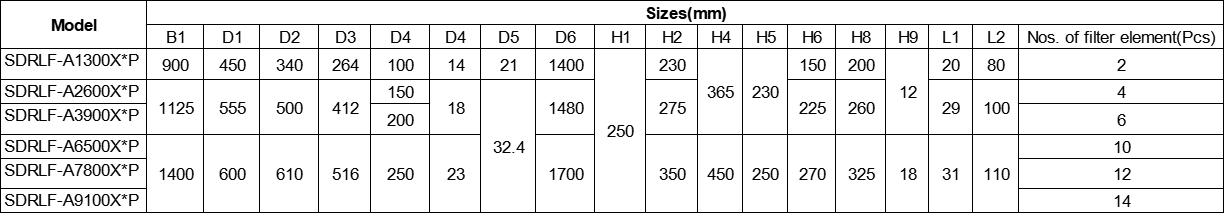

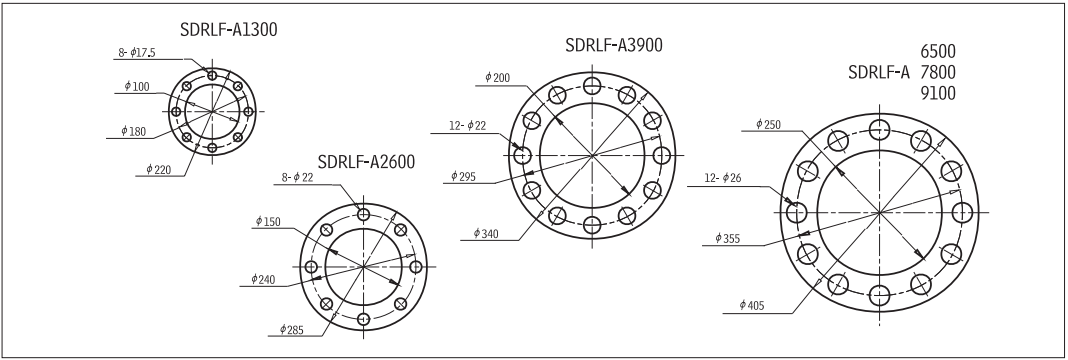

Mounting Size:
Related Specification Filters
SDRLF-A1300×10P
SDRLF-BHA1300×30P
SDRLF-A1300×20P
SDRLF-BHA1300×20P
SDRLF-A1300×30P
SDRLF-BHA1300×30P
SDRLF-A2600×10P
SDRLF-BHA2600×30P
SDRLF-A2600×20P
SDRLF-BHA2600×20P
SDRLF-A2600×30P
SDRLF-BHA2600×30P
SDRLF-A3900×10P
SDRLF-BHA3900×30P
SDRLF-A3900×20P
SDRLF-BHA3900×20P
SDRLF-A3900×30P
SDRLF-BHA3900×30P
SDRLF-A6500×10P
SDRLF-BHA6500×30P
SDRLF-A6500×20P
SDRLF-BHA6500×20P
SDRLF-A6500×30P
SDRLF-BHA6500×30P
SDRLF-A7800×10P
SDRLF-BHA7800×30P
SDRLF-A7800×20P
SDRLF-BHA7800×20P
SDRLF-A7800×30P
SDRLF-BHA7800×30P
SDRLF-A9100×10P
SDRLF-BHA9300×30P
SDRLF-A9200×20P
SDRLF-BHA9200×20P
SDRLF-A9300×30P
SDRLF-BHA9300×30P
If you have no standard filter code numbers please send us your filters specifications or samples we can customize as your requests.
