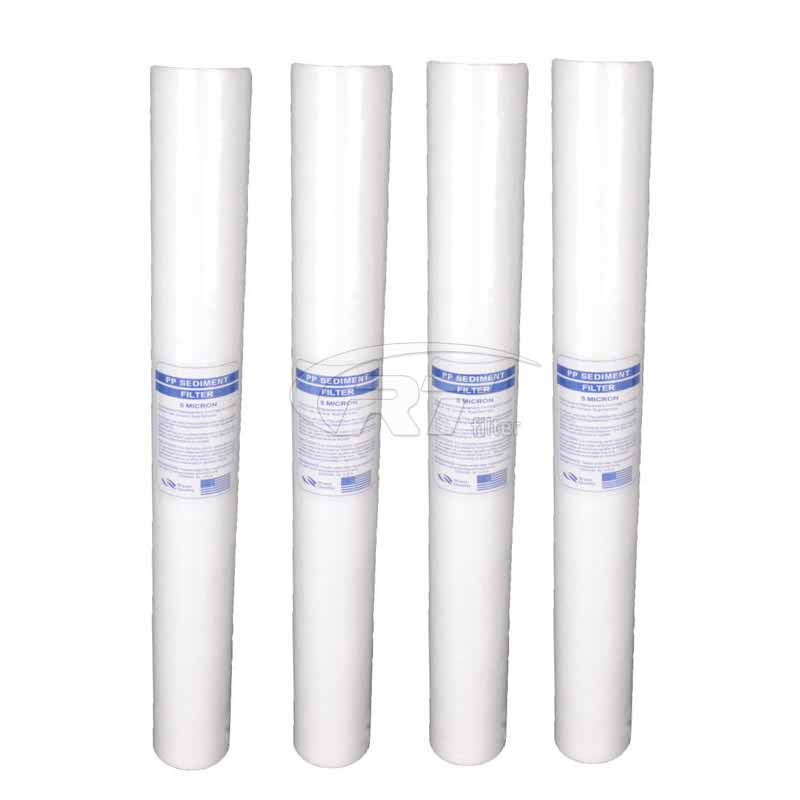

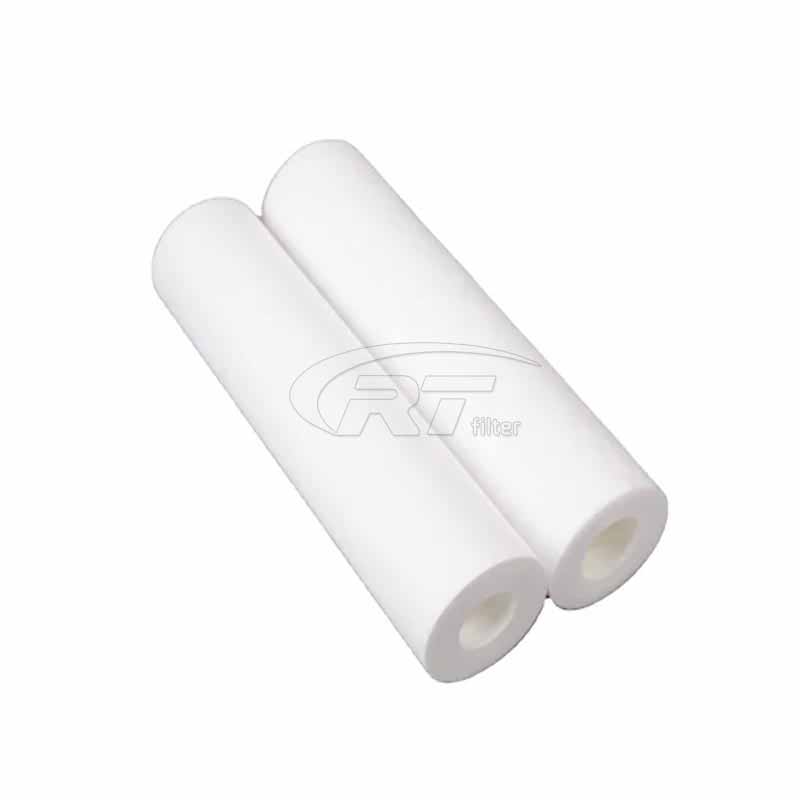

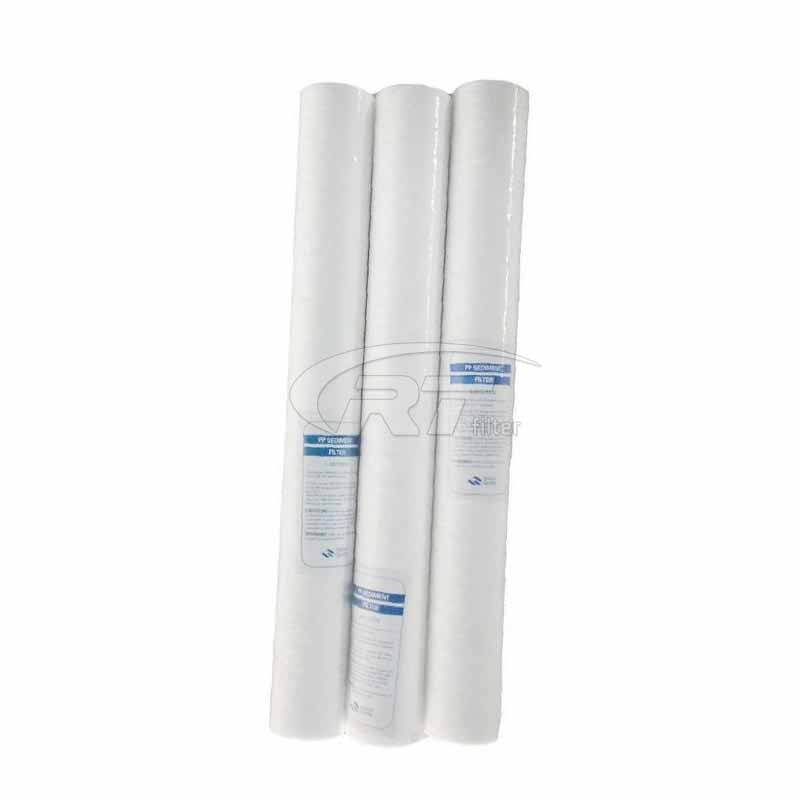

Brief Introduction: PP meltblown water filter elements,also known as PP spunbond filter elements,are made of 100% FDA approved polypropylene material,free of binders,additives and lubricants.PP melt-blown filter element has large dirt holding capacity,large flow rate,large pressure drop,good chemical resistance,no fiber shedding,long service life and good filtering effect. PP spunbond filter element is an economical classic depth filter element,widely used in liquid pre-filtration industries such as industrial wastewater treatment,electronics industry,electroplating solution,petrochemical process,chemicals and solvents,RO/ID water filtration,seawater desalination, etc.
Features: (1). The deep hole groove structure on the surface disperses the direction of water flow and reduces the resistance of water flow.The progressive density structure increases the dirt holding capacity of the filter element. (2). The surface fiber structure is strengthened, and it is not easy to cause hair loss (3). Made of PP superfine fiber, high filtration precision (4). 100% PP,high corrosion resistance (5). Formed by hot melt without adding any adhesive
Technical Specifications / Component Materials:

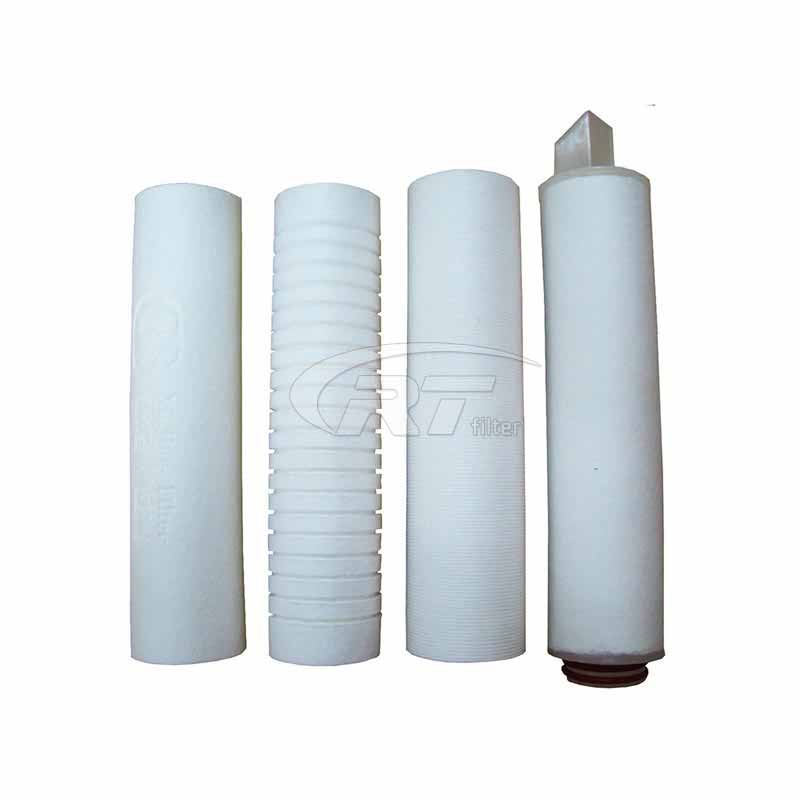

(1). Outer diameter:standard filter element 62mm,110mm,non-standard filter element can be produced according to customer requirements (2). Inner diameter:16mm,20mm,26mm,28mm,30mm,34mm,38mm,55mm,60mm,73mm,75mm,90mm,100mm,110mm (3). Length:9.75",9.87",10",20",30",40", 50",60" (4). Filter material:Polypropylene (PP) (5). End Caps:Polypropylene (6). Center pole:Polypropylene (7). Gasket:Silicone rubber,ethylene propylene rubber,nitrile rubber,fluororubber (8). Filter element surface:PP melt blown,melt blown fine grain,melt blown groove,melt blown embossed
Application： (1). Used for people's livelihood drinking water filtration RO reverse osmosis filtration (2). Used for filtration of acid-base liquid in industrial chemical process (3). Filtration of industrial water and electroplating solution (4). Filtration of imaging liquid and ink (5). Pre-filtration treatment of sterile water and ultrapure water (6). Filtration of chemical raw materials and organic solutions
Filter performance： (1). Filtration accuracy:1μm,5μm,10μm,20μm,50μm (2). Maximum operating temperature:37.8℃ (3). Maximum operating pressure:4.0 Bar (4). Due to different pore sizes,the flow rate per 10" filter element is between 3-10GPM
PP material flow characteristics:  PartnerFilter also offers a full range of replacement filter elements: Parker 3M Pall Pentair Peco Other types are available on request
|
