Filter Element
Hydraulic Oil Filter Elements,Air Compressor&ln-line Filters,air Filter element,water Filter element,contact us artnerfilter@outlook.com
|
|
|
Model: 1613 6105 00
Type: Atlas Copco Oil Compressor Filter Element
Length: 8.35 inches
Outer Diameter: 3.82 inches
Filtration: β75 = 45 µ
Bypass Valve Opening Pressure: 2.5 bar
Filter material: Fiberglass
Support Mesh Material: Corrosion Resistant Steel
Center Tube: Corrosion Resistant Steel
Series: 1613 6105 00, 1614 8747 99, 2903 7525 00, 2903 0337 00 more
|
|
The 1613 6105 00 oil filter element is made of ultra-fine glass fiber composite filter material from HV Company of the United States or pure wood pulp filter paper of Ahlstrom Company of South Korea to filter out solid particles impurities and oil deterioration in lubricating oil to protect the main engine and other running parts.
|
|
|
|
|
|
Model: 1622 1855 01
Type: Atlas Copco Air compressor Filter Cartridge
Length: 13.98 inches
Outer Diameter: 8.86 inches
Product Net Weight: 1.89 Kg
End Caps: PU
Filter material: Paper, Fiberglass
Anti-Static: Yes
Flame Retardant: Yes
Filtration Method: Pressure Filtration
Series: 1613 8720 00, 1622 1855 01, 1625 4302 93, 1030 0979 00 more
|
|
Atlas copco 1622 1855 01 air compressor filter element is installed in the compressor air filter housing. It is designed to allow sufficient air to enter the machine while removing and retaining contaminants. It is multi-layer designed to reduce the pressure difference of pollutants in the media buildup.
|
|
|
|
|
|
Model: 2903 7525 00
Type: Atlas copco oil compressor Filter
Length: 8.37 inches
Outer Diameter: 3.7 inches
Filtration: β 1000 = 10 µ
Bypass Valve Opening Pressure: 2.5 bar
Seal: Viton
Filter material: Fiberglass, Paper
O-ring Seal: Ethylene Propylene Rubber
Center Tube: Corrosion Resistant Steel
Support Mesh Material: Corrosion Resistant Steel
Series:1613 6105 00, 1614 8747 99, 2903 7525 00, 2903 0337 00 more
|
|
PartnerFilter manufactures 2903 7525 00 spin-on oil filter element with ultra-fine glass fiber composite filter material from HV Company of the United States or pure wood pulp filter paper of Ahlstrom Company of South Korea to filter out solid particlesimpurities and oil deterioration in lubricating oil to protect the main engine and other running parts.
|
|
|
|
|
|
Model: 1614-8747-99
Type: Atlas Copco Oil Filter
Length: 5.59 inches
Outer Diameter: 3.82 inches
Filtration: β 1000 = 23 µ
Bypass Valve Opening Pressure: 2.5 bar
Seal: Viton
Filter material: Fiberglass, Paper
O-ring Seal: Ethylene Propylene Rubber
Center Tube: Corrosion Resistant Steel
Support Mesh Material: Corrosion Resistant Steel
Series: 1613-6105-00, 1614-8747-99, 2903-7525-00, 2903-0337-00 more
|
|
1614-8747-99 compressor oil filter element is used to filter out solid particles in lubricating oil and protect the main engine and other running parts. The bottom of the filter element is designed with a grooved oil return pipe that uses siphon to return to the lubrication system, making the oil discharged from the compressor purer and purer compressed air.
|
|
|
|
|
|

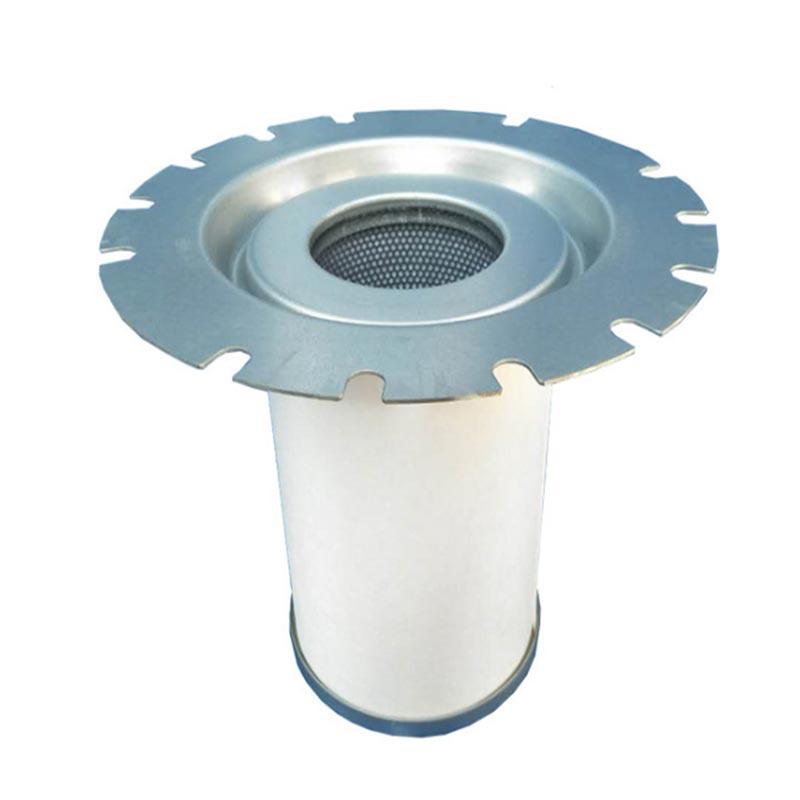

Model: 2901056622/1622 3556 00
Type: Atlas Copco oil separator
Seal: Viton
Sizes:OD8.58"*L10.87"
Filter material: Fiberglass
Product Net Weight: 4.32 Kg
End Caps: Corrosion Resistant Steel
Center Tube: Corrosion Resistant Steel
Main Application: Atlass Copco GA55-75-90
Series:1625 7754 00, 1625 4 811 00, 2202 9294 50, 1625 7036 00 more
|
|
2901056622 oil separator is made of ultra-fine glass fiber composite filter material from HV Company and Lydall Company of the United States.The mist oil and gas in the compressed air can be almost completely filtered out when it passes through the oil separator.
|
|
|
|
|
|
Brand:PartnerFilter

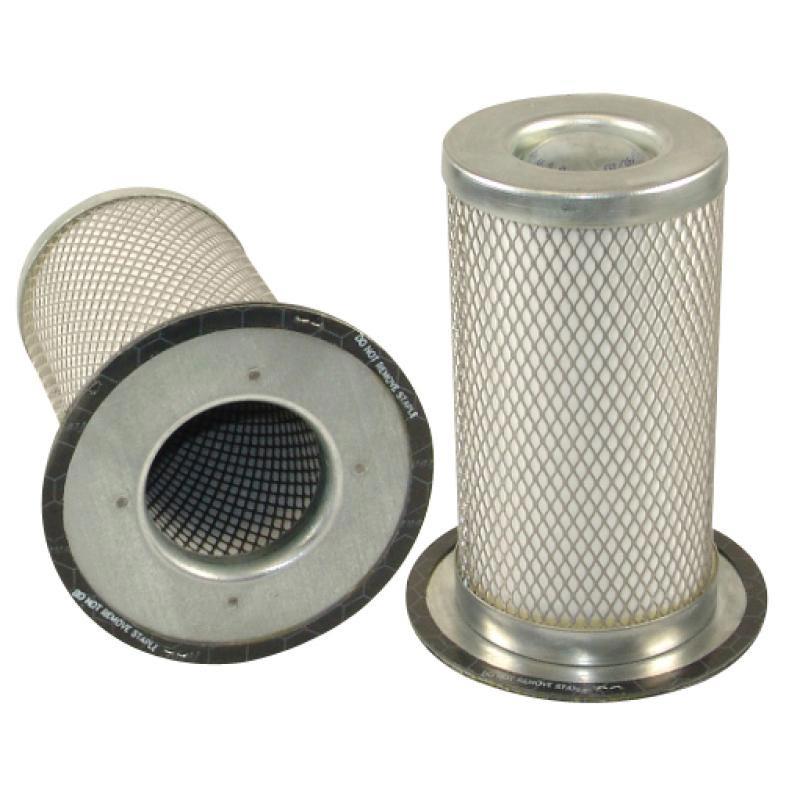

Model: 250034-112
Type: Compressor Oil Air Separator
Seal: Viton
Sizes: OD6.73"*L6.89"
Filter material: Fiberglass
Product Net Weight: 10.47Kg
End Caps: Corrosion Resistant Steel
Center Tube: Corrosion Resistant Steel
Main Application: Sullair LS10-25
Series: 250034-114, 250034-116/408167-005, 250042-862/408167-011 more
|
|
250034-112 is used to clean oil and gas, filter solid particles, provide clean oil, protect mechanical system equipment, and improve overall operating efficiency.
|
|
|
|
|
|
Brand:PartnerFilter
Model: 23566938
Type: Ingersoll Rand Screw Air Oil Compressor
Seal: Viton
Sizes: OD10.83”*L18.19”
Filter material: Fiberglass
Product Net Weight: 8.61Kg
End Caps: Corrosion Resistant Steel
Center Tube: Corrosion Resistant Steel
Series: 54595442, 39831885, 39831888, 42545368 more
|
|
23566938 ingersoll rand oil gas separator adopts the ultrafine glass fiber produced by HV or Lydall.23566938 is designed to remove at least 99.9% of the oil and gas mixture from compressed air.
|
|
|
|
|
|
Model:11427474
Length: 20.31 inches
Outer Diameter: 15.67 inches
Package Weight: 24.3Kg
Seal: Viton
Filter material: Fiberglass
End Caps: Corrosion Resistant Steel
Center Tube: Corrosion Resistant Steel
Main Application: Compair L200-L250
Series: 10882574, 11427274, 11427474, 98262/194 more
|
|
11427474 is mainly installed on the Compair screw air compressor for oil and gas separation.It is an air compressor filter element produced and designed with imported filter materials.
|
|
|
|
|
|

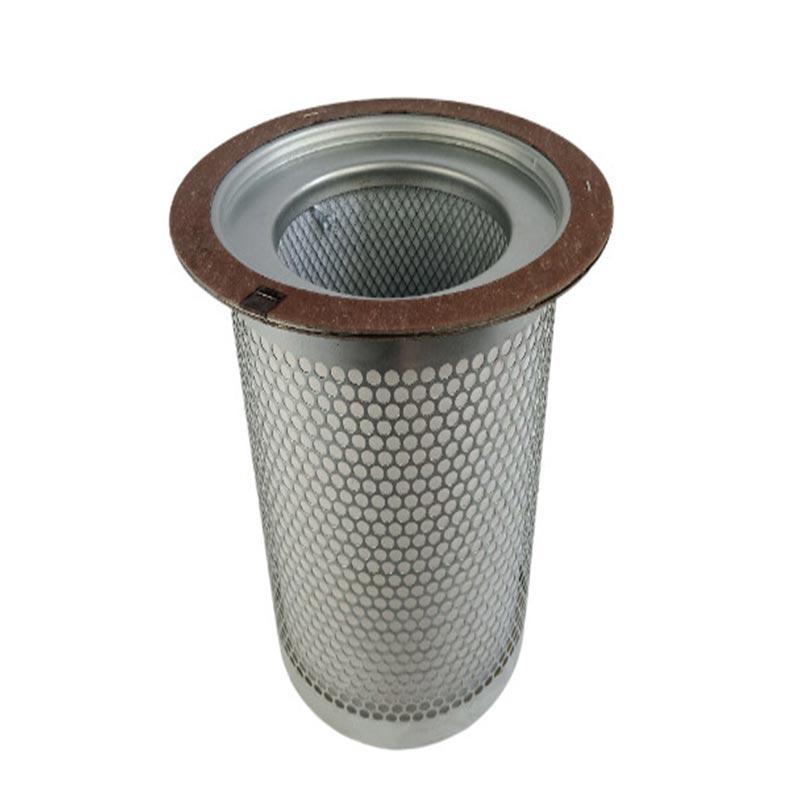

Model: 1625-7754-00
Filter Type: Atlas Copco Air Oil Separation Filter
Filter material: Fiberglass
Seal: Viton
O-ring Seal: Ethylene Propylene Rubber
End Caps: Corrosion Resistant Steel
Center Tube: Corrosion Resistant Steel
Main Application: Atlas Copco GA30-37-45-55-75 V Series
Series:1625-7754-00, 1625-4811-00, 2202-9294-50, 1625-7036-00 more
|
|
1625-7754-00 atlas copco air oil compressor filter is installed at the rear end of the air compressor. Its main function is to separate large and small oil droplets entrained in the compressed air of the air compressor. The manufacturing material uses a micron-grade glass fiber filter layer to filter oil droplets (suspended oil particles)
|
|
|
|
|
|
