Filter Element
Hydraulic Oil Filter Elements,Air Compressor&ln-line Filters,air Filter element,water Filter element,contact us artnerfilter@outlook.com
|
|
|
Brand:PartnerFilter
P/N.:P124866
Sizes:219.6x457.2mm
Shape:Round
Media type:Safety
Maximum temperature:82°C (180°F)
Series:P030904-000-111P030915-000-111 more
|
|
PartnerFilter makes the replacement of Donaldson safety air filter cartridge P124866 acts as a backup to the primary filter and to protect the engine during primary filter servicing.
|
|
|
|
|
|
Brand:PartnerFilter
Model: 0050S125W
Type: Oil Filter Cartridge
Bypass: No
Micron: 125μm
Collapse:14.5psid
Filter material: Wire Mesh
Sizes: OD2.52”*L5.47”
End Caps: Aluminum
Center Tube: Corrosion Resistant Steel
Series: 0015 S 075 W /-B0.2, 0015 S 125 W more
|
|
PartnerFilter makes the Hydac suction oil filter strainer 0050S125W replacementand the filter is designed to meet or exceed the quality and performance of original Hydac filtersensuring superior filtration performance and long-lasting durability.
|
|
|
|
|
|
Brand:PartnerFilter
Model:BW30HR-440i
Sizes:OD7.9”*L40.5”
Max. Element Pressure Drop:15 psig (1.0 bar)
Recommended max. operating temp.:113°F (45°C)
Max. Operating Pressure:600 psig (41 bar)
Series:BW30PRO-400/34i,BW30HRLE-440 more
|
|

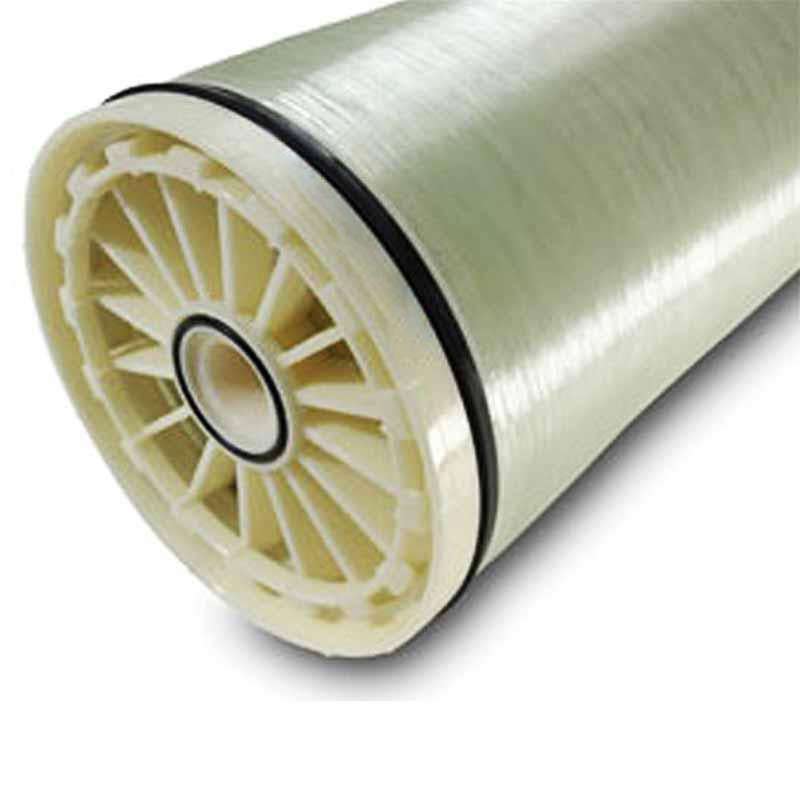

BW30HR-440i Filmtec RO Membrane Element is used in water treatment systems to remove bacteria, pathogens, refractory organic matter and other harmful substances in the water, ensuring higher water quality, safety, cleanliness and environmental protection. BW30HR-440i Filmtec Reverse Osmosis Membrane is a brackish water reverse osmosis (RO) membrane material element.
|
|
|
|
|
|
Brand:PartnerFilter
Model:K3.1370-76
Micron:10μm
By-pass:Yes
Filter material:Fiberglass
Sizes:OD147*L707mm
End Caps:Steel
Center Tube:Corrosion Resistant Steel
Series:K3.1034-52,K3.1370-66 more
|
|
The hydraulic oil filter element K3.1370-76 is used as an oil return filter in the hydraulic system to filter out the parts in the hydraulic system.It is installed on the top of the tank,the cylinder is partially immersed in the tank,and the valves are arranged on the side.The diffuser and filter element contaminate and block the transmitter and other devices.
|
|
|
|
|
|
Brand:PartnerFilter
Model: CAA56-5
Type: Aviation Fuel Coalescer
Sizes: OD6”*L56¼”
Mounting Style: Rod
Recommended max. operating temp: 240°F (115 ºC)
Filter material: Fiberglass
End caps: Metal
Seal: Viton
Series: CAA43-5,CAA38-5 more
|
|
CAA56-5 glass fiber agglomeration filter is made of high density gradient glass fiber,in order to reduce the damage and loss of the design of the monolithic monolithic tube structure,the surface of the filter core by hydrophobic,oleophobic treatment,can meet the requirements of various precision levels.
|
|
|
|
|
|
Brand:PartnerFilter
Model: 4900155201-LE9019
Type: Air Oil Separator
Filtration: 0.5-200micron
Max Pressure: 0.6MPa
Material: Activated Carbon
Series: 4900155201,LE9019 more
|
|
4900155201-LE9019 oil mist separation filter is use to handle oil mist particles in the air, belongs to the category of coalescence separation filter, by a variety of composite materials through special processing, with hydrophilic. With excellent performance and accuracy in separating oil mist particles as small as 0.01 micron.
|
|
|
|
|
|
Brand:PartnerFilter
Model: FG-230-7
Type: Aviation Fuel Monitoring Instrument Cartridge Filter
Size: Standard
Weight (KG): 1
Temperature Range: -45ºC~100ºC
Effect: Fuel Cleaning And Filtering
Series: FG-210-7,FG-215-7,FG-220-7,FG-225-7,FG-230-7 more
|
|
FG-230-7 facet aviation fuel filter is used to absorbs atomized and emulsified water while removing ultrafine solids And in case of local blockage, turn off the fuel flow in the system Made from various absorbent media, the instrument obtains clean and dry fuel, thereby protecting our instrument.
|
|
|
|
|
|
Brand:PartnerFilter
Model: I-628MMTB
Type: Coalescer Cartridge for Aviation
Length: 28 inches
Inside Diameter: 3.5 inches
Outside Diameter: 6 inches
Seal: Buna-N
Construction: Fiberglass
Series: I-6220TB,I-6283TB,1-638C5TB,I-633MMTB,I-6286TB,I-62887TB more
|
|
I-628MMTB parker velcon coalescer cartridge is used to remove cost-effective particles and emulsified water from hydrocarbon fluids, as the first stage filter element for filters/separators. Its performance has been verified on site, using a single unit structure to reduce the number of gasket seals and achieve the effect of improving overall reliability, making it very durable.
|
|
|
|
|
|
Brand:PartnerFilter
Model: SO-424V5
Type: Oil Separator
Length: 24 inches
Outside Diameter: 4.6 inches
Inside Diameter: 3.5 inches
Seal Material: Buna-N
Filter Media: Teflon
End Cap: Blind
Series:SO-324V5,SO-633VA5,SO-613GS,SO-633VASN,SO-630PV5,SO-609V,SO-323V5 more
|
|
The SO-424V5 seperator carrier filter is used as the second stage of the filter/separator container to remove agglomerated water droplets generated by the first stage filter cartridge, but it can smoothly pass through fluids in the form of hydrocarbons. Design pits to allow water droplets to settle into the pits and isolate infiltration downstream.
|
|
|
|
|
|
