Filter Element

Hydraulic Oil Filter Elements,Air Compressor&ln-line Filters,air Filter element,water Filter element,contact us artnerfilter@outlook.com

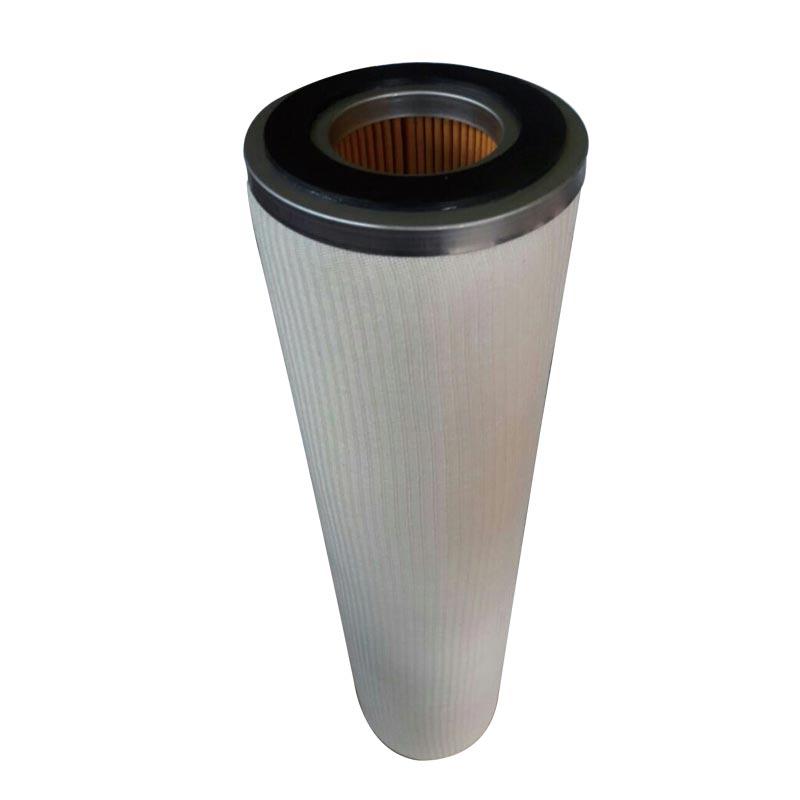

CAA43-5SB  Facet coalescer cartridge Water Removal from Oil
CAA43-5SB Facet coalescer cartridge Water Removal from Oil

Brand: PartnerFilter

Model: CAA43-5SB

Type: Facet Coalescer Filter Cartridge

Sizes: OD6”*L45”

Seal: Viton

Filter material: Fiberglass

Mounting style: Screw base

End caps: Injection Moldedglass-filled Nylon

Series:CAA33,CAA28,CAA33,CAA38,CAA11,CAA14,CAA56 series more

Facet CAA43-5SB high flow coalescing filter cartridges are used to remove ultrafine solids and enhance water separation from jet fuel. The main advantage is balancing fluid flow and structural strength. Manufactured from a single piece of construction using various combinations of media, precisely arranged in multiple layers and pleats, wrapped around a coated perforated metal center tube, the coalescing cartridge is guaranteed for optimal performance.
ST630FE-5 Facet Teflon material separator cartridge
ST630FE-5 Facet Teflon material separator cartridge

Brand:PartnerFilter

Model: ST630FE-5

Type: Separator Cartridge

Seal: Buna-N

Filter material: Teflon

Sizes: OD6”*L30”

Flow direction: Outside to in

Max.operating temp.: 240°F (115 ° C)

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: ST630FE, ST633FB, ST633FD, ST636FB, ST636FD Series more

Facet ST630FE-5 separator uses teflon coated screen wrapped around an epoxy coated metal shelllock-seam foldedthen adhesive bonded to metal end caps with gaskets.
<b>SS644FD-5 FACET Synthetic separator cartridge</b>
SS644FD-5 FACET Synthetic separator cartridge

Brand:PartnerFilter

Model:SS644FD-5

Filter Type: Separator Cartridge

Seal: Buna-N

Filter material: Teflon Synthetic

Sizes:OD6”*L44”

Flow direction: Outside to in

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: SS644FE-5, SS644FF-5, SS648FD-5, SS648FF-5, SS656FB-5, SS656FF-5 more

PartnerFilter makes different types coalescer and separator with synthetic and teflon materialthe Facet SS644FD-5 synthetic separator cartridge feature a specially developed treated hydrophobic media. This media provides improved separation of fine water drops compared to standard Teflon screen. An ultrasonically seamed tube of the synthetic screen is placed around an epoxy coated metal shell then adhesive bonded to metal end caps with gaskets.
I-62887TB Coalescer Cartridge for Water Removal
I-62887TB Coalescer Cartridge for Water Removal

Brand:

Brand:PartnerFilter

Model: I-62887TB

Filter Type: Coalescer Cartridge Filter

Seal: Buna-N

Length: 28.7 inches

Inside Diameter: 3.5 inches

Outside Diameter: 6 inches

Filter material: Fiberglass

End Cap Configuration: Threaded Base

Pressure differential rating: 75psid

Max.operating temp: 150-160°F (66-71°C)

Series: I62281, I62281TB, I62283, I62283TB, I62285TB, I62287 more

I-62887TB coalescer cartridge uses a multilayer pleated medium designed to provide superior on-site fouling capacity and has an efficiency of 0.4 micron.It’s a single-unit coalescer elementprovided with a threaded base and open endsas well as a combination of fiberglass media and pleated media.
SO-614PLF3 Parker Velcon Separator Cartridges Filter
SO-614PLF3 Parker Velcon Separator Cartridges Filter

Brand: PartnerFilter

Model: SO-614PLF3

Filter Type: Separator Cartridge

Seal: Buna-N

Sizes: OD6”*L14.5”

Max. Temp: 200°F

Construction Type: CelluloseDouble Open End

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: SO-611C, SO-611PLF3, SO-614C, SO-614PLF, SO-616C, SO-616PLF, SO-616PLF3 more

The SO-614PLF3 separator element is used as the second stage of the filter/separator container.Its sole function is to repel coalesce droplets produced by the first stage filter element while allowing the passage of hydrocarbon fluids.Water droplets sink into the filter/separator tank and are not carried downstream.
<b>LCS2B1AH Oil and Gas Industrial Liquid and Gas Coalescer</b>
LCS2B1AH Oil and Gas Industrial Liquid and Gas Coalescer

Brand:PartnerFilter

Model:LCS2B1AH

Max. Operating Temp.:150 °F

Change out pressure drop:1.03 bar

Max. differential pressure rating:3.5 bar

Separation level:≤15ppm free water content (via AquaGlo detection)

Sizes:OD3.75*L20 in

O-Ring Material:Fluoropolymer Elastomer

Center Tube:Stainless Steel

End Cap:Epoxy Potted Stainless Steel

Series:LCS4HEHH LCS4HEAH LCS2HEHH LCS2HEAH LCS06HEHH LCS06HEAH LCS2H1AH20 more

The LCS2B1AH Liquid/Gas Coaleser removes liquids and solids from high flow gas streams that contain high concent rations of liquids.
<b>FG536 PECO coalescer filter cartridge replacement</b>
FG536 PECO coalescer filter cartridge replacement

Brand:PartnerFilter

Model: FG536

Filter Type: Coalescer Filter Cartridge

Seal: Buna-n

Media: Phenolic Impregnated Seamless Fiberglass

Out cover: cotton

Sizes: OD5.5”*L36”

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series: FG-12, FG-24, FG-36, FG-72, FG-312 more

FG536 PECO coalescer filter cartridge is used to remove particles and droplets from air/gas streams. It can also be used to dry gas filter vessels. Pollutants that can be treated include sludge, wax gel, asphaltene, etc. In addition, the FG536 filter separator can significantly improve compressor performance while reducing operating costs.
1625 7036 00 Atlas Copco Air Oil Separator filter cartridge
1625 7036 00 Atlas Copco Air Oil Separator filter cartridge

Brand:PartnerFilter

Model: 1625 7036 00

Type: Atlas Copco Air Oil Separator Filter

Filter material: Fiberglass

Sizes: OD5.28"*L7.24"

End Caps: Corrosion Resistant Steel

Center Tube: Corrosion Resistant Steel

Series:1625 7754 00, 1625 4811 00, 2901 0566 22, 2202 9294 50 more

As an air compressor filter elementthe 1625 7036 00 air and oil separator is an important part of a screw compressor.It is made of American high-efficiency glass fiberwhich can filter and intercept a large amount of oil mist and impurities through specific physical principles.
1613 8720 00 Atlas Copco Air Filter Element Air Compressor
1613 8720 00 Atlas Copco Air Filter Element Air Compressor

Brand:PartnerFilter

Model: 1613 8720 00

Type: Atlas Copco Compressor Oil Air Separator

Filter material: Paper

Sizes: OD4.65”*L5.28”

Series: 1613 9001 00,1613 8720 00,1619 1269 00,2903 1012 00 more

1613 8720 00 atlas copco is an air filter element installed in the compressor air filter housingit is designed to allow enough air into the machine while removing and holding contaminants.
