Filter Element
Hydraulic Oil Filter Elements,Air Compressor&ln-line Filters,air Filter element,water Filter element,contact us artnerfilter@outlook.com
|
|
|
Model: XP-G1-6200V
Sizes: OD6.3”*L60.5”
Filter material: Fiberglass
End Caps Material: Nylon
Body Material: Tin-Plated Steel
Seal: Viton
Micron Rating: 20µm
Flow Direction: Inside-to-Outside
Series: XP-G1-6300E, XP-G1-6400E, XP-G1-6700E more
|
|
XP-G1-6200V high flow liquid filter element is a large 6” diameter cartridge designed to filter liquids from the inside to outside.This design has several advantages.It allows high flow rates to be achieved in a single cartridgethus requiring fewer filters and a 3 "diameter design compared to a traditional 2.5" cartridge.
|
|
|
|
|
|
Model:ALN05-60B
Sizes:OD6.75”*L60”
Seal:Buna-N
Micron:5μm
End Caps:Nylon
Center Tube:PVC core
Flow direction:Outside to inside
Filter material:Polypropylene micro-fibers
Series:ALN01-60B ALN10-60B AL05-60B more
|
|
ALN05-60B Aqualine Pentair high flow filter cartridge is a new product developed by PartnerFilter.It has a 6”/152mm large diameter and corelesssingle-open-ended with an outside to inside flow pattern.The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required.The long service life and high flow rate result in low investment and less manpower in many applications.
|
|
|
|
|
|
Model: HF40PP001A01
Sizes: OD6”*L40”
Seal: Silicone
Micron: 1μm
Flow: 80m³/h
Max Temperature: 71°C
Filter material: Polypropylene
Flow direction: Outside to inside
Series: HF40PP001B01 HF40PP001C01 HF40PP001D01 more
|
|
HF40PP001A01 high flow filter element is designed with the most advanced technology to optimize performance and effluent quality to ensure customer satisfaction.The composite radial fold design maximizes the available surface area of each filter.
|
|
|
|
|
|
Model: RFP050-40NPX-L
Filer Type: Parker Water Filter
Length: 40.0 inches
Innerside Diameter: 3.5 inches
Outside Diameter: 6.0 inches
Micron: 40 μm
Flow: 1325 lpm
Filter material:PolypropyleneGlass Fiber
Seal: EPDM(Standard) Buna-NSiliconeViton
Series: RFP010-40NPX-L, RFP100-40NPX-L, RFP500-40NPX-L, RMG100-60VPP more
|
|
RFP050-40NPX-L handles flows of up to 300gpm/70m3/hr in a single filter and is ideal for applications requiring absolute particle removalsignificantly reduces the capital investment cost and shell diameter ultimately saving valuable plant space and labor replacement costs.
|
|
|
|
|
|
Brand:PartnerFilter
Micron: 0.1μm 0.22μm 0.45μm 1μm 5μm 10μm
Length: 10″ 20″ 30″ 40″
Filter Type: High Flow Water Filter
Center Tube:Polypropylene
End Caps:Polypropylene
Filter Construction: Pleated
Filtration Media: Polypropylene
O-ring Seal: Ethylene Propylene Rubber
Application: Food and Beverage Industry
Seal:EPDM(Standard) Buna-N SiliconeViton
Filter material:PP PESP TFEN6 PVDF membrane
|
|
The microporous wrinkled membrane filter element is composed of high-quality membrane, polypropylene support layer and components. The capsule undergoes 100% integrity testing during the production process and has full batch material traceability.
|
|
|
|
|
|
Micron: 0.1μm 0.22μm 0.45μm 1μm 5μm 10μm
Length: 9.75″ 9.87″ 10″ 20″ 30″ 40″
End Caps: Polypropylene/no
Center Tube: Polypropylene/no
O-ring Seal: Ethylene Propylene Rubber
Application: Food and Beverage Industry
Filter material: Polypropylene/absorbent cotton
Seal: Siliconeethylene propylene, nitrile rubber
Filter element surface: PP melt blownfine graingrooveembossed
|
|

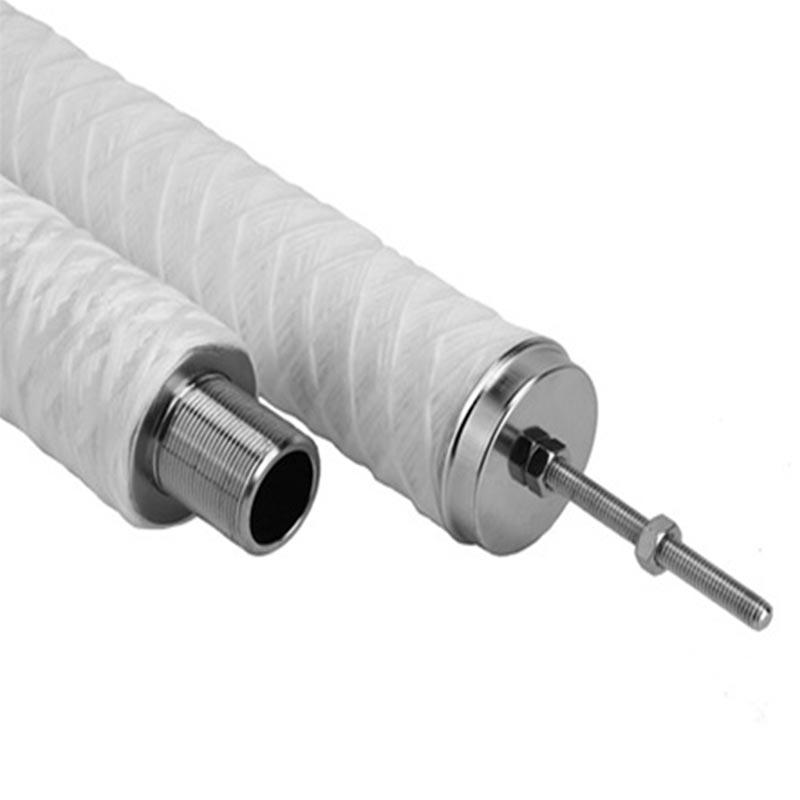

The wire-wound filter element is made of textile fiber roving which is tightly wound on the porous skeleton according to a specific process to form a honeycomb structure with a sparse outside and a dense inside.It has very good filtration characteristics and can effectively remove suspended solidsrustparticles etc. in the fluid.
|
|
|
|
|
|
Filter Type: PP melt-blow Filter Element
Filter material: Polypropylene
Sizes: L9.75″9.87″10″20″30″40″
End Caps: Polypropylene/no
Center Tube: Polypropylene/no
Seal: Siliconeethylene propylenefluororubber and nitrile rubber
Filter element surface: PP melt blownfine graingrooveembossed
|
|
PP meltblown filter elementsalso known as PP spunbond filter elementsare made of 100% FDA approved polypropylene materialfree of bindersadditives and lubricants.PP melt-blown filter element has large dirt holding capacitylarge flow ratelarge pressure dropgood chemical resistanceno fiber sheddinglong service life and good filtering effect.
|
|
|
|
|
|
Length:60″ 70″ 80″ 100″
Filtration Rating: 1μm 3μm 5μm 10μm 20μm 50μm 100μm
Filter material: PP Cotton Fiberglass
Seal: Silicone EPDM Viton NBR
End Caps: Polypropylene, Stainless steel
Center Tube: Polypropylene, Stainless steel
O-ring Seal: Ethylene Propylene Rubber
Application: Food and Beverage Industry
|
|
The 70" special condensate water treatment filter element for power plant is a filter element that can be washed repeatedly and is specially designed for the filtration of condensate water in power plants.
|
|
|
|
|
|
Sizes: L10″ 20″ 30″ 40″
Filter Type: Activated carbon filter
Filter material: Activated carbon
Seal: Silicone EPDM Viton NBR
End Caps: Polypropylene
Center Tube: Polypropylene
O-ring Seal: Ethylene Propylene Rubber
Application: Food and Beverage Industry
Filtration Rating: 1μm 3μm 5μm 10μm 20μm 50μm 100μm
|
|

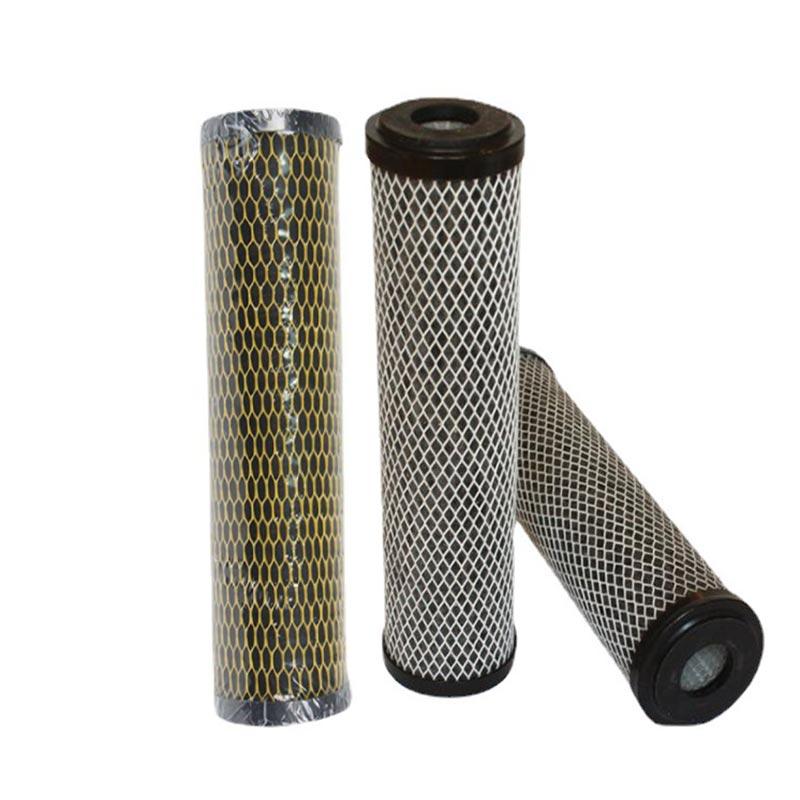

The activated carbon water filter element is made of high-quality fruit shell carbon and coal-based activated carbon as raw materialssupplemented by adhesivesusing high-tech technologyand processed by a special process.It integrates adsorptionfiltrationinterceptionand catalysisand can effectively remove organic matterresidual chlorine and other radioactive substances in waterand has the effect of decolorization and odor removal.
|
|
|
|
|
|
